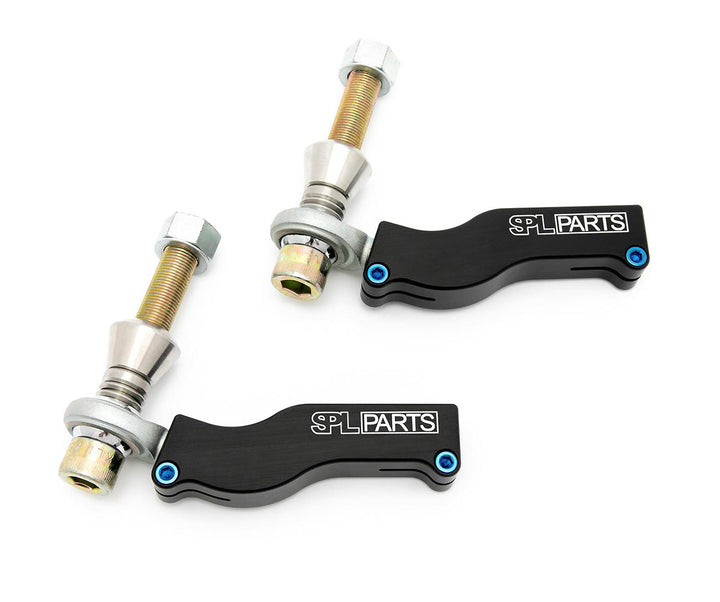

SPL Bumpsteer Adjustable Tie Rod Ends – Toyota GR Supra A90 / BMW G2x / G42 / G8x

OVERVIEW

SPL Parts front Tie Rod Ends (TRE) let the tie rod end pivot be relocated, correcting bump steer created by modified caster or lower arm geometry and cutting lap times as a result. On cars that have been lowered significantly, relocating the pivot point also keeps the tie rod end from binding, which prevents the inner tie rods from breaking or bending under race conditions.

Custom CNC machined 6061-T6 billet aluminum curved turnbuckles maximize articulation and allow full droop travel, while low friction Teflon lined FK heim joints handle the loads. Stainless steel bump steer spacers in 1/4" and 1/8" thicknesses allow precise adjustment, and their tapered ends provide additional misalignment capability.

SPECS

• Relocatable tie rod end pivot for bump steer correction
• ASTM A574 socket head cap bolts for maximum articulation, minimum tensile strength 170,000 psi
• Custom CNC machined 6061-T6 billet aluminum curved turnbuckles for maximum articulation and full droop travel
• Low friction Teflon lined FK heim joints / rod ends
• Stainless steel bump steer spacers in 1/4" and 1/8" thicknesses, tapered for extra misalignment
• Blue anodized titanium socket head cap screws for light weight and robust clamp force
• Sold as a pair (one pair per vehicle)
• Made in the USA

PARTS INCLUDED

• Two SPL Parts bumpsteer adjustable tie rod ends with billet aluminum turnbuckles and FK rod ends
• Stainless steel bump steer spacers, 1/4" and 1/8"
• Blue anodized titanium socket head cap screws
• Complete kit as supplied by SPL Parts; see the installation instructions for the full bill of materials

TECH RESOURCES

Additional Parts Required

• Four-wheel alignment after installation — mandatory. Front toe must be reset once the tie rod ends are fitted.
• Professional installation is recommended; tie rod ends are a safety-critical steering component.
• Corner weighting is recommended for track use.
• Bump steer is measured against front lower control arm and caster geometry, so these are most useful alongside adjustable front arms such as the SPL Front Lower Control Arms Toyota Supra GR A90 / BMW Z4 G29.

Installation

• SPL Parts SPL TRE G29 bumpsteer adjustable tie rod ends — installation instructions (PDF)

Notes

• SPL splits this part across two catalog numbers: SPL TRE G29 covers the Supra A90 and Z4 G29, while the BMW G8X, G2X and G42 applications are cataloged as SPL TRE G8X and require the larger 16 mm tie rod fitted to Sport Adaptive Steering (option 2LV) cars. Confirm which version your car needs with Speed Logic before ordering. SPL does not publish a downloadable install PDF for the G8X variant, so only the G29 document is linked above.

PART NUMBER

• SPL TRE G29 — Toyota GR Supra A90 and BMW Z4 G29
• SPL TRE G8X — SPL's catalog number for the BMW G8X, G2X and G42 applications listed below
