SPL Rear Traction Links – BMW M3 / M4 (F8x / G8x)

OVERVIEW

SPL Parts Rear Traction Links (RTR) for the BMW F8X and G8X M2, M3 and M4 increase stability and response by eliminating bushing deflection under hard acceleration and braking, and help reduce wheel hop on hard launches. Because the links are length adjustable, rear bumpsteer and anti-squat characteristics can be fine tuned. These arms are designed for use in high performance street and race vehicles.

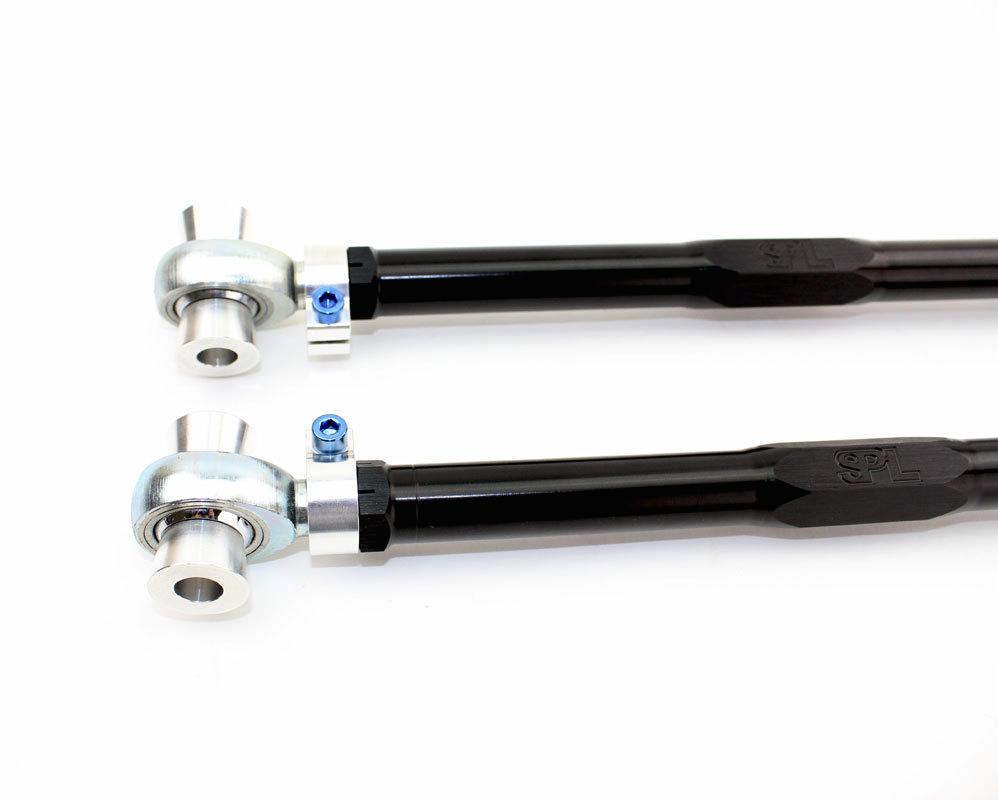

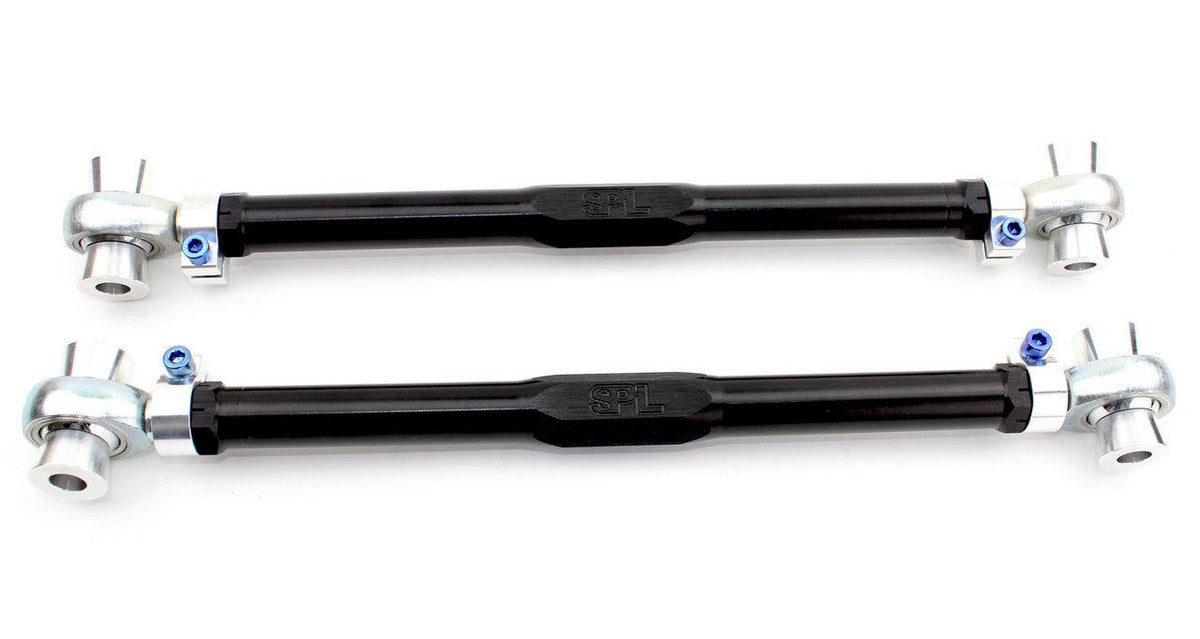

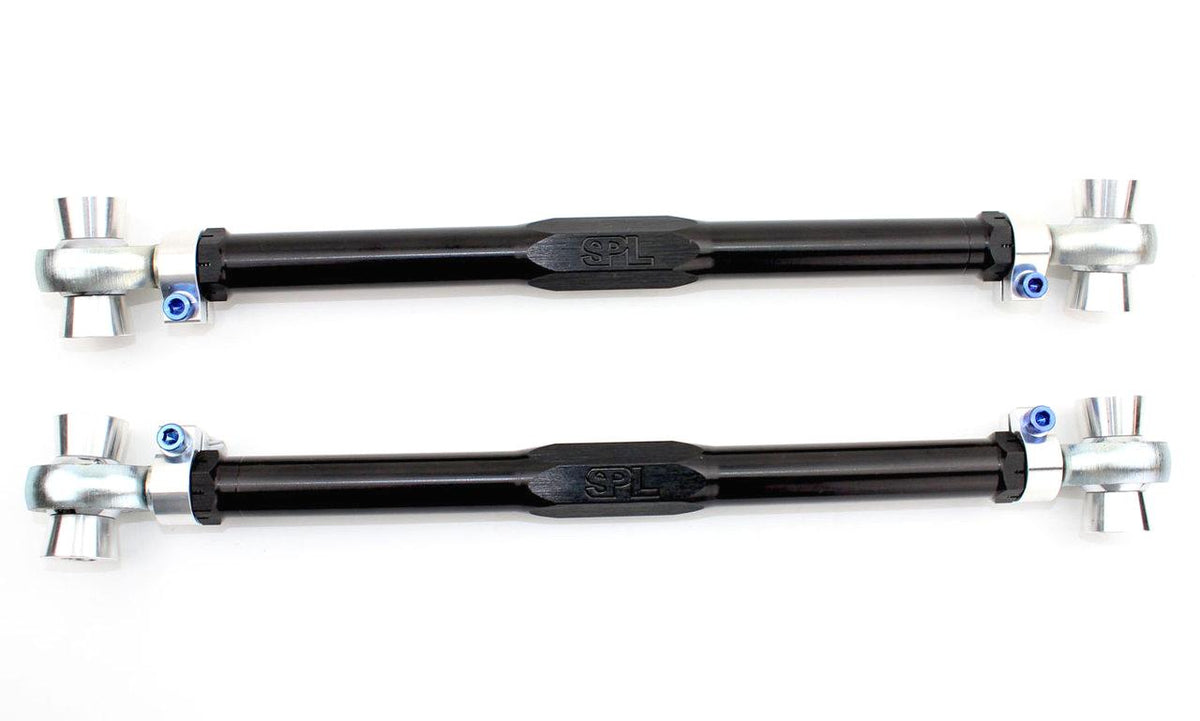

Black anodized, gun drilled 2024 aluminum links combine with SPL's 360 degree Rotating Clamp design for quick and precise adjustment, and blue anodized titanium socket head cap screws shave further unsprung weight without compromising strength.

FK rod ends manufactured in Connecticut use a Teflon liner for quiet operation, low friction and smooth articulation that eliminates bushing deflection under load. The PTFE liner is chemically bonded to the inner diameter of the race, giving very high load carrying capacity and greatly improved dynamic wear characteristics.

SPECS

• Length adjustable for rear bumpsteer and anti-squat tuning
• Gun drilled 2024 aluminum links, black anodized, to reduce unsprung weight
• Blue anodized titanium socket head cap screws
• 6061-T6 aluminum 360 degree Rotating Clamp design
• Low friction three-piece Teflon lined FK heim joints / rod ends
• PTFE liner operating temperature range: −65°F to 325°F
• Reduces wheel hop on hard launches
• Sold as a pair (one pair per vehicle)
• Made in the USA

PARTS INCLUDED

• Two SPL Parts adjustable rear traction links with rotating clamps, titanium hardware and FK rod ends
• Complete kit as supplied by SPL Parts; see the installation instructions for the full bill of materials

TECH RESOURCES

Additional Parts Required

• Four-wheel alignment after installation — mandatory. Rear toe and thrust angle change when the traction links are fitted.
• Professional installation is recommended; these are safety-critical rear suspension links.
• Corner weighting is recommended for track use.
• To set rear toe independently of the traction links, pair these with adjustable rear toe links: SPL BMW F8X G8X Rear Toe Links.

Installation

• SPL Parts SPL RTR F8X rear traction links — installation instructions (PDF)

Notes

• Year ranges are as published by SPL Parts for each chassis code. Confirm fitment with Speed Logic before ordering if you are unsure.

PART NUMBER

• SPL RTR F8X
