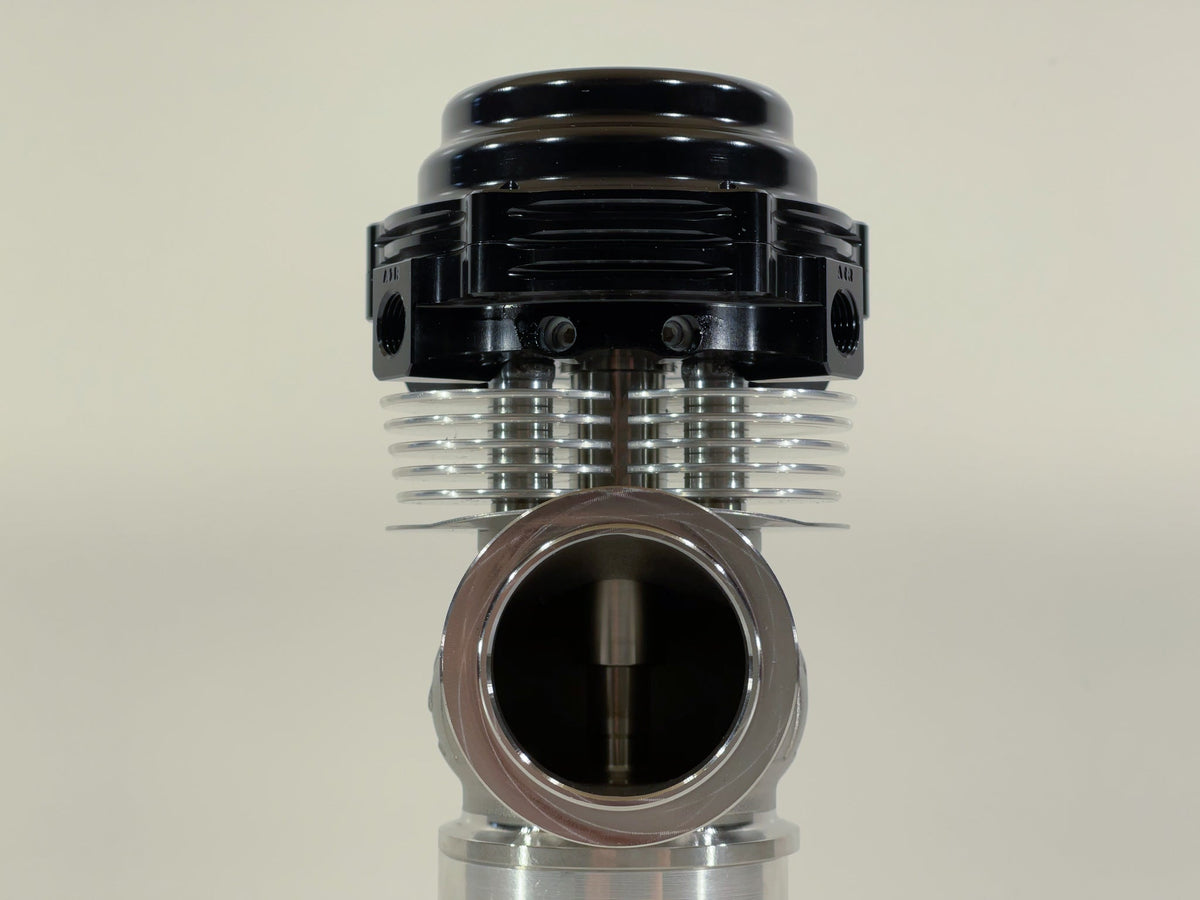

TiAL Sport MV-SA 38mm Air-Cooled External Wastegate

OVERVIEW

The MV-SA is the air-cooled version of TiAL Sport's 38 mm MV-S. It spaces the diaphragm away from the main heat source and uses radiator-style cooling fins between the actuator top and the cast wastegate housing, so with enough airflow across the fins it can run without coolant lines to the actuator — useful on builds where plumbing water to a hot-side wastegate is awkward.

It ships with all six springs, so the boost target can be set on the bench rather than ordered blind.

SPECS

• Valve size: 38 mm
• Mass flow: 34 lb/min
• Control range: 0.3–1.7 bar
• Finned, spaced actuator for running without coolant lines where airflow allows
• Stainless steel and aluminum construction; TiAL-coated valve stem
• Nomex-reinforced silicone diaphragm
• Dual-chamber diaphragm with M10 signal ports on both chambers
• V-band inlet and outlet; mating weld flanges are 304L stainless
• Clamp style: new band clamp set or V-clamp set
• Colors: Silver, Blue, Black, Purple, Red

PARTS INCLUDED

• MV-SA wastegate assembly
• Valve seat
• Inlet V-band clamp and flange; outlet V-band clamp and flange
• CNC-machined air and coolant fittings
• Plugs for unused air ports
• All six springs

TECH RESOURCES

Additional Parts Required

• Exhaust fabrication. The supplied flanges must be welded into the manifold or hot side. Spare flanges and clamps: TiAL Sport MV-S / MV-R Wastegate Flanges & V-Band Clamps.
• A boost control source — manual controller, electronic solenoid or ECU-driven.
• Airflow across the cooling fins. If the gate sits where air cannot reach it, use the water-cooled TiAL Sport MV-S 38mm External Wastegate instead.

Installation

• TiAL Sport MV-SA product drawing (PDF)
• TiAL Sport MV-S spring selection guide (PDF)
• TiAL Sport wastegate routing and plumbing guide (PDF)
• TiAL Sport wastegate static bench-testing instructions (PDF)
• TiAL Sport wastegate FAQ (PDF)

Notes

• The MV-SA uses its own valve, part number 002015, which is not the same as the MV-S valve.
• Universal part: fits any turbocharged application with a hot side built for a 38 mm V-band wastegate.
• MV-Series gates are custom-built; TiAL notes assembly can take up to two weeks.
• Competition / off-road use only. Price is for parts only; labor and fabrication are not included.

PART NUMBER

• 001932 — MV-SA 38mm, All Spring set, Silver
• 002956 — MV-SA 38mm, All Spring set, Blue
• 002957 — MV-SA 38mm, All Spring set, Black
• 002958 — MV-SA 38mm, All Spring set, Purple
• 002959 — MV-SA 38mm, All Spring set, Red
