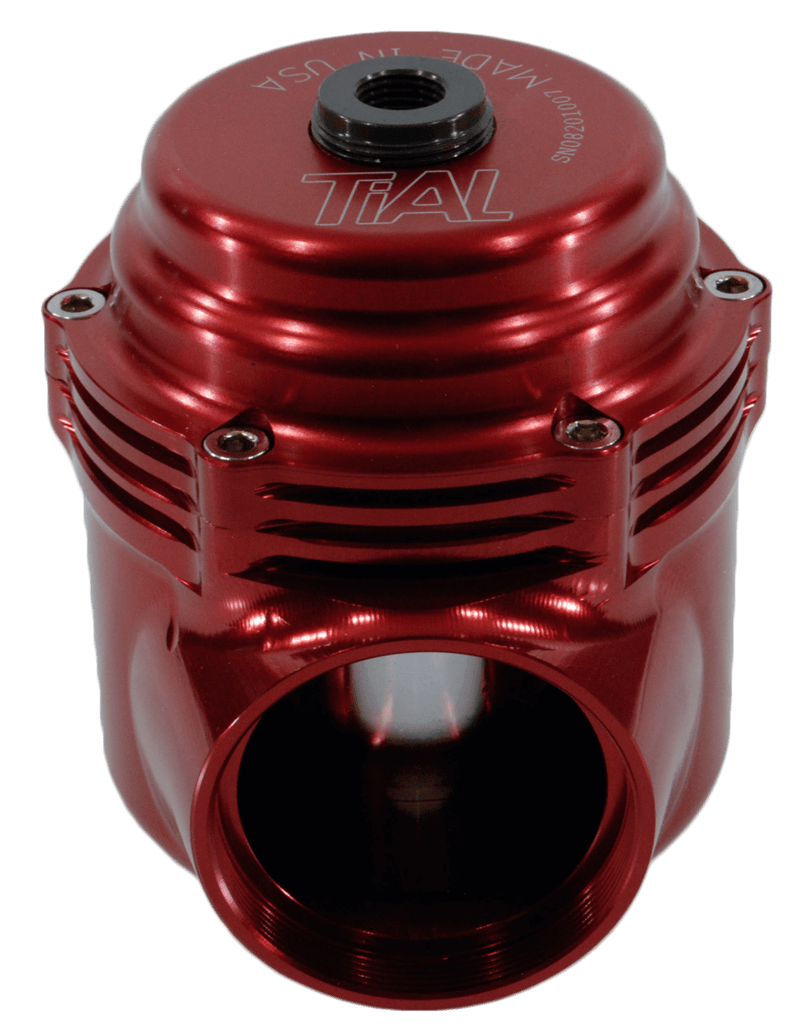

TiAL Sport QRJ-Series Blow-Off Valve – All Spring Rates & Colors

OVERVIEW

The QRJ is TiAL Sport's compact 41 mm blow-off valve, built around a modular design that can be set up for either atmospheric venting or recirculation depending on the flanges fitted. It flows 91 lb/min and opens from as little as 1.5 psi, which makes it the choice where a Q or QR is physically too large.

The valve is sold with its air fitting set only. Inlet and outlet flanges and the clamp are separate purchases, so plan the mounting hardware before ordering.

SPECS

• Valve size: 41 mm
• Mass flow: 91 lb/min
• Pressure range: 1.5–12 psi
• Spring packs offered: −1.5 psi and −3.0 psi
• Modular design for atmospheric or recirculated discharge
• Colors: Silver, Blue, Black, Purple, Red

PARTS INCLUDED

• QRJ-Series blow-off valve assembly with the selected spring
• Air fitting set
• Flanges and clamp assembly are NOT included — see Additional Parts Required

TECH RESOURCES

Additional Parts Required

• A QRJ clamp assembly plus inlet/outlet flanges. The valve ships without them. The clamp assembly (004725) with a weld or tube flange is the minimum; the 1.5 in clamp kits (004809 / 004811) bundle the clamp, a weld flange and the V-band inlet flange. All are on TiAL Sport QRJ BOV Adapters, Flanges & Clamps.
• On a charge pipe that already carries a standard TiAL Q/QR flange, use the QRJ-to-Q & QR V-band adapter flange (004781) from the same listing.
• Welding if you are using a weld flange.

Installation

• TiAL Sport QRJ-Series product drawing (PDF)
• TiAL Sport BOV routing and plumbing guide (PDF)
• TiAL Sport BOV static bench-testing instructions (PDF)
• TiAL Sport BOV FAQ (PDF)

Notes

• QRJ springs are not interchangeable with Q / QR springs. Replacement QRJ springs: TiAL Sport Replacement Springs.
• Universal part: fits any turbocharged application once the correct QRJ flanges are fitted.
• QRJ valves are built to order and lead times vary. Confirm availability with Speed Logic before ordering.
• Price is for parts only; labor and fabrication are not included.

PART NUMBER

• 004982 — QRJ, −1.5 psi, Silver
• 005062 — QRJ, −1.5 psi, Blue
• 004983 — QRJ, −1.5 psi, Black
• 0005063 — QRJ, −1.5 psi, Purple (number as listed by TiAL)
• 005064 — QRJ, −1.5 psi, Red
• 004724 — QRJ, −3.0 psi, Silver
• 004726 — QRJ, −3.0 psi, Blue
• 004727 — QRJ, −3.0 psi, Black
• 004728 — QRJ, −3.0 psi, Purple
• 004729 — QRJ, −3.0 psi, Red
