Tomei Expreme Ti Full Titanium Muffler – Toyota GR Supra (A90/A91)

OVERVIEW

Tomei's Expreme Ti muffler for the Toyota GR Supra (A90/A91) is a full titanium system built around Tomei's own raw titanium material, sourced and processed in-house for consistent quality and weight savings over factory steel. The tailpipe is precision-formed titanium tubing finished with a straight, race-style cut and the EXPREME Ti logo laser-etched into the tip in Tomei's signature titanium gradation blue.

The system uses Tomei's clamp-band coupling instead of a conventional flange-and-bolt joint, which secures the pipe with a fully airtight seal while still tolerating high exhaust heat, load, and vibration. The oversized titanium silencer case is built and welded to Tomei's own TIG-welding quality standards. An included removable sound reducer gives three volume settings: Standard, Quiet Mode 1 and Quiet Mode 2.

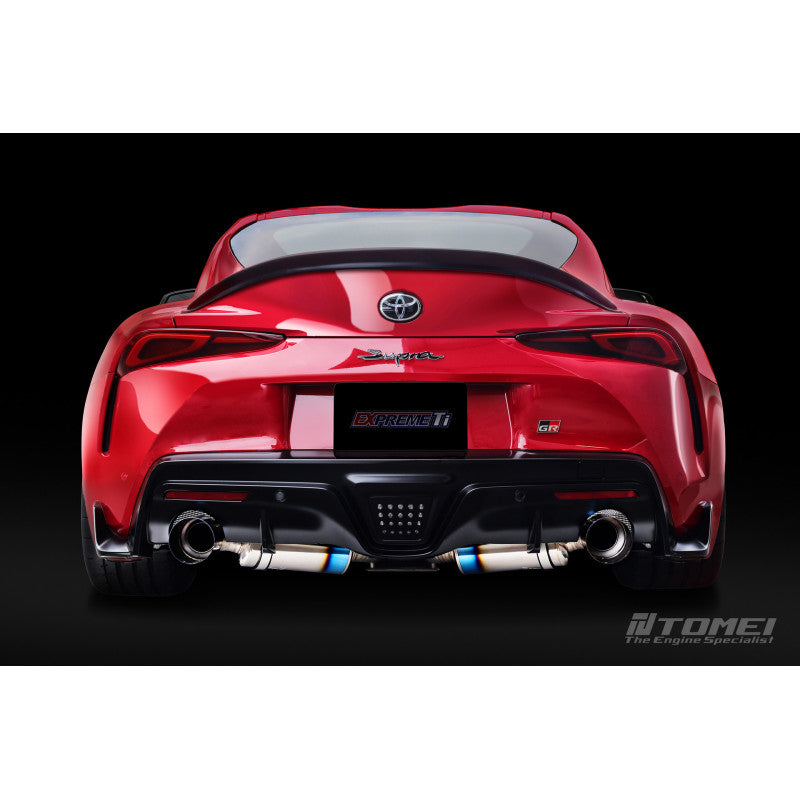

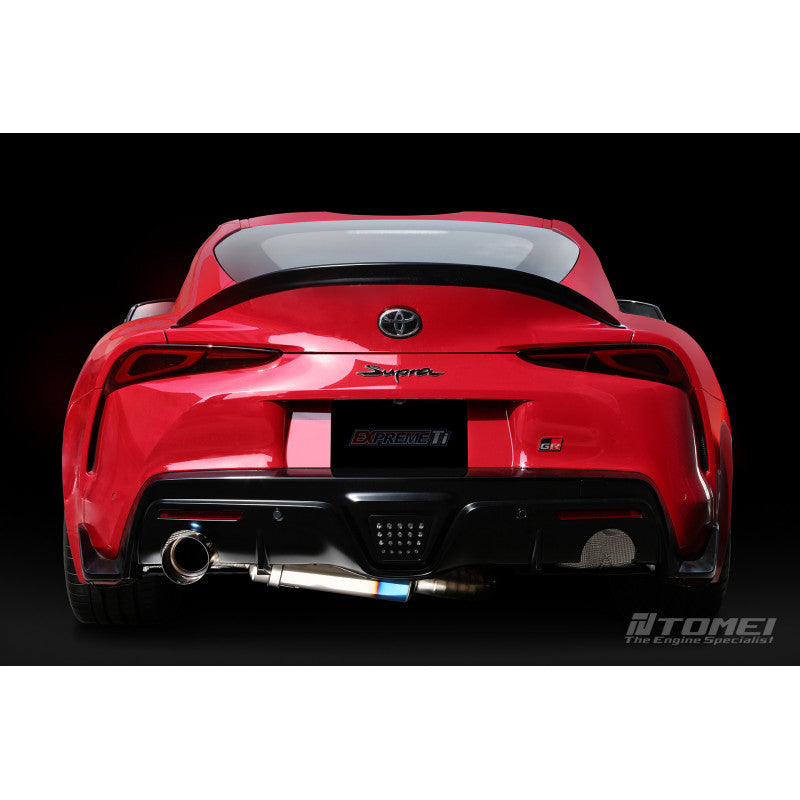

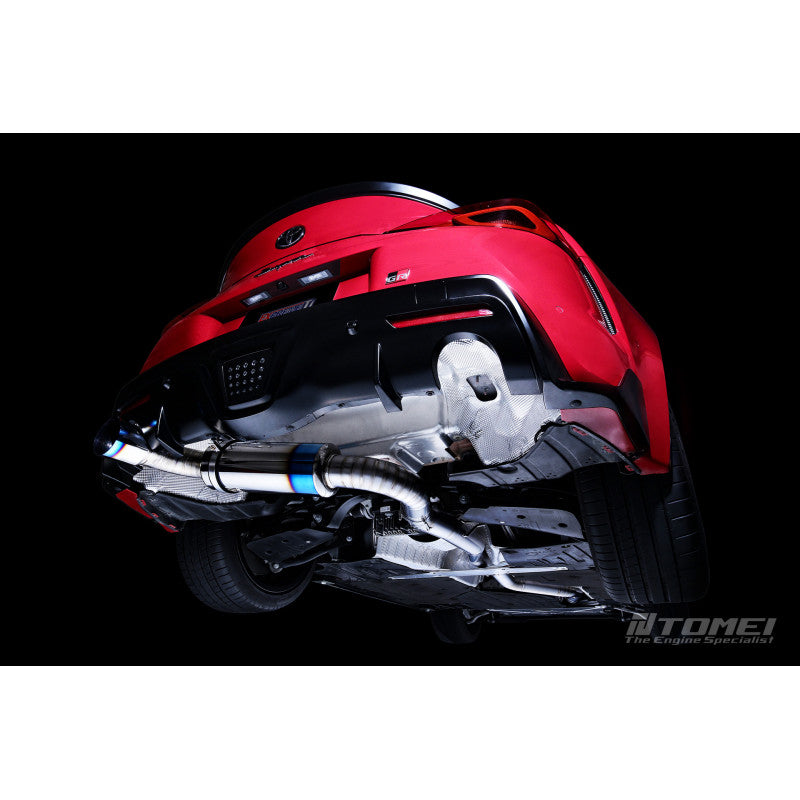

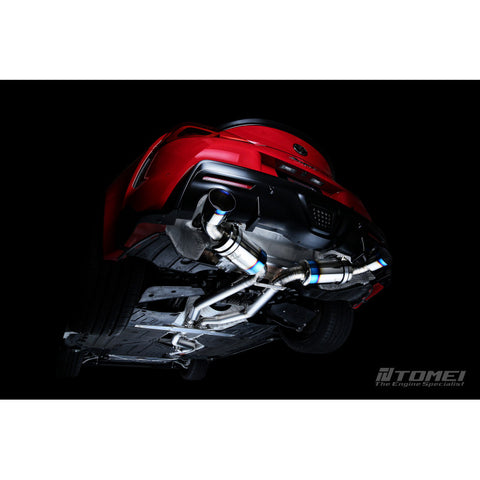

Two configurations are offered for the GR Supra: Type-R, a single-exit design, and Type-D, a dual-exit design. Choose a configuration above.

SPECS

• Material: full titanium construction (main pipes, tailpipe and silencer case)
• Main pipe: titanium, Φ89.1mm (3.51 in) diameter, 1mm wall thickness
• Tailpipe: titanium, Φ115mm diameter, 1mm wall thickness, straight-cut race-style finish
• EXPREME Ti logo laser-etched on the tip with a titanium gradation blue finish
• Silencer case: titanium, Φ152mm, 1mm wall thickness, oversized shell design
• Clamp-band pipe coupling (in place of a flange-and-bolt joint) for an airtight, heat- and vibration-tolerant seal
• Sound reducer ver.2 (Φ115) included for three selectable volume levels
• Factory exhaust valve is not used with this system
• Type-R (single exit) shipping: 51 x 11 x 16 in / 130 x 28 x 39 cm, approx. 25 lbs / 12 kg
• Type-D (dual exit) shipping: 45 x 17 x 17 in / 114 x 42 x 42 cm, approx. 39 lbs / 18 kg
• Engine platform: Toyota B58 3.0L Turbo I6

PARTS INCLUDED

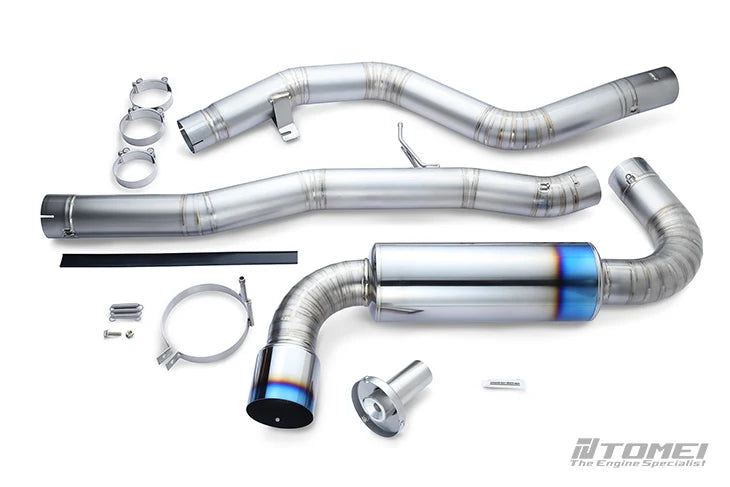

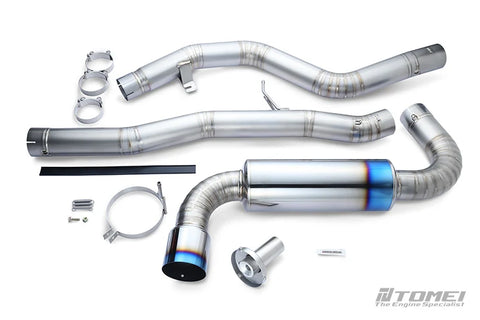

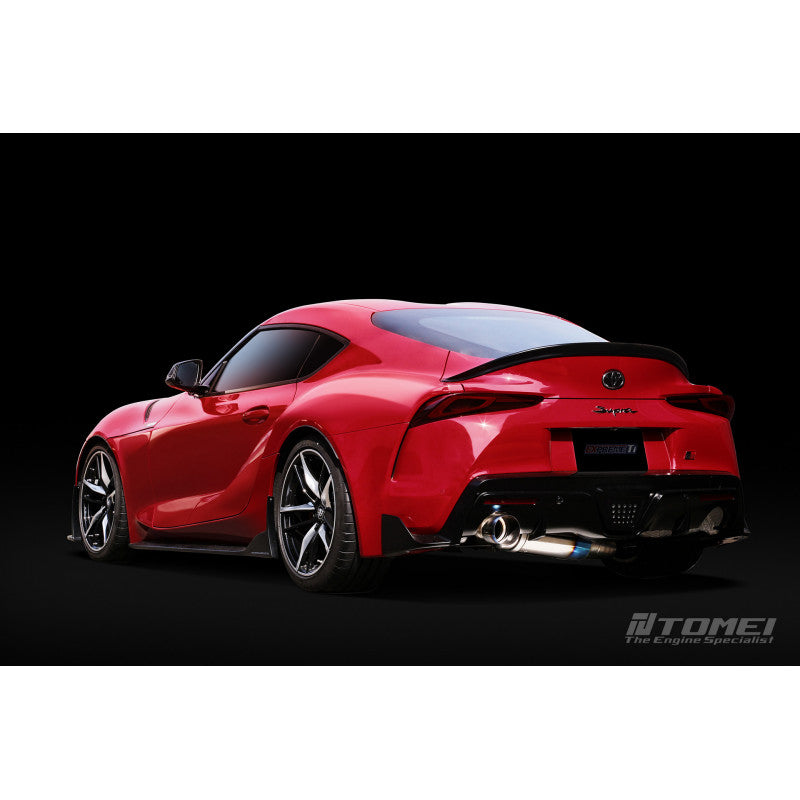

Type-R (TB6090-TY06A)

• Main Pipe A (1)
• Main Pipe B (1)
• Titanium Silencer (1)
• Silencer Band (1) with Silencer Band Rubber Φ152 (1)
• Clamp Band 80-85 (1)
• Clamp Band 86-91 (2)
• Springs (3)
• M8 Flange Bolt (1) and M8 Flange Nut (1)
• Sound Reducer ver.2 Φ115 kit (1), with M6 button bolts, flange nuts and flange bolt
• Hex Key (1)
• Bolt Smooth Paste (1)

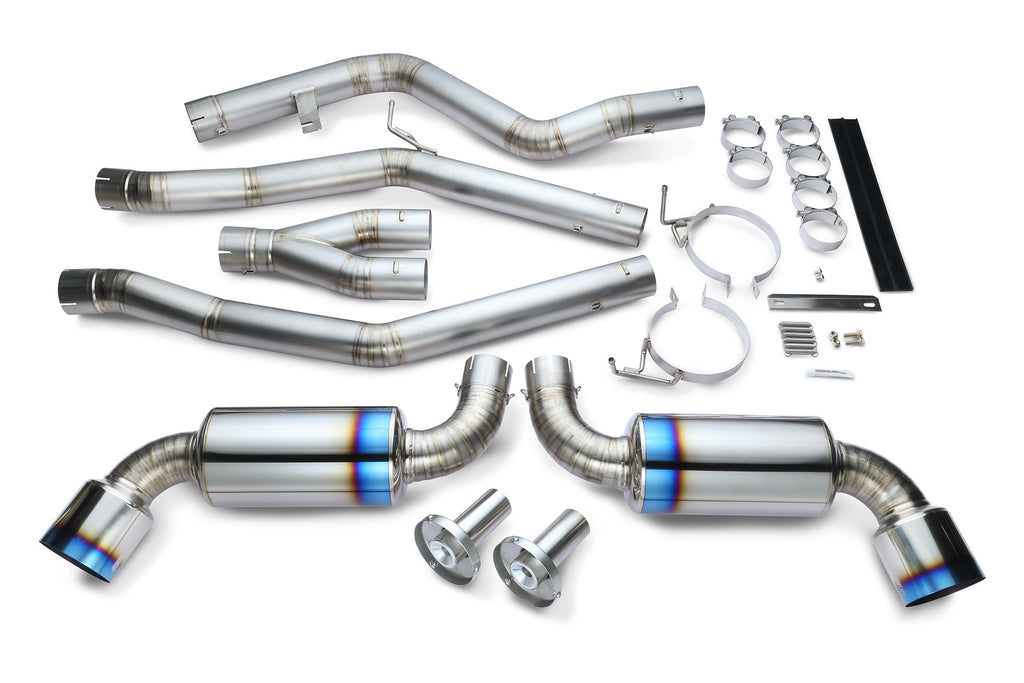

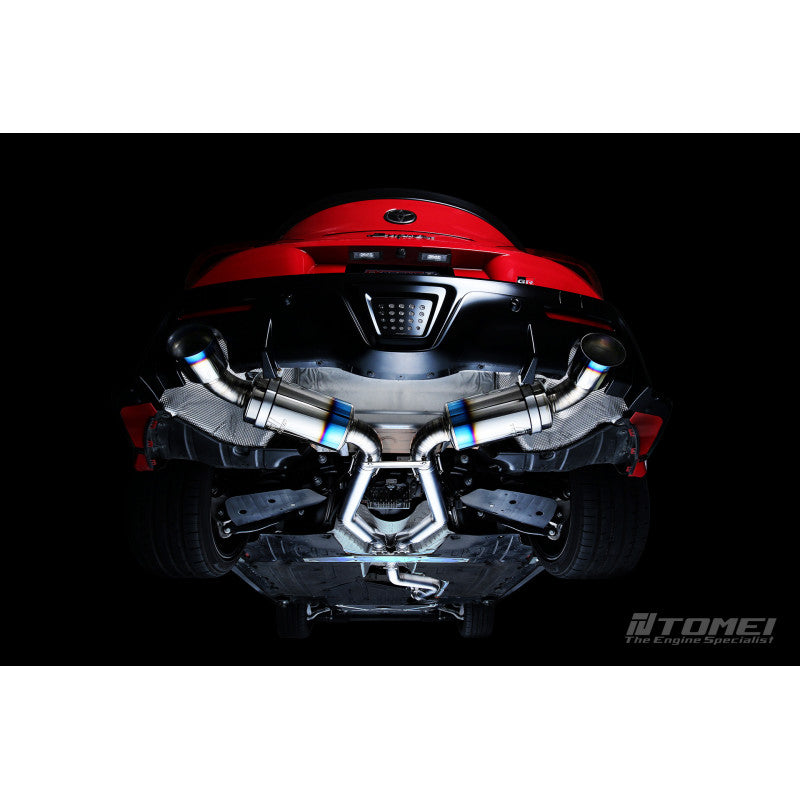

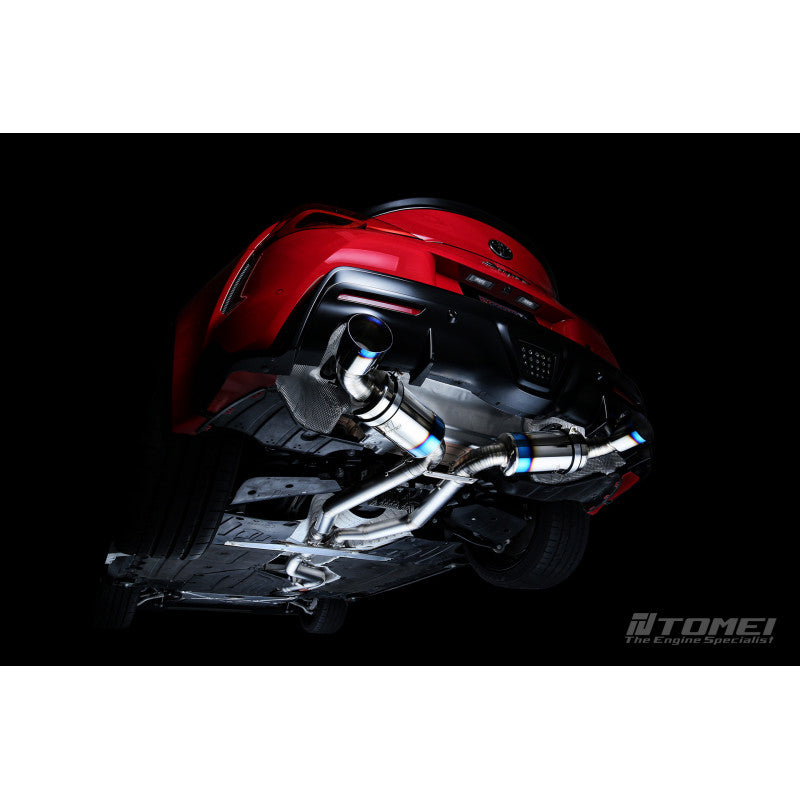

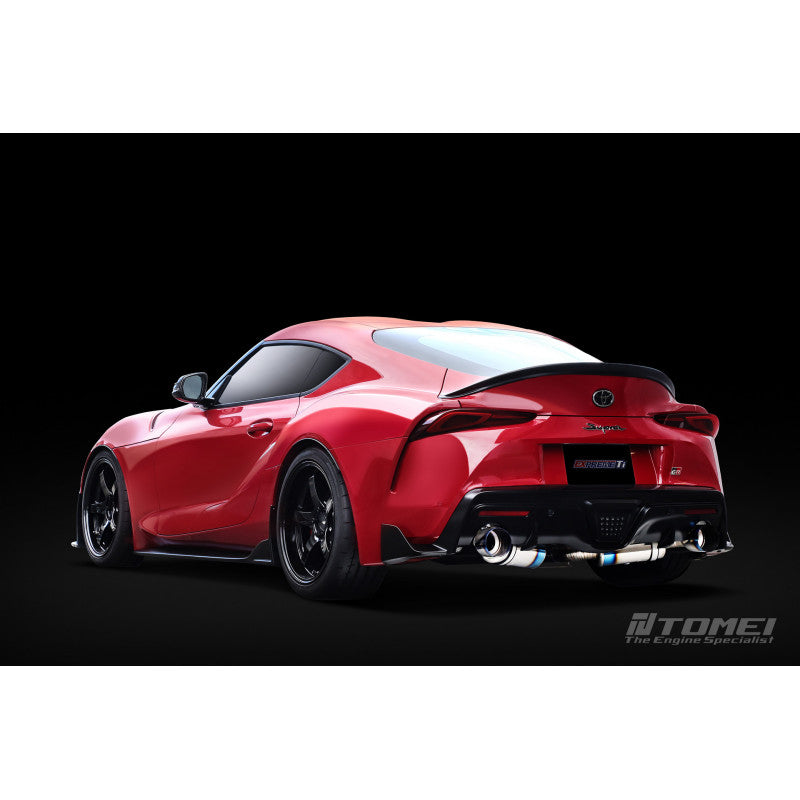

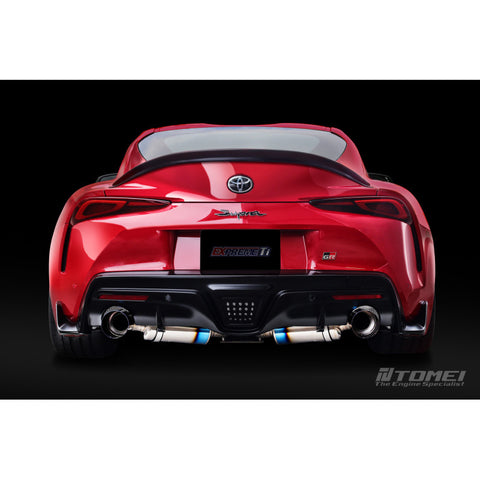

Type-D (TB6090-TY06B)

• Main Pipe A (1)
• Separator Pipe (1)
• Main Pipe B LH (1) and Main Pipe B RH (1)
• Titanium Silencer LH (1) and Silencer RH (1)
• Silencer Band LH (1) and Silencer Band RH (1), with Silencer Band Rubber Φ152 (2)
• Clamp Band 80-85 (2)
• Clamp Band 74-79 (4)
• Springs (6)
• M8 Flange Bolts (2) and M8 Flange Nuts (2)
• Main Pipe Connecting Plate (1) with M8 Button Bolts (2)
• Sound Reducer ver.2 Φ115 kits (2), with M6 button bolts, flange nuts and flange bolts
• Hex Key (1)
• Bolt Smooth Paste (1)

TECH RESOURCES

Additional Parts Required

• None. All hardware needed to install on the GR Supra's factory exhaust is included in the kit.

Installation

• Type-R (TB6090-TY06A) Installation Instructions (PDF)
• Type-D (TB6090-TY06B) Installation Instructions (PDF)
• Tools required: general engine tools, torque wrench, factory service manual, hand drill, center drill and Φ6.5mm drill bit, and safety gear
• The factory exhaust valve is not used; disconnect its connector and secure the harness away from heat and moving parts
• Quiet Mode 1 uses the tip's pre-drilled hole; Quiet Mode 2 requires drilling two additional Φ6.5mm holes in each tip to secure the sound reducer (shown in the instructions)
• Do not drive at high speed with the sound reducer installed, and only fit or remove it when the exhaust is cold
• Apply the included Bolt Smooth Paste to fasteners exposed to high heat
• Tomei recommends checking engine/ECU calibration after installation

Notes

• Not compatible with OPF-equipped (European-market) GR Supra models.
• Intended for motorsport/competition use; check local regulations before road use.
• Both configurations ship from Tomei; contact us to confirm current lead time before ordering.

PART NUMBER

• TB6090-TY06A — Type-R (single exit)
• TB6090-TY06B — Type-D (dual exit)

VEHICLE APPLICATIONS

Not compatible with OPF-equipped (European-market) models.
