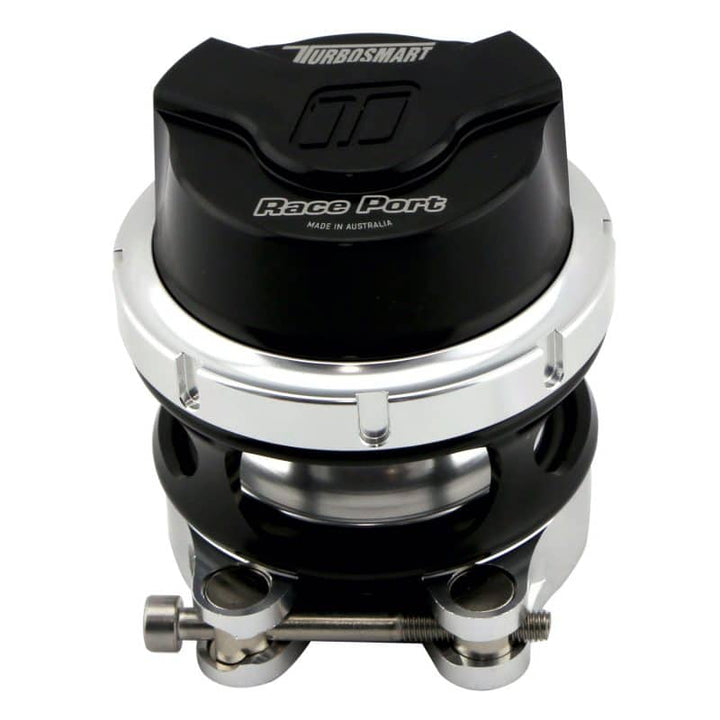

Turbosmart GenV Race Port BOV (Black) – BMW N54

OVERVIEW

The Turbosmart GenV Race Port is a compact, lightweight blow-off valve built for competition-level turbocharged engines. Turbosmart's collar design and internal flow structures make it 50% lighter and 25% smaller than comparable valves while flowing 330 CFM, which Turbosmart claims makes it the highest-flowing valve of its type on the market.

This is the black version machined for a competitor-style 50 mm female flange — in other words, it bolts onto a TiAL-pattern flange. No weld flange is supplied with this part number.

SPECS

• Valve type: GenV Race Port, 50 mm, atmospheric vent
• Flow: 330 CFM
• Size and mass: 50% lighter and 25% smaller than comparable competition valves
• Construction: billet 6000-series aluminum
• Valve guide and stem: hard anodized
• Finish: black
• Spring: blue, rated -18 to -14 inHg, factory installed
• Ports: 1/8 NPT vacuum fittings supplied
• Flange: suits competitor 50 mm female-style flange; no weld flange included
• Shipping weight: 3 lb; carton 7 x 5 x 3 in

PARTS INCLUDED

• GenV Race Port 50 mm blow-off valve (black)
• V-band assembly
• 1/8 NPT vacuum fittings
• Blue spring, pre-installed
• Turbosmart decal

TECH RESOURCES

Additional Parts Required

• A charge pipe with a 50 mm female (TiAL-pattern) BOV flange. No weld flange is included with this valve — see the SPEED LOGIC Chargepipe Upgrade Kit w/ Turbosmart Raceport BOV, which is also sold as a chargepipe-only option.
• Vacuum signal line taken from a source downstream of the throttle body, connected to the supplied 1/8 NPT fitting.
• Alternative Turbosmart springs are available if your boost or vacuum levels fall outside the -18 to -14 inHg range of the fitted blue spring.

Installation

• Turbosmart GenV Race Port blow-off valve installation and maintenance guide — covers mounting, spring changes, diaphragm replacement, sensor cap configuration and troubleshooting.

Notes

• The GenV Race Port is a universal valve: it fits any charge pipe carrying a 50 mm female (TiAL-pattern) flange, so exact chassis and year coverage depends on the charge pipe you run. Confirm fitment with Speed Logic before ordering.

PART NUMBER

• TS-0204-1142

VEHICLE APPLICATIONS
