Turbosmart GenV RacePort Blow Off Valve (Female Flange) – Color Options

OVERVIEW

The GenV RacePort is Turbosmart's high-flow atmospheric blow-off valve, rated at 330 CFM through a 2.0 inch inlet. The female flange version mates directly to the 50 mm flange that aftermarket N54 charge pipes carry, which is why it has become the default choice on tuned E-chassis cars.

This listing covers four finishes — blue, purple, red and the raw "Sleeper". The black finish is available as the Turbosmart GenV Race Port BOV (Black) – BMW N54.

SPECS

• Flow: 330 CFM
• Inlet: 2.0 in
• Female flange system — no weld-on mounting flange included
• Ships with the blue -18 / -14 inHg spring
• Four color options: Blue, Purple, Red, Sleeper

PARTS INCLUDED

• GenV RacePort blow off valve in the selected color
• Blue -18 / -14 inHg spring, fitted
• V-band clamp assembly

TECH RESOURCES

Additional Parts Required

• A charge pipe with a 50 mm RacePort flange, or the Turbosmart GenV RacePort & Big Bubba Weld Flange and V-Band Clamp (TS-0204-3001) if you are fabricating (sold separately). No weld-on flange is supplied with the valve.
• On low-vacuum platforms, the Turbosmart RacePort EM BOV Controller Kit (TS-0304-1102) may be required for the valve to operate correctly (sold separately).

Installation

• Turbosmart GenV RacePort blow off valve installation instructions

Notes

• Not CARB legal — race use only. An atmospheric blow-off valve vents metered air and is not emissions compliant.
• The female flange mates directly to aftermarket N54 charge pipes with a 50 mm RacePort flange.
• Price is for parts only; labor is not included.

PART NUMBER

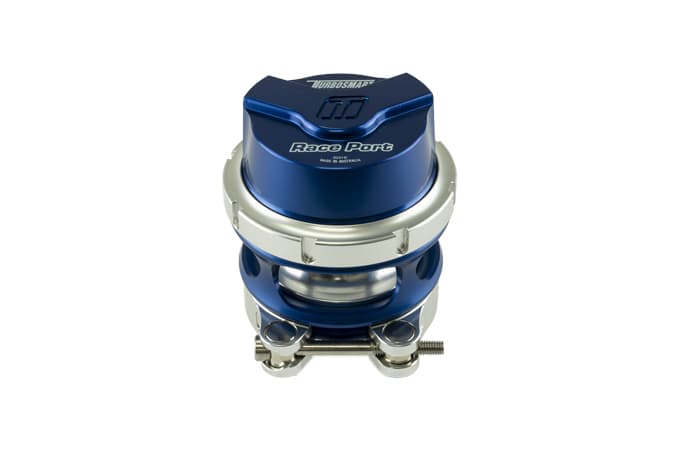

• TS-0204-1141 — Blue

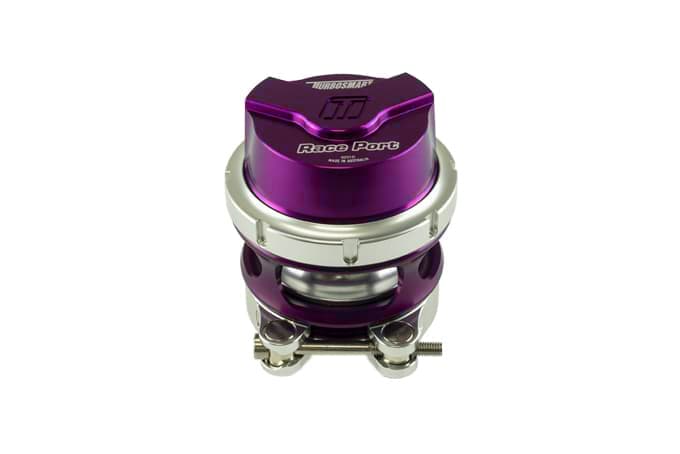

• TS-0204-1143 — Purple

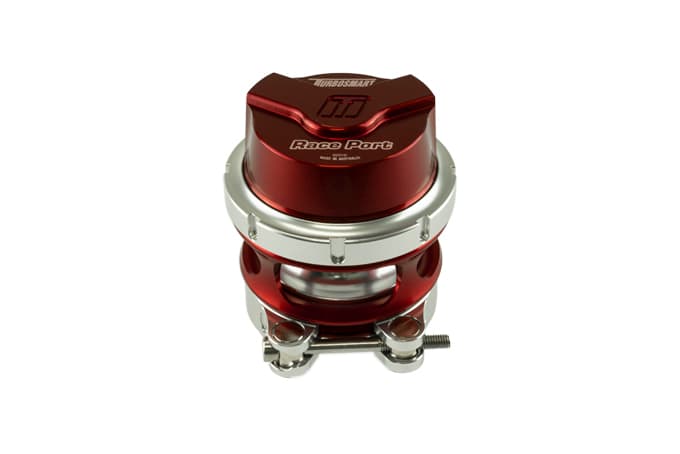

• TS-0204-1144 — Red

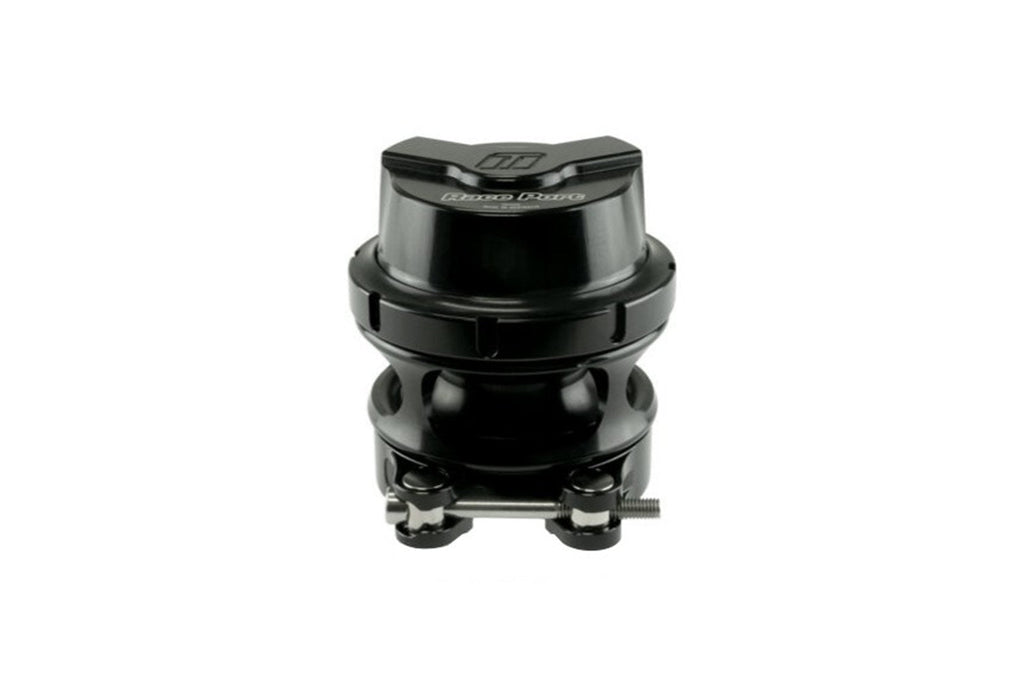

• TS-0204-1145 — Sleeper
