XClutch 9" Twin Disc Clutch Kit – Toyota GR Supra (A90/A91, B58)

OVERVIEW

This is XClutch's complete GR Supra program: a 9 inch twin-disc kit for the manual-transmission B58 cars, offered with sprung organic or sprung ceramic friction discs. Both use sprung hubs rather than the rigid hubs of XClutch's BMW race kits, which is what keeps a twin-disc clutch usable on a car that still gets driven on the road.

XClutch rates the sprung organic discs to approximately 740 lb-ft. Both versions replace the factory dual-mass flywheel with a chromoly performance unit and ship complete. Choose the friction material at checkout.

SPECS

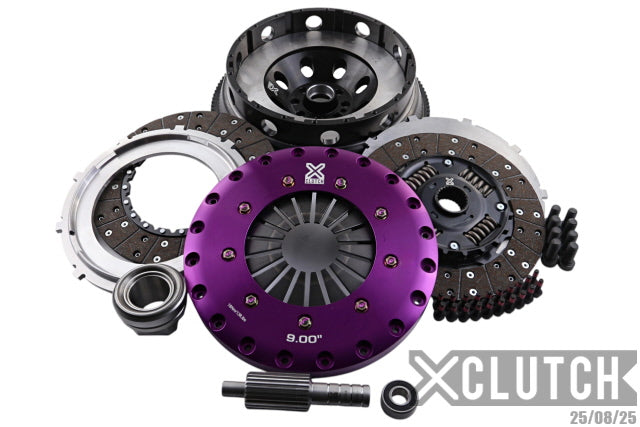

• Stage 4 — 9 in twin sprung organic (XKTY23560-2A): torque capacity approximately 740 lb-ft

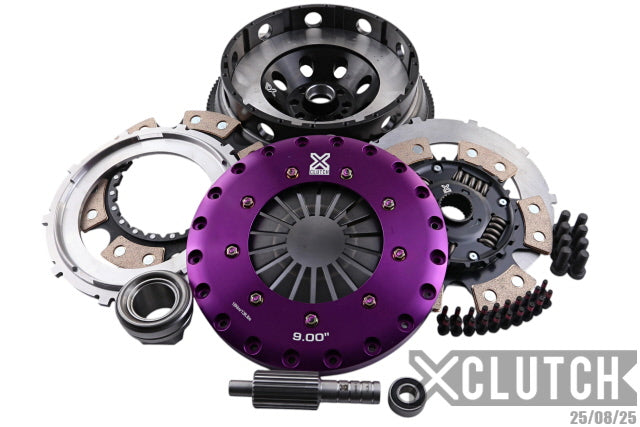

• Stage 5 — 9 in twin sprung ceramic (XKTY23560-2B): higher heat and torque capacity for track use
• Disc count: twin
• Disc hub: sprung center
• Clutch disc diameter: 9.055 in
• Pressure plate: lightweight alloy
• Flywheel: XClutch chromoly performance flywheel, included
• Replaces the factory dual-mass flywheel assembly

PARTS INCLUDED

• Lightweight alloy pressure plate
• 2 x sprung friction discs (organic or ceramic, per the option selected)
• XClutch chromoly performance flywheel
• Flywheel and pressure plate bolts
• Release bearing
• Pilot bushing
• Clutch alignment tool
• Spline grease

TECH RESOURCES

Additional Parts Required

• None. XClutch supplies the chromoly flywheel, release bearing, pilot bushing, bolts, alignment tool and spline grease in the kit.
• Break-in is required. XClutch specifies driving the vehicle gently for the first 1,000 km (roughly 620 miles), avoiding aggressive launches; low-rpm engagements bed the friction material in properly.
• XClutch recommends inspecting the concentric slave cylinder while the transmission is out and replacing it if worn, since the labor is already committed.
• Professional installation; transmission removal is required.

Installation

• XClutch Technical Service Bulletin TSB-358 — Toyota GR Supra (PDF)
• XClutch Technical Service Bulletin TSB-294 — break-in and operation (PDF)
• XClutch Technical Service Bulletin TSB-214 (PDF)

Notes

• Manual-transmission cars only. This kit fits the six-speed manual GR Supra 3.0. It does not fit automatic cars.
• Price is for parts only; labor is not included.

PART NUMBER

• XKTY23560-2A — Stage 4, 9 in twin sprung organic discs
• XKTY23560-2B — Stage 5, 9 in twin sprung ceramic discs
