Active Autowerke Charge Pipe – BMW M340i / M440i (G20) & Toyota GR Supra A90

OVERVIEW

The BMW B58 uses an all-plastic factory charge pipe that, while it holds up considerably better than the N55 part before it, will eventually break at the plastic seam — at which point the engine senses a large vacuum leak and the ECU puts the car into limp mode, leaving it feeling flat and lackluster. The Active Autowerke B58 G-body Charge Pipe was designed from inception to cure that: built entirely from aluminum and almost indestructible in service, with a CNC-machined throttle body connection that duplicates the factory fit while making a tight, reliable seal, and consistent-diameter tubing that increases performance, improves throttle response and reduces throttle lag. A raised boss carries two separate ports upstream for water/methanol injection, with nozzle thread depths checked so the injected mix atomizes properly without the spray hitting the threaded holes.

SPECS

• All-aluminum construction in place of the OEM plastic charge pipe
• Consistent-diameter tubing throughout for increased flow
• CNC-machined throttle body housing for a factory-duplicate fit and a proper seal
• Retains the factory BMW O-ring seal
• Raised boss with two ports for water/methanol injection nozzles
• Nozzle thread depths checked for a correct spray pattern
• Black powder-coated finish for an OEM appearance
• Not compatible with xi (xDrive) models

PARTS INCLUDED

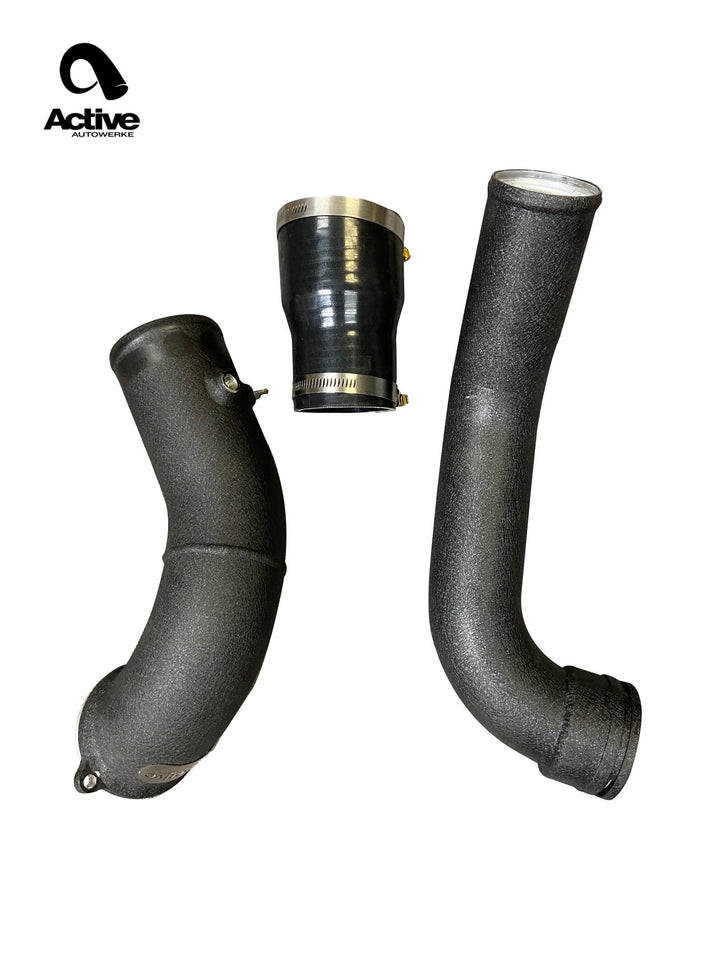

• Active Autowerke B58 G-chassis aluminum charge pipe
• High-quality silicone couplers
• Stainless steel clamps
• The factory throttle clip and O-ring are not included

TECH RESOURCES

Additional Parts Required

• BMW factory throttle body clip and O-ring — not supplied with this charge pipe. Re-use the items from your factory charge pipe, or source replacements from BMW, before starting the installation.
• Optional: a water/methanol injection kit and nozzles, if you intend to use the two injection ports.

Installation

• Active Autowerke does not publish a separate installation manual for this charge pipe. Their complete installation library is available at Active Autowerke — Installation Instructions.

Notes

• NOT COMPATIBLE WITH xi (xDrive) MODELS.
• This charge pipe does not fit xi (xDrive) models. The original listing carried no fitment chart, so the table above is built from the product title and the B58 G-chassis application described by Active Autowerke — please confirm fitment with Speed Logic before ordering.

PART NUMBER

• 15-007
