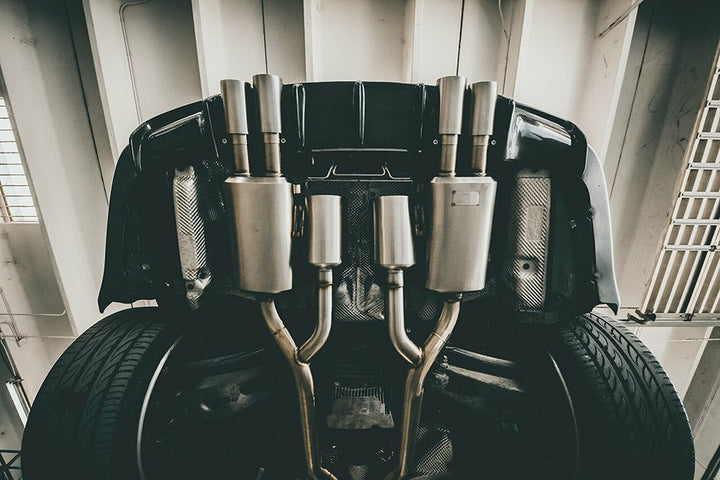

Active Autowerke Signature Rear Exhaust – BMW M3 Convertible (E93)

OVERVIEW

True performance, durability and attractive weight advantages, together with a set of genuinely innovative features, place the Active Autowerke E93 BMW M3 exhaust in a class of its own. Constructed from 100% 304 stainless steel, it uses adjustable Active Autowerke double-walled tips that also allow cleaner fitment alongside a diffuser. Factory-style flanges make it a complete bolt-on, while the straight-through design and large 3" piping substantially improve gas flow over the factory exhaust yet maintain enough back pressure to produce horsepower increases across the entire rev range. The sound is unobtrusive with a rich, mellow tone, and two Active Autowerke noise canceling chambers per muffler reduce the drone some mufflers emit at cruising speeds around 3,500 rpm.

SPECS

• Durable 100% 304 brushed stainless steel construction
• Large 3-inch mandrel bent piping for maximum flow
• Straight-through design
• Double-walled 76mm Signature stainless tips
• Adjustable tips with embossed Active Autowerke logo
• Two Active Autowerke Noise Canceling Chambers (NCC) per muffler to reduce drone around 3,500 rpm
• Gains of 5+ HP over stock configuration; additional HP with Active Autowerke programmed software
• Improved power and torque throughout the entire RPM band
• Weighs 40 lbs versus 55.1 lbs for the factory system
• BMW factory style hardware — no cutting or re-welding required
• Complete illustrated instruction manual supplied
• Two year warranty

PARTS INCLUDED

• Active Autowerke rear mufflers, left and right
• Center exhaust bracket
• Exhaust hangers, left and right
• Red rubber hanger assemblies
• Exhaust clamps
• 8mm Allen bolt for tip extension adjustment
• 20mm aluminum bushing for the E93 convertible
• Complete illustrated instruction manual

TECH RESOURCES

Additional Parts Required

• None. Active Autowerke specifies no additional hardware for this exhaust — it uses BMW factory style hardware and bolts straight on.

Installation

• Active Autowerke Signature Rear Exhaust installation instructions — BMW E90 / E92 M3, including the additional steps for the E93 convertible (PDF)
• Active Autowerke's complete installation library: Active Autowerke — Installation Instructions.

Notes

• For the E90 sedan and E92 coupe, see the matching Active Autowerke Signature Rear Exhaust for BMW E90 / E92 M3.

PART NUMBER

• 11-016
