AEM V3 Water/Methanol Standard Kit, No Reservoir (30-3302)

OVERVIEW

Water/methanol injection for forced induction (turbocharged or supercharged) gas-powered race engines is a proven means of effectively reducing engine inlet air temperatures and suppressing harmful detonation. This allows racers to reliably increase boost and advance ignition timing, without using high-octane racing fuel, for power gains of up to 20%. AEM's water injection kits use robust hardware and deliver more advanced features than any other comparably priced water/methanol injection system.

This is the Standard Kit supplied without a reservoir, for installers who want to run a third-party or custom tank. It uses the boost-dependent V3 Standard Controller with an on-board manifold absolute pressure sensor and a molded-in nipple for a boost hose pickup, rated for forced induction engines up to 35 PSI of boost. AEM's second controller design, the multiple-input version (kit PN 30-3350), covers high compression naturally aspirated engines and boost levels above 35 PSI.

SPECS

• Boost-dependent V3 Standard Controller with on-board MAP sensor, rated to 35 PSI maximum boost
• Barbed nipple on the controller to connect the boost line
• Supplied without a reservoir; includes a fitting for a third-party tank
• Interchangeable injector nozzles
• LED system status light
• Universal fitment
• Manufacturer's 1 year warranty
• UPC: 840879022662

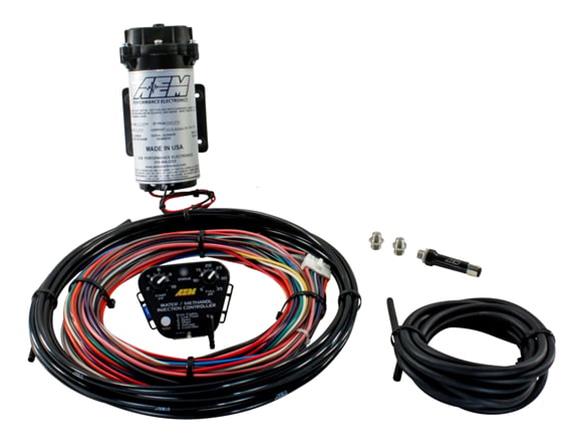

PARTS INCLUDED

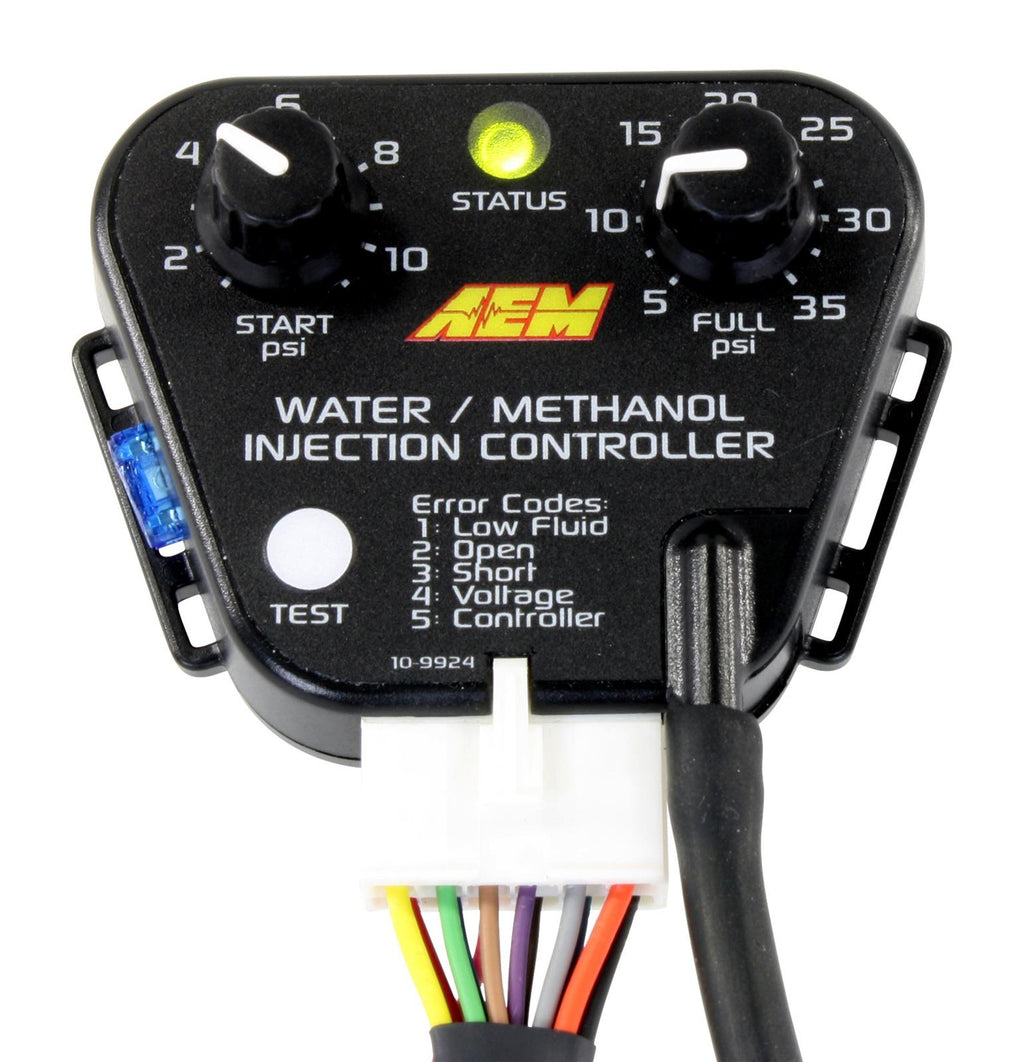

• V3 Standard Controller with internal MAP sensor
• Interchangeable injector nozzles
• LED system status light
• Fitting for a third-party reservoir tank
• Complete kit as supplied by AEM; see the installation instructions for the full bill of materials. Reservoir tank is not included.

TECH RESOURCES

Additional Parts Required

• Reservoir tank — not included with this kit. A third-party or custom tank is required; AEM supplies the fitting to connect one. Speed Logic does not currently stock a standalone tank — if you would rather buy a kit with the reservoir included, see the AEM V3 Water/Methanol Injection Kit 30-3300 (1-gallon tank) or the AEM V3 Water/Methanol Injection Kit 30-3301 (5-gallon tank).
• Water/methanol injection fluid — not supplied. A water/methanol mixture must be added to the tank before use; see the AEM instructions below for the approved mixtures and safety handling.
• A boost source — the Standard Controller is boost dependent and must be plumbed to a manifold pressure source via the barbed nipple.
• Installer-supplied: a drill and tap to fit the injector bung into the intake tract, hand tools, wire crimping and stripping tools, and a switched 12V ignition source.
• Recommended: a calibrated engine tune once the system is installed, so boost and timing can safely take advantage of the charge cooling.

Installation

• AEM 30-3302 installation instructions (PDF) — Water/Methanol Injection Kit, Standard Controller, internal MAP, no tank

Notes

• AEM's installation instructions state that this water/methanol injection system is designed for race vehicles only.
• AEM lists this kit as a universal fit part rather than a vehicle-specific application. Confirm packaging and routing for your car with Speed Logic before ordering.

PART NUMBER

• 30-3302
