OVERVIEW
AMS Performance's air intake system for the BMW G8X S58 platform is built around a massive 3.5" carbon fiber intake tube and oversized cast-aluminum turbo inlet elbows that are up to 128% larger in cross-section than the factory elbows. Dry filter media keeps servicing simple, and a 4-ply silicone hump hose delivers smooth airflow into the twin turbos.
In AMS's own dyno testing on a 2023 M3 Competition xDrive, the intake system produced a maximum gain of +86 whp at 5900 RPM over stock, with an average of +66 whp gained above 5000 RPM. Flowbench testing measured up to a 48% reduction in intake restriction versus the factory intake.

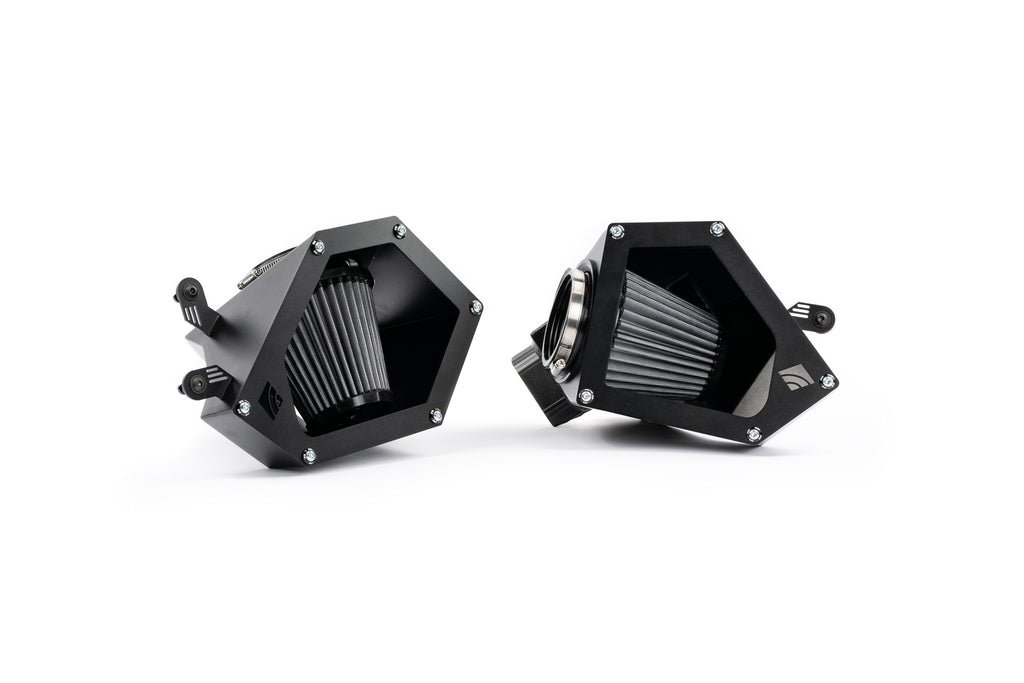

Choose a top style above: open-top airbox with hardware, or enclosed carbon fiber lids with magnetic fasteners.
SPECS
- 3.5" carbon fiber intake tube
- Cast-aluminum turbo inlet elbows, up to 128% larger cross-section than OEM
- 4-ply silicone hump hose
- Dry filter media for reliability and easy cleaning
- Available as open-top airbox configuration or with enclosed carbon fiber lids and magnetic fasteners
- Weight: 9 lbs; shipping dimensions 14 x 12 x 12 in
- Engine platform: BMW S58 3.0L Twin-Turbo I6
PARTS INCLUDED

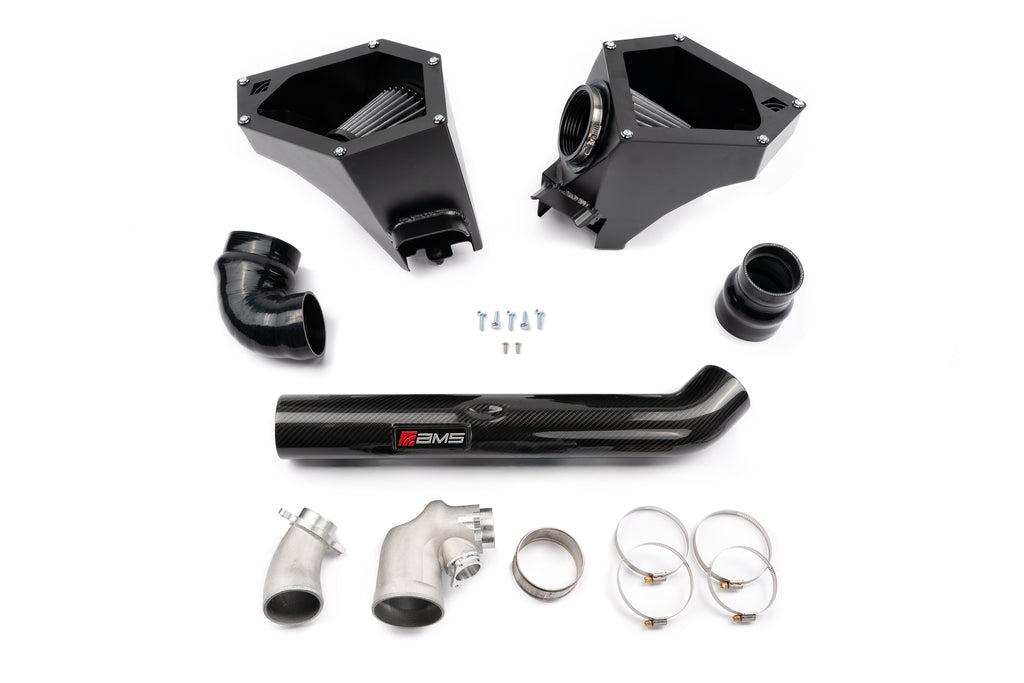

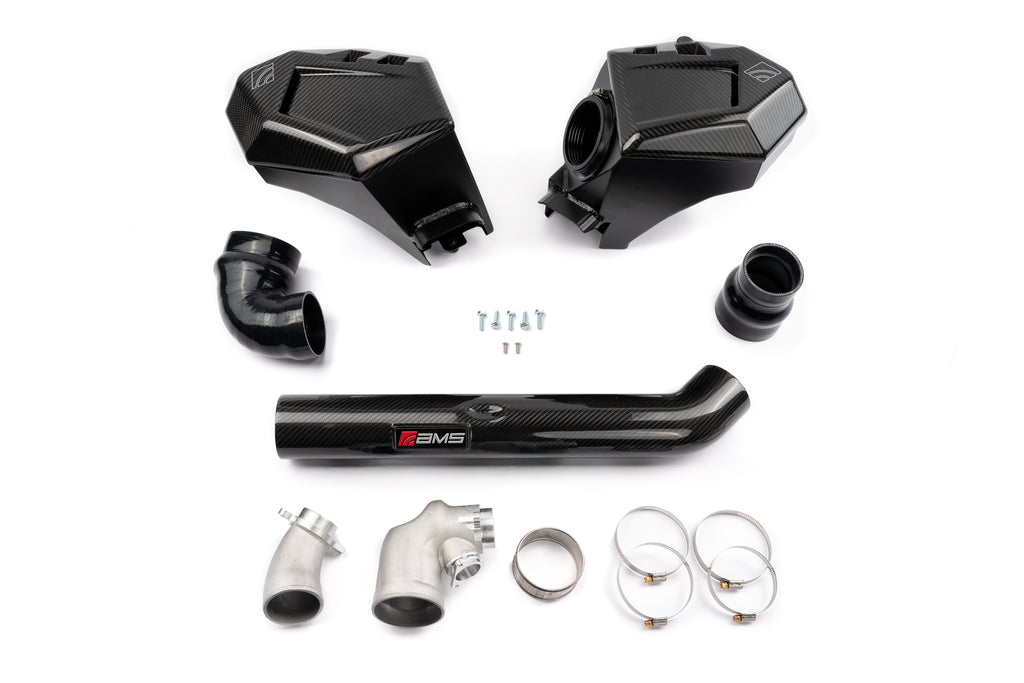

- Complete AMS Performance intake system in the selected top style (open airbox with hardware, or carbon fiber lids with magnets)
- Turbo inlet elbows, silicone couplers, and mounting hardware as specified by AMS Performance for this kit
TECH RESOURCES
Required Parts
- None. AMS Performance specifies no additional hardware required for a direct bolt-on install on the G8X S58 platform.
Installation
Notes
- Motorsports-grade carbon fiber components are hand-laid; slight imperfections or weave pattern variation are normal per AMS Performance and are not defects.
- CARB/EPA compliance testing has not been completed for this part per AMS Performance's own listing; for off-road/racing use only in emissions-regulated states unless otherwise confirmed.
PART NUMBER
- AMS.48.08.0001-1 — Open airbox top
- AMS.48.08.0001-2 — Carbon fiber lid top
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| BMW | M2 (incl. all sub-models) | G87 | S58 3.0L Twin-Turbo I6 | 2023+ |
| BMW | M3 (incl. all sub-models) | G80/G81 | S58 3.0L Twin-Turbo I6 | 2021+ |
| BMW | M4 (incl. all sub-models) | G82/G83 | S58 3.0L Twin-Turbo I6 | 2021+ |
