Black Market Race B58/S58 Billet Coolant Reservoir

OVERVIEW

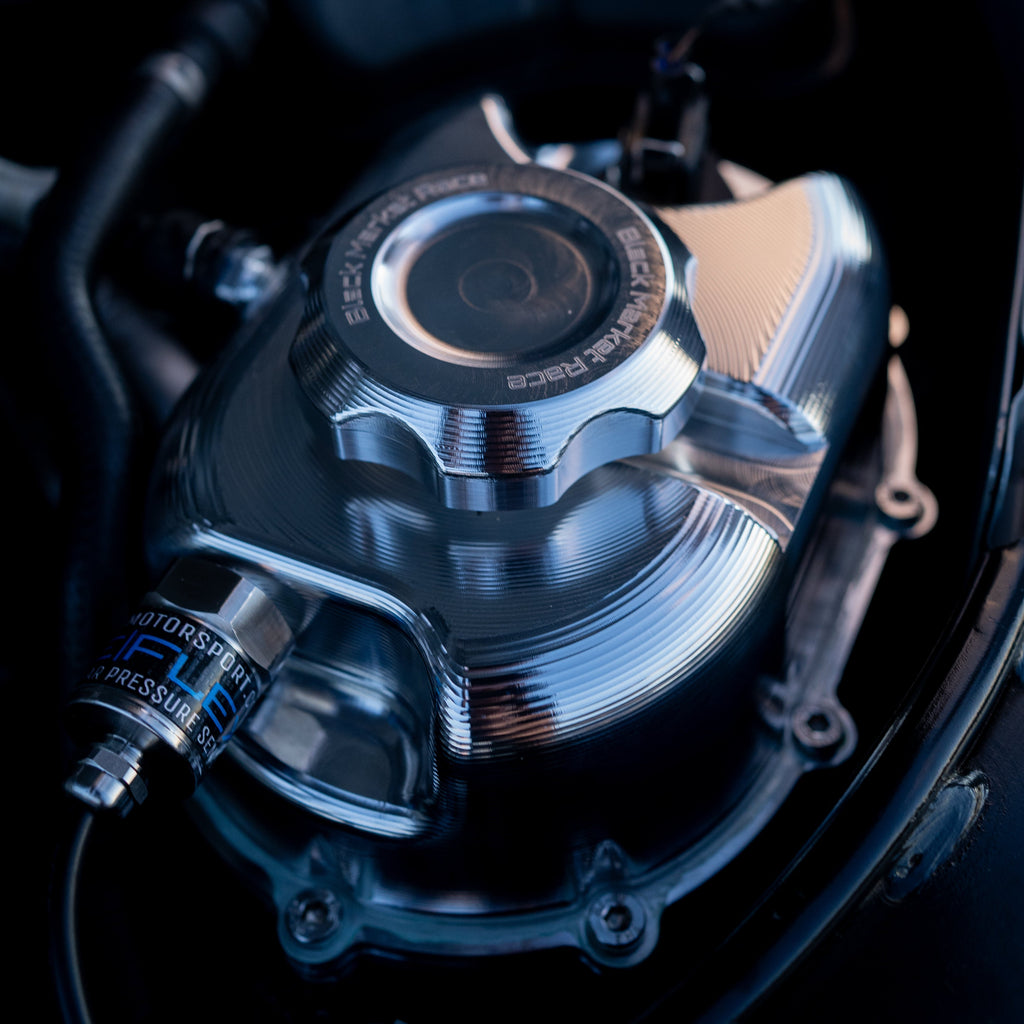

The Black Market Race B58/S58 Billet Coolant Reservoir replaces the OEM plastic coolant reservoir with a billet aluminum unit designed to solve several problems with the factory system, including coolant venting onto the front tire that can cause loss of traction — an issue reported by drivers and builders of high-output B58/S58 cars.

Each reservoir includes a 2-bar radiator cap with an overflow line, and can optionally be ordered with a remote overflow tank for trunk mounting. A built-in 1/8" NPT pressure reference port lets most tuning software integrate coolant-pressure-based safeties (for example, triggering limp mode if a head gasket starts to lift and coolant pressure spikes).

Reservoirs are machined from solid billets of 6061 aluminum and assembled with high-temperature, steam-resistant O-rings, and each unit is pressure tested to 150 psi before shipping. They are 100% plug-and-play with OEM coolant lines on the B58/S58 TU (2020+).

SPECS

• CNC machined from solid 6061 billet aluminum
• High-temp, steam-resistant O-ring sealing; pressure tested to 150 psi per unit
• Includes a 2-bar radiator cap with overflow line
• Built-in 1/8" NPT pressure reference port for coolant-pressure-based tuning safeties
• Plug-and-play with OEM coolant lines on the B58/S58 TU (2020+)
• Replaces OEM BMW coolant reservoir part # 17138610652 (B58) / 17138093924 (S58)

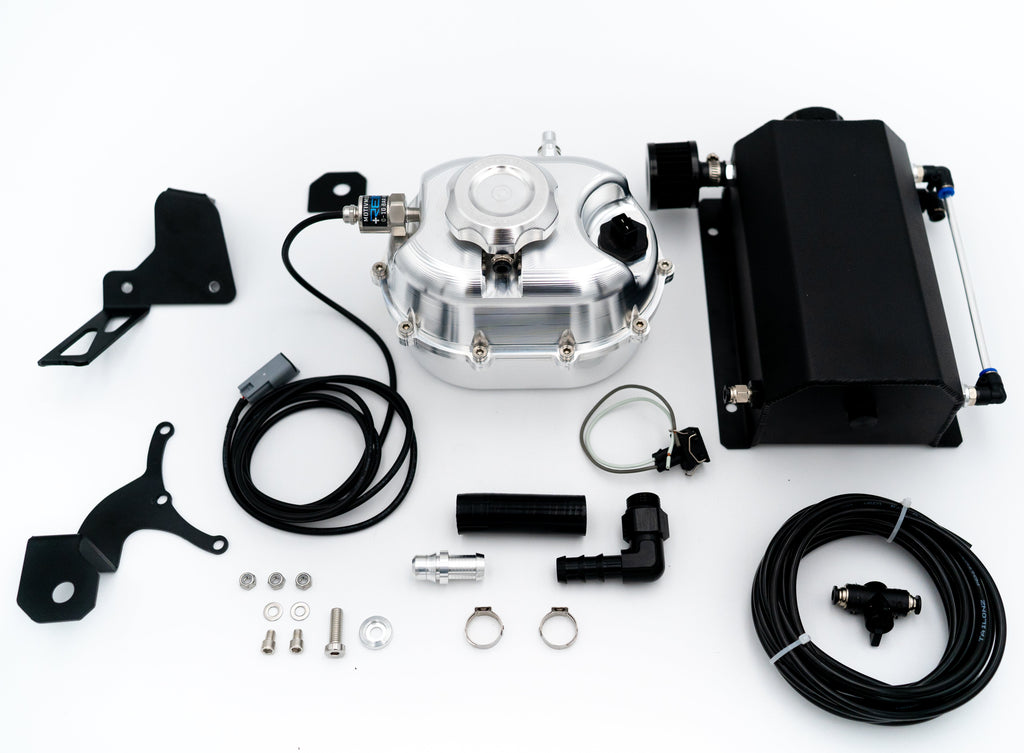

PARTS INCLUDED

• 1x Billet aluminum coolant reservoir
• 1x Coolant level sensor and pigtail

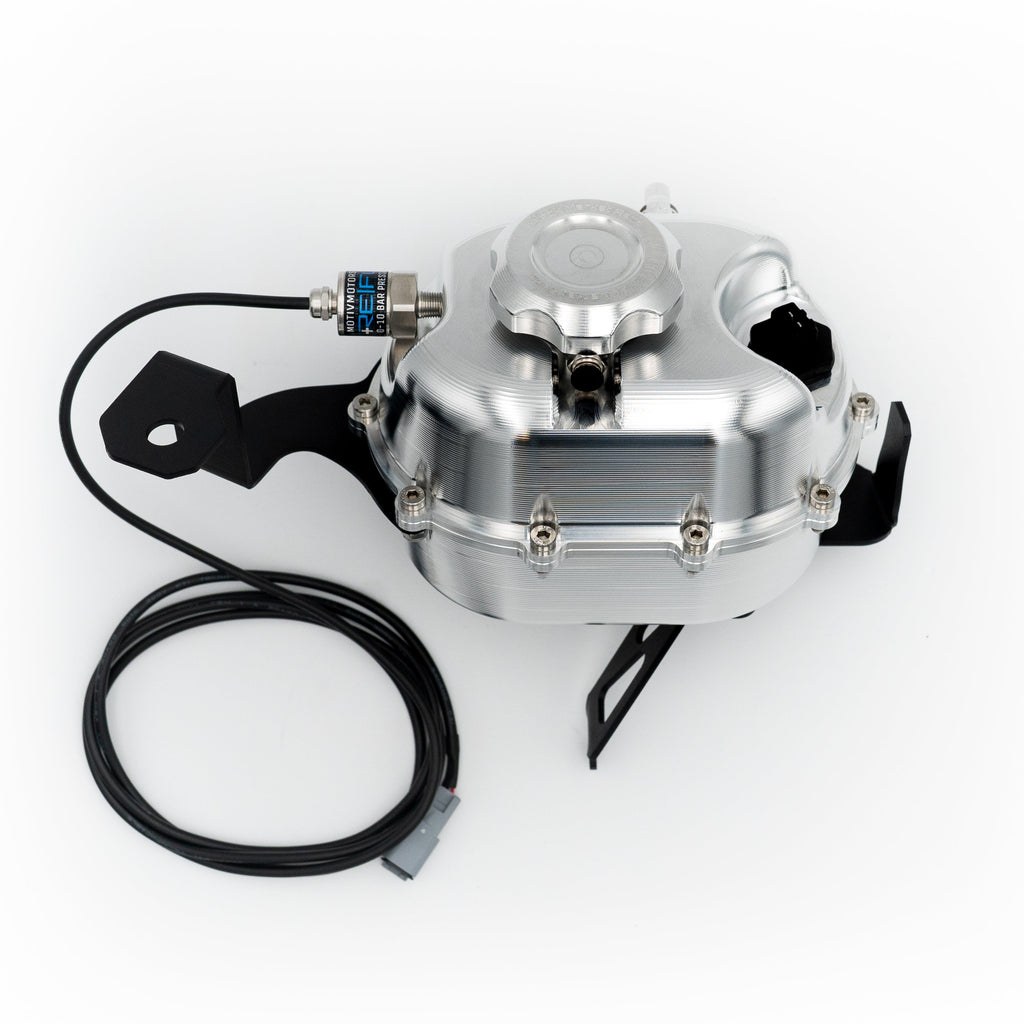

• Mounting brackets
• OEM coolant hose adaptor
• 10ft of 1/4" push-connect hose with push-connect fittings for overflow routing
• If "Include Overflow Tank" or "Include Remote Overflow Tank AND Motiv Pressure Sensor" selected: remote coolant overflow tank with breather filter, fasteners, and a drain valve

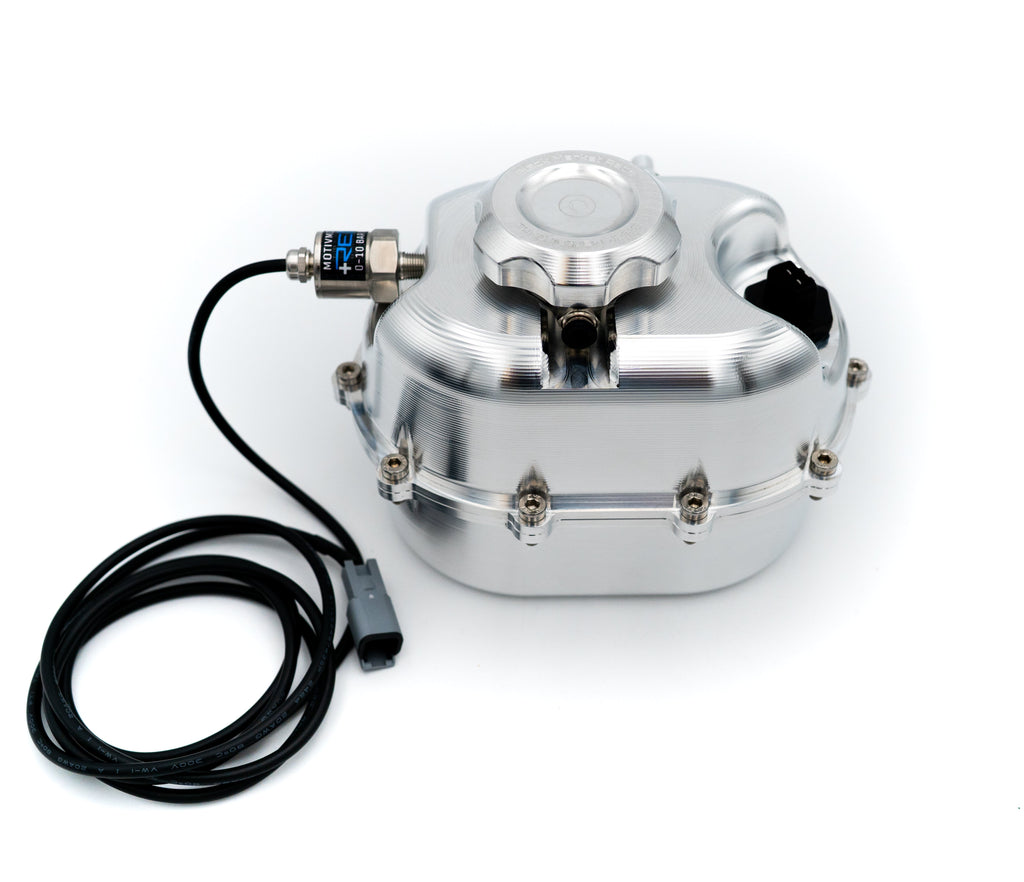

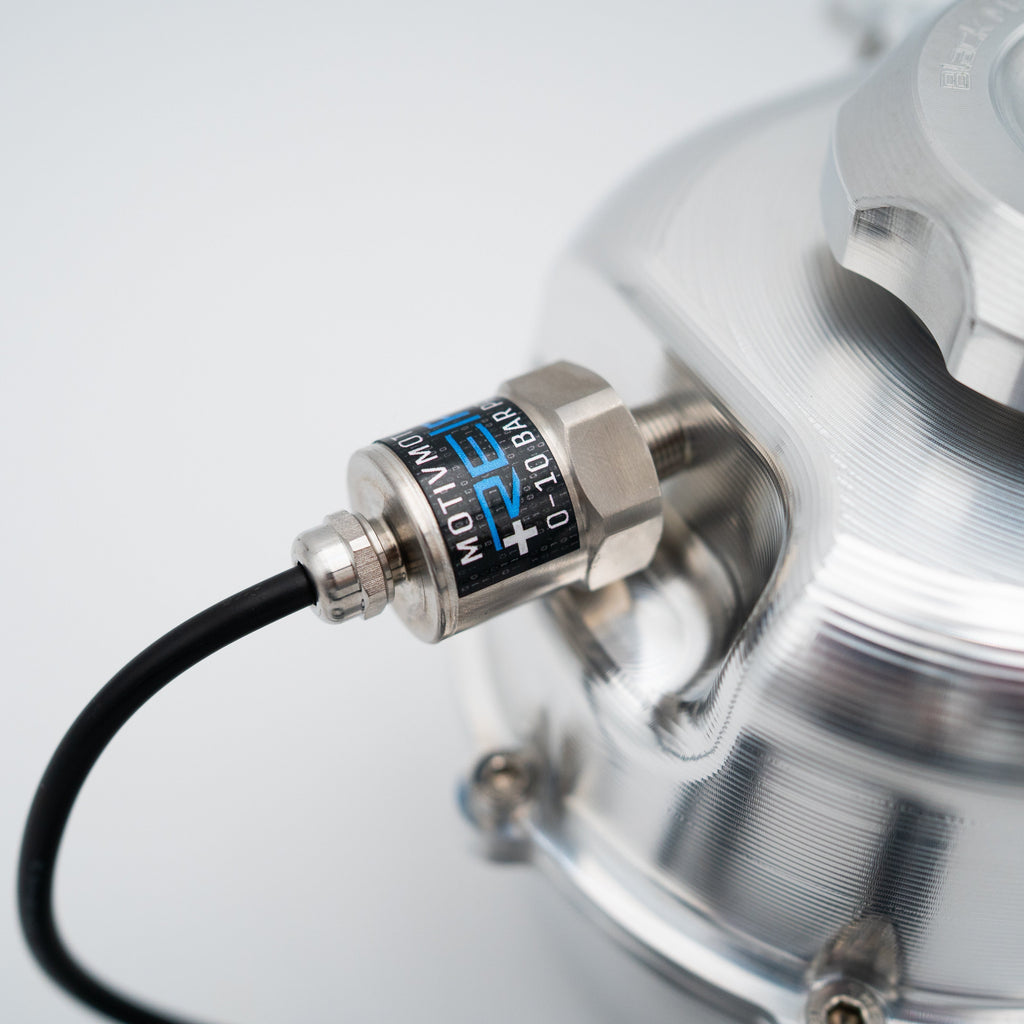

• If "Include Motiv Reflex Pressure Sensor" or "Include Remote Overflow Tank AND Motiv Pressure Sensor" selected: Motiv Reflex pressure sensor

TECH RESOURCES

• Required additional parts: none. The mounting brackets, hose adaptor, and push-connect fittings needed for install are included.
• Installation: no install PDF or official video is published for this reservoir. It is plug-and-play with OEM B58/S58 TU (2020+) coolant lines using the included brackets and adaptor; professional installation is recommended.
• Designed for the B58/S58 TU (2020+) engines and their OEM coolant line layout — confirm your car has a TU-generation engine before ordering.
• Brackets and fittings may differ from product photos depending on chassis.
• The OEM numbers 17138610652 / 17138093924 are BMW's original part numbers that this reservoir replaces, not a Black Market Race part number.
• Price is for the reservoir configuration selected only; labor is not included.
