Burger Motorsports BMS Replacement Intercooler – BMW 135i, 1M, 335i, 335is (E82/E87/E88, E90/E91/E92/E93, N54/N55)

OVERVIEW

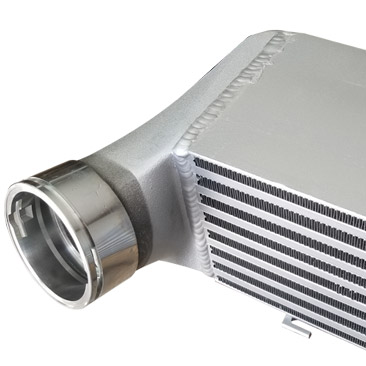

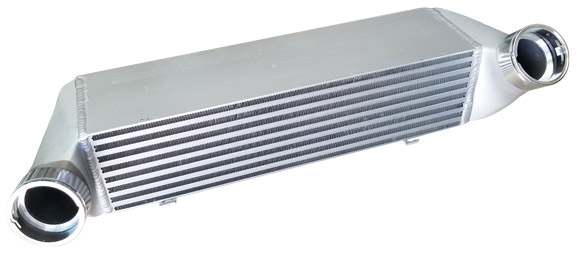

The BMS Replacement Intercooler swaps out the factory front mount intercooler on N54 and N55 powered E chassis BMWs with a higher-flowing unit built around a bigger core and larger end tanks. The extra core volume lowers charge air temperatures and cuts pressure drop compared to the stock cooler.

The gains show up most during long pulls and repeated runs, where the factory intercooler heat soaks: expect roughly 10whp at peak and as much as 20–30whp over stock once the OEM unit is saturated. It is a direct, fully reversible replacement suited to builds up to around 500whp; higher-output builds should look at the BMS 7.5" RACE intercooler.

SPECS

• Core dimensions: 20" x 5.25" x 5.25"
• High-flow, oversized core with enlarged end tanks
• Reduced pressure drop and heat soak versus the factory intercooler
• Approximately 10whp peak gain; up to 20–30whp over stock on extended or back-to-back pulls
• Recommended for up to approximately 500whp
• Direct bolt-in replacement for the factory intercooler – fully reversible
• Shipping weight: approx. 20 lb

PARTS INCLUDED

• (1) BMS Performance Intercooler for E chassis BMW

TECH RESOURCES

Additional Parts Required

• No additional hardware is required – the intercooler bolts in using the factory mounting points.

Installation

• BMS E-Chassis Replacement Intercooler Install Video (YouTube)

VEHICLE APPLICATIONS

Fits N54 and N55 E chassis 1 Series and 3 Series models listed. Not for 5 Series.
