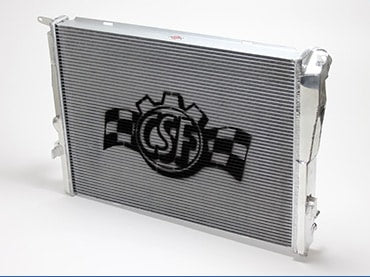

CSF High-Performance Aluminum Radiator – BMW M3 (E9x)

OVERVIEW

CSF's triple-pass all-aluminum radiator is the cooling upgrade the S65-powered E9X M3 has always needed. A 2-row 42mm dual core built around CSF's exclusive B-Tube technology is paired with an ultra-efficient 6.5mm multi-louvered fin, so far more of the coolant's heat reaches the airstream than with the factory plastic-tank radiator.

The triple-pass flow structure routes coolant across the core three times before it exits, delivering the lowest outlet temperature CSF can achieve from this package size. CNC-machined quick-connect inlet and outlet fittings, CNC-machined brackets and an all-aluminum race-style drain plug round out the build.

It is a drop-in replacement. The radiator accepts all attaching OEM components including the quick-connect hoses, AC condenser, mounting brackets and fan shroud, so no modification is required to install it.

SPECS

• 2-row 42mm dual core featuring CSF's exclusive B-Tube technology
• Ultra-efficient fin with 6.5mm fin height and multi-louvered design for maximum surface area contact
• Triple-pass flow structure — coolant crosses the core three times before exiting
• CNC-machined quick-connect inlet and outlet connections
• CNC-machined brackets and fittings
• All-aluminum race-style drain plug
• Finish: smooth satin (CSF's current specification; earlier production was supplied with a 1-hour hand-polished mirror finish)
• Drop-in fit requiring no modifications; accepts OEM quick-connect hoses, AC condenser, mounting brackets and fan shroud
• Replaces OEM part number 17112283468
• CSF 2-year warranty, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed

PARTS INCLUDED

• One (1) CSF #7059 triple-pass all-aluminum radiator with CNC-machined brackets, fittings and drain plug
• Complete kit as supplied by CSF Radiators; CSF does not publish a bill of materials for this part — see the instructions packed in the box for the full contents.

TECH RESOURCES

Additional Parts Required

• None. CSF Radiators specifies no additional hardware for this part — it is a direct-fit replacement that reuses the OEM hoses, brackets, condenser and fan shroud.
• Installer-supplied: fresh BMW-spec coolant and distilled water to refill the system after the swap, plus a drain pan.

Installation

• CSF does not publish a downloadable installation PDF for this radiator. Printed installation instructions are packed in the box.
• Installation follows the factory radiator replacement procedure — drain, disconnect the quick-connect hoses, swap the unit onto the OEM mounts, refill and bleed the cooling system.
• Bleed the system fully after filling; the S65 cooling system is sensitive to trapped air.
• Need help before or during the install? Contact Speed Logic and we will walk you through it.

Notes

• CSF publishes this fitment as "2008–2013 BMW E9X M3"; the rows above expand that shorthand into the individual E90 sedan, E92 coupe and E93 convertible body codes over CSF's full platform year range. Individual model years within that range vary by body style — confirm your car with Speed Logic before ordering.

PART NUMBER

• CSF #7059
