CSF Heat Exchanger & Transmission Cooler Module – BMW X3 M / X4 M (F97 / F98, S58)

OVERVIEW

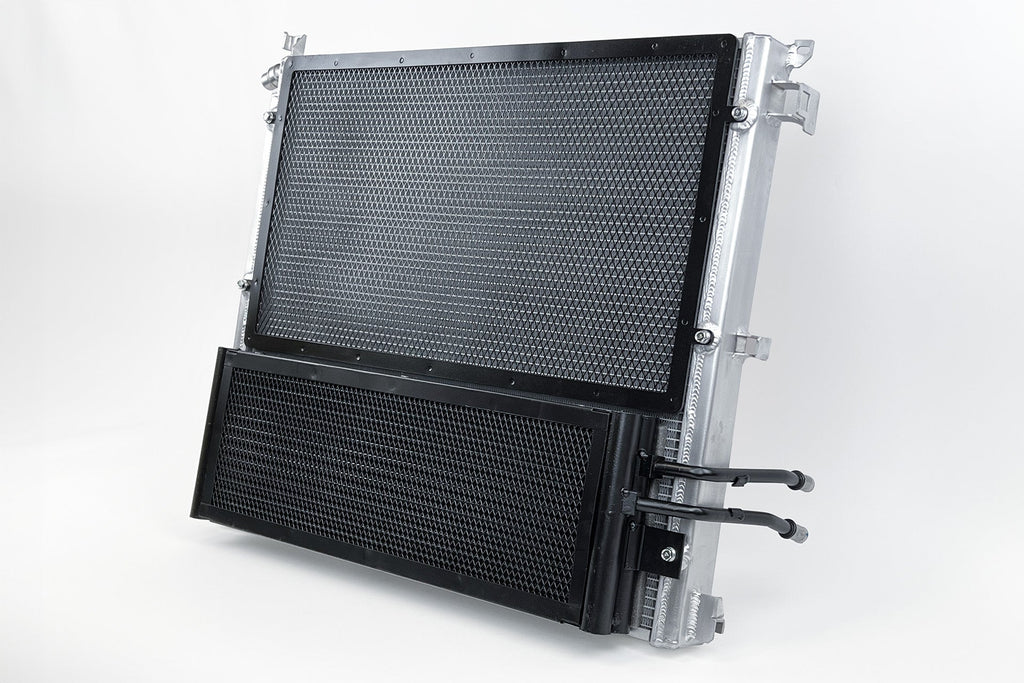

The CSF #8331 Performance Cooling Module combines a front-mount heat exchanger and a dual-core automatic transmission cooler into a single assembly for the F97 X3 M and F98 X4 M. The heat exchanger shares its core size with CSF's G8X unit, and the module was developed following CSF's G8X cooling work and testing with MADE Motorsports in Las Vegas.

The heat exchanger replaces the OEM 1-row core and plastic, crimped tanks with a 42mm 2-row B-Tube core and fully TIG-welded all-aluminum tanks, while the transmission cooler moves from the OEM single-core layout to a dual-core, dual-pass design with a claimed 201% increase in core volume. CSF states the module significantly reduces intake air temperatures and improves airflow to the rest of the cooling system.

SPECS

• Heat exchanger: 42mm 2-row core vs. OEM 28mm 1-row
• Heat exchanger fin height: 6.5mm vs. OEM 6.3mm; CSF B-Tube core technology with multi-louvered fins
• Heat exchanger tanks: all-aluminum, 100% TIG-welded (OEM: plastic with crimp-on gasket)
• Transmission cooler: dual core, dual pass (front to back) vs. OEM single core, dual pass
• Transmission cooler core and tank: 527 x 188 x 44 mm vs. OEM 554 x 87 x 30 mm
• Transmission cooler: 15 tubes and 16 fin rows vs. OEM 8 tubes and 7 rows; 8mm fin height
• Transmission cooler core: 1-row, 16mm, 9-channel microtube from CSF's AC condenser technology; 201% more core volume than OEM (CSF claim)
• CNC-machined mounting brackets and OEM-style quick-connect inlet/outlet
• Metal upper rock guard and strengthened mounting tabs and brackets
• Pre-installed foam sealing strips on the transmission cooler
• Finish: hand-brushed satin
• Heat exchanger replaces BMW OEM 17 11 9 468 695 and 17 11 8 693 360
• 2-year limited warranty

PARTS INCLUDED

• CSF high-performance front-mount heat exchanger with upper rock guard
• CSF dual-core transmission cooler with pre-installed foam sealing strips
• Transmission cooler mounting kit
• Complete kit as supplied by CSF Radiators; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• None. CSF specifies no additional hardware for the X3 M / X4 M. The module connects to the factory transmission lines and coolant connections.
• Coolant and transmission fluid for top-off after installation (installer supplied).

Installation

• CSF does not publish a downloadable installation PDF for this part. Contact Speed Logic for installation support.
• CSF describes the module as a drop-in fit; minor positioning adjustments to the transmission lines may be needed.
• The transmission cooler is not a direct replacement for BMW 17 21 9 487 254 — it connects to the OE lines and mounts to the new CSF heat exchanger.

Notes

• CSF's product description also mentions the G01 X3 M40i and G02 X4 M40i, but CSF's fitment chart lists the F97 X3 M and F98 X4 M only. Pre-LCI M40i models built before 08/2019 use a liquid-to-oil transmission cooler and need additional factory parts to connect this cooler. Confirm fitment with Speed Logic before ordering for any M40i.

PART NUMBER

• 8331 — CSF BMW F9X X3M / X4M Performance Cooling Module (Heat Exchanger + Trans Cooler)
