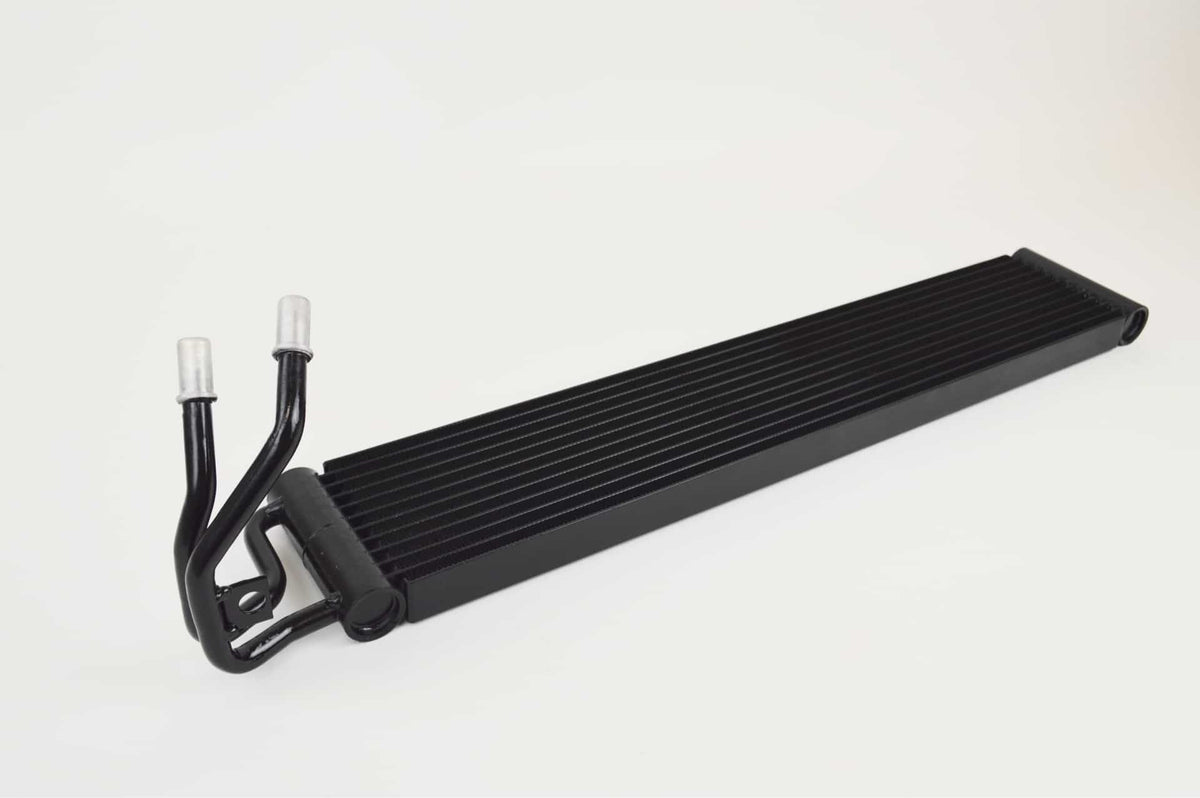

CSF Dual-Pass Race-Spec DCT Cooler – BMW M3 / M4 / M2C (F8x)

OVERVIEW

CSF's race-spec DCT cooler was the world's first and only true plug-and-play upgraded transmission cooler for the S55 cars — the F80 M3, F82/F83 M4 and F87 M2 Competition. It uses CSF's AC condenser technology built around a 1-row super-high-pressure 26mm multi-channel microtube.

Where the factory cooler is a single-pass 6-tube design with a return pipe, the CSF unit runs a dual-pass high-performance core with 10 cooling tubes and a high-density multi-louvered fin, and lab tests approximately 30% more efficient than OEM. It drops straight in with no modifications and accepts every OEM attaching component, including the oil-line connections, mounting brackets and shroud/ducting.

SPECS

• Built with CSF's AC condenser technology using a 1-row super-high-pressure 26mm multi-channel microtube
• Dual-pass high-performance core with 10 cooling tubes versus the OEM single-pass, return-pipe 6-tube design
• High-density multi-louvered fin design
• Lab tested at approximately 30% more efficient than the OEM cooler
• Drop-in fit requiring no modifications — accepts all attaching OEM components including oil-line connections, mounting brackets and shroud/ducting
• For DCT-equipped cars
• Replaces OEM part number 17112284503
• 2-year warranty to the original purchaser under normal use

PARTS INCLUDED

• CSF dual-pass race-spec DCT transmission cooler
• Complete kit as supplied by CSF Radiators; see the installation instructions for the full bill of materials

TECH RESOURCES

Additional Parts Required

• None. CSF Radiators specifies no additional hardware for this part — it is a drop-in fit that reuses the OEM lines, brackets and ducting.

Installation

• CSF does not publish a downloadable installation PDF for this part. Printed installation instructions ship in the box.

Notes

• DCT cars only. Confirm fitment with Speed Logic if your car has the 6-speed manual transmission.

PART NUMBER

• 8081
