CSF Engine Oil Cooler – BMW M2 Competition / M3 / M4 / X3 M / X4 M (F8x / F97 / F98, S55 / S58)

OVERVIEW

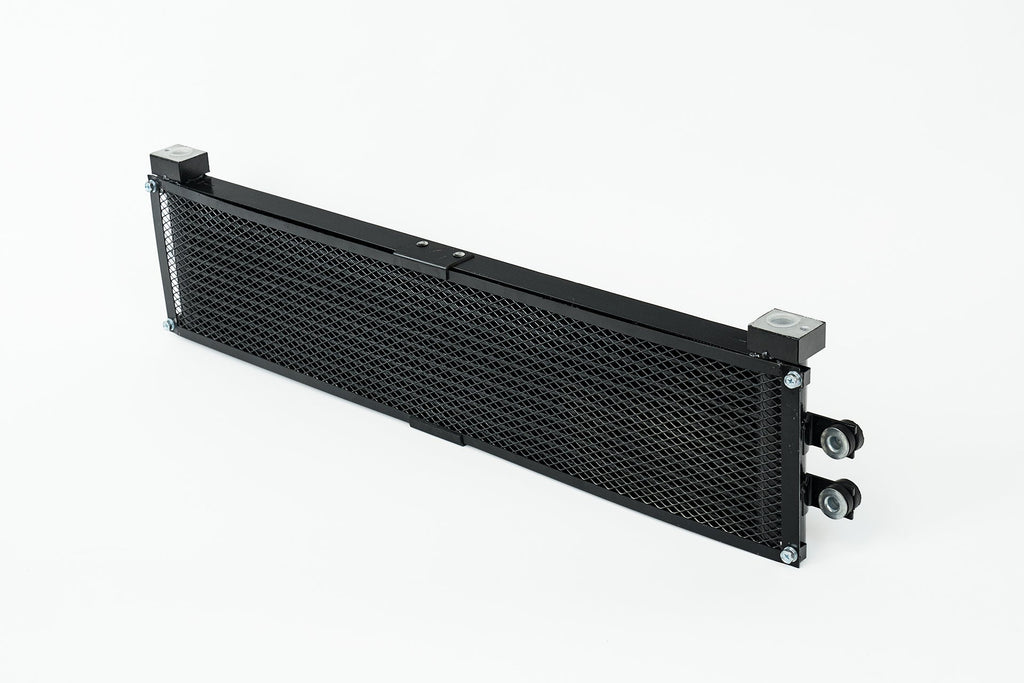

The CSF #8220 High-Performance Oil Cooler is a direct replacement for the factory engine oil cooler on the F8X M3, M4 and M2 Competition, and is also listed by CSF for the F97 X3 M and F98 X4 M. It is aimed at hard street and track use, where factory oil temperatures become the limiting factor.

The cooler is built using CSF's AC condenser technology — a 1-row, super-high-pressure, 10-channel microtube design that maximizes oil flow and surface area contact — in a 32mm core that offers roughly 15% more core volume than the 28mm OE core. It keeps the factory mounting location and dimensions so the factory ducting and shrouds are reused, and it includes a removable, replaceable rock guard.

SPECS

• 32mm 1-row, super-high-pressure 10-channel microtube core built with CSF's AC condenser technology
• Approximately 15% more core volume than the 28mm OE core
• Approximately 30% better cooling efficiency (CSF claim)
• 5.4mm tall multi-louvered fin (OEM 7mm)
• Reuses the OEM top and bottom rubber seals
• OEM-style inlet/outlet connections
• Factory mounting location and dimensions; reuses factory ducting and shrouds
• Removable, replaceable rock guard
• Compatible with aftermarket oil cooler guards and skid plates
• "Drop-in" fit — requires no modifications to install
• Replaces BMW OEM 17 21 2 284 540 and 17 21 4 802 333
• 2-year limited warranty

PARTS INCLUDED

• CSF #8220 high-performance engine oil cooler
• Removable/replaceable rock guard
• Mounting hardware

TECH RESOURCES

Additional Parts Required

• None. CSF specifies no additional hardware for this part — #8220 uses the OEM seals, OEM-style line connections and the factory mounting location.
• Engine oil for topping off after installation (installer supplied).

Installation

• CSF does not publish a downloadable installation PDF for this part. Contact Speed Logic for installation support.
• Drop-in fit using the factory mounting points and ducting.

Notes

• The F87 M2 row applies to the S55-powered M2 Competition (2019–2021). The N55-powered F87 M2 uses a different cooler.

PART NUMBER

• 8220 — CSF BMW F8X M3/M4/M2 Comp & F9X X3M/X4M High-Performance Oil Cooler
