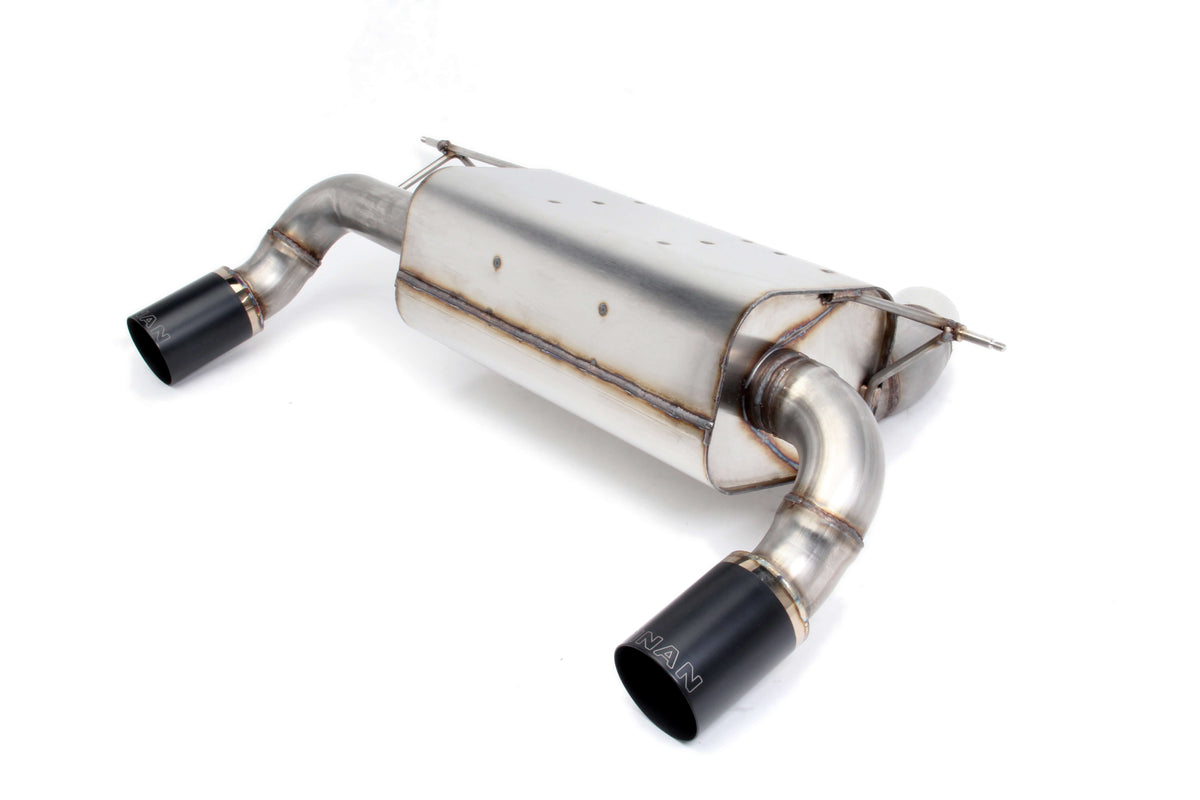

Dinan Free Flow Axle-Back Exhaust – BMW M240i (F22)

OVERVIEW

Dinan engineered this axle-back exhaust for the F22 and F23 M240i to improve exhaust flow by reducing back pressure, which increases power output and gives the car a sportier voice that stays civilized when you want it to be and turns pleasantly aggressive under hard acceleration. Beyond the improved tone, the system adds the burbles and pops enthusiasts look for. A Helmholtz chamber design cancels resonance so low-RPM drone stays out of the cabin.

The system is built to exacting specifications for a perfect fit on the factory hangers and is made from 100% 16-gauge T304 stainless steel, so it will resist corrosion for years. It finishes with twin 89 mm tips in polished stainless or ceramic black. The factory computer-controlled exhaust valve is eliminated.

SPECS

• Maximum gain: +6 HP @ 6600 RPM and +5 lb-ft @ 6600 RPM
• 100% 16-gauge T304 stainless steel construction, brushed finish
• Twin 89 mm (3.5 in) laser-engraved exhaust tips, polished stainless or ceramic black; four tip outlets
• Helmholtz chamber to reduce low-RPM drone
• Factory computer-controlled exhaust valve is eliminated
• Mounts using the factory brackets and hangers; clamps and hangers included
• Shipping dimensions: 50 in L x 34 in W x 12 in H
• Weight: 45 lb
• Dinan labor time: 1.3 hours
• Emissions status per Dinan: legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles, because it does not affect vehicle emissions and is not covered by emissions regulations
• Dinan limited warranty: the remainder of the BMW new-car limited warranty, up to 4 years / 50,000 miles, if the vehicle is still covered by the factory warranty; otherwise 2 years / unlimited mileage. Wear items are excluded.

PARTS INCLUDED

• Complete axle-back exhaust kit as supplied by Dinan, including clamps and hangers; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• None. Dinan specifies no additional hardware for this part; clamps and hangers are included in the kit.
• Dinan notes the factory rubber hangers should be replaced if the originals are worn.

Installation

• Dinan Free Flow Axle-Back Exhaust Installation Instructions (INS660-0045 / -0053 / -0055 / -0061 / -0067 / -0077, Rev. 03/28/19) - PDF
• Dinan labor time: 1.3 hours

Notes

• The linked installation instructions are a shared Dinan document covering several muffler part numbers; follow the steps for D660-0067(-BLK) only. Other vehicles listed in that document use different part numbers and are not covered by this listing.

PART NUMBER

• D660-0067-BLK - ceramic black tips
• D660-0067 - polished stainless tips
