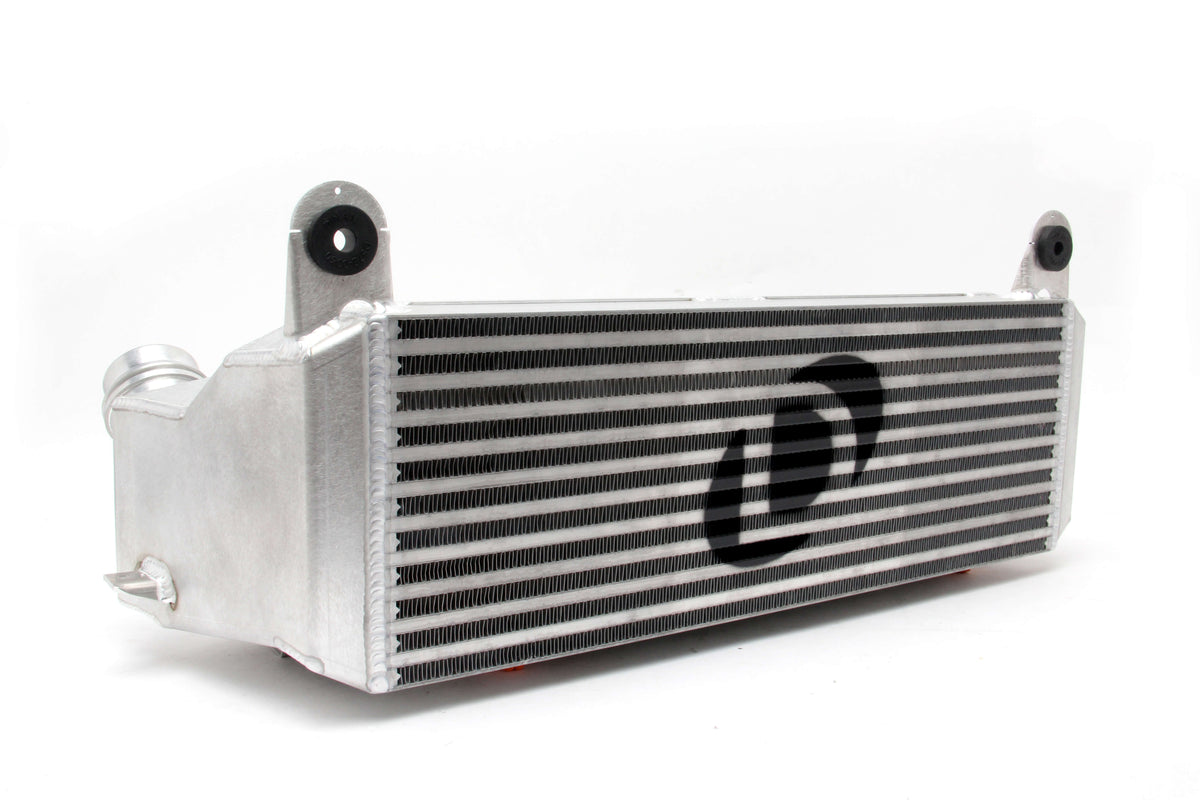

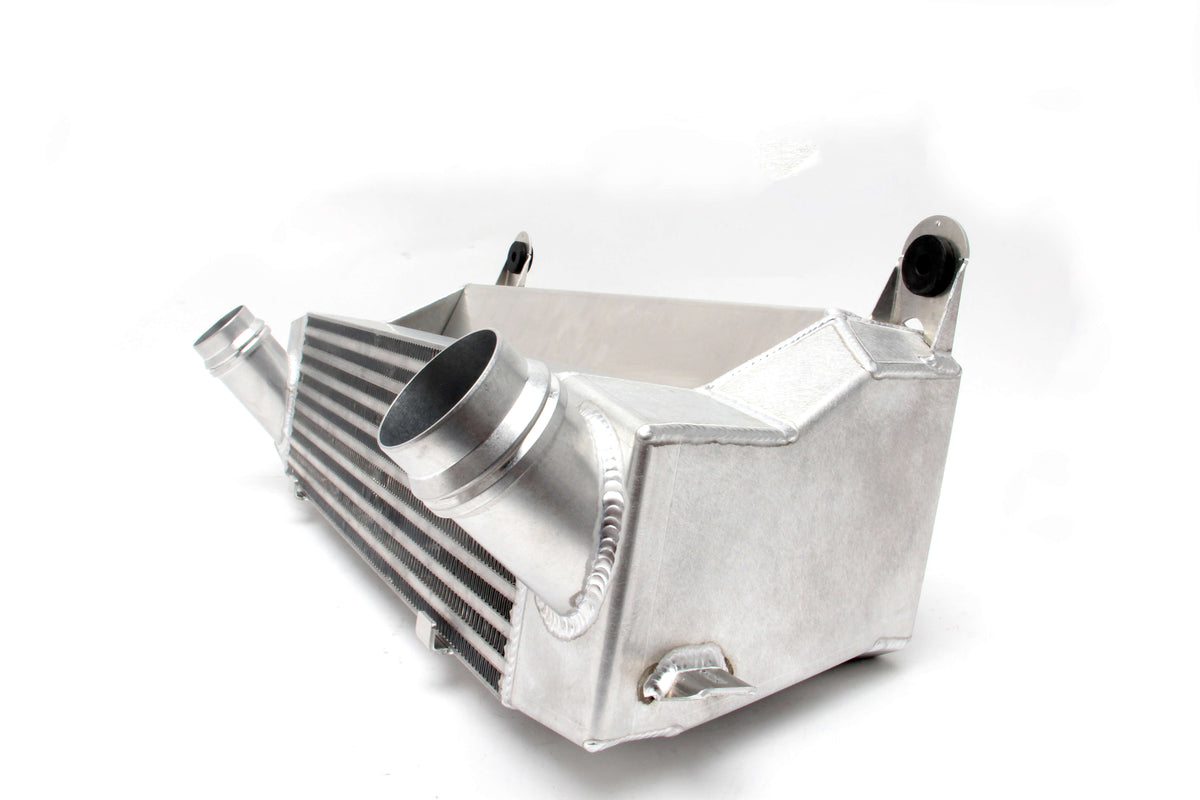

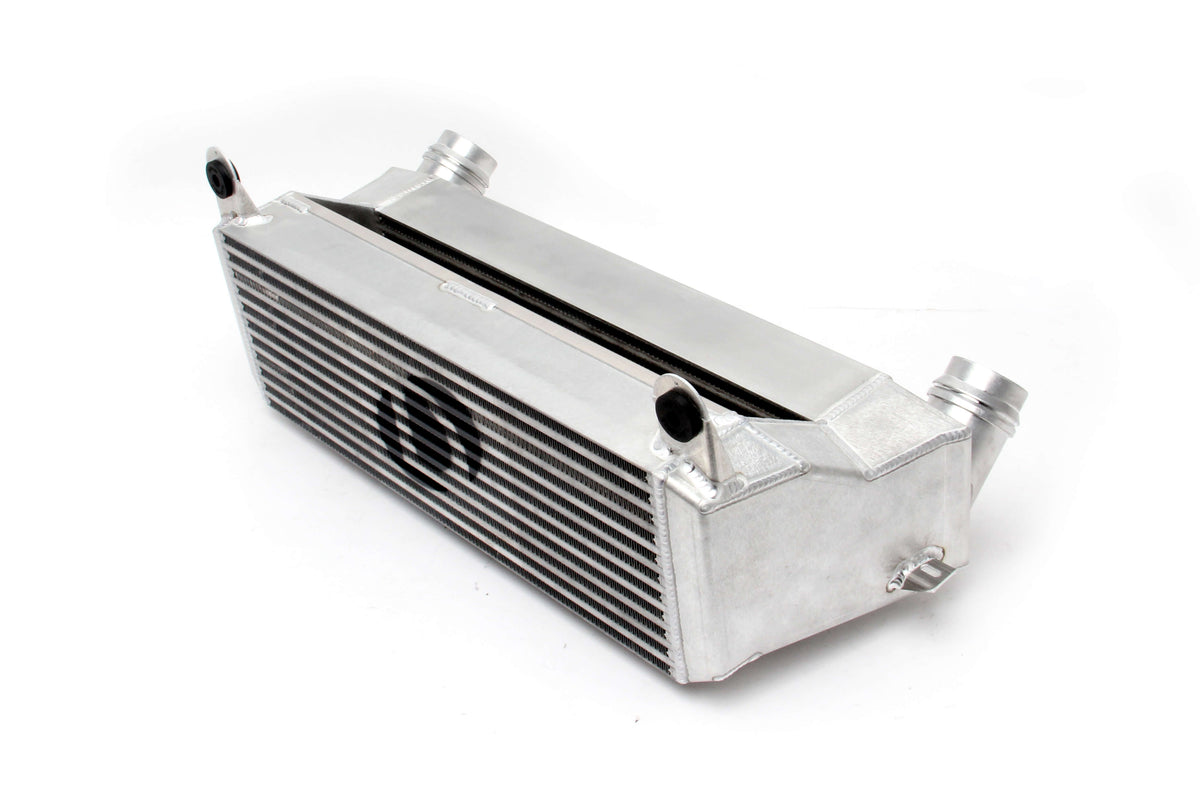

Dinan Dual Core Intercooler – BMW 2 / 3 / 4-Series (F22/F30/F32/F34/F36)

OVERVIEW

Greater power gains come from a larger, more capable intercooler. The Dinan dual core intercooler delivers a 240% increase in face area along with an equally large increase in volume, cutting the charge air pressure drop to 0.8 psi while providing more efficient heat exchange and more consistent power output. Dinan's dual-core design runs two separate cores in conjunction with one another at all times, and that doubling of resources is directly responsible for a 60% improvement in the delta between charge air temperature and ambient temperature. Cool-down time is also reduced, so the car can produce full power in varying conditions such as stop-and-go traffic and heat soak becomes far less of a concern.

The system is engineered to be as direct a replacement for the stock unit as possible, requiring only minor modifications for a clean, factory-like installation. The increased thermal efficiency also benefits turbocharger reliability alongside outright power. On a stock vehicle, gains arrive from 4000 RPM and beyond, once the car is in boost. Dinan recommends pairing the intercooler with engine tuning for best results: with Dinan flash software the power band is more robust from 5000 RPM to redline, whereas untuned cars see the bulk of the gains from 6000 RPM to redline.

SPECS

• Maximum gain on N55 engines: 15 HP and 13 lb-ft @ 6250 RPM
• Maximum gain on N20 / N26 engines: 6 HP and 5 lb-ft @ 5500 RPM
• Face area 240% larger than the stock intercooler
• Charge air pressure drop: 0.80 psi, a 25% improvement over stock
• Charge air temperature drop: 155 F, an 11% improvement over stock
• Charge air to ambient temperature delta: 18 F @ 6250 RPM, a 60% improvement over stock
• Dual-core construction with two separate cores working together at all times
• Shipping dimensions: 36 in L x 19 in W x 13 in H
• Weight: 33 lb
• Dinan labor time: 4.5 hours
• Emissions status per Dinan: 50-state emissions legal, CARB EO D-176-51
• Dinan limited warranty: the remainder of the BMW new-car limited warranty, up to 4 years / 50,000 miles, if the vehicle is still covered by the factory warranty; otherwise 2 years / unlimited mileage. Wear items are excluded.

PARTS INCLUDED

• (1) D333-0024 intercooler assembly
• (1) D332-0040 undercar diffuser
• (1) D333-0021 hardware kit, containing bushings, wipes, foam strips, fasteners and installation tools

TECH RESOURCES

Additional Parts Required

• None. Dinan specifies no additional hardware for this part; the undercar diffuser and hardware kit needed for installation are supplied.
• Engine tuning is optional. Dinan states that with its flash software the power band is extended and more robust from 5000 RPM to redline.

Installation

• Dinan High Performance Dual Core Intercooler Installation Instructions (INS330-0021, Rev. 09/13/23) - PDF
• Dinan labor time: 4.5 hours

Notes

• Dinan states this intercooler must not be installed on vehicles equipped with Active Cruise Control, on any F23 or F33 convertible regardless of bumper, or on any F22 with standard (non M Sport) bumpers. Confirm fitment with Speed Logic before ordering.

PART NUMBER

• D330-0021
