Burger Motorsports JB4 Tuner – BMW 135i / 335i / X5 / X6 (N55 E-Chassis)

OVERVIEW

Plug-and-play power for the E-chassis N55 with the factory DME left untouched. The Burger Motorsports JB4 reads and adjusts through the engine's own sensor network, so there is no flash, no VIN lock, and no trace once you unplug it. Figure roughly 20 minutes to install with hand tools.

The N55 changed connectors partway through production, so harness type matters more than model year alone. Type A covers most 2011 and some 2012 cars; Type B covers some 2011, most 2012 and all 2013+ cars, and right-hand-drive versions of both are available. If you are unsure, check the plug on your car before ordering — we are happy to help identify it.

SPECS

• Up to 60 HP and 60 lb-ft to the wheels on a stock car
• Up to 100 HP to the wheels on a fully modified car
• Multiple switchable maps, including E85 ethanol blends
• Boost-by-gear control for traction management
• Live gauges, datalogging, and fault code read and clear
• Harness Type A — most 2011 and some 2012 135 / 335 / X1 / X5 / X6
• Harness Type B — some 2011, most 2012 and all 2013+ 135 / 335 / X1 / X5 / X6
• Type A RHD and Type B RHD harnesses available for right-hand-drive cars
• No ECU flash — the factory DME is left stock
• Not VIN-locked; fully reversible
• Approximately 20-minute installation with hand tools
• Free firmware updates
• 5-year warranty
• Designed and assembled in the USA

PARTS INCLUDED

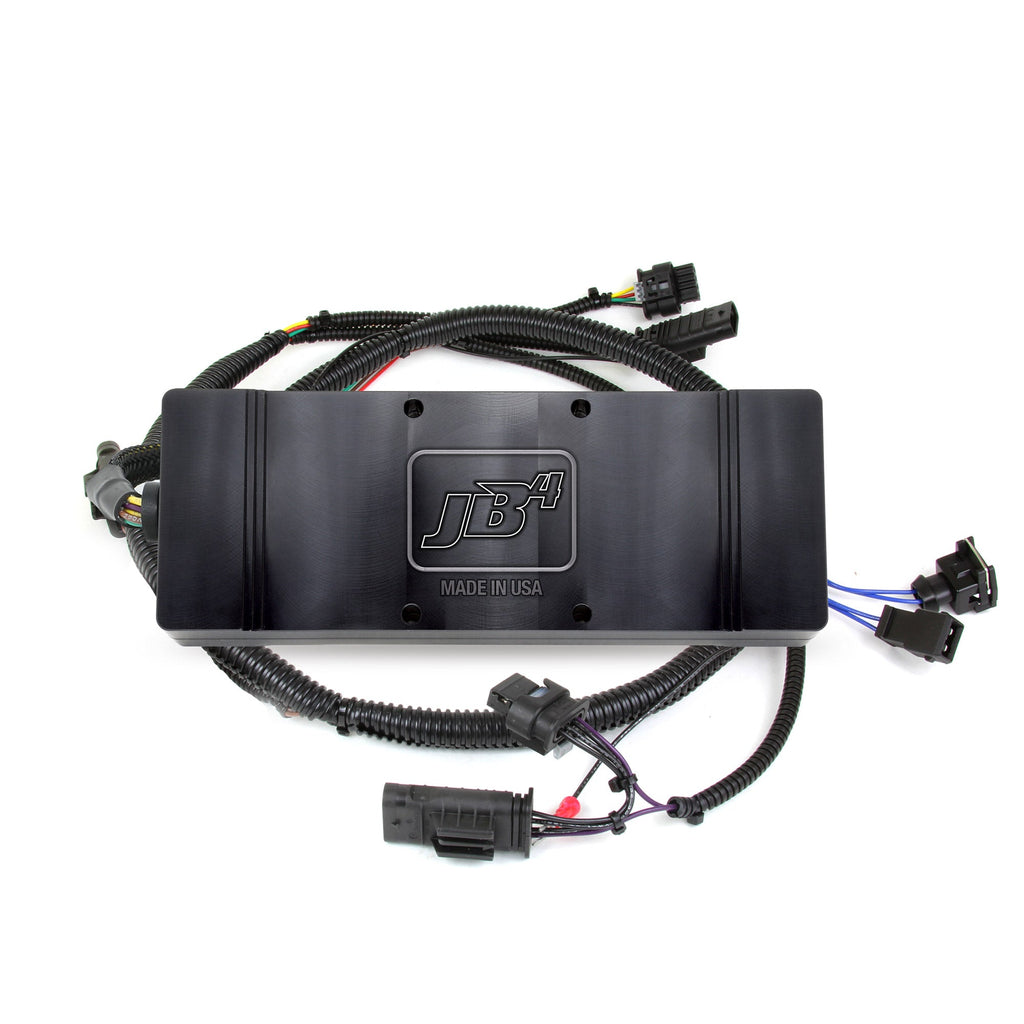

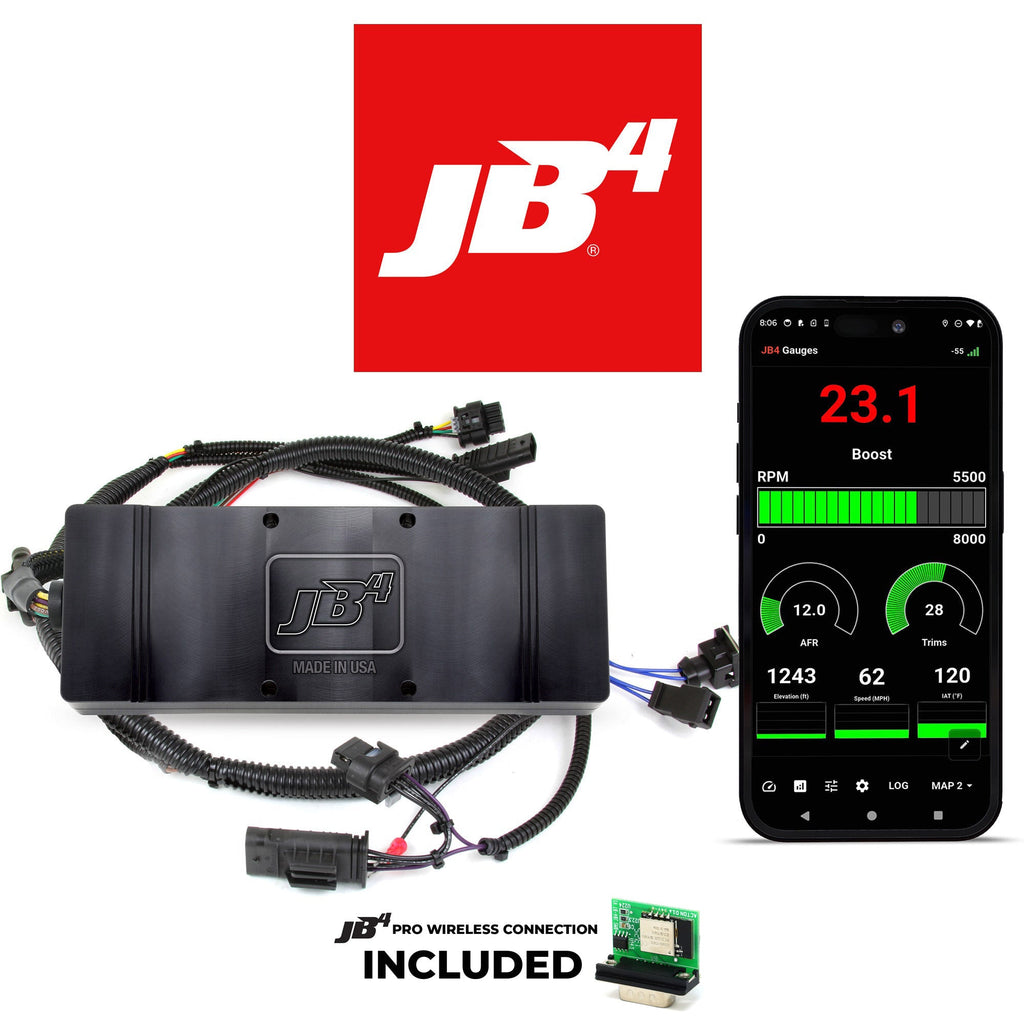

• JB4 tuner module in a billet aluminum enclosure
• Plug-and-play installation harness in the selected type (A, B, A RHD or B RHD)

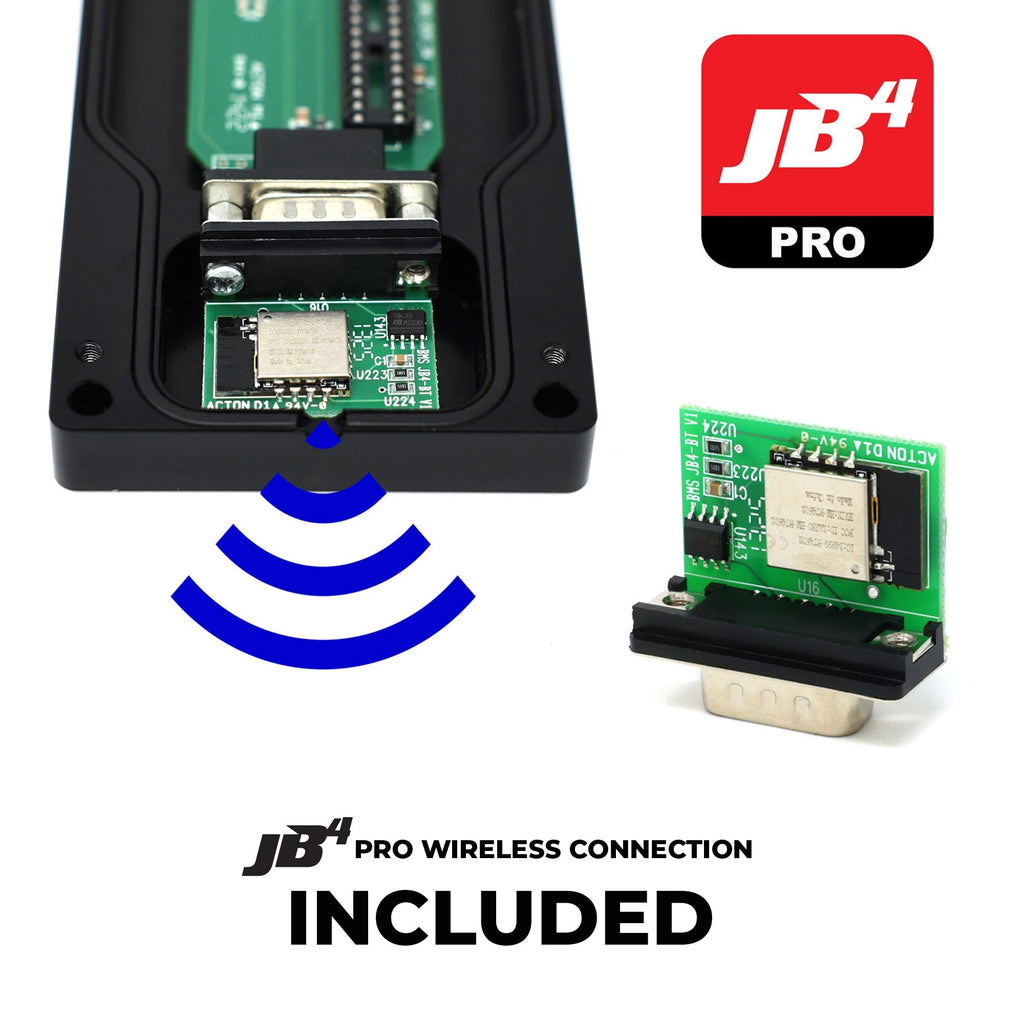

• JB4PRO Bluetooth adapter, built into the unit
• Free access to the JB4PRO smartphone app for iOS and Android

TECH RESOURCES

Additional Parts Required

• 91 octane or higher pump fuel — required for the advertised gains. An E85 blend is required for the ethanol maps.
• Correct harness type — Type A, Type B, or the RHD equivalent must be selected to match the connector on your car.
• JB4PRO mobile app (free, iOS and Android) — used for map switching, gauges, logging and fault codes. The Bluetooth adapter is built into the unit, so no separate connect kit is needed.
• Optional: BMS Data Cable or JB4 Mobile cable for a wired laptop connection with additional gauges and datalogging.

Installation

• BMS E Series N55 JB4 installation guide (PDF)

Notes

• Burger Motorsports does not publish a catalog part number for this JB4, so no part number is listed; order by harness type. F-chassis N55 cars use a different unit — see the JB4 Tuner N55 F Chassis.
