Evolution Racewerks BMW N55 Charge Pipe 2011-2012 BMW 135i / 335i

OVERVIEW

The Evolution Racewerks Charge Pipe Kit for the E chassis N55 single turbo engine fits the 135i, 335i and X1 xDrive35i. It replaces the factory charge pipe with lightweight high grade 6061 aluminium and is covered by a Limited Lifetime Warranty.

The pipe is throttle body matched at 3" and retains the factory style o-ring throttle body lock flange. The flange is precision CNC machined so the connection is leak free and quick to take apart, which Evolution Racewerks considers a better solution than the silicone hose and hose clamp joint used by other aftermarket diverter valve pipes. A CNC machined MAP sensor flange keeps that connection sealed, and beaded pipe ends with T-bolt clamps stop the intercooler piping coming off under boost.

Evolution Racewerks states the pipe increases throttle response and decreases turbo lag, and it remains compatible with the factory electronic diverter valve.

SPECS

• Lightweight high grade 6061 aluminium, mandrel bent piping
• Throttle body matched 3" piping
• Retains the factory style o-ring throttle body lock flange
• Precision CNC machined throttle body flange for a leak free connection and quick removal and installation
• Precision CNC machined MAP sensor flange for a leak free connection
• Beaded ends with T-bolt clamps so the intercooler piping cannot blow off under boost
• Optional 1/8" NPT bungs for methanol or nitrous injectors
• Pressure tested to 25 PSI in Evolution Racewerks testing
• Compatible with the factory electronic diverter valve

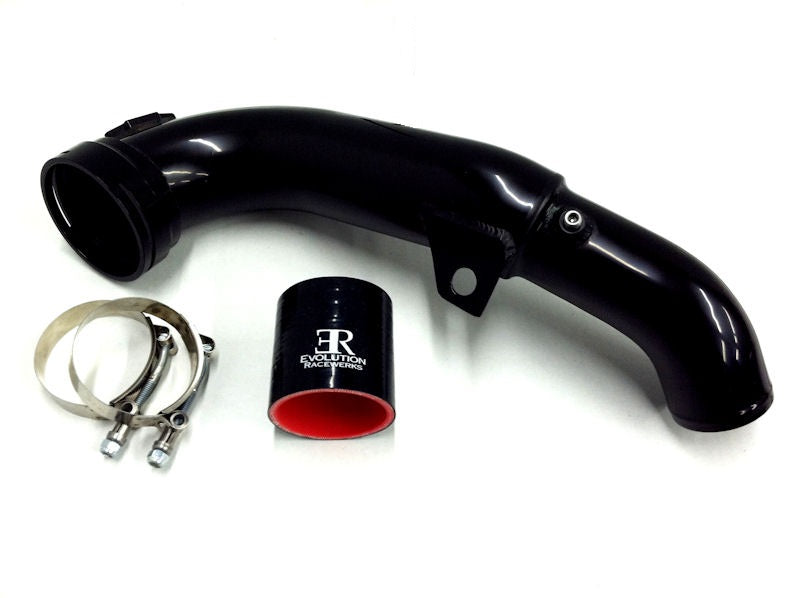

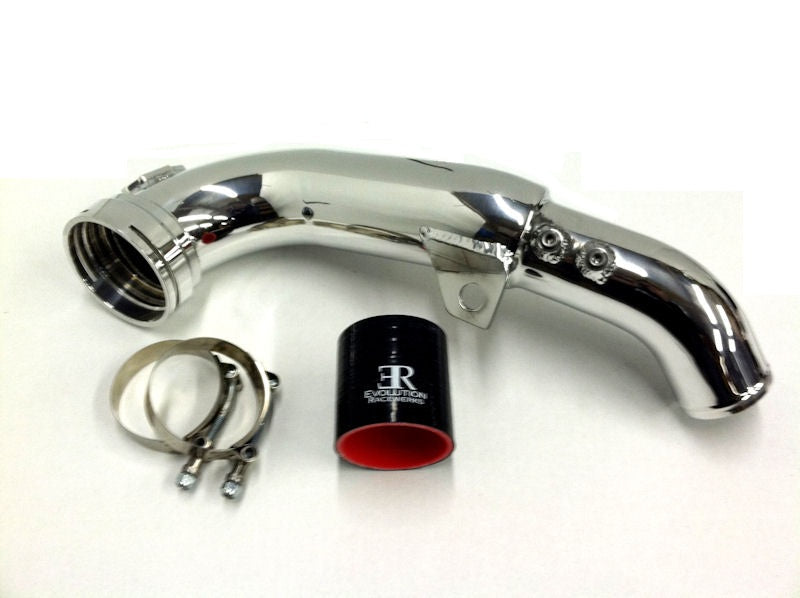

• Finishes: brush, mirror polish, or Type III hard black anodizing for a stealth OEM look; hard anodizing also hardens the aluminium against denting
• Made in the USA
• Warranty: Evolution Racewerks Limited Lifetime Warranty.

PARTS INCLUDED

• Charge pipe
• T-bolt clamps
• All hardware required for complete installation

TECH RESOURCES

Required Extras

• None. Evolution Racewerks specifies no additional hardware for this part.

Installation

• Evolution Racewerks rates installation difficulty at 1 out of 5 (1 easy, 5 hard).
• Evolution Racewerks does not publish a downloadable installation guide for this part. Contact Evolution Racewerks technical support or Speed Logic for fitting guidance.

PART NUMBER

• BM-ICP003S — Charge Pipe Kit for E Chassis N55 engine
• Finish variants stocked by Speed Logic: BM-ICP003 (brush), BM-ICP003-p (polish), BM-ICP003-blk (Type III hard black anodized)

VEHICLE APPLICATIONS

This is the E chassis kit. F chassis N55 cars (F20/F21/F22/F30/F32/F87) use a different Evolution Racewerks charge pipe — contact Speed Logic if you are unsure which one your car takes.
