Evolution Racewerks Charge Pipe Kit (Factory Diverter Valve) – BMW 135i / 335i N54 2006-2008 Short

OVERVIEW

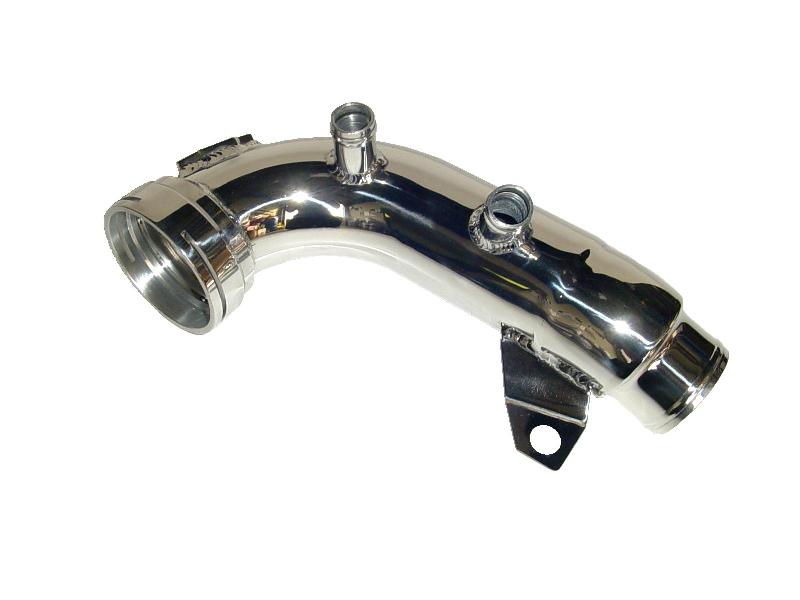

The Evolution Racewerks Charge Pipe Kit for factory diverter valves replaces the factory diverter valve charge pipe on 2006–2008 (Short Version) BMW 135i and 335i with the N54 twin-turbo engine. It was developed on Evolution Racewerks' 135i Time Attack race car after the factory charge pipe connections could not hold up to high boost.

The kit keeps the factory or any factory-style aftermarket diverter valves and deletes the factory diverter valve sound baffle, which splits airflow and creates turbulence. Smooth, throttle-body-matched 3" piping keeps charge air velocity up for better throttle response and less turbo lag. Instead of the silicone-hose connection most competitors use, it keeps a factory-style O-ring and C-clip lock flange at the throttle body and a CNC machined MAP sensor flange with the factory O-ring seal, so the connections stay leak-free under boost.

SPECS

• Accepts the factory diverter valves or factory-style aftermarket diverter valves
• Lightweight high-grade 6061 aluminum piping
• Throttle-body-matched 3" piping

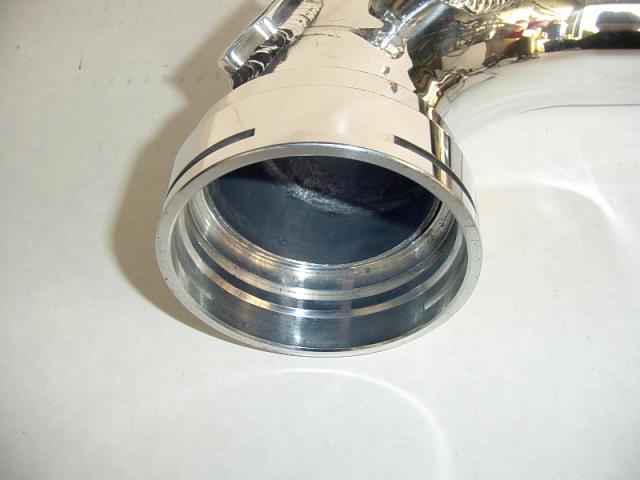

• CNC machined factory-style O-ring throttle body lock flange; pressure tested to 25 PSI
• CNC machined MAP sensor flange using the factory O-ring seal
• Beaded ends and T-bolt clamps keep the piping from blowing off under boost
• Deletes the factory diverter valve sound baffle
• Finish options: Brush, Mirror Polish, or Type III Hard Anodized Black (harder, more dent-resistant, OEM look)
• Made in the USA, manufactured in-house
• Limited Lifetime Warranty

PARTS INCLUDED

• Charge pipe for factory-style diverter valves in the selected finish (diverter valves not included; reuse the factory valves)
• T-bolt clamps
• All hardware required for complete installation

TECH RESOURCES

Additional Parts Required

• None. The kit reuses the factory diverter valves (or factory-style aftermarket diverter valves), the factory throttle body O-ring and C-clip and the factory MAP sensor; all other installation hardware is supplied.

Installation

• Evolution Racewerks does not publish an installation guide or video for this part.
• Contact Speed Logic for installation support or fitment questions.

Notes

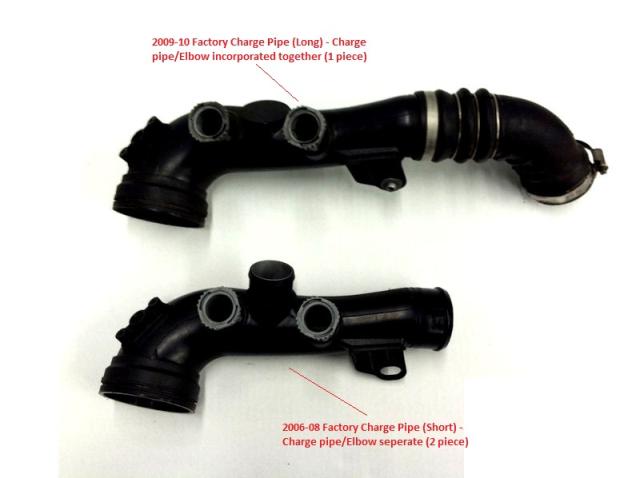

• Short Version fits cars built before June 2009. Cars built June 2009 or later need the 2009–10 Long Version factory DV kit. Pre-06/2009 cars can also run the Long Version to replace the factory "accordion" rubber elbow.
• Prefer a blow-off valve? See the HKS BOV Short Version kit or the TiAL BOV Short Version kit.
• For OFF-ROAD / RACE USE ONLY and not emissions legal for street use. Not for sale, installation or use on licensed vehicles in California.

PART NUMBER

• BM-ICP001S — Brush Finish
• BM-ICP001P — Polish Finish
• BM-ICP001B — Type III Hard Anodized Black

VEHICLE APPLICATIONS

Build date before June 2009.
