Evolution Racewerks Charge Pipe Kit (Factory Diverter Valve) – BMW 135i / 335i / 1M N54 2009-2010 Long

OVERVIEW

The Evolution Racewerks Charge Pipe Kit for factory diverter valves replaces the factory diverter valve charge pipe on 2009–2010 (Long Version) BMW 135i and 335i and the 2011–2012 1 Series M with the N54 twin-turbo engine. From June 2009 BMW integrated the "accordion" rubber elbow between the lower intercooler pipe and the charge pipe into the charge pipe itself; this Long Version replaces that integrated elbow with hard piping, the so-called "meth elbow."

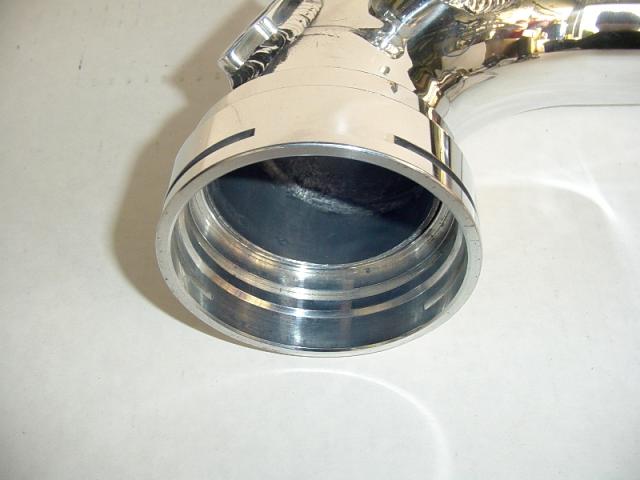

The kit keeps the factory or any factory-style aftermarket diverter valves and deletes the factory diverter valve sound baffle, which splits airflow and creates turbulence. Smooth, throttle-body-matched 3" piping keeps charge air velocity up for better throttle response and less turbo lag. Instead of the silicone-hose connection most competitors use, it keeps a factory-style O-ring and C-clip lock flange at the throttle body and a CNC machined MAP sensor flange with the factory O-ring seal, so the connections stay leak-free under boost.

SPECS

• Accepts the factory diverter valves or factory-style aftermarket diverter valves
• Integrated hard elbow replaces the factory "accordion" rubber elbow
• Lightweight high-grade 6061 aluminum piping
• Throttle-body-matched 3" piping
• CNC machined factory-style O-ring throttle body lock flange; pressure tested to 25 PSI
• CNC machined MAP sensor flange using the factory O-ring seal
• Beaded ends and T-bolt clamps keep the piping from blowing off under boost
• Deletes the factory diverter valve sound baffle
• Finish options: Brush, Mirror Polish, or Type III Hard Anodized Black (harder, more dent-resistant, OEM look)
• Made in the USA, manufactured in-house
• Limited Lifetime Warranty

PARTS INCLUDED

• Charge pipe for factory-style diverter valves in the selected finish (diverter valves not included; reuse the factory valves)
• T-bolt clamps
• All hardware required for complete installation

TECH RESOURCES

Additional Parts Required

• None. The kit reuses the factory diverter valves (or factory-style aftermarket diverter valves), the factory throttle body O-ring and C-clip and the factory MAP sensor; all other installation hardware is supplied.

Installation

• Evolution Racewerks does not publish an installation guide or video for this part.
• Contact Speed Logic for installation support or fitment questions.

Notes

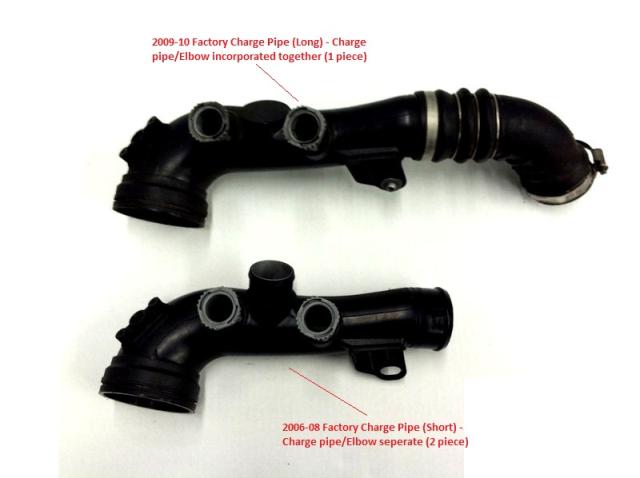

• Long Version is for cars built June 2009 or later. Cars built before June 2009 can also run it to replace the factory "accordion" rubber elbow, or use the 2006–08 Short Version factory DV kit.
• Prefer a blow-off valve? See the HKS BOV Long Version kit or the TiAL BOV Long Version kit.
• For OFF-ROAD / RACE USE ONLY and not emissions legal for street use. Not for sale, installation or use on licensed vehicles in California.

PART NUMBER

• BM-ICP002S — Brush Finish
• BM-ICP002P — Polish Finish
• BM-ICP002B — Type III Hard Anodized Black

VEHICLE APPLICATIONS

135i and 335i: build date June 2009 or later.
