OVERVIEW

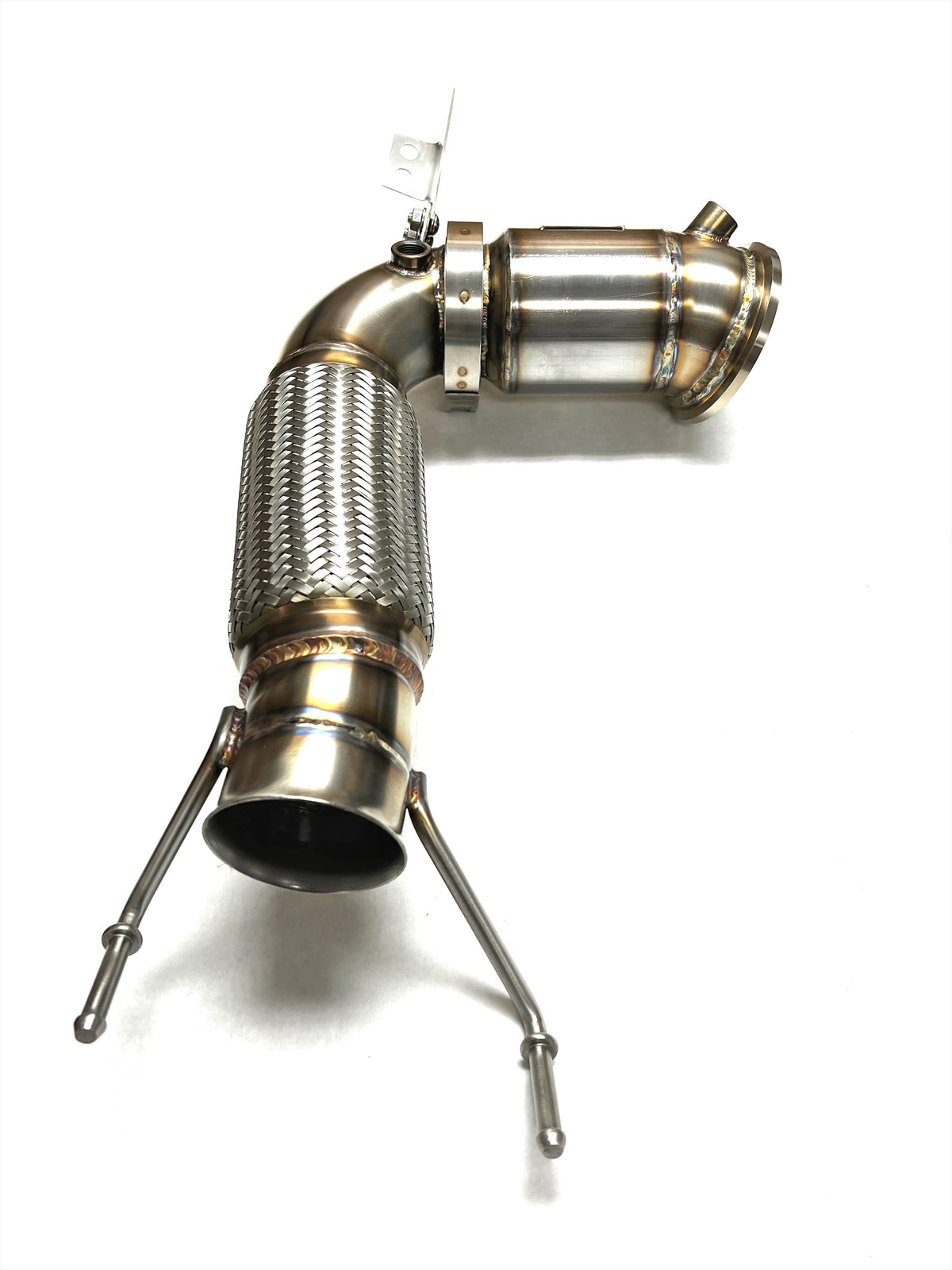

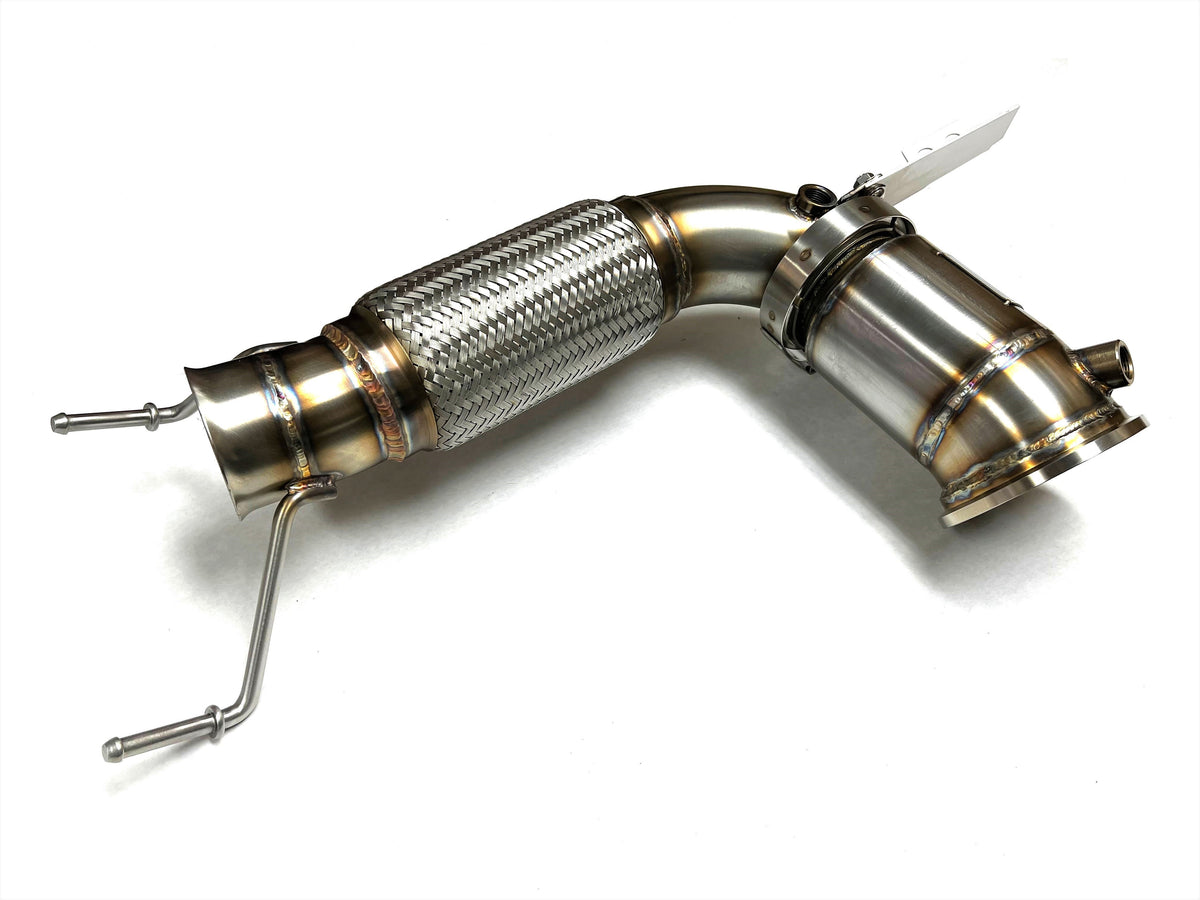

Evolution Racewerks Sports Series 4-inch high flow catted downpipe for US-spec BMW X1 (F48), X2 (F39) and 2 Series Gran Coupe (F44) with the B46/B48 four-cylinder turbo engine. A 200-cell metallic high flow catalytic converter replaces the restrictive 900-cell ceramic factory unit, and mandrel bent piping with long 4" to 3" transitions improves flow, turbo spool and throttle response.
Evolution Racewerks quotes average gains of 9–11 whp and 15 wtq at stock boost, and over 20 wtq with a software upgrade; results vary by vehicle. The xDrive (AWD) version is a two-piece design that can be removed and installed without disconnecting the driveshaft or lowering the front subframe.
SPECS
- 4" downpipe body with mandrel bent piping and long 4" to 3" transitions

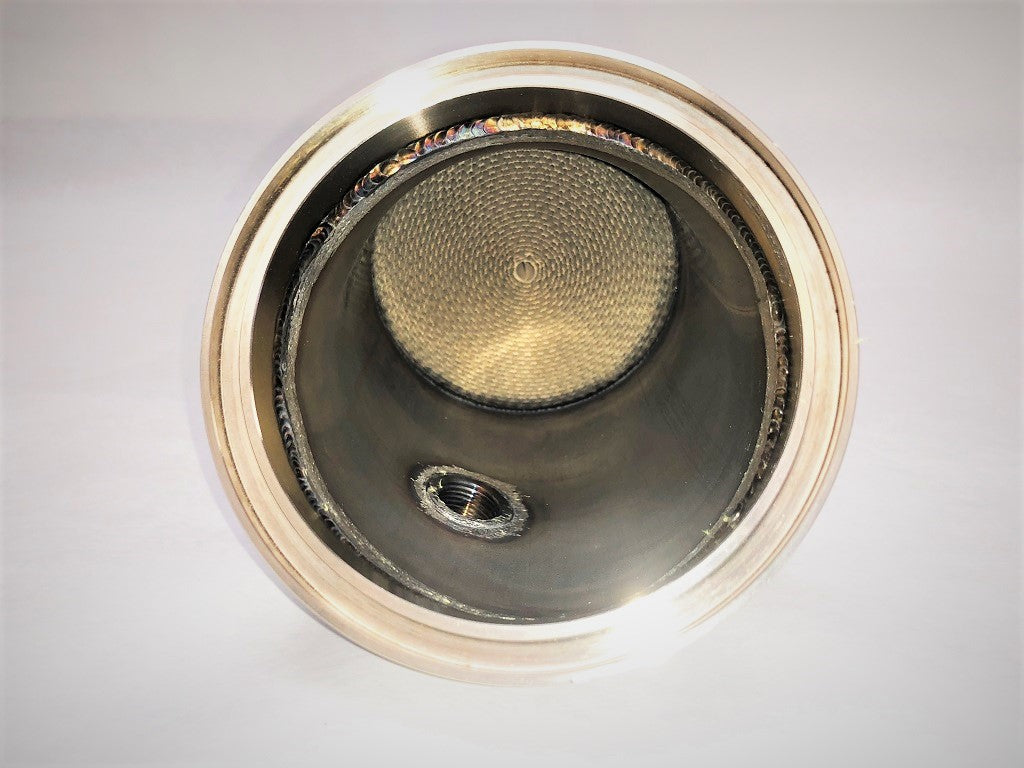

- Sports Series: 200-cell metallic high flow catalytic converter (factory unit is 900-cell ceramic)
- 100% 304 stainless steel construction, 100% TIG welded
- CNC machined V-band turbo flange and CNC machined ball joint flange with straight-flow interior
- 100% stainless steel flex section
- Finish options: Brush, Polish, or black Ceramic Thermal Coating (rated to 2000°F)

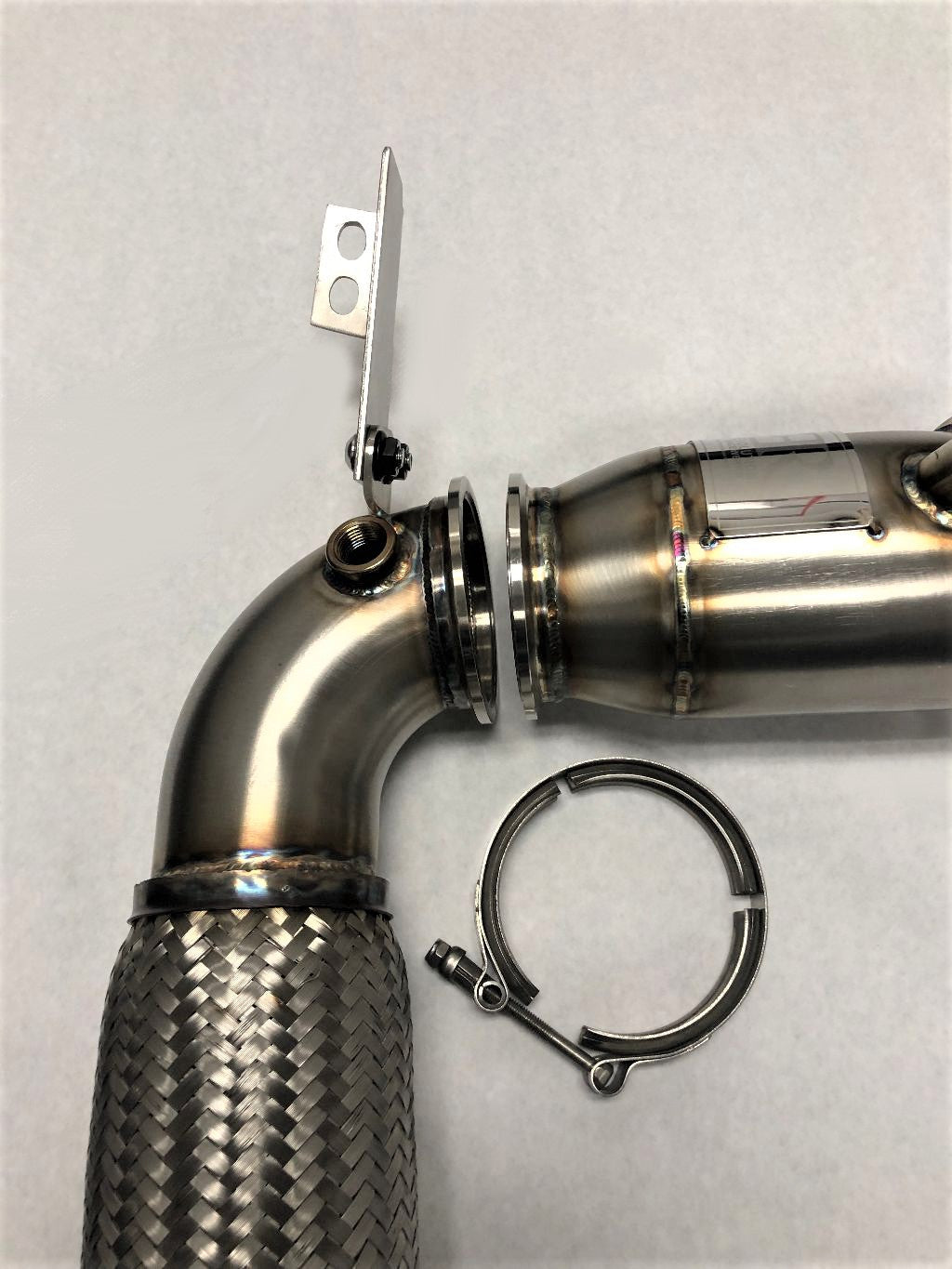

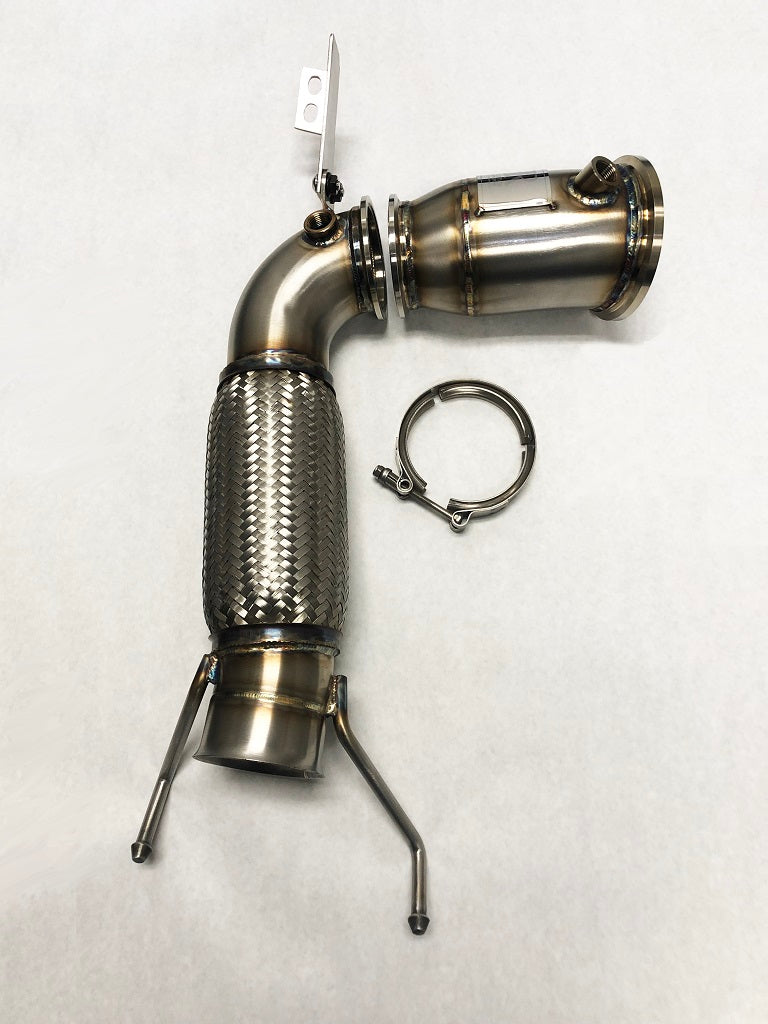

- FWD and AWD (xDrive, two-piece) versions
- Compatible with factory or aftermarket exhaust systems
- Made in the USA, manufactured in-house
- Limited Lifetime Warranty
PARTS INCLUDED
- ER Sports Series 4" high flow catted downpipe in the selected finish and drivetrain version
- All hardware required for complete installation
TECH RESOURCES
Additional Parts Required
- Supporting tuning is REQUIRED after installation to prevent check engine lights and realize the performance gain (sold separately): Bootmod3 B46/B48 Tune – BMW 230i / 330i / 430i / 530i (F/G-Series) (X1 F48 / X2 F39 only), or Burger Motorsports JB4 Tuner – BMW 320i / 330i / 430i / X1 / X2 (B46/B48) (X1 F48 / X2 F39 only).
Installation
- Evolution Racewerks does not publish an installation guide or video for this part.
- Contact Speed Logic for installation support or fitment questions.
Notes
- Not CARB exempt. Not legal for sale, installation or use on pollution-controlled vehicles in California.
- Select FWD or AWD (xDrive) to match your vehicle.
- US Spec only. EU/Asia Spec B48 cars use a different downpipe and the two are not interchangeable.
- Catless version: Competition Series 4" Catless Downpipe – BMW X1 / X2 / 2 Series Gran Coupe (F48 / F39 / F44, B46/B48 US Spec).
PART NUMBER
- MI-EXH002SCAT — Sports Series 4" high flow catted downpipe, FWD, Brush finish
- MI-EXH002SCAT-X — Sports Series 4" high flow catted downpipe, AWD (xDrive), Brush finish
- MI-EXH002PCAT — Sports Series 4" high flow catted downpipe, FWD, Polish finish
- MI-EXH002PCAT-X — Sports Series 4" high flow catted downpipe, AWD (xDrive), Polish finish
- MI-EXH002TBCAT — Sports Series 4" high flow catted downpipe, FWD, Ceramic Thermal Coating
- MI-EXH002TBCAT-X — Sports Series 4" high flow catted downpipe, AWD (xDrive), Ceramic Thermal Coating
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| BMW | X1 sDrive28i | F48 | B46 / B48 2.0L Turbo I4 (US Spec) | 2017–2022 |
| BMW | X1 xDrive28i | F48 | B46 / B48 2.0L Turbo I4 (US Spec) | 2016–2022 |
| BMW | X2 sDrive28i | F39 | B46 / B48 2.0L Turbo I4 (US Spec) | 2018–2023 |
| BMW | X2 xDrive28i | F39 | B46 / B48 2.0L Turbo I4 (US Spec) | 2018–2023 |
| BMW | 228i Gran Coupe | F44 | B46 / B48 2.0L Turbo I4 (US Spec) | 2020–2024 |
| BMW | 228i xDrive Gran Coupe | F44 | B46 / B48 2.0L Turbo I4 (US Spec) | 2020–2024 |
