Evolution Racewerks Sports Series Resonated Mid Pipes – BMW M2 (G87)

OVERVIEW

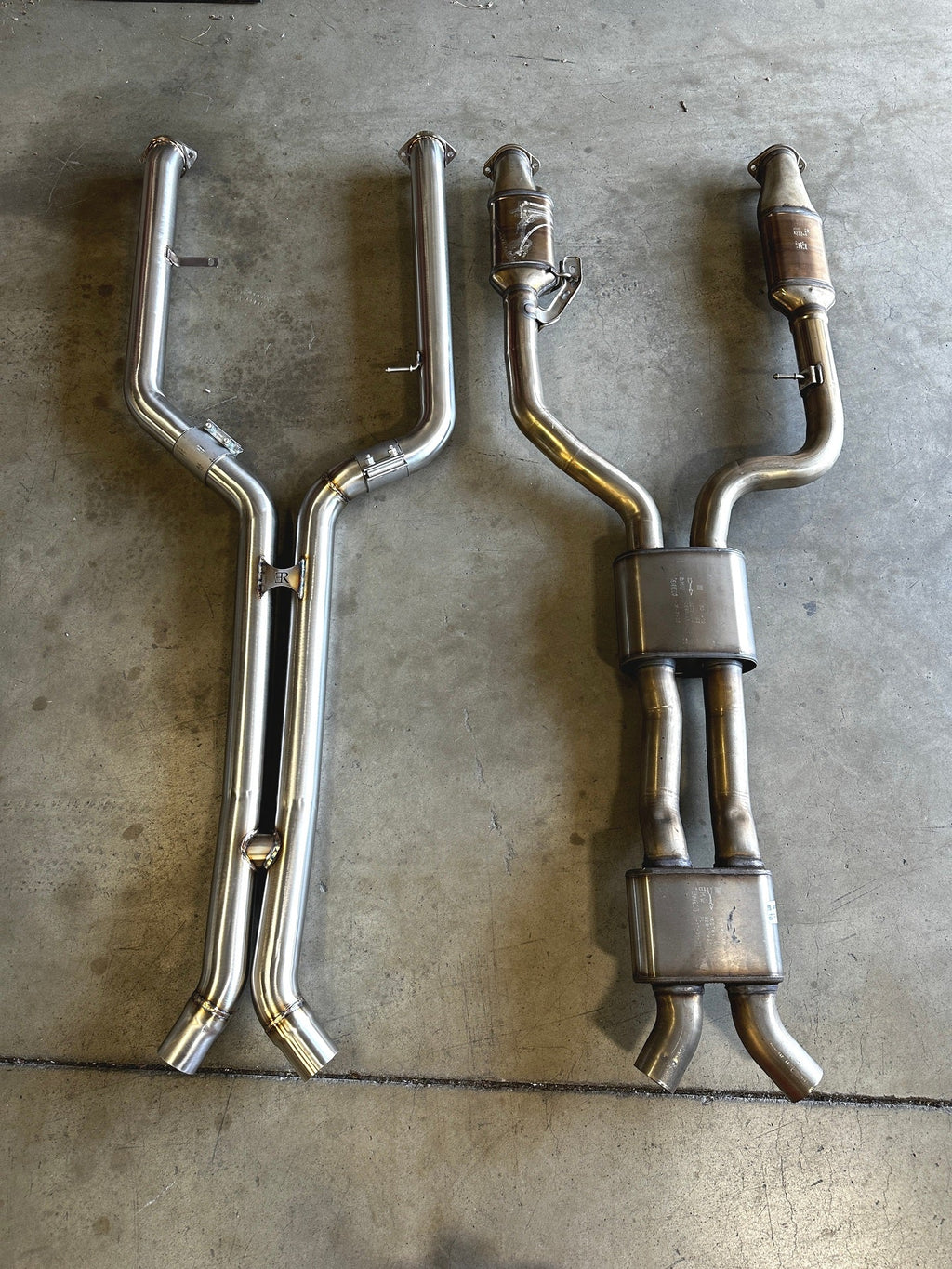

Evolution Racewerks' Sports Series Resonated Mid Pipes for the twin turbo S58 engine fit the 2023 and newer BMW M2. They swap the restrictive factory resonators for free-flowing units, which raises the maximum horsepower curve, brings the torque curve on faster and holds it higher and longer, and improves throttle response and turbo spool.

The resonated version is designed to sound close to factory rather than louder. It suits owners who do not want more volume than stock, or who already run aftermarket downpipes or an exhaust that has become too loud, while still gaining performance. Mandrel bent tubing throughout supports the flow improvement.

An "H" style crossover is retained to equalize pressure between the left and right exhaust pipes, which promotes flow and reduces droning. ER tested "X" and "H" designs and found the "H" crossover reduced droning and improved low end torque; BMW uses an "H" crossover on the factory mid pipe as well. The mid pipes are built from 100% 304 grade stainless steel with mandrel bent piping, 100% TIG welded in house and made in the USA, with CNC precision cut billet stainless steel flanges. The factory bracket hanger is retained, laser cut and TIG welded with stainless rod, and high quality exhaust clamps join the mid pipes to the rear muffler section.

SPECS

• Piping: mandrel bent 3" (80mm)
• Construction: 100% 304 grade stainless steel, 100% TIG welded, built in the USA
• Flanges: precision CNC machined billet stainless steel
• Retains the factory "H" crossover design for reduced droning
• Resonated for a quieter exhaust tone while improving flow over factory
• Retains the factory bracket hanger, laser cut and TIG welded with stainless rod
• Finish: brushed
• Compatible with the factory exhaust or an aftermarket system designed around the factory mid pipes
• Track tested durability
• All hardware for a complete installation is included
• Warranty: Evolution Racewerks Limited Lifetime Warranty

PARTS INCLUDED

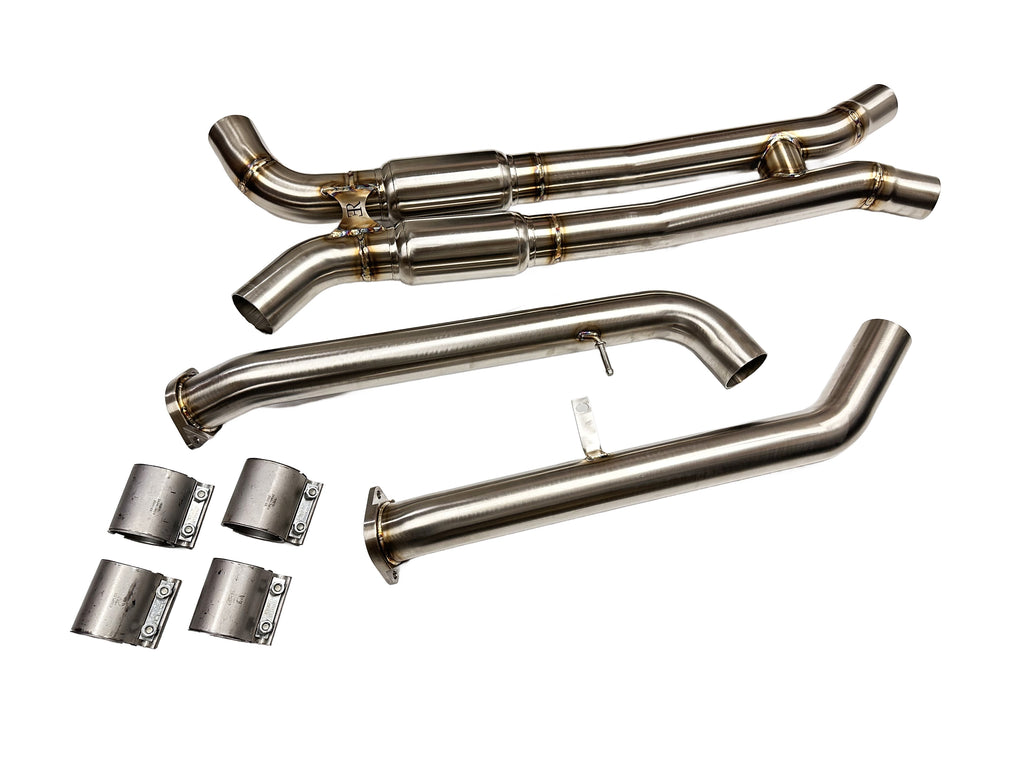

• Pair of Sports Series resonated mid pipes with "H" crossover
• Exhaust clamps for the connection to the rear muffler section
• All hardware required for complete installation, as supplied by Evolution Racewerks

TECH RESOURCES

Additional Parts Required

• None. Evolution Racewerks specifies no additional hardware for this part; the factory hangers are reused and all installation hardware is supplied.

Installation

• Evolution Racewerks does not publish a downloadable installation guide for these mid pipes. They bolt to the factory flanges, reuse the factory bracket hangers and clamp to the rear muffler section.
• Contact Speed Logic for installation support or fitment questions.

Notes

• Fitment above follows Evolution Racewerks' published application data. If your car is not listed, confirm fitment with Speed Logic before ordering.

PART NUMBER

• BM-EXH036S-MIDH-R
