Fuel-It! / Burger Motorsports Port Injection Kit – BMW N55 E-Chassis (E82, E88, E9x, E84, E70, E71)

OVERVIEW

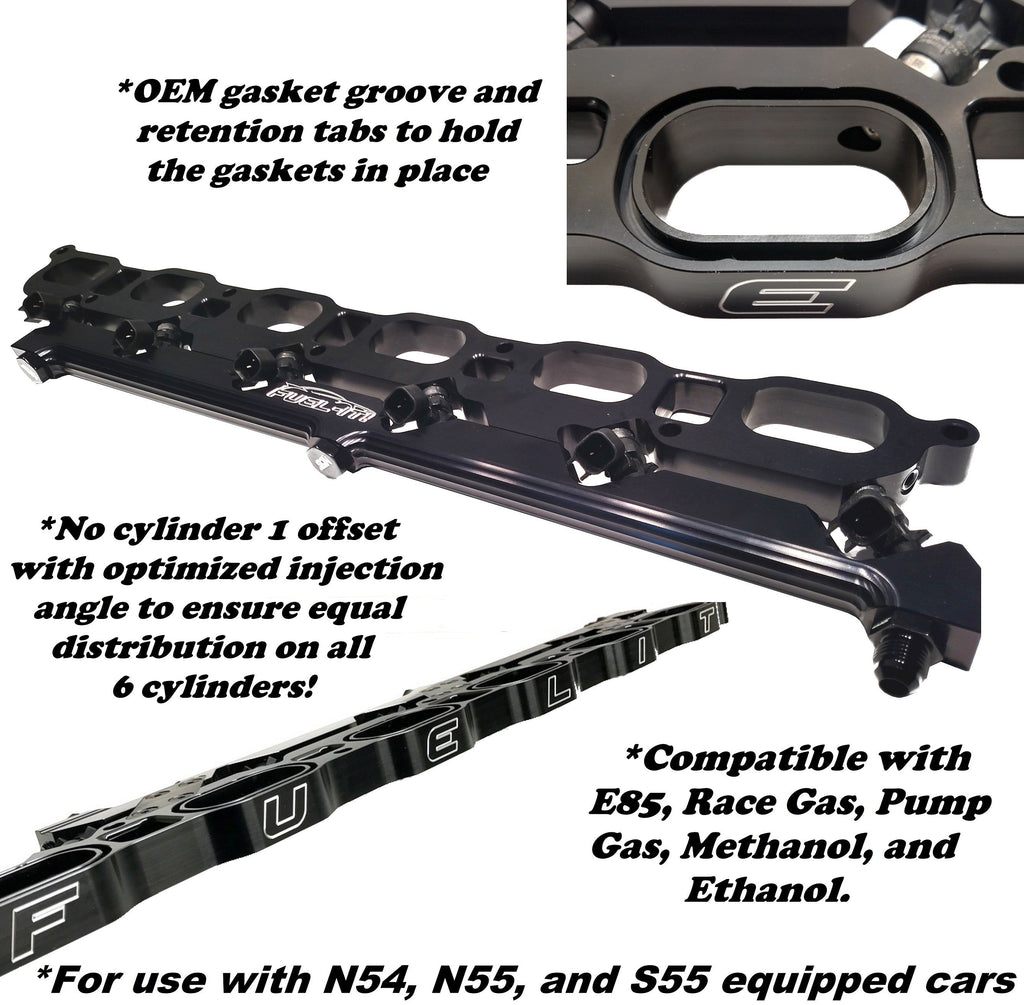

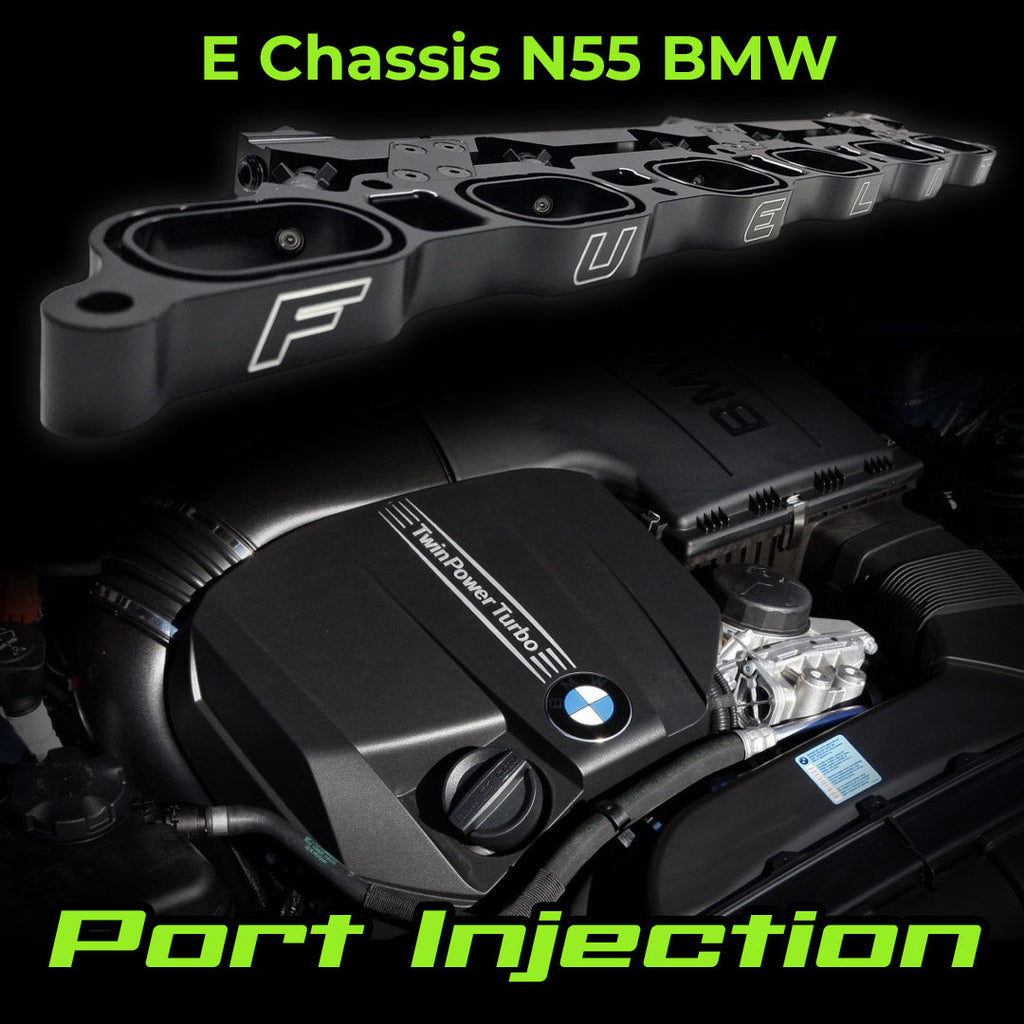

The Fuel-It! Elite port injection kit adds a second stage of fueling to your N55 E-chassis BMW by placing six additional low-pressure injectors in the intake tract, right ahead of each cylinder. It is built for owners who have outgrown the factory direct injection system and want to run E85, methanol or other high-octane race fuels at big power levels.

The spacers are CNC machined and finished in black anodizing for durability. The Elite version adds a dedicated return port and an upgraded fuel line, and its revised machining lets it fit a wider range of E- and F-chassis engines, including the S55. Pair it with a matched set of injectors, a fuel line and a port injection controller to complete the system.

SPECS

• Adds six supplemental low-pressure port fuel injectors (one per cylinder)
• Supports builds of 1000+ whp on E85, methanol or other race fuels with suitable injectors
• CNC-machined manifold spacers with black anodized finish
• Elite design with additional return port and upgraded fuel line
• Extended machining for broader fitment, including the BMW S55
• Injector sizing guide: 1050cc IDX up to approx. 1100 whp
• Brand: Fuel-It! / Burger Motorsports

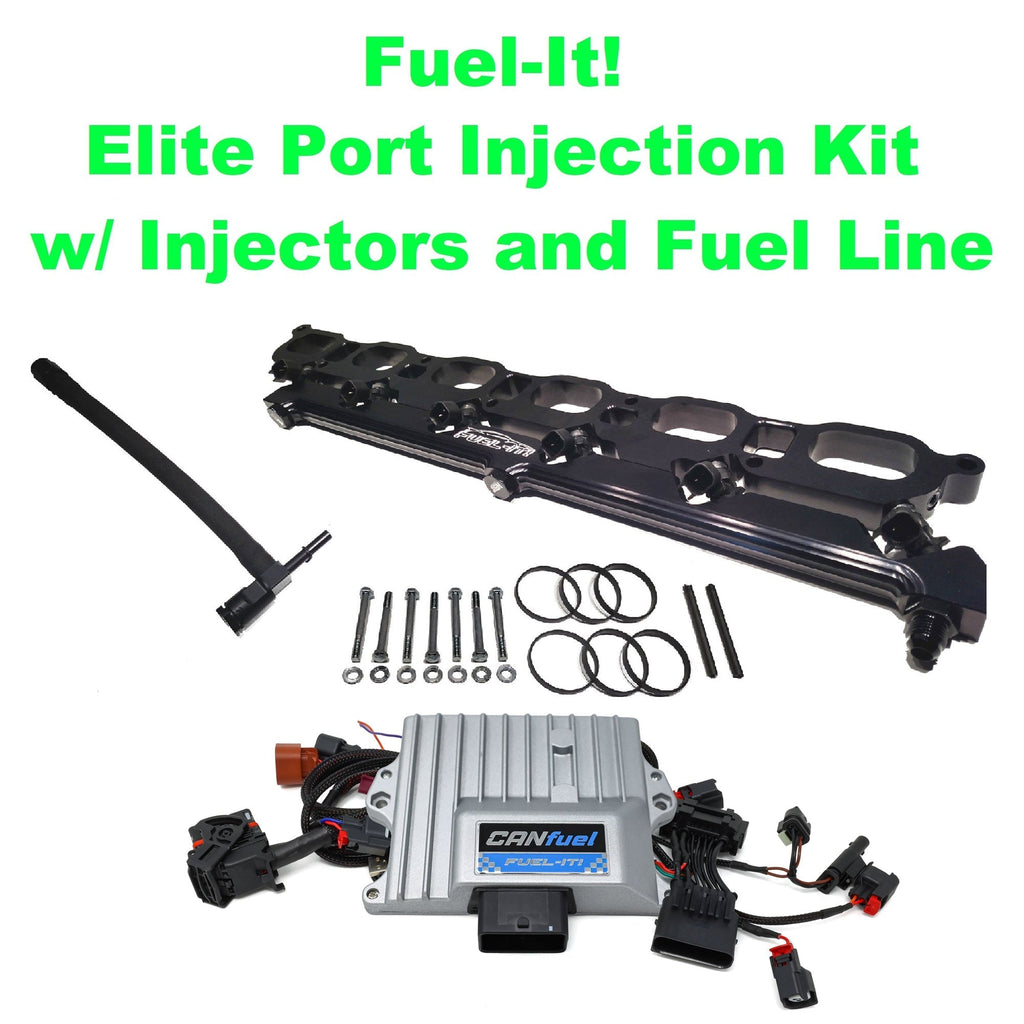

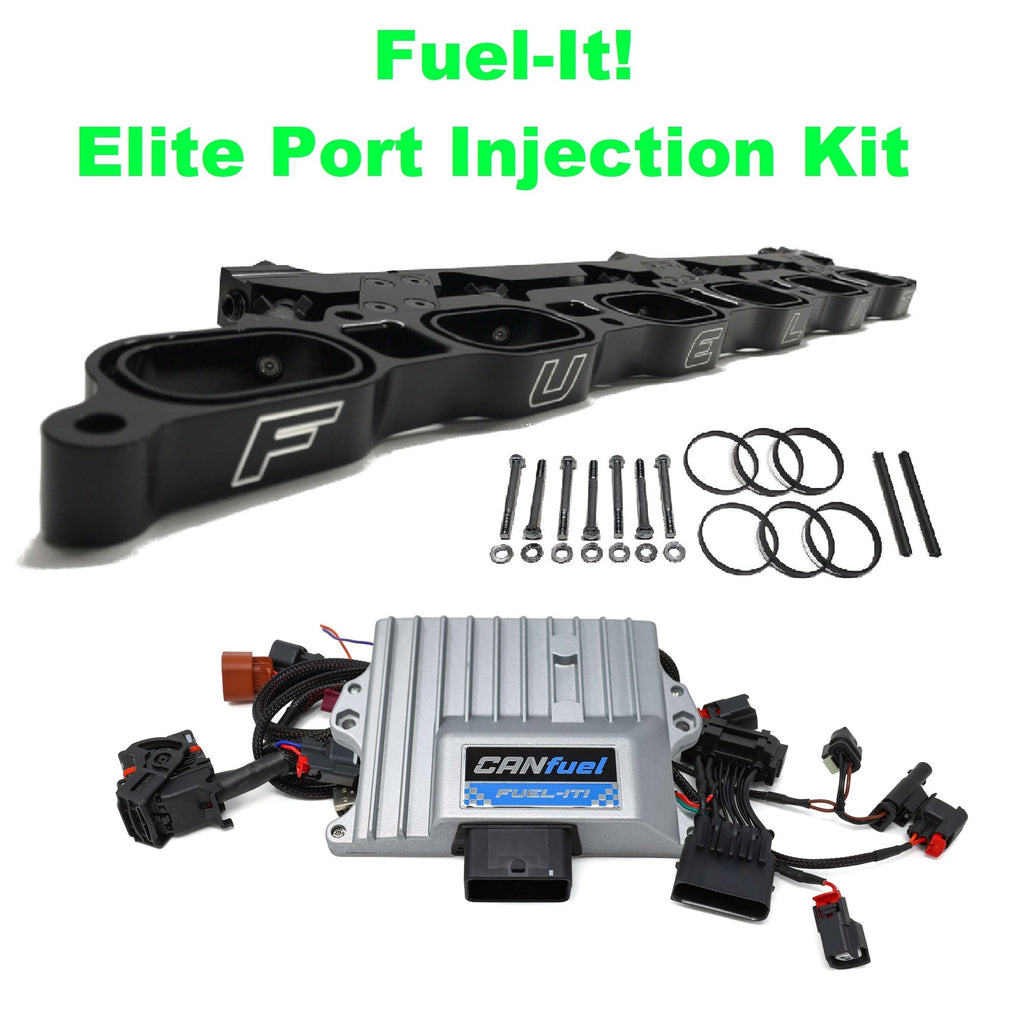

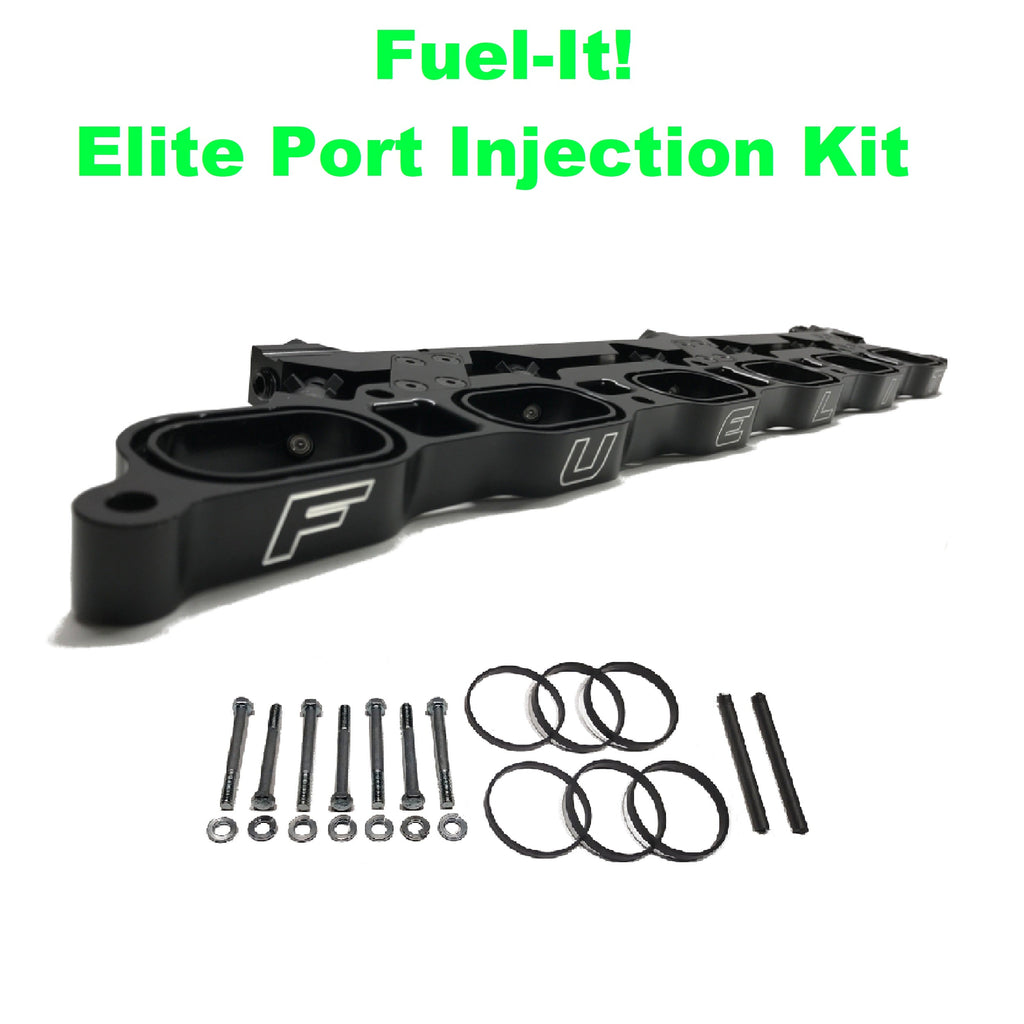

PARTS INCLUDED

• (1) Fuel-It! Elite port injection manifold spacer set (black anodized, with return port)
• (1) Upgraded fuel line
• (1) Plug-and-play fuel line adapter
• (1) Gasket set
• (1) Installation hardware kit

Injectors, fuel line and the port injection controller are included only when you select them as options on this listing.

TECH RESOURCES

Additional Parts Required

• Required (selectable as an option on this listing): set of six port fuel injectors - Fuel-It! flow-matched 1050cc IDX injectors
• Required (selectable as an option on this listing): port injection fuel line - Fuel-It! / Phoenix Racing manifold fuel line (Basic or Basic Plus)
• Required (selectable as an option on this listing): port injection controller - Fuel-It! CANfuel Sequential Port Fuel Injection Controller (or JB4 PI controller)
• Optional: Fuel-It! flex fuel kit for E85 / ethanol blends
• Optional: Fuel-It! methanol line and adapter for methanol conversion

Installation

• JB4 Port Injection Controller (PI) Install Guide (Burger Motorsports guide)

VEHICLE APPLICATIONS

135i (E82 / E88) fitment is for left-hand-drive vehicles only.
