Fuel-It! / Burger Motorsports S55 Charge Pipe Injection (CPI) Kit – BMW M2 Competition, M3, M4 (F87, F80, F82/F83, S55)

OVERVIEW

With S55 flash tunes and JB4 maps no longer bound by software fuel limits, the high pressure pump's volume becomes the ceiling. Push more boost or blend in E85 and rail pressure can drop, bringing misfires and stutter with it. This Fuel-It! charge pipe injection kit adds supplemental injection in the charge pipes, fed from the low pressure system, to raise the overall fueling limit and ease the load on the direct injection system.

CNC machined couplers thread into the charge pipes via 1/8" NPT bungs, and the injectors connect to the low pressure fuel supply with plug and play AN lines and fittings. Choose the FSB controller to give a JB4 full dynamic control and safety over the CPI, or the stand alone controller for flash-only setups.

SPECS

• Supplemental charge pipe injection fed from the low pressure fuel system

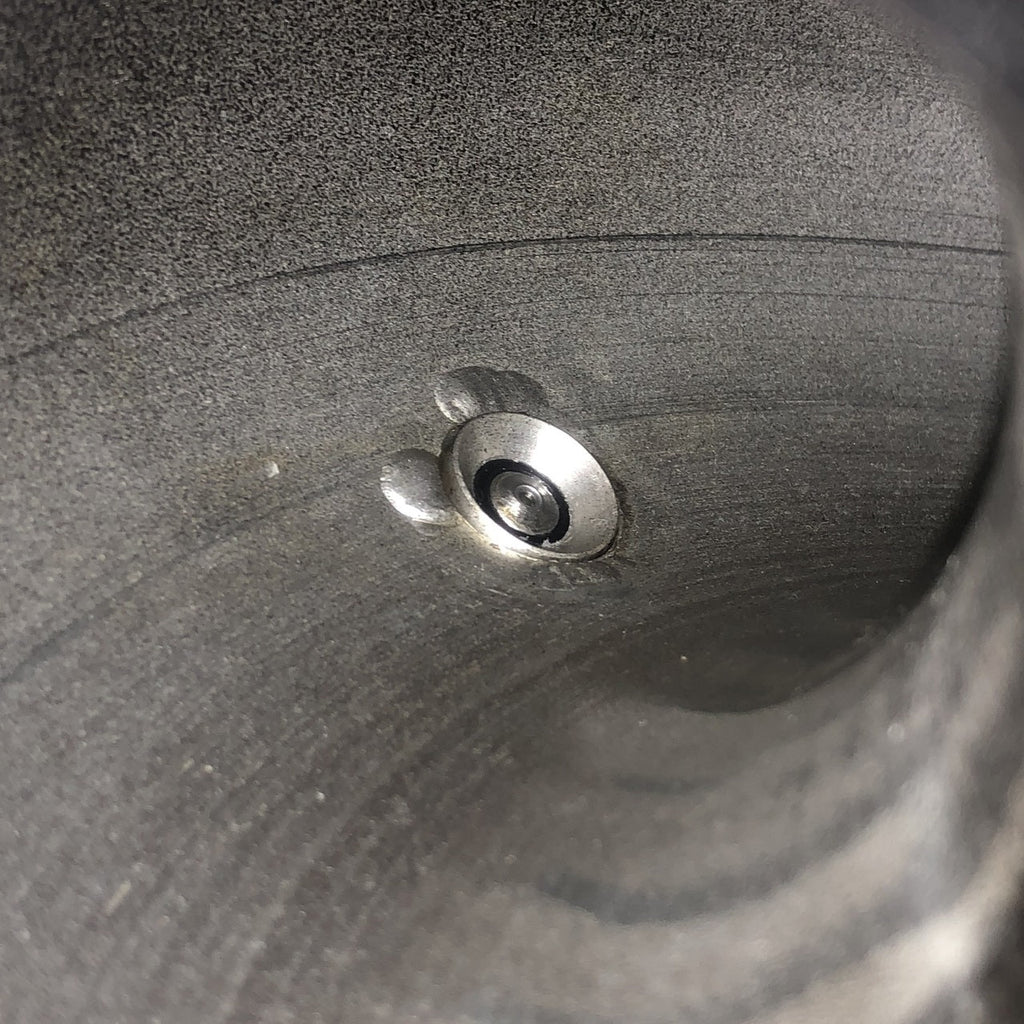

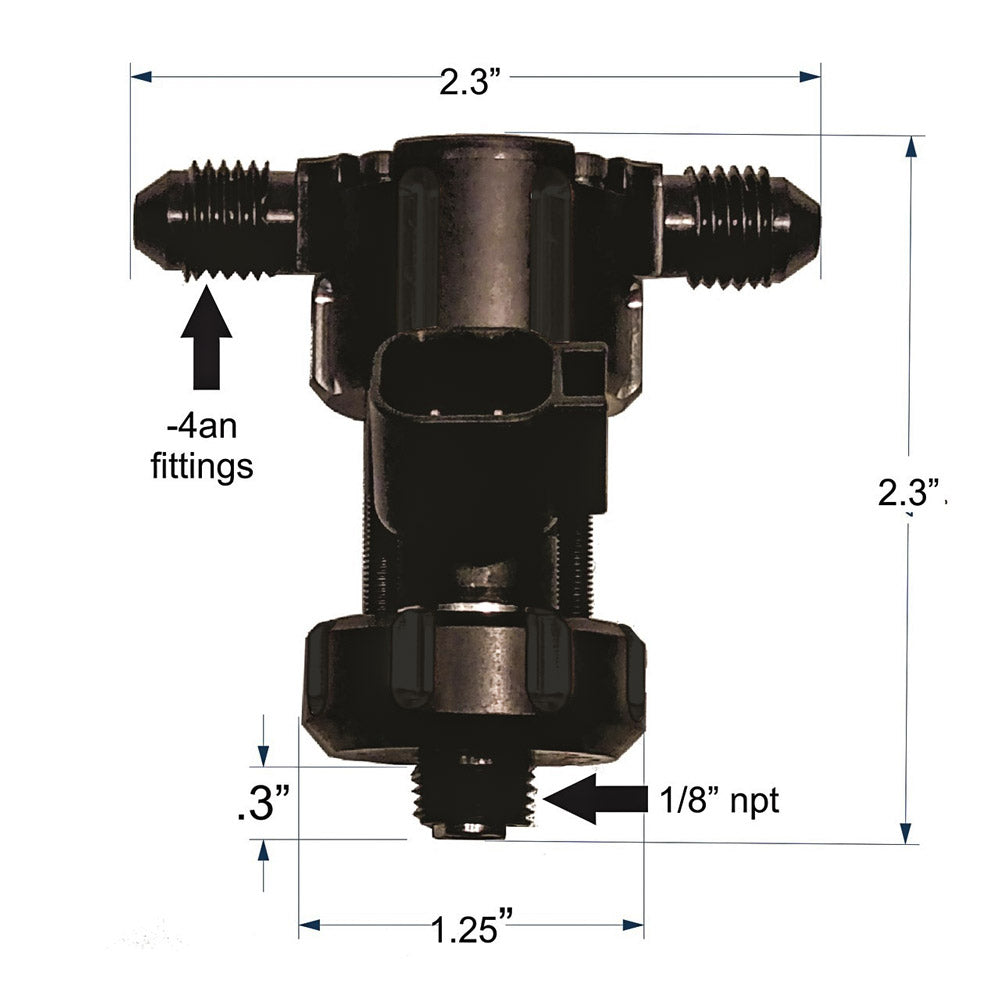

• CNC machined couplers with 1/8" NPT bungs that thread into the charge pipes
• Plug and play AN fuel lines and fittings included

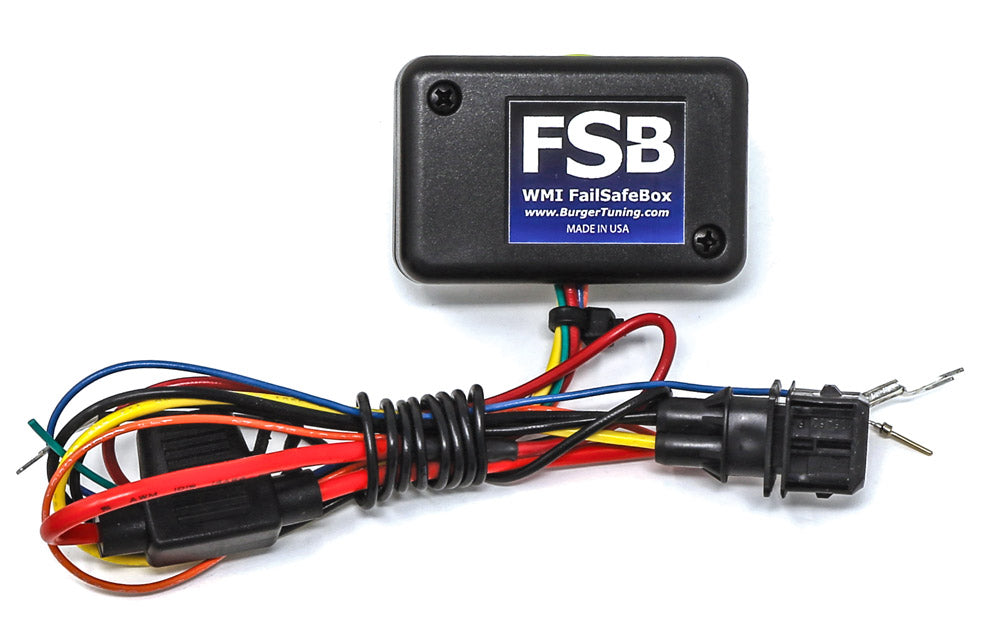

• Controller options: FSB (JB4 integration with dynamic mapping and safety) or stand alone controller
• Supports higher boost and E85 blends
• Shipping weight: approx. 2 lb (3 lb with stand alone controller)

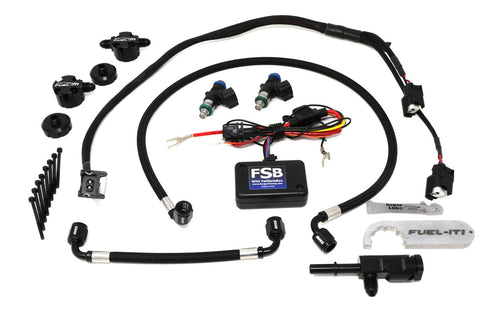

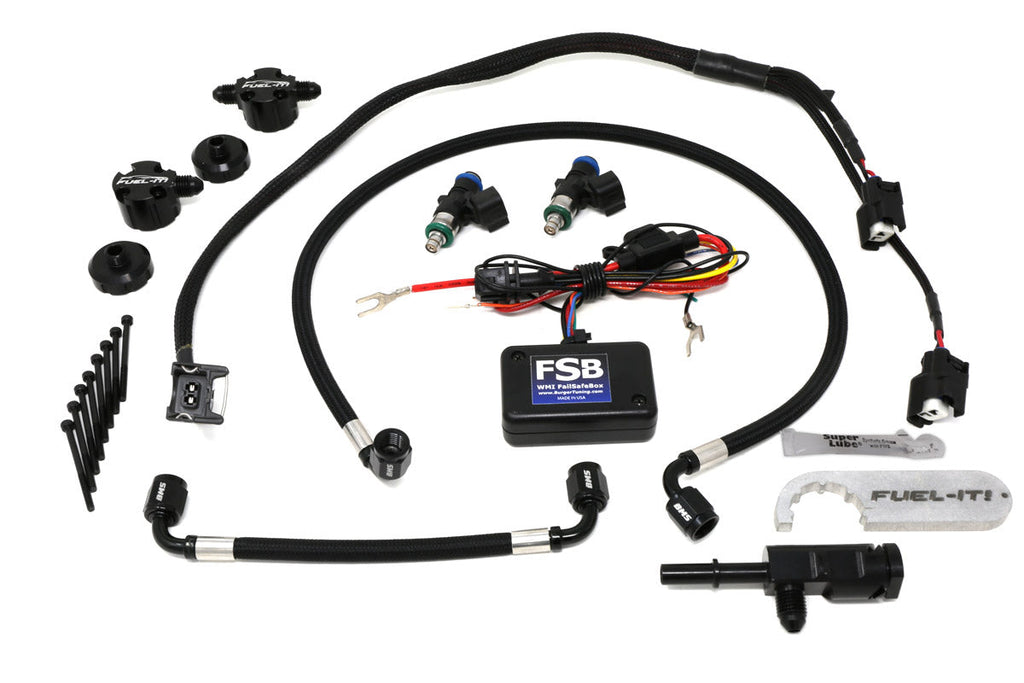

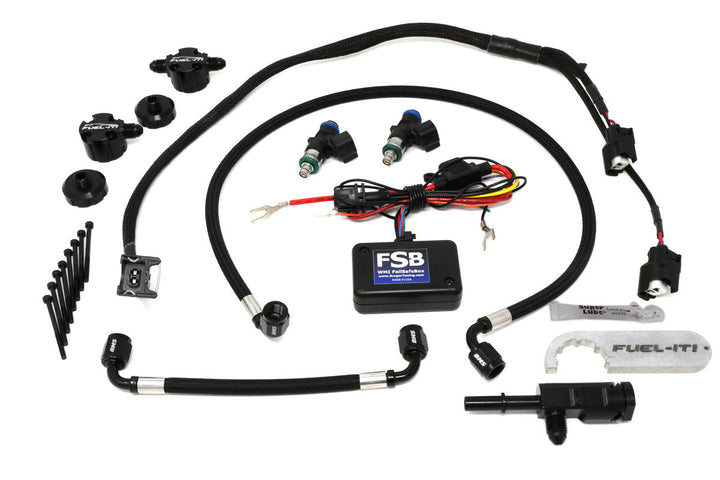

PARTS INCLUDED

• CNC machined charge pipe couplers with 1/8" NPT bungs
• CPI injector(s)
• AN fuel lines and fittings
• FSB controller – "CPI Kit with FSB" option

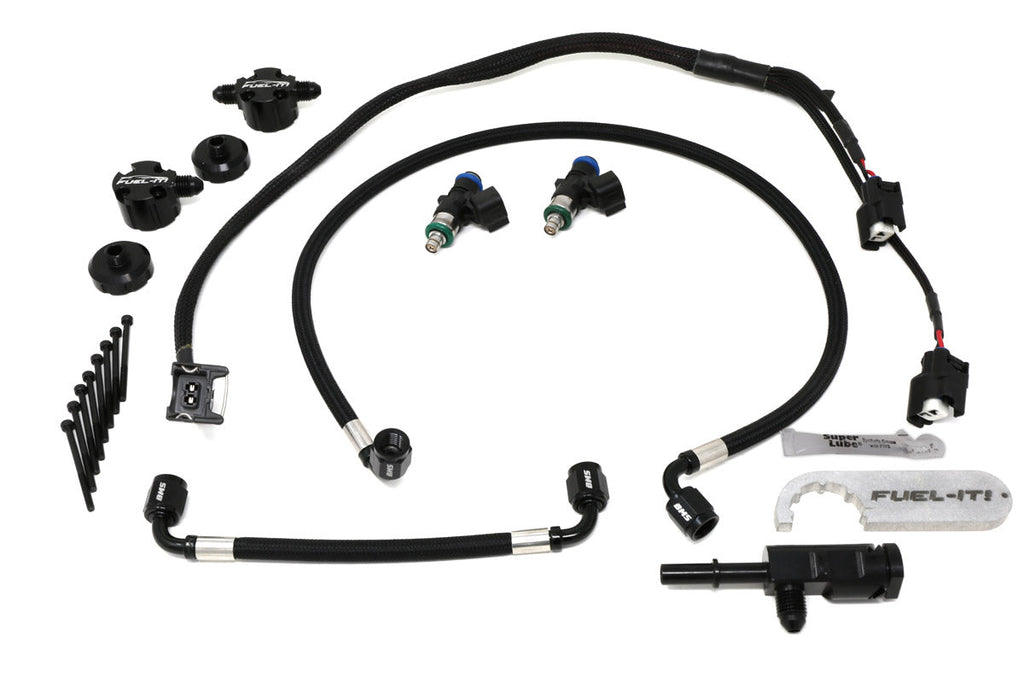

• Stand alone controller – "CPI Kit with Stand Alone Controller" option

Contents vary by kit option selected.

TECH RESOURCES

Additional Parts Required

• Required: a controller to run the CPI injectors – the FSB controller for JB4 users or the stand alone controller for flash-only cars (both available as kit options).

Installation

• JB4 Port Injection / CPI Controller Wiring Guide (Burger Motorsports guide)

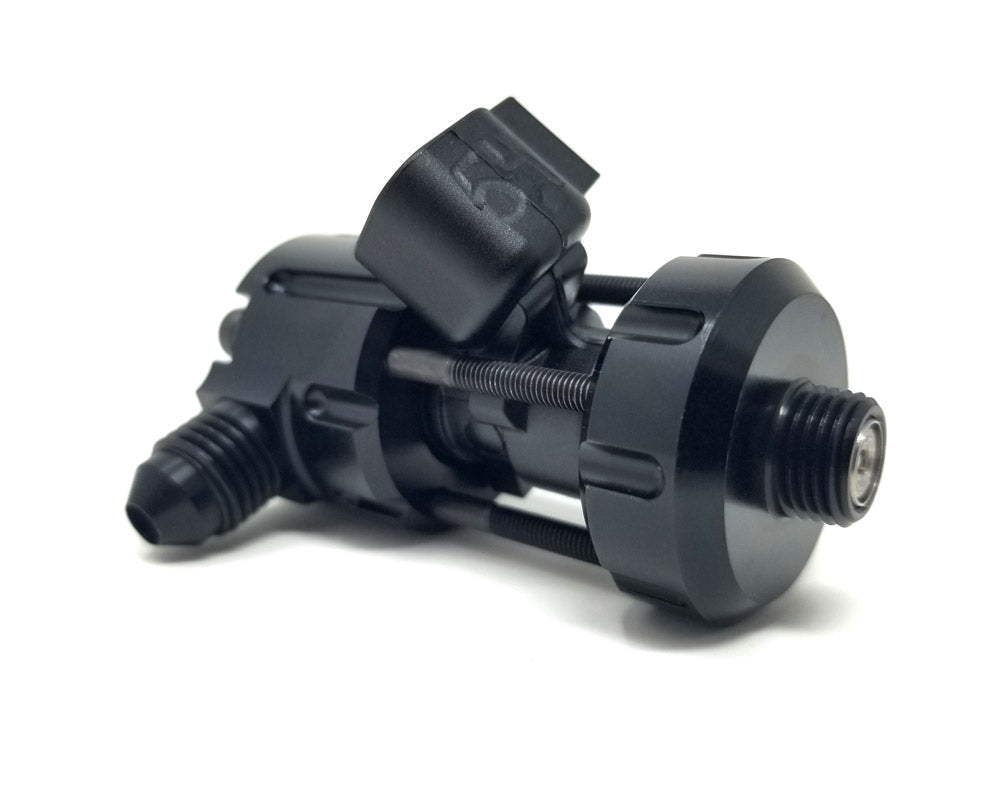

• Fuel-It! Charge Pipe Injector Assembly

VEHICLE APPLICATIONS

For S55 powered M2 Competition, M3 and M4 models listed.
