Fuel-It! Gen1 & Gen2 B58 BMW Billet Port Injection Manifold

OVERVIEW

The Fuel-It! billet port injection manifold replaces the weak factory plastic B58 intake manifold with a direct-fit, high-flow, high-strength billet aluminum manifold. It features a large air-to-water intercooler core rated to support up to 2,000 hp, top-mounted port injection bungs for easy access and an optimal spray pattern, and 1/8" expansion ports for direct-port nitrous, water/methanol, a BOV, Hobbs switch or boost gauge. Choose the Gen 1 or Gen 2 B58 version, with optional Injector Dynamics 1050cc (ID1050X) injectors and fuel line, and an optional Fuel-It! CANfuel Sequential Port Fuel Injection Controller.

SPECS

• Billet aluminum intake manifold with integrated top-mount port injection bungs
• High-flow air-to-water intercooler core rated to 2,000 hp
• Extra 1/8" ports for direct-port nitrous, water/methanol, BOV, Hobbs switch or boost gauge
• Retains all factory connections
• Upgraded high-temperature o-rings
• Available for Gen 1 (F-chassis) and Gen 2 (G-chassis) B58 engines
• Optional Injector Dynamics ID1050X (1050cc) injectors and fuel line, up to approx. 1,100 whp
• Optional Fuel-It! CANfuel Sequential Port Fuel Injection Controller (controls up to 8 injectors)

PARTS INCLUDED

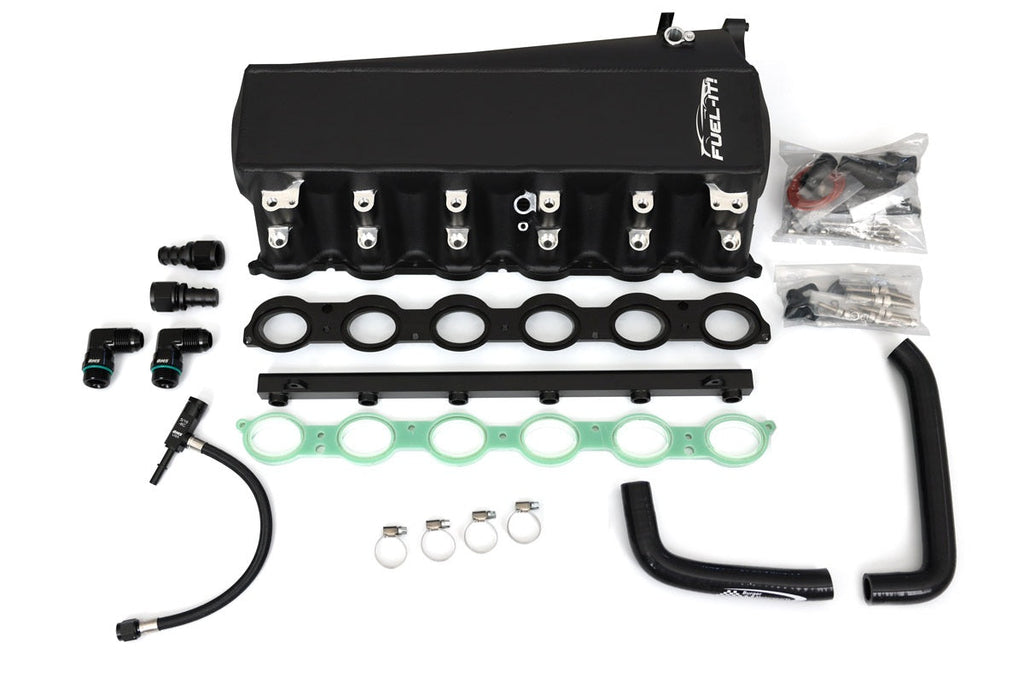

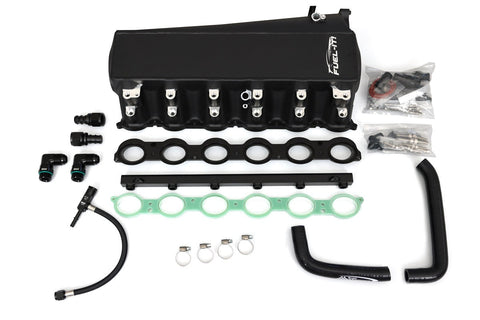

• (1) Fuel-It! billet port injection manifold (Gen 1 or Gen 2 B58, as selected)
• (1) BMS B58 Phenolic Thermal Intake Manifold Spacer (required for installation)
• (1) Fuel-It! fuel line
• (1) Set of BMS port injector plugs (for running the manifold without port injectors)
• High-temperature o-rings and all mounting hardware

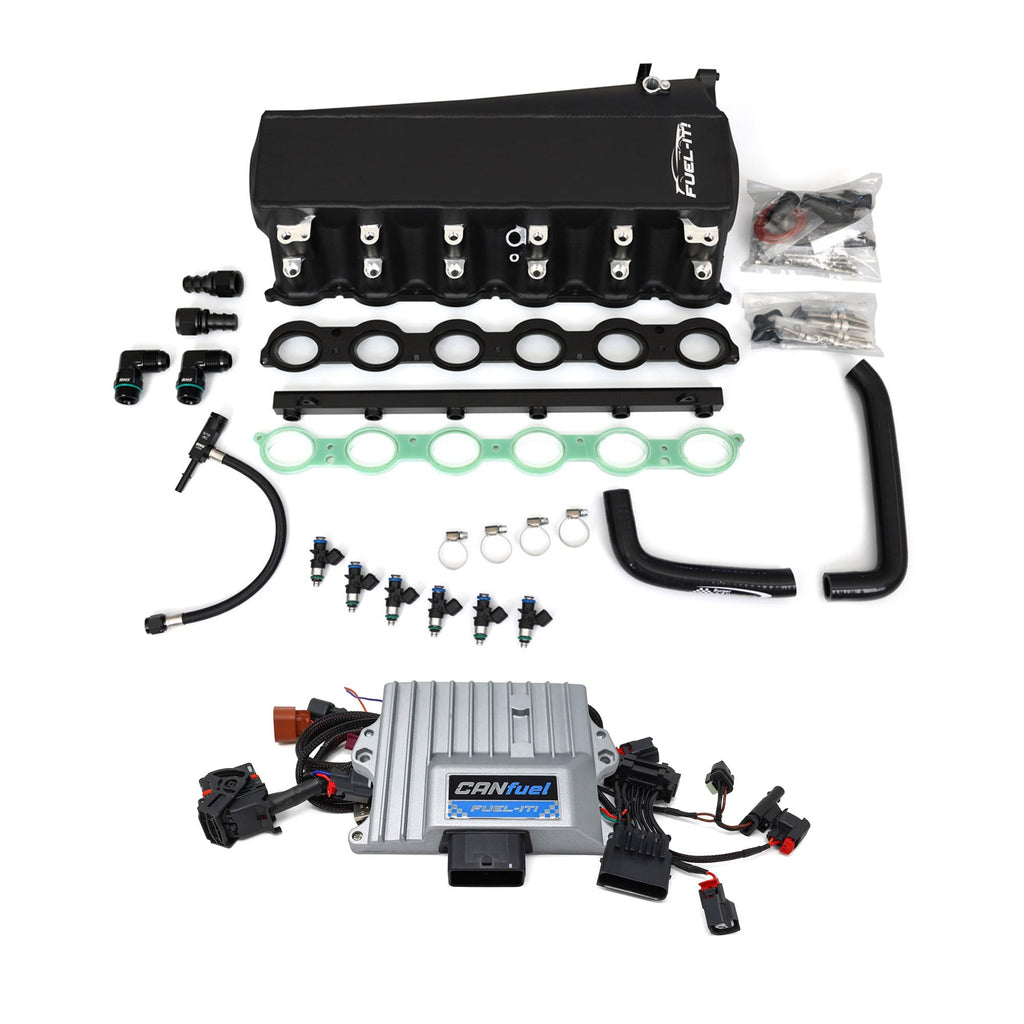

• Injector Dynamics ID1050X (1050cc) injectors and braided fuel line (injector option only)
• Fuel-It! CANfuel Sequential Port Fuel Injection Controller (controller option only)

TECH RESOURCES

Additional Parts Required

• Without the injector option, six 42mm low-pressure port injectors are required to run port injection (sold separately).
• Without the controller option, a compatible port injection controller and tuning solution are required (sold separately).
• A fuel supply capable of supporting port injection is required.

Installation

• Gen 1 B58 Manifold Install – Cowl Brace & Cowl Cover Modification (PDF)
• Gen 2 B58 Billet Port Injection Manifold Install Video (Burger Motorsports)

Notes

• Fuel-It! and Burger Motorsports do not publish part numbers for this manifold.
• Gen 1 B58 installs require slight modification to the cowl brace and plastic cowl cover.
• Burger Motorsports also offers 750cc and 950cc DW injector packages; Speed Logic offers this manifold with Injector Dynamics 1050cc (ID1050X) injectors only.
