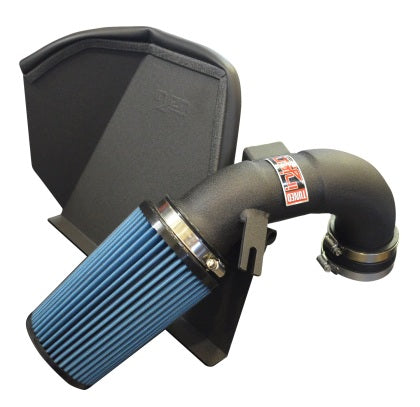

Injen SP Cold Air Intake SP1123 – BMW 230i / 330i / 430i (B48)

OVERVIEW

The SP series is Injen Technology's flagship traditional aluminum intake line. Injen produced the world's first tuned air intake system and holds four patents covering the intake tuning process, including MegaRam (MR) Technology (patents 7,359,795 and 7,669,571) and Air Fusion (patent 7,721,669). Both are built into the SP1123 for BMW's B46 and B48 2.0L turbo four.

The kit replaces the restrictive factory airbox with a 6061-T6 aluminum intake tube that gives the turbo a smooth, uninterrupted path to the compressor inlet, and adds a heat shield built specifically for this chassis to keep the filter separated from radiant underhood heat. Injen developed the system on the dyno for gains of up to 13 horsepower and 12 lb-ft of torque while holding a safe air/fuel ratio across the power band, so no additional tuning is required.

Air is drawn through a fully serviceable Injen SuperNano-Web dry filter, which adds filtration surface area for greater airflow without an oiled media. The system delivers an aggressive, throaty tone under full throttle. Made in Pomona, California and backed by the Injen Technology Limited Lifetime Warranty.

SPECS

• Series: Injen SP short ram air intake system
• Dyno-proven gains of up to 13 hp and 12 lb-ft of torque
• Intake tube: 6061-T6 aluminum (Y-SP1123)
• Finishes stocked: wrinkle black and wrinkle red; Injen also catalogs a polished version
• Filter: Injen SuperNano-Web dry air filter, blue media, fully serviceable
• Replacement air filter part number X-1105-BB
• Includes an application-specific custom heat shield (#11150)
• Features Injen's patented MegaRam (MR) Technology
• Features Injen's patented Air Fusion Technology
• Maintains factory air/fuel ratios; no additional tuning required
• Not CARB exempt — not legal for sale or use on pollution-controlled vehicles in California
• Made in Pomona, California, USA
• Injen Technology Limited Lifetime Warranty

PARTS INCLUDED

• 1 x Intake tube (Y-SP1123)
• 1 x Heat shield (#11150)
• 1 x Dry filter, blue media (#1105BB)
• 1 x 3.25" x 3.0" step hose (#3134)
• 1 x #48 clamp (#4004)
• 1 x #56 clamp (#4005)
• 2 x Small grommets (#8031)
• 1 x 3/8" black plastic nut (#6124)
• 1 x Rubber trim, 23" length (#6058)
• 1 x M6 locknut (#6108)
• 2 x M4 screws (#6047)
• 1 x M6 Vibra-mount (#6020)
• 2 x Fender washers (#6010)
• 2 x M6 nuts (#6002)

TECH RESOURCES

Additional Parts Required

• None. Injen specifies no additional hardware, tuning or fluids for this intake — all required mounting hardware is supplied in the kit.
• Installer-supplied tools: metric socket and wrench set, flat and Phillips screwdrivers, a trim panel tool and a torque wrench.
• Optional service items: Injen replacement dry air filter X-1105-BB and an Injen dry-filter cleaning kit.

Installation

• Injen SP1123 Installation Instructions (PDF)

Notes

• Note: This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.
• sl-note: Fitment above follows Injen's current official application list, which covers both the B46 and B48 engines and extends past the 2017–2019 range shown in the product title — up to 2021 on the 230i and 2020 on the 430i. LCI (facelift) chassis only. Confirm your year and engine code with Speed Logic before ordering.

PART NUMBER

• SP1123WB — wrinkle black finish
• SP1123WR — wrinkle red finish
• SP1123P — polished finish (Injen catalog finish, not stocked in this listing)
