KW Coilover Kit Variant 3 (V3) 2-Way Adjustable (EDC) – BMW M5 (F10) / M6 Gran Coupe (F06)

OVERVIEW

The Variant 3 is KW's two-way adjustable coilover and the one most people actually want. Compression and rebound are on separate adjusters, so you can firm up body control without also killing rebound compliance, and ride height is continuously adjustable across the kit's range. It is the sensible step up from a spring-only kit and a large step up from the factory strut.

The stock damper is the limiting part on the F10 M5. Factory valving is a single fixed compromise and the ride height is whatever the car left the line at. The V3 replaces the whole strut with a rebuildable, height-adjustable, damping-adjustable unit.

This listing covers the F10 M5 with 35220098, KW's V3 Bundle for this chassis, which ships with the KW ESC/EDC cancellation module for the factory adaptive dampers.

SPECS

• 2-way adjustable damping: independent compression and rebound
• Continuously adjustable ride height
• Bundle kit, supplied with the KW ESC/EDC cancellation module, deleting the factory adaptive dampers without fault codes

PARTS INCLUDED

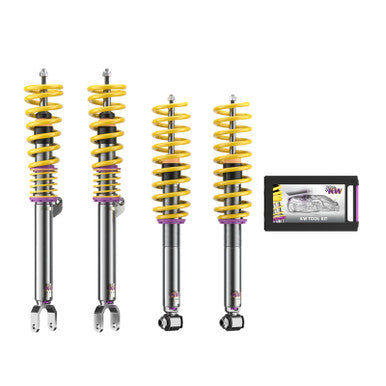

• Front and rear KW Variant 3 coilover units with matched springs
• KW ESC/EDC cancellation module included
• Mounting hardware and KW's fitting instructions

TECH RESOURCES

Additional Parts Required

• 35220098 is a Bundle kit and already includes the ESC/EDC cancellation module; no separate module purchase is needed.
• A corner-balance and a full four-wheel alignment are required after installation. Budget for both before the car is driven.

Installation

• Installation instructions (35220098): PDF.
• Setup manual (35220098): PDF.
• In brief: full strut-out replacement front and rear, the ESC module plugged into the OE damper connectors, ride height set inside KW's published range, then corner-balance and alignment.

Notes

• 35220098 is build-to-order with a 6–8 week lead time.
• Price is for the item selected only; labor is not included.
• KW's own fitment chart for 35220098 lists 2013–2016 for the M5 F10 (not 2012) and also lists the M6 Gran Coupe F06 (2014–2019), which was missing from this table despite F06/M6 already appearing in this product's tags. Both corrected below. Checked against KW's fitment chart on 2026-09-03.

PART NUMBER

• 35220098 — V3 Bundle, BMW M5 F10
