KW Coilover Kit Variant 3 (V3) 2-Way Adjustable – BMW Z4 (E89)

OVERVIEW

The Variant 3 is KW's two-way adjustable coilover and the one most people actually want. Compression and rebound are on separate adjusters, so you can firm up body control without also killing rebound compliance, and ride height is continuously adjustable across the kit's range. It is the sensible step up from a spring-only kit and a large step up from the factory strut.

The stock damper is the limiting part on the E89 Z4. Factory valving is a single fixed compromise and the ride height is whatever the car left the line at. The V3 replaces the whole strut with a rebuildable, height-adjustable, damping-adjustable unit.

This listing covers the E89 Z4. Choose 35220072 if your car does not have factory Adaptive Drive. Choose 35220087, KW's Bundle, if it does — it ships with KW's ESC cancellation module so the adaptive dampers are deleted without setting fault codes.

SPECS

• 2-way adjustable damping: independent compression and rebound
• Continuously adjustable ride height
• 35220087 (Bundle) is supplied with the KW ESC cancellation module, deleting the factory Adaptive Drive dampers without fault codes

PARTS INCLUDED

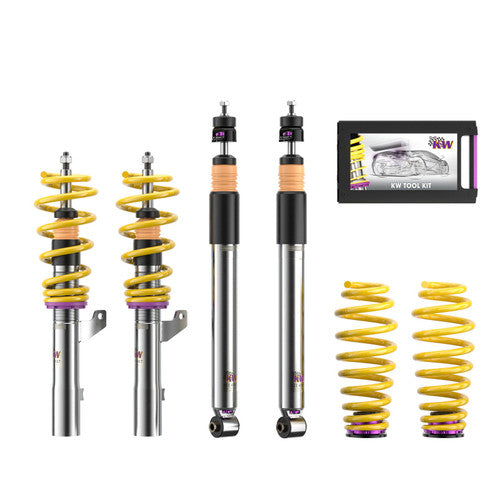

• Front and rear KW Variant 3 coilover units with matched springs
• KW ESC cancellation module included on 35220087
• Mounting hardware and KW's fitting instructions

TECH RESOURCES

Additional Parts Required

• A car with factory Adaptive Drive fitted with the non-Bundle 35220072 requires the matching KW ESC cancellation module — contact us to confirm compatibility before ordering.
• A corner-balance and a full four-wheel alignment are required after installation. Budget for both before the car is driven.

Installation

• Installation instructions (35220072 / 35220087): PDF.
• Setup manual (35220072 / 35220087): PDF.
• In brief: full strut-out replacement front and rear, the ESC module plugged into the OE damper connectors on 35220087, ride height set inside KW's published range, then corner-balance and alignment.

Notes

• 35220072 also covers the naturally aspirated Z4 sDrive30i. That engine is outside our scope and is not listed in the applications table below; the part still physically fits it.
• Price is for the item selected only; labor is not included.

PART NUMBER

• 35220072 — V3 kit, BMW Z4 E89 without Adaptive Drive
• 35220087 — V3 Bundle, BMW Z4 E89 with Adaptive Drive
