KW Coilover Kit Variant 4 (V4) 3-Way Adjustable – BMW M3 / M4 (F80 / F82 / F83)

OVERVIEW

The KW Variant 4 is KW's three-way adjustable coilover for fast road and track use. Low-speed compression, high-speed compression and rebound are set on separate adjusters, so body control over curbs and big compressions can be dialed in without also making the car harsh over small inputs. That separation is the whole point of a 3-way damper and it is what the Variant 3 cannot do.

On the F8X M3/M4 the factory damper is the limit long before the engine is. Stock struts run a fixed valving curve chosen for showroom ride quality, and the ride height is not adjustable. The V4 replaces the strut assembly outright with an adjustable-height, adjustable-damping unit and a camber-adjustable top mount.

This listing covers the F80 M3 and F82/F83 M4. Choose 3A7200AN if your car has no factory electronic dampers. Choose 3A7200AP, KW's Bundle, if it does — the Bundle ships with KW's ESC/EDC cancellation module so the adaptive dampers are deleted without setting fault codes.

SPECS

• 3-way adjustable damping: independent low-speed compression, high-speed compression and rebound
• Continuously adjustable ride height
• TUV parts certificate (published for 3A7200AN)
• Camber-adjustable front top mounts (published for 3A7200AN)
• 3A7200AP (Bundle) is supplied with the KW ESC/EDC cancellation module, deleting the factory adaptive dampers without fault codes

PARTS INCLUDED

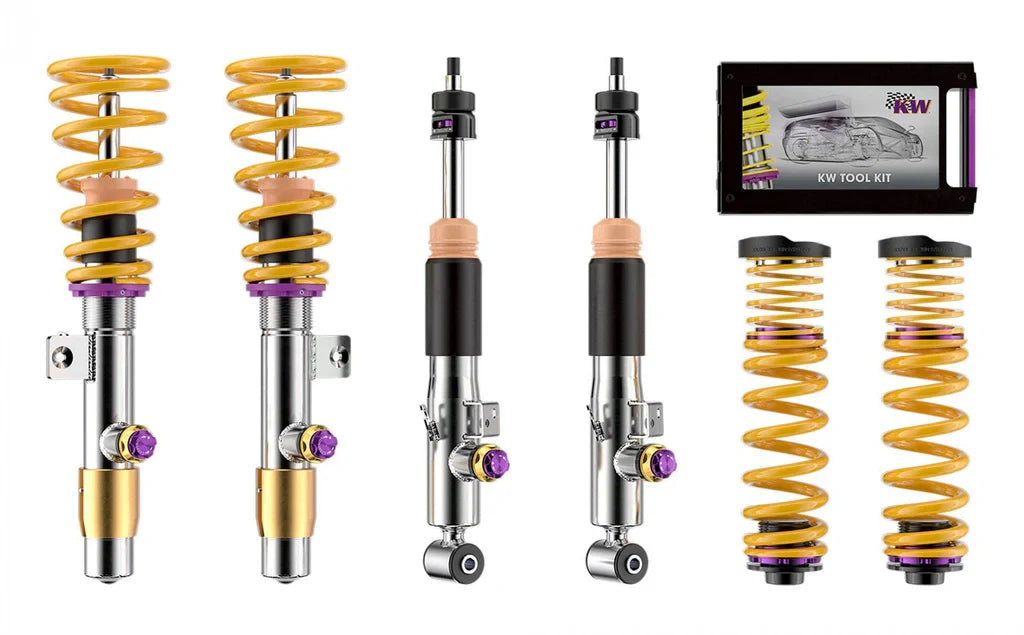

• Front and rear KW Variant 4 coilover units with matched springs
• Camber-adjustable front top mounts on 3A7200AN; Bundle top mounts per KW's specification on 3A7200AP
• KW ESC/EDC cancellation module included on 3A7200AP
• Mounting hardware and KW's fitting instructions

TECH RESOURCES

Additional Parts Required

• Cars with factory electronic dampers fitted with the non-Bundle 3A7200AN require the matching KW ESC cancellation module 68510390 (F80 / F82 / F83). See our KW ESC Cancellation Modules & Coilover Setup Tools listing.
• A corner-balance and a full four-wheel alignment are required after installation. Budget for both before the car is driven.

Installation

• Installation instructions (3A7200AN): PDF.
• Installation instructions (3A7200AP): PDF.
• Setup manual (3A7200AN / 3A7200AP): PDF.
• In brief: the job is a full strut-out replacement front and rear, with the top mounts transferred or replaced, the ESC module plugged into the OE damper connectors on 3A7200AP, ride height set to KW's published range, and the car corner-balanced and aligned.

Notes

• No product image is published by KW for either part number in this listing.
• Price is for the item selected only; labor is not included.

PART NUMBER

• 3A7200AN — V4 kit, BMW M3 / M4 F80 / F82 / F83 without EDC
• 3A7200AP — V4 Bundle, BMW M3 / M4 F80 / F82 / F83 with EDC (ESC module included)
