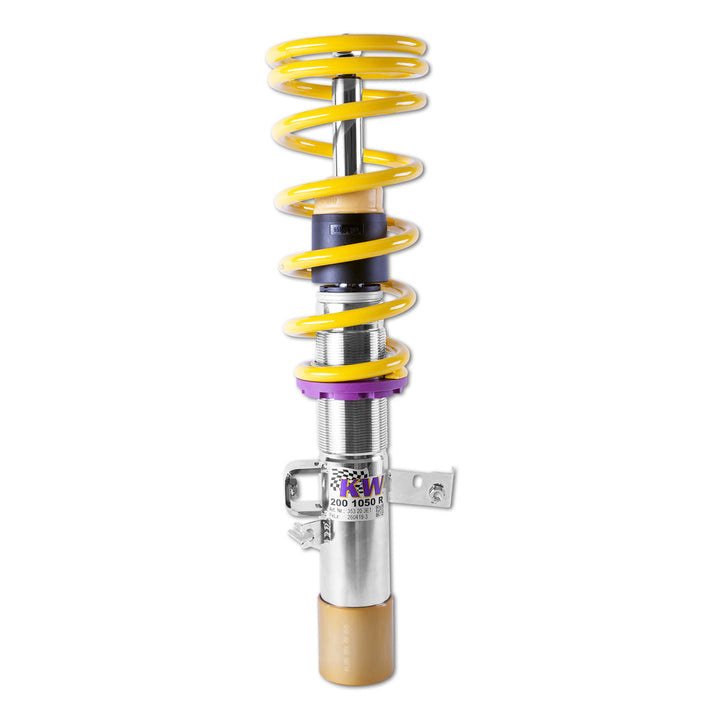

KW V3 Coilover Kit – BMW Z4 M40i (G29)

OVERVIEW

KW's Variant 3 coilover kit lets a modified Z4 M40i be tuned rather than simply lowered. The patented KW valve technology separates rebound and compression adjustment, so the vehicle-specific base setup can be adapted to driving style or to changes in weight, tire characteristics and chassis bracing.

Compression damping can be raised to help tire grip, sharpen cornering behavior and limit squat without altering the rebound damping that is matched to the spring rate. Height adjustment is continuous and the dampers use KW's inox-line stainless steel housings.

SPECS

• Front lowering: 0.6–1.4 in
• Rear lowering: 0.8–1.6 in
• Independently adjustable rebound and compression damping
• Infinitely adjustable rebound damping
• Adjustable low-speed compression damping
• inox-line stainless steel damper housings
• Individual, continuous height adjustment
• TÜV-tested adjustment parameters
• For vehicles without factory electronic dampers

PARTS INCLUDED

• Complete V3 coilover kit as supplied by KW; see the installation instructions for the full bill of materials.
• KW documentation for height, rebound and compression adjustment.

TECH RESOURCES

Additional Parts Required

• A four-wheel alignment after installation is mandatory — camber, caster and toe all change with ride height.
• Professional installation is strongly recommended; a lift and spring compressors are required.
• Cars fitted with factory electronic dampers need the electronic-damper version instead: KW V3 Coilover Kit w/ Electronic Dampers.
• Driver assistance systems that reference ride height (headlight leveling, camera and radar aiming) should be checked and recalibrated after lowering.
• Tire-to-strut and fender clearance must be checked at the chosen ride height before the car is driven.

Installation

• KW supplies printed installation instructions in the box. KW does not publish a public download for order number 352200CG — contact Speed Logic if you need a copy of the instructions before installing.

Notes

• KW lists this order number for additional G29 Z4 and A90 GR Supra applications; confirm your exact model and damper equipment with Speed Logic before ordering.

PART NUMBER

• 352200CG — KW Coilover Kit V3, BMW Z4 G29 / Toyota GR Supra A90 without electronic dampers
