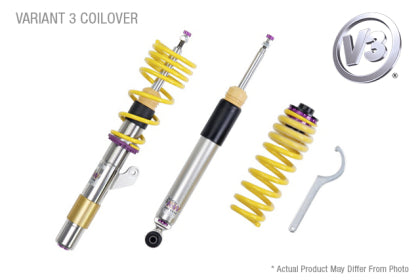

KW V3 Coilover Kit with Electronic Dampers – BMW Z4 M40i (G29)

OVERVIEW

The KW Variant 3 "inox-line" coilover kit is KW's benchmark street-and-track coilover, built around a stainless steel twin-tube damper whose rebound and compression damping are adjusted independently of one another. KW's engineers set a sporty but harmonious baseline on the company's 7-post rig and validated it with road, highway and Nürburgring Nordschleife testing, so the kit works out of the box and then lets you tune from there.

Compression damping is adjusted by hand at the lower end of the stainless housing through a patented adjuster — twelve exact clicks that let you influence body roll without changing spring rate, and no tools are needed. Rebound is adjusted at the top of the piston rod through an integrated adjustment wheel or the supplied twist-adjustment tool, in sixteen precise clicks. Raising rebound force reduces body movement and adds stability through high-speed corners; backing it off increases comfort.

Because the strut housings are stainless steel they do not rust, and the dirt-resistant KW trapezoidal thread with its composite collar keeps the continuous height adjustment working years after installation. KW backs the Variant 3 with up to a five-year warranty when the kit is installed by a KW specialist dealer. This particular kit is the version for cars fitted with factory electronic dampers.

SPECS

• Front lowering range: 0.6 in – 1.4 in
• Rear lowering range: 0.8 in – 1.6 in
• Rebound damping: independently adjustable, 16 exact clicks
• Compression damping: independently adjustable, 12 exact clicks (low-speed range; high-speed compression is fixed for safety)
• Strut housings: stainless steel "inox-line" construction, corrosion free
• Height adjustment: continuous, via dirt-resistant KW trapezoidal thread and composite adjuster collar
• Tested and released lowering range
• Warranty: up to 5 years when installed by a KW specialist dealer

PARTS INCLUDED

• Complete KW Variant 3 "inox-line" coilover kit as supplied by KW, including the rebound twist-adjustment tool where the application requires it.
• KW installation documentation and parts certificate.
• See the KW installation instructions supplied with the kit for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• Correct damper configuration — this kit is the version for Z4 M40i models fitted with factory electronic dampers. Confirm your car's damper configuration before ordering; the non-electronic-damper car takes a different KW kit.
• Four-wheel alignment — a full four-wheel alignment is mandatory after installation and after any subsequent ride-height change.
• Professional installation — KW specifies fitment by a qualified suspension shop; installation at a KW specialist dealer is also what qualifies the kit for KW's extended warranty coverage.
• Tire-to-strut and fender clearance check — verify clearance at full lock and full compression, particularly with aftermarket wheel and tire packages.
• Ride-height sensor handling — cars fitted with headlight-leveling or adaptive-damper ride-height sensors require the sensor links to be relocated or adapted to the new ride height per KW's instructions.
• Driver-assistance recalibration — camera- and radar-based driver-assistance systems must be recalibrated after the vehicle is lowered.
• Installer-supplied tools: spring compressor, torque wrench, and the standard BMW suspension service tools.

Installation

• KW Variant 3 rebound and compression damper setup manual (KW document 685 77 044): Download PDF
• KW supplies vehicle-specific printed installation instructions in the box with every kit. Speed Logic could not confirm a downloadable KW installation PDF for this specific application; contact us if you need a copy before purchase.

Notes

• KW does not publish an order number that Speed Logic could confirm for this exact application, so no part number is listed above. The existing listing carried no fitment table, so the application row is derived from the product title — please confirm fitment and the correct electronic-damper variant with Speed Logic before ordering.
