Mishimoto Air-to-Water Intercooler Power Pack, Black – BMW S55 M2 Competition / M3 / M4 (F8x)

OVERVIEW

The power pack upgrades the whole S55 charge-air circuit in one go: Mishimoto's air-to-water intercooler, its larger front heat exchanger and a pair of aluminum charge pipes. Doing all three together removes the heat-soak and pipe-failure weak points that show up first on a tuned F8X.

The heat exchanger is 6 inches taller with 60% more core volume and 180% more fin area, and the intercooler adds 29% more core volume. On a Stage 1 M3, Mishimoto recorded a 12°F intake air temperature drop and average gains of 11 whp and 8 wtq. The kit carries CARB EO D-759-13.

SPECS

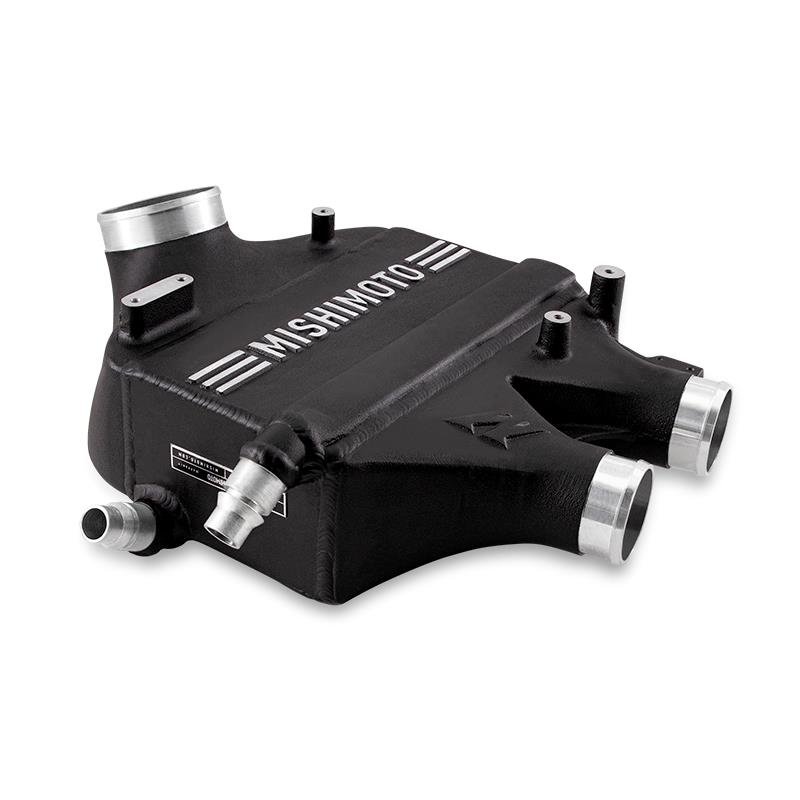

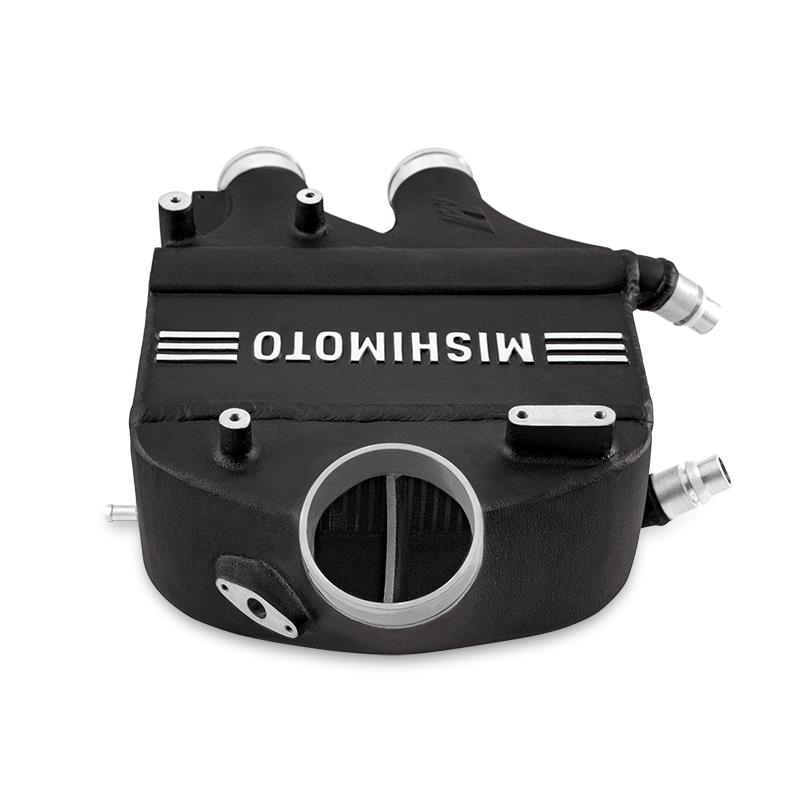

• Intercooler: bar-and-plate core with 29% more volume and 16% more flow, single-pass coolant layout, cast aluminum end tanks

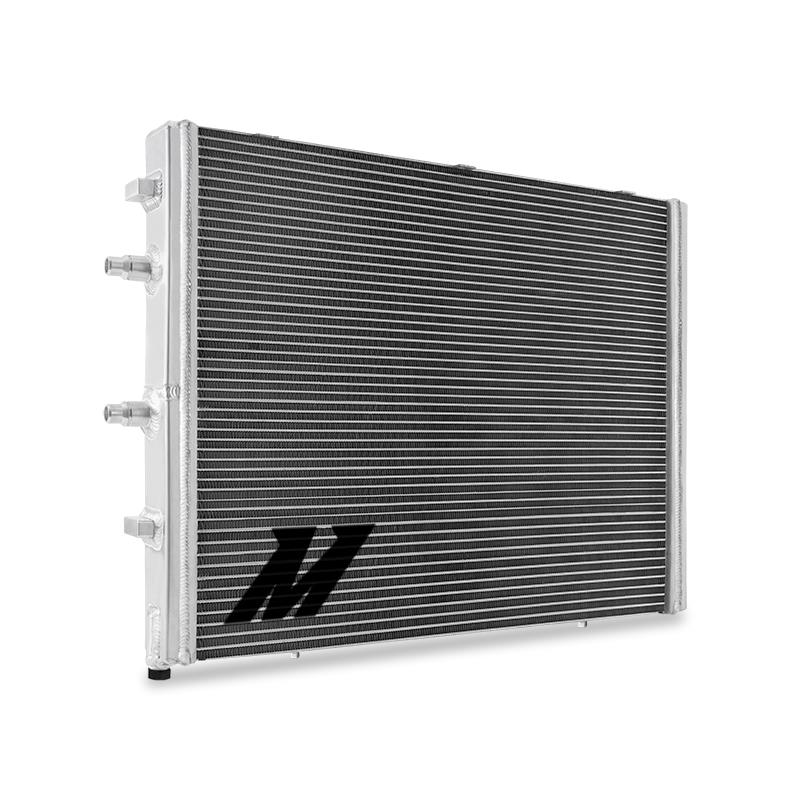

• Heat exchanger: all-aluminum, 6 in taller, 60% more core volume, 180% more external fin area, variable fin pitch for DCT cars

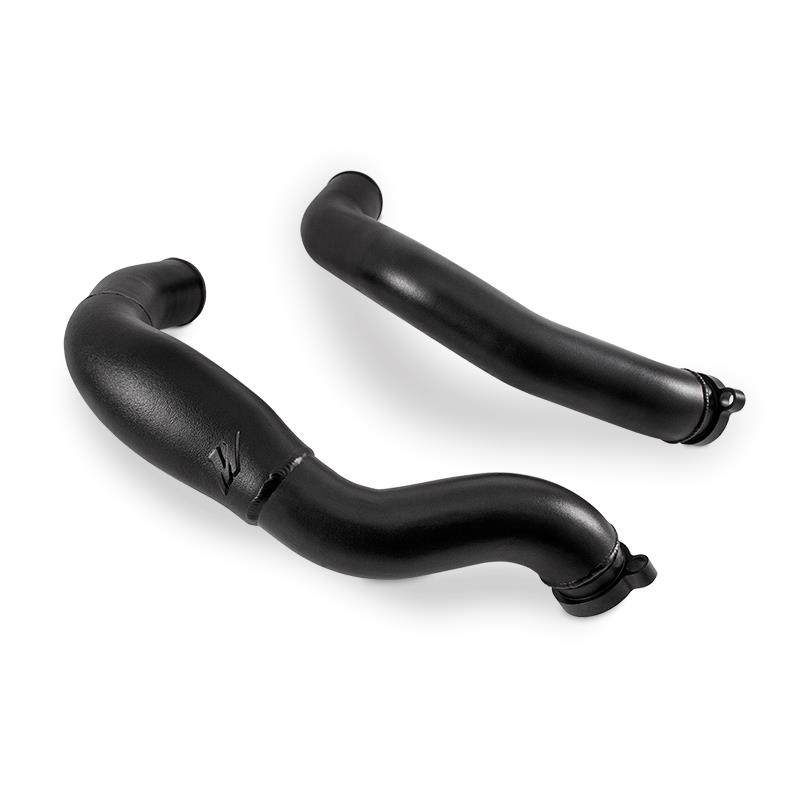

• Charge pipes: aluminum with cast midsection and matte black silicone couplers
• 12°F lower intake air temperature and 10°F lower intercooler coolant temperature
• Stage 1 M3 dyno: average gains of 11 whp and 8 wtq, peaks of 31 whp and 10 wtq
• Micro-wrinkle black finish
• CARB EO D-759-13
• Engine code: S55
• Chassis codes: F80, F82, F83, F87
• U.S. Patents D940,013 S and D971,261 S
• Installation difficulty: medium
• Mishimoto Lifetime Warranty

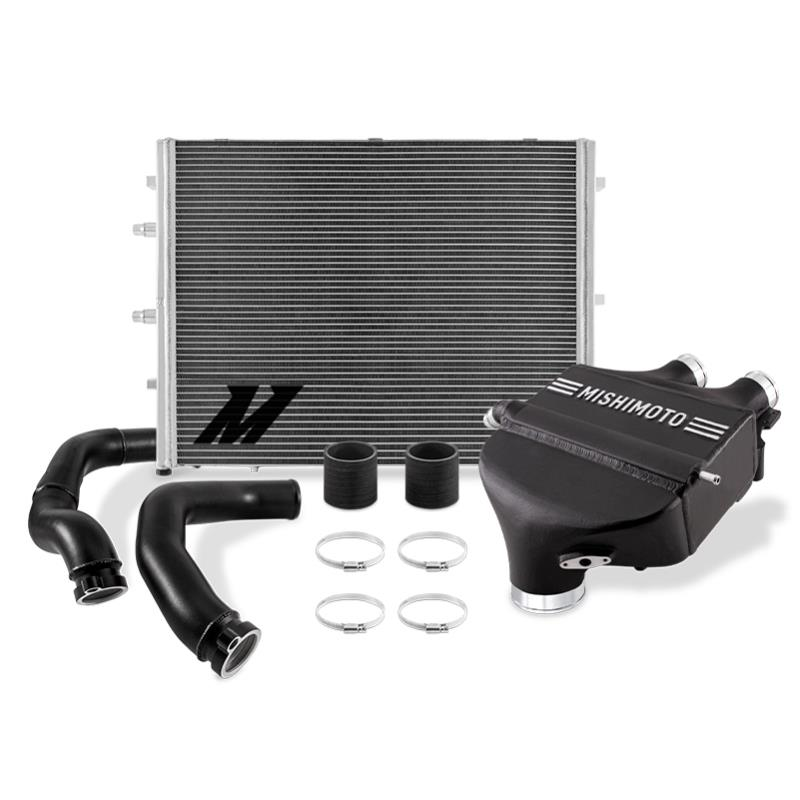

PARTS INCLUDED

• (1) Performance air-to-water intercooler
• (1) Performance heat exchanger
• (1) Heat exchanger stone guard
• (2) Charge pipes

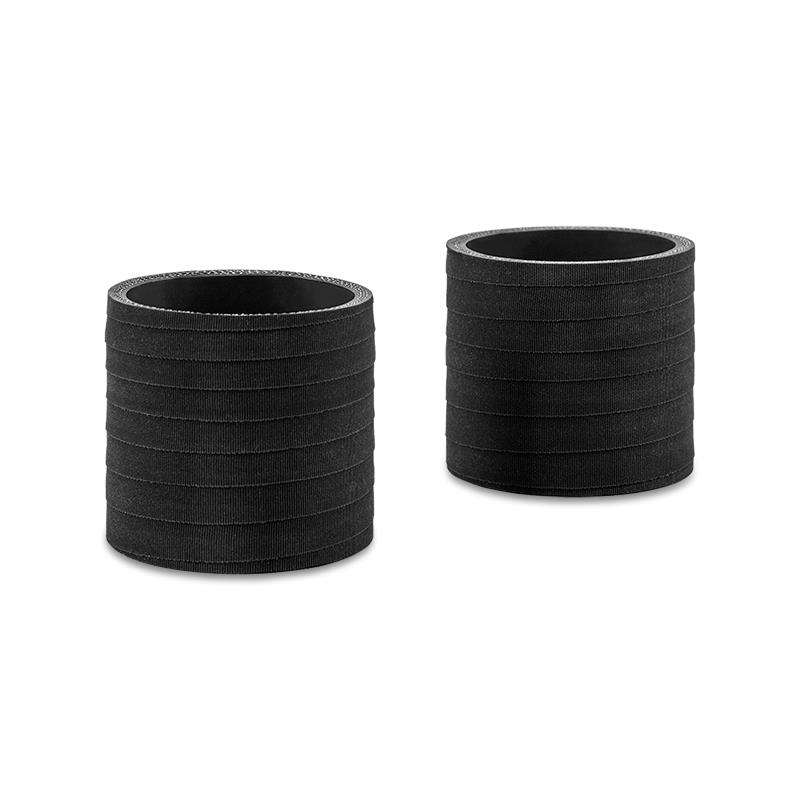

• (2) Silicone couplers
• (4) Worm gear clamps
• (1) CARB EO sticker
• Mounting hardware
• Mishimoto Lifetime Warranty

TECH RESOURCES

Additional Parts Required

• None. The bundle covers the full charge-air circuit.
• Coolant is not supplied. The job opens the low-temperature charge-air coolant circuit, so plan to refill and bleed it with BMW-approved coolant.
• Optional calibration: MHD Super License – BMW S55 or Bootmod3 S55 Tune.

Installation

• Mishimoto F8X M3 / M4 Performance Air-to-Water Intercooler Parts & Installation Guide (PDF)
• Mishimoto MMHE-F80-15 Performance Heat Exchanger Installation Guide (PDF)
• Mishimoto F8X M2C / M3 / M4 Charge Pipe Kit Installation Guide (mishimoto.com)
• Mishimoto F8X M2C / M3 / M4 Performance Air-to-Water Intercooler Installation Video (Mishimoto official YouTube channel)
• Professional installation recommended.
• Request an Install Appointment

Notes

• Check every clamp, coupler and fitting for proper tightness before driving, and recheck them after the first few miles.
• Price is for the item selected only; labor is not included.

PART NUMBER

• MMB-F80-PP
