OVERVIEW
The S63 in the F10 M5 and F1X M6 runs a pair of air-to-water intercoolers in the hot vee, and they heat-soak fast once boost is turned up. Mishimoto's replacements use bar-and-plate cores with 37% more volume than stock and about 10% less airflow restriction.
On a Stage 1 M5, Mishimoto measured a 24°F drop in intake temperature and gains of 25 whp and 22 lb-ft. The kit replaces both sides and comes with the intercooler pipes, couplers, brackets and coolant hoses needed to install them.
SPECS
- 37% more core volume than stock
- About 10% less airflow restriction than stock

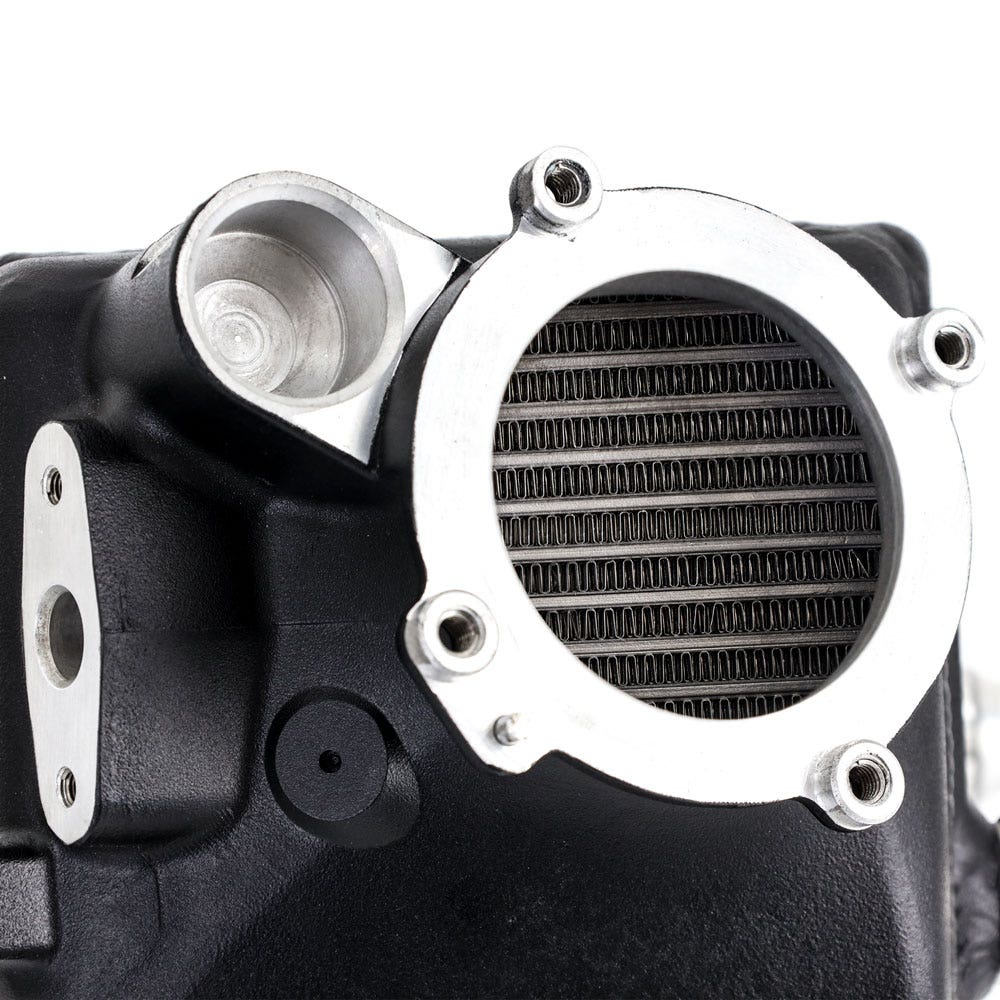

- Bar-and-plate cores with cast aluminum end tanks
- Core: 6.9 in L × 5.7 in H × 5.5 in thick

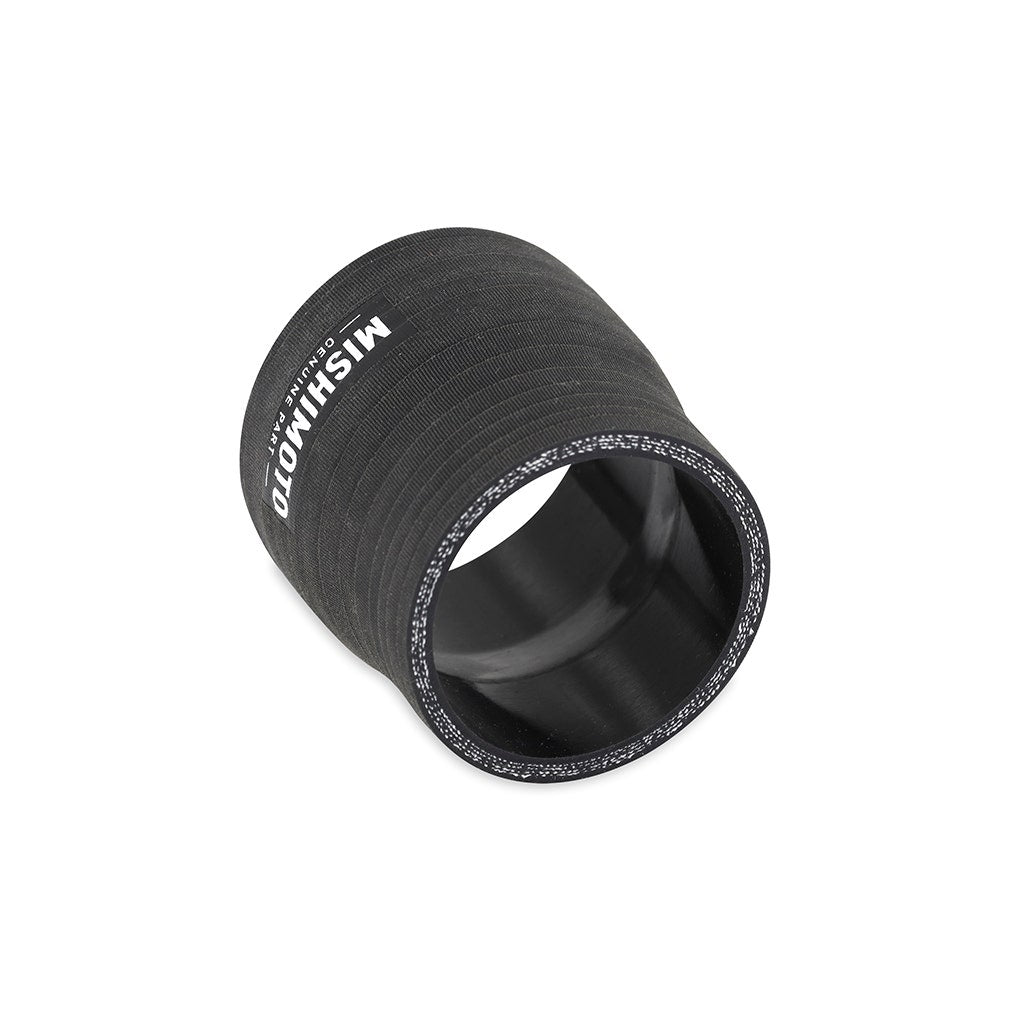

- Silicone couplers

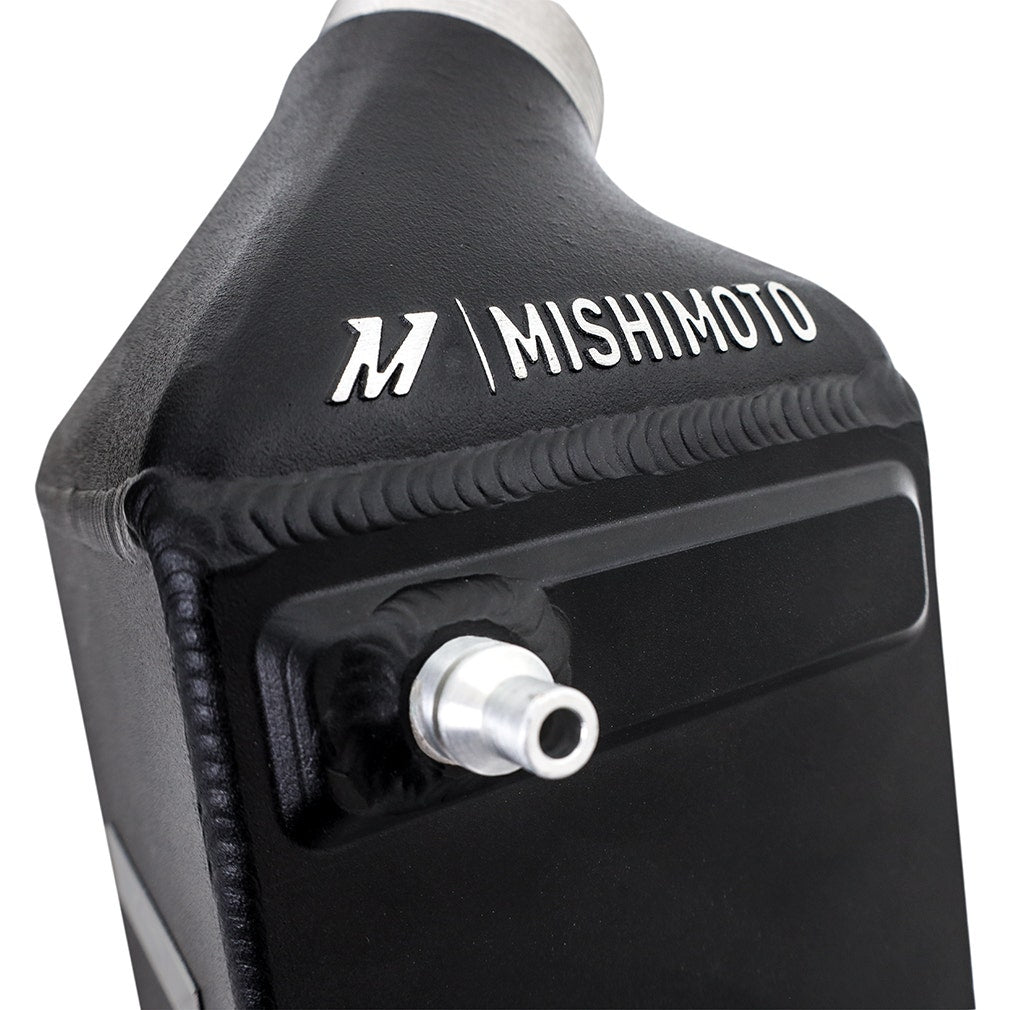

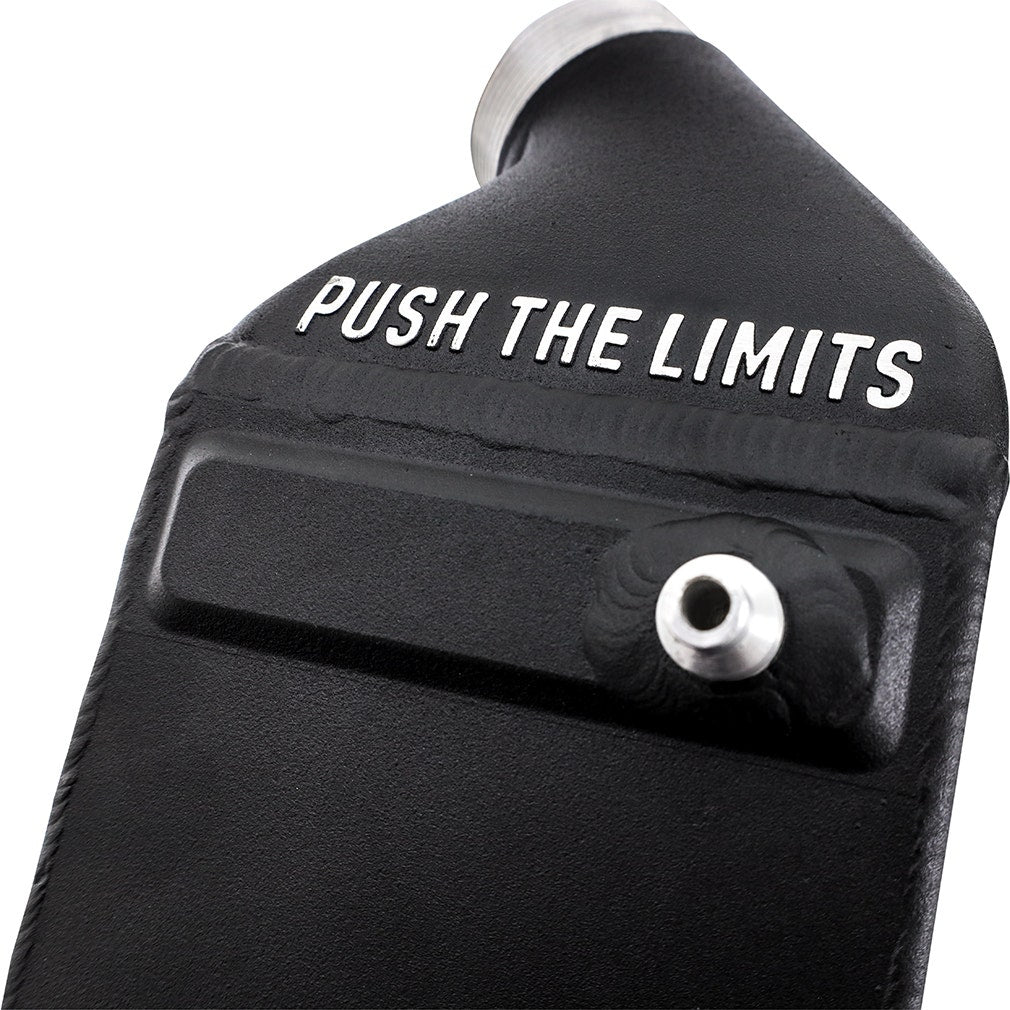

- Micro-wrinkle black powder-coat finish
- Stage 1 M5: 24°F lower intake temperature, gains of 25 whp and 22 lb-ft
- Engine code: S63
- Installation difficulty: medium
- Patent pending
- Mishimoto Lifetime Warranty

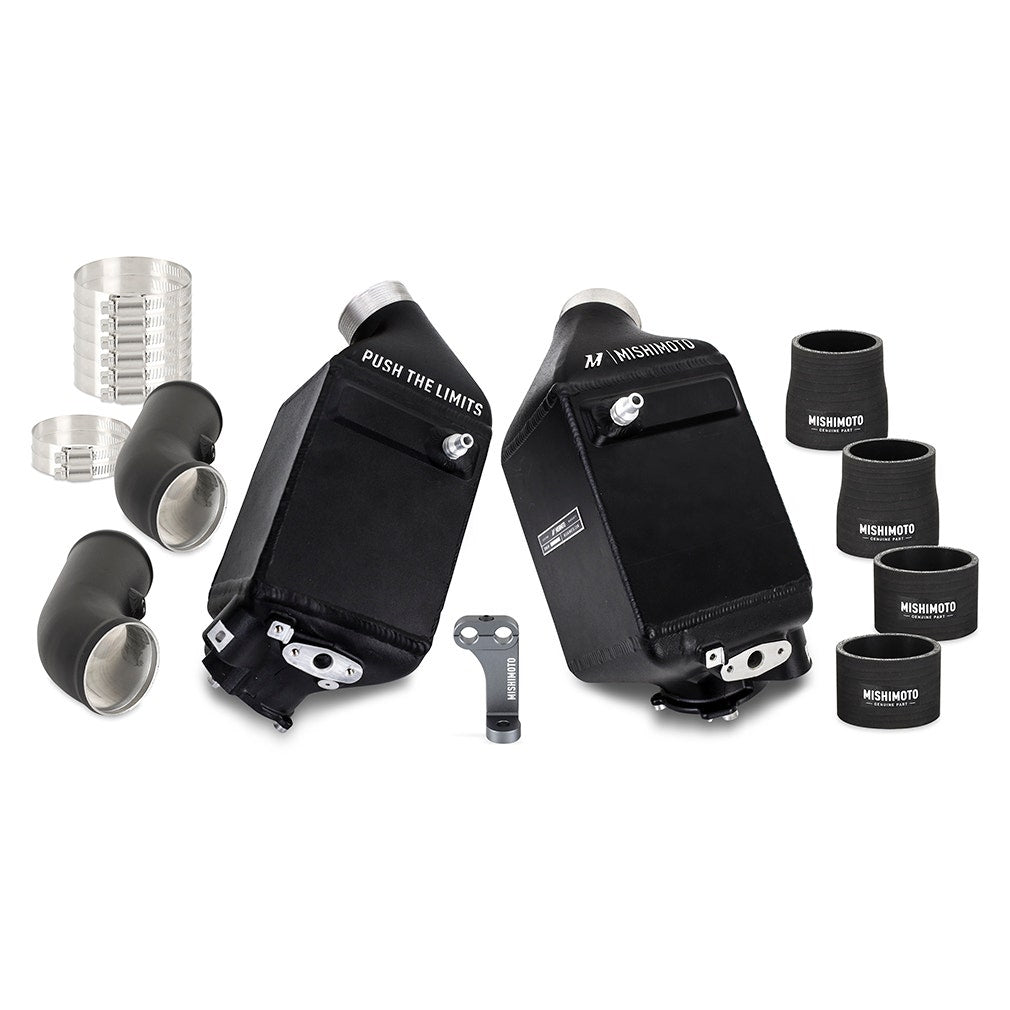

PARTS INCLUDED
- (1) Driver-side intercooler
- (1) Passenger-side intercooler
- (2) Intercooler brackets
- (2) Mounting grommets
- (2) Coolant hoses
- (6) Coolant hose O-rings

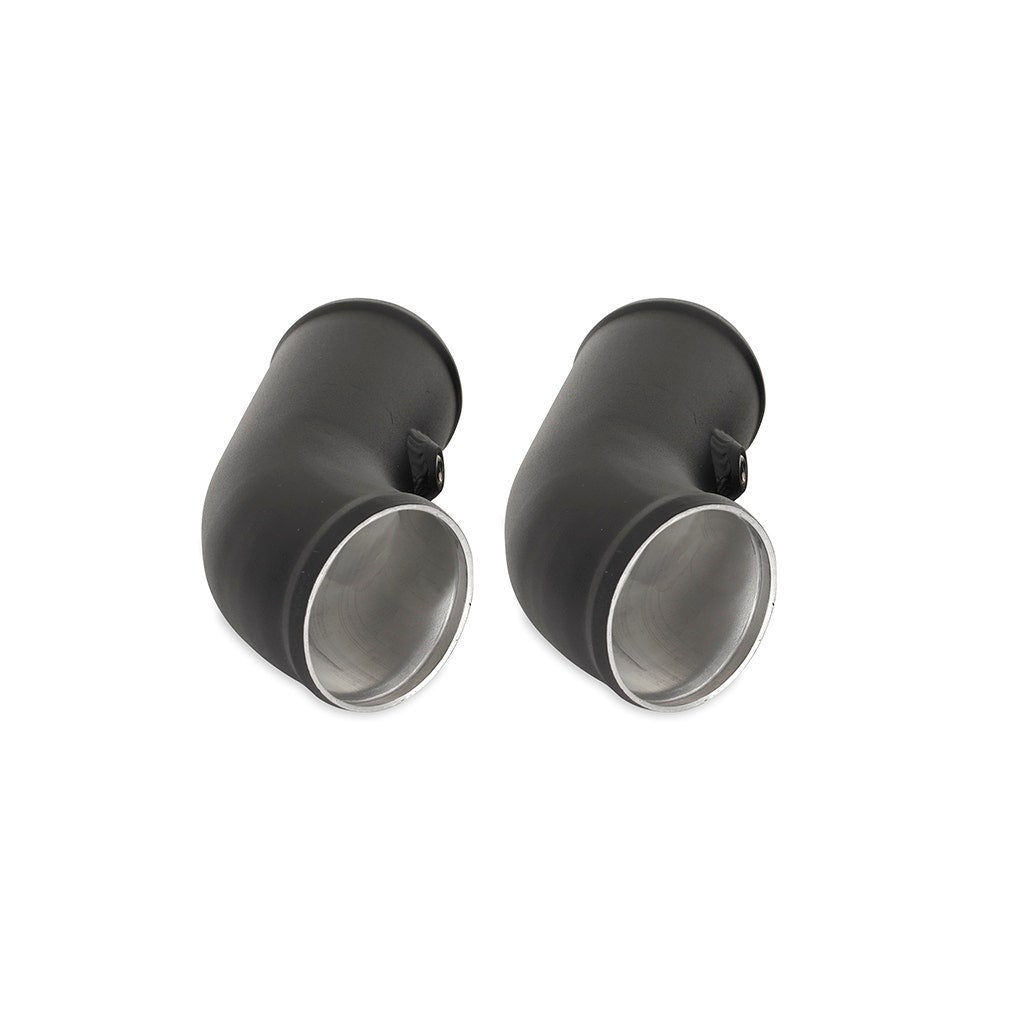

- (2) Intercooler pipes
- (1) Intercooler pipe bracket
- (4) Intercooler pipe couplers
- (4) Worm gear clamps
- Mounting hardware
- Mishimoto Lifetime Warranty
TECH RESOURCES
Additional Parts Required
- None. Intercooler pipes and couplers are included.
- Coolant is not supplied. The job opens the low-temperature charge-air coolant circuit, so plan to refill and bleed it with BMW-approved coolant.
- Optional: Mishimoto Performance Charge Pipe Kit – BMW S63 M5 / M6; calibration: MHD Super License – BMW S63 or Bootmod3 S63TU Tune.
Installation
Notes
- Check every clamp, coupler and fitting for proper tightness before driving, and recheck them after the first few miles.
- Price is for the item selected only; labor is not included.
PART NUMBER
- MMINT-F10-12WBK
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| BMW | M5 | F10 | S63 4.4L Twin Turbo V8 | 2013–2016 |
| BMW | M6 Gran Coupe | F06 | S63 4.4L Twin Turbo V8 | 2014–2016 |
| BMW | M6 Convertible | F12 | S63 4.4L Twin Turbo V8 | 2012–2016 |
| BMW | M6 Coupe | F13 | S63 4.4L Twin Turbo V8 | 2012–2016 |
