MOTIV ReFlex+ Link Control Unit – Bluetooth Wireless Monitoring & OTA Firmware Module

OVERVIEW

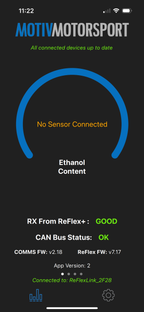

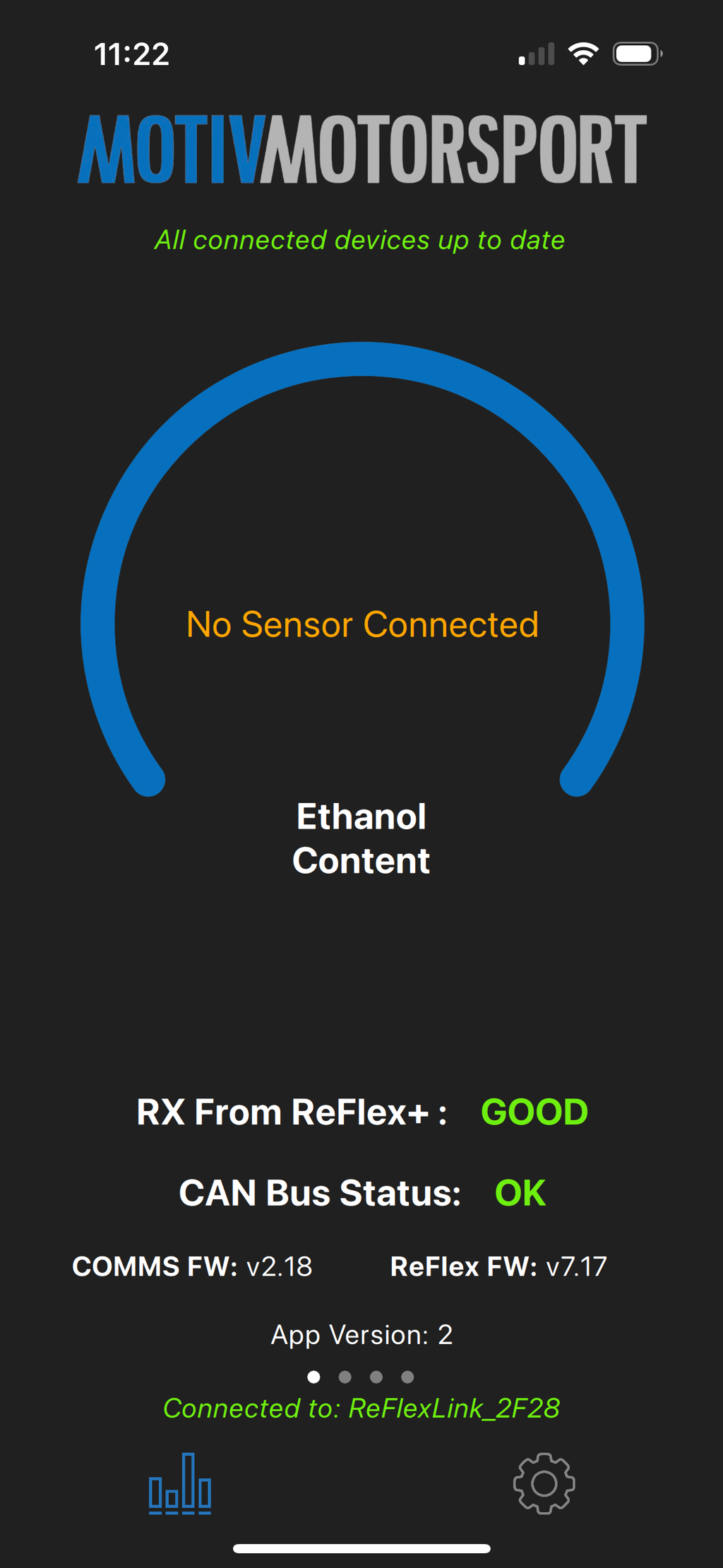

The MOTIV Link adds wireless Bluetooth (BLE) control to the ReFlex+. Through the MOTIV app on an iOS or Android phone or tablet, users can view real-time data, monitor system health, review diagnostics and update firmware over the air with no USB connection or physical access to the ReFlex+ module. MOTIV is continuing to develop the app with expanded engine-management functionality over time.

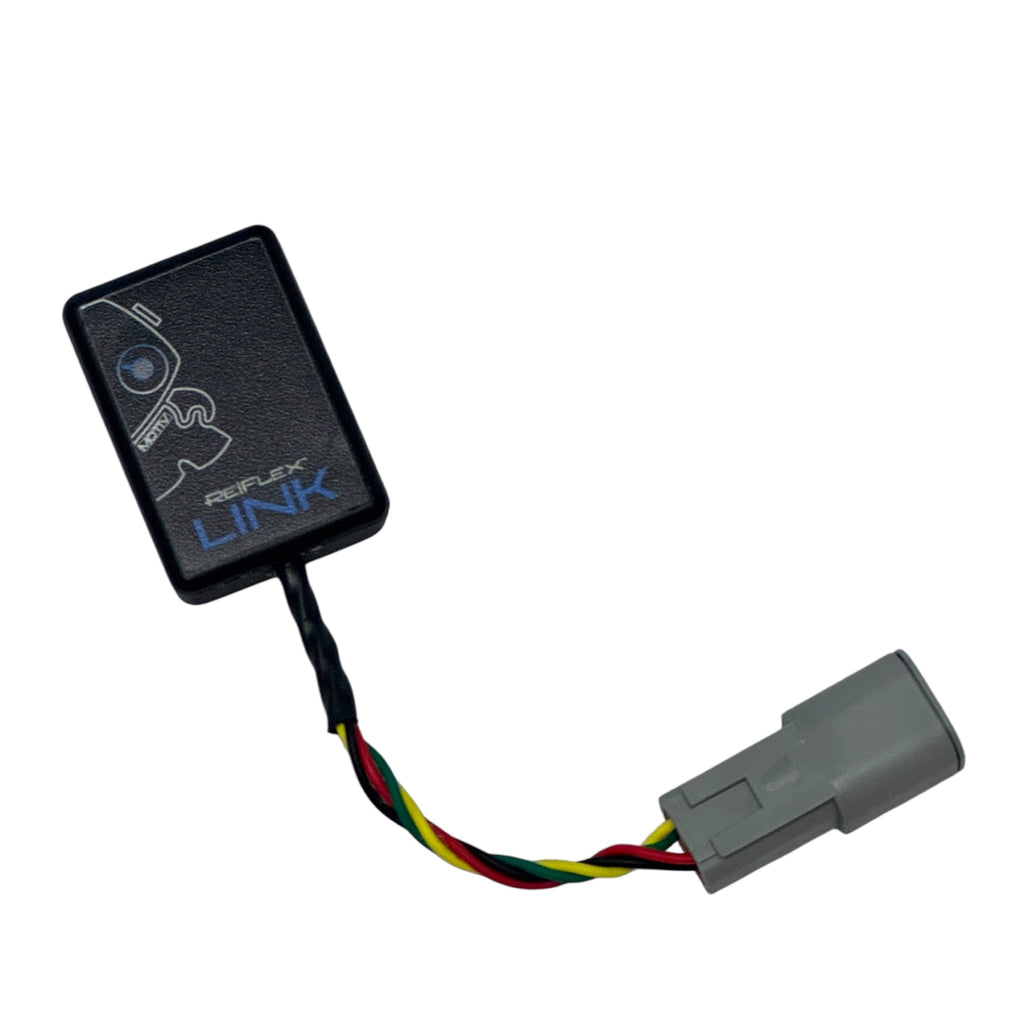

The Link is a compact BLE module that installs on any existing ReFlex+ in minutes using a dedicated harness: a patch harness between the main injector harness 8-pin connector and the flying-lead install harness, or a tap-in harness for plug-and-play looms. Live data includes injector status, engine status, CAN Bus activity, crank and cam signal status, MAP readings, firmware version, auxiliary output status and duty, ethanol content, fuel pressure and boost pressure.

SPECS

• Bluetooth Low Energy (BLE) wireless link to the MOTIV app (App Store and Google Play)
• Real-time monitoring: injector, engine, CAN Bus, crank/cam, MAP, auxiliary outputs, ethanol content, fuel pressure, boost pressure, firmware version

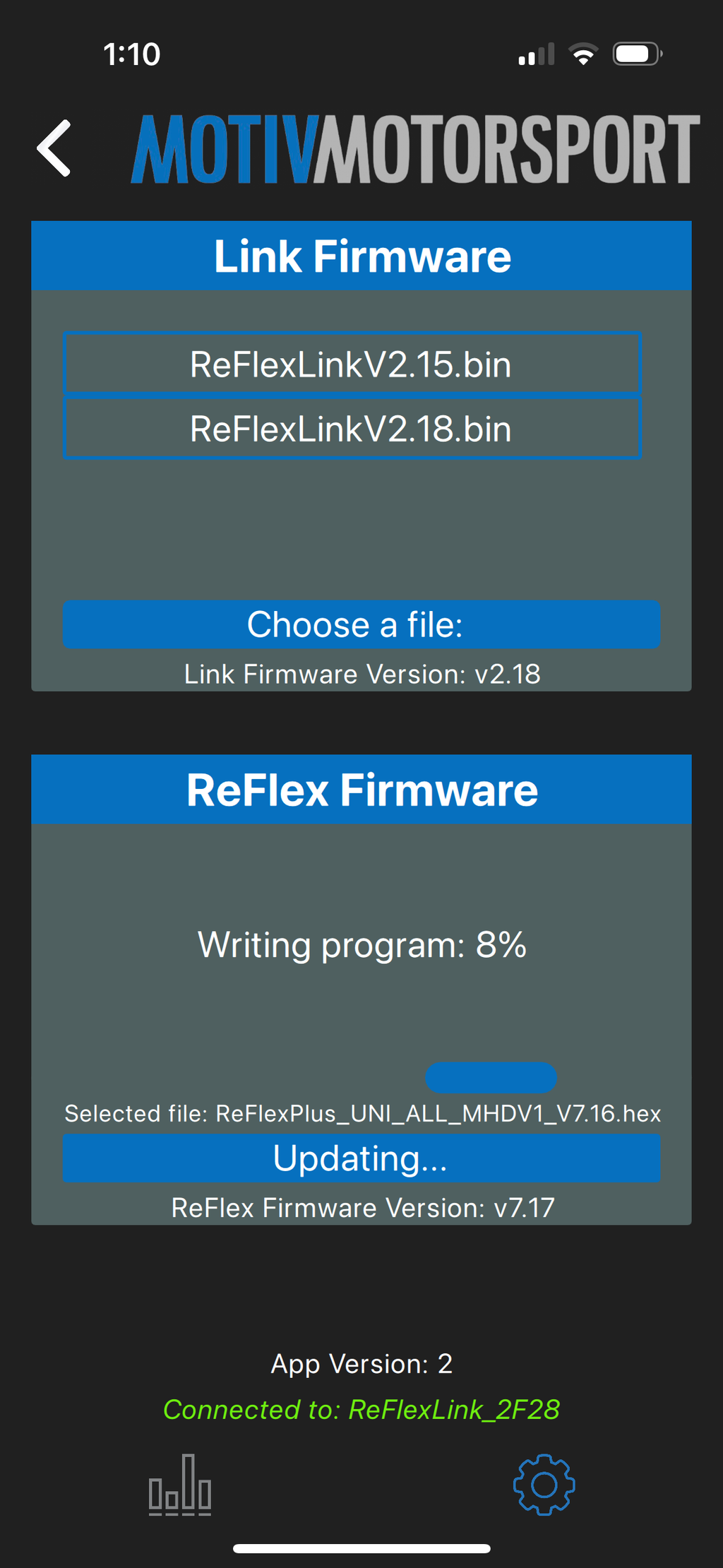

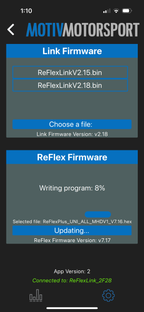

• Over-the-air (OTA) firmware updates
• Compatible with any existing ReFlex+ controller

PARTS INCLUDED

• (1) MOTIV Link control unit

TECH RESOURCES

Additional Parts Required

• A MOTIV ReFlex+ controller or kit — Inline-6, Inline-4, V8 or BMW B58/S58 Plug-n-Play.
• MOTIV Link Plug-n-Play Adapter Harness (200.1120) — required to connect the Link to the ReFlex+ main injector harness and install harness.

Installation

• MOTIV Prepare ReFlex+ for Link Setup Guide (support.motivmotorsport.com)
• MOTIV Over-the-Air (OTA) Firmware Guide (support.motivmotorsport.com)
• MOTIV TunerPro RT Wireless Guide (support.motivmotorsport.com)
• Professional installation recommended.
• Request an Install Appointment

Notes

• Price is for the item selected only; labor is not included.

PART NUMBER

• 900.1042
