MOTIV ReFlex+ Advanced I/O Integration Kit – Universal Inline-4 (Flying Lead) – BMW N20 / N26 / B46 / B48 & Toyota GR Supra 2.0

OVERVIEW

The MOTIV ReFlex+ is an advanced integration module for performance vehicle tuning and auxiliary component control. Built on multiple patented technologies, it is far more than an auxiliary injector controller: it delivers true sequential port fuel injection rather than batch-fire control, and acts as a complete I/O hub with analog, frequency, flex-fuel, MAP, cam and crank inputs plus four low-side auxiliary outputs for methanol, nitrous, boost control or fuel-pump duty.

ReFlex+ runs standalone with no CAN Bus, integrates over CAN with MHD, EcuTek, MG Flasher and BM3, or fully integrates with EcuTek and MHD+ so the factory ECU can command ReFlex+ functions directly with built-in safety measures. Everything is configured in TunerPro RT over USB, and MOTIV publishes free universal and vehicle-specific starter maps.

This is the universal Inline-4 kit: the ReFlex+ control unit, a four-injector main harness and a flying-lead install harness you terminate to the vehicle yourself. It suits any four-cylinder application, including BMW N20, N26, B46 and B48 engines and the Toyota GR Supra 2.0.

SPECS

• Engine layout: Inline-4 (four-injector main harness)
• True sequential port fuel injection for up to 8 injectors with fault-sensing feedback
• 4x analog inputs, compatible with 0-5V and 4-20mA sensors
• 2x frequency inputs, accepting signals up to 20 kHz
• Dedicated flex fuel (ethanol content) input for real-time flex fuel tuning
• MAP, cam and crank sensor inputs for engine timing and load calculation
• 4x low-side auxiliary outputs (PWM or digital ground triggers) for methanol injection, nitrous, boost control, fuel pumps and more
• Multiple ignition-switched 12V outputs to power additional components
• Control modes: Standalone (no CAN Bus), Integrated CAN Bus (MHD, EcuTek, MG Flasher, BM3 and any platform that can send/receive CAN messages), Advanced CAN Bus (full EcuTek and MHD+ integration)
• Configured and datalogged over USB in TunerPro RT; universal and vehicle-specific starter maps supplied free by MOTIV
• Optional MOTIV Link module adds Bluetooth monitoring and over-the-air firmware updates through the MOTIV app

PARTS INCLUDED

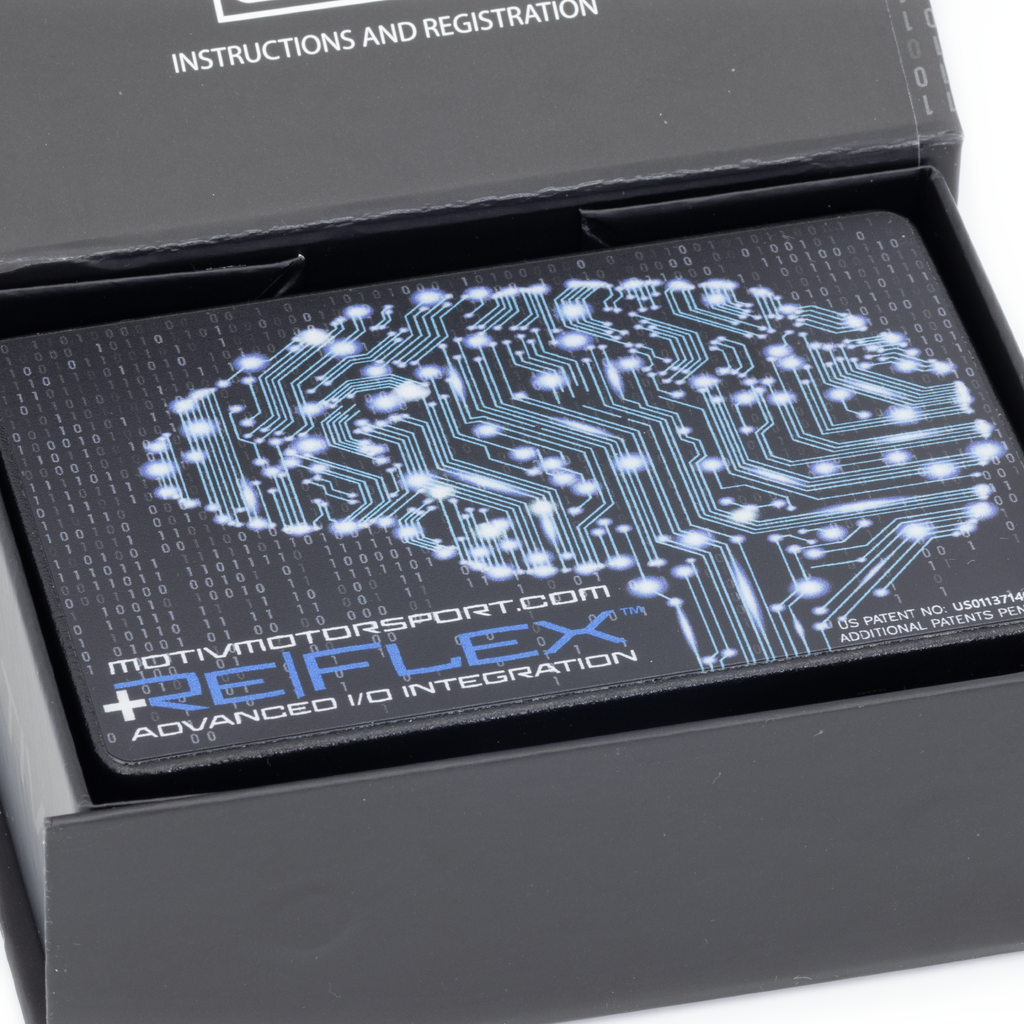

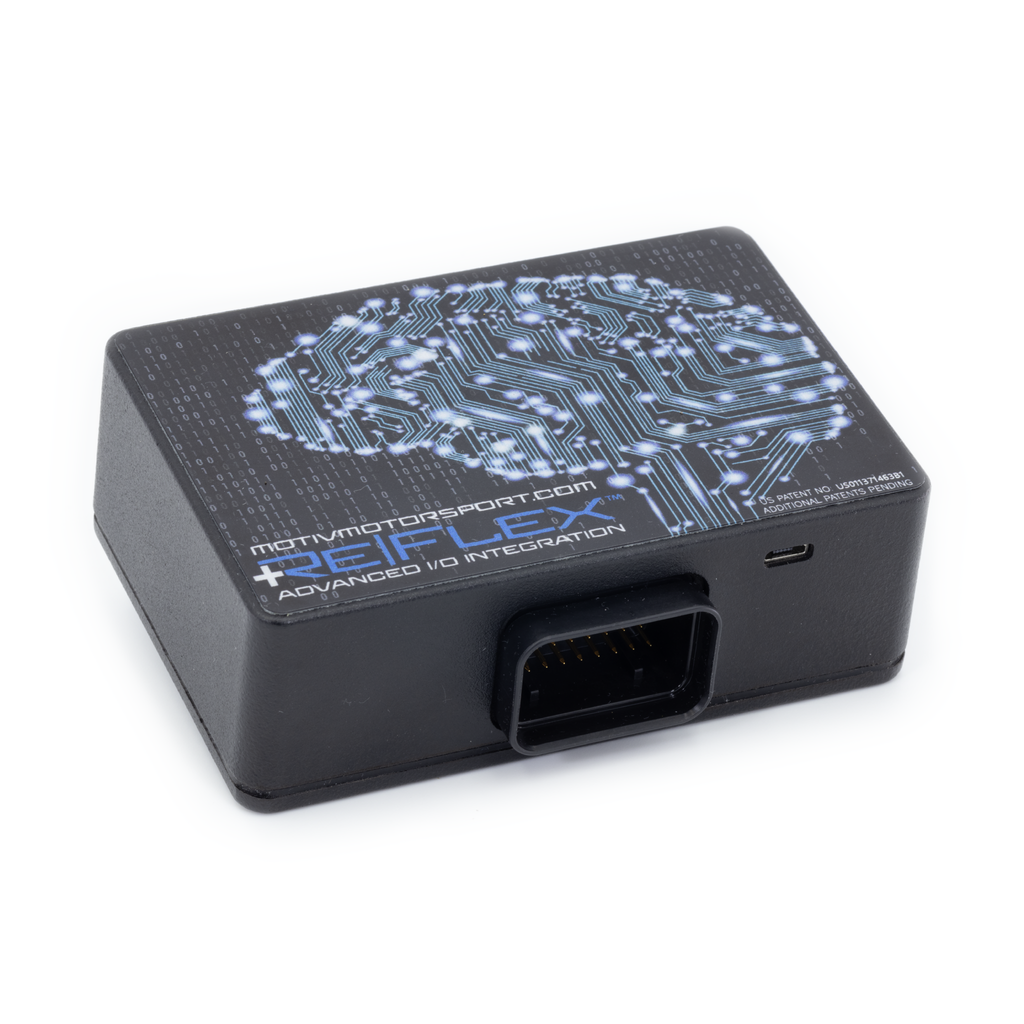

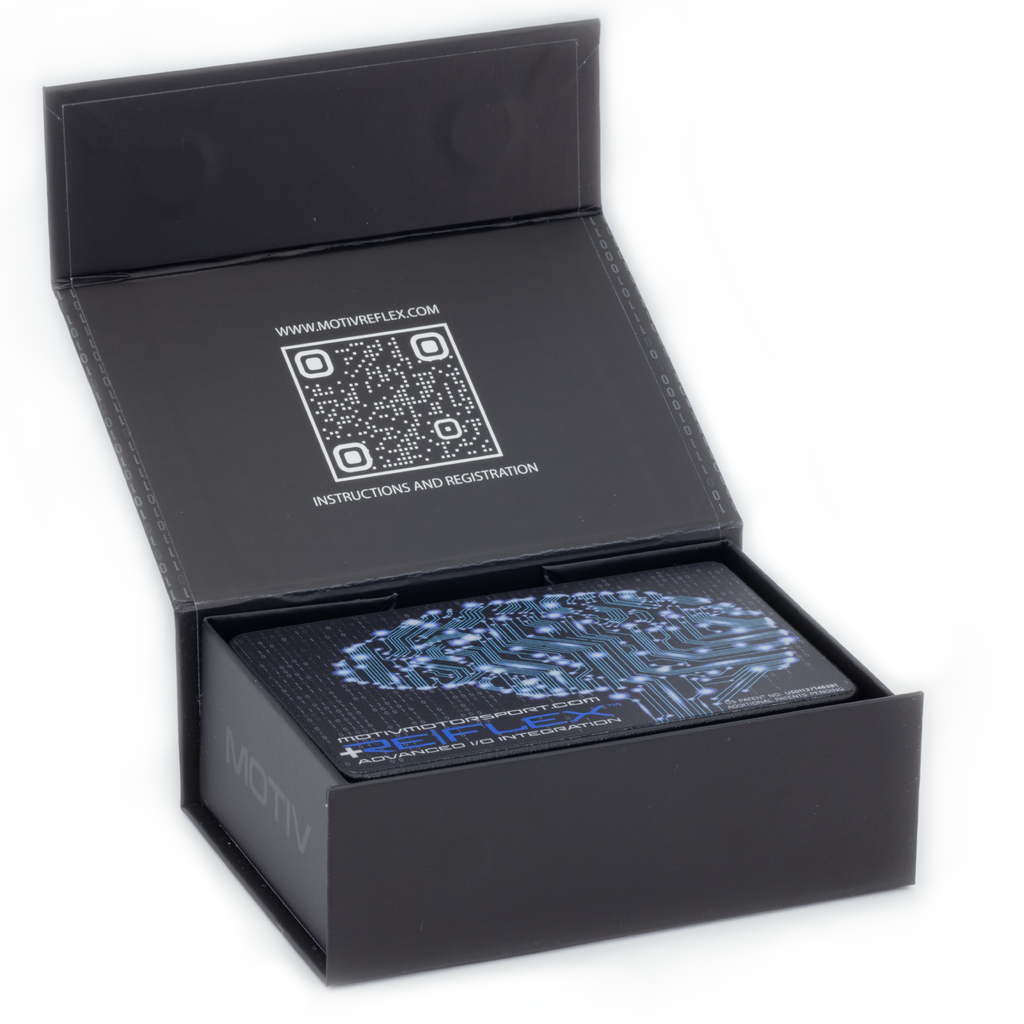

• (1) ReFlex+ Control Unit

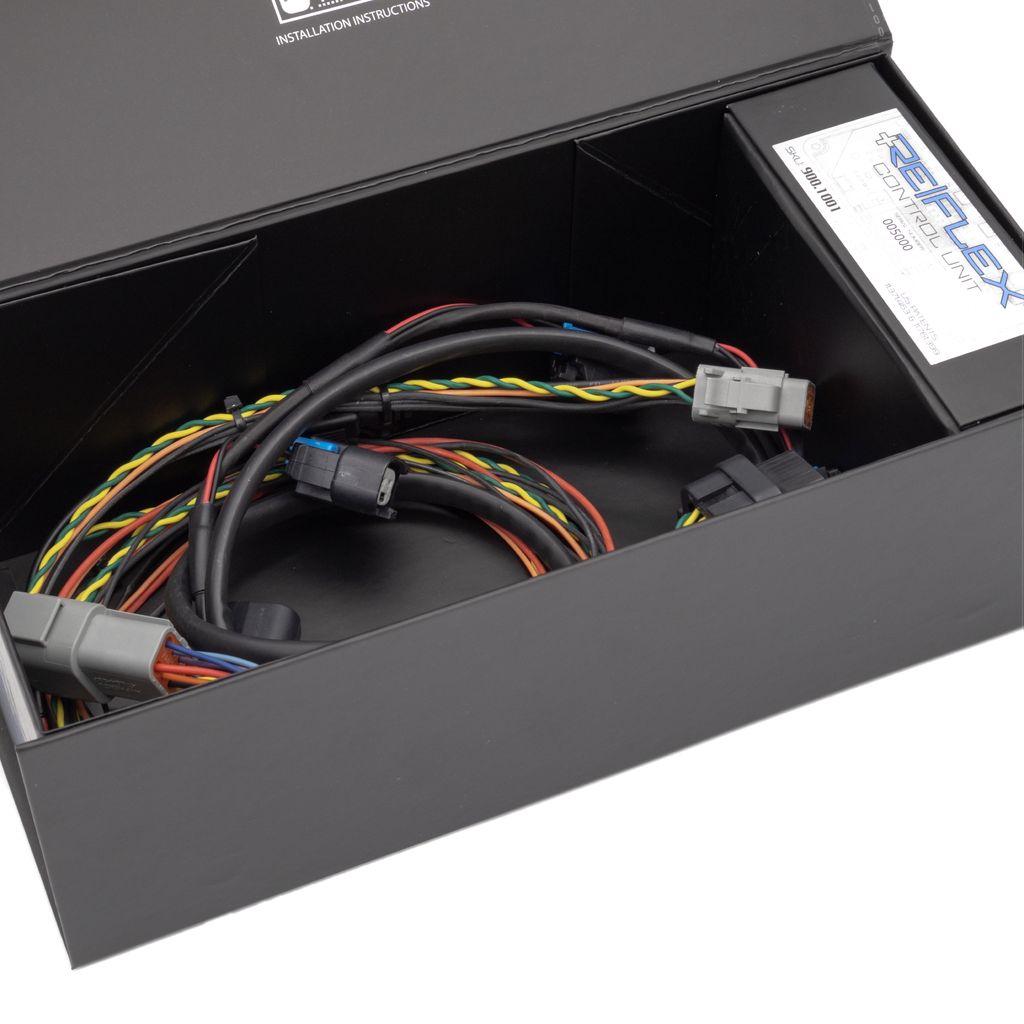

• (1) ReFlex Main Injector Harness – Inline-4
• (1) ReFlex Install Harness – Flying Lead

TECH RESOURCES

Additional Parts Required

• Port injectors plus a port-injection manifold, plate or fuel rail — not included in this kit.
• Loose connectors and terminals for terminating the flying-lead install harness — not included.
• A data-capable Micro USB cable (not a charge-only cable) is needed to configure, flash and datalog the unit — not included.
• Fuel pressure monitoring: MOTIV ReFlex+ 0-10 Bar Pressure Sensor (900.1024) (MOTIV-recommended accessory).
• Flex fuel: Continental Flex Fuel E85 Sensor (3/8" SAE) and MOTIV Plug-n-Play Ethanol Sensor Harness (200.1102 / 200.1119) (MOTIV-recommended accessories).
• Optional wireless monitoring: MOTIV ReFlex+ Link Control Unit (900.1042) with the Link Plug-n-Play Adapter Harness (200.1120).
• A supporting calibration on the factory ECU (MHD, EcuTek, MG Flasher or BM3) — not supplied by MOTIV.

Installation

• MOTIV ReFlex+ Installation Guide and User Manual, Rev 10.01 (PDF)
• MOTIV ReFlex+ Main Harness Wiring Diagram (PDF)
• MOTIV DME / ECU Setup Guide (support.motivmotorsport.com)
• MOTIV TunerPro RT Setup Guide (support.motivmotorsport.com)
• MOTIV ReFlex+ Firmware Setup / Upgrade Guide (support.motivmotorsport.com)
• MOTIV ReFlex+ Bench Testing Guide (support.motivmotorsport.com)
• MOTIV ReFlex+ Initial Setup Video (MOTIV Motorsport official YouTube channel)
• MOTIV ReFlex+ Bench Test How-To Video (MOTIV Motorsport official YouTube channel)
• MOTIV Firmware Updater Guide Video (MOTIV Motorsport official YouTube channel)
• Professional installation recommended.
• Request an Install Appointment

Notes

• Flying-lead kit: power, ground, CAN and auxiliary sensor wiring must be terminated by the installer. Wiring for other inline-4 engines is supported through the universal configuration in TunerPro RT.
• Port injection alters the emissions configuration of the vehicle. Sold for competition use only; not legal for use on pollution-controlled vehicles where local law applies.
• Price is for the item selected only; labor is not included.

PART NUMBER

• 910.1001 — ReFlex+ Advanced I/O Integration – Universal (Inline-4)
