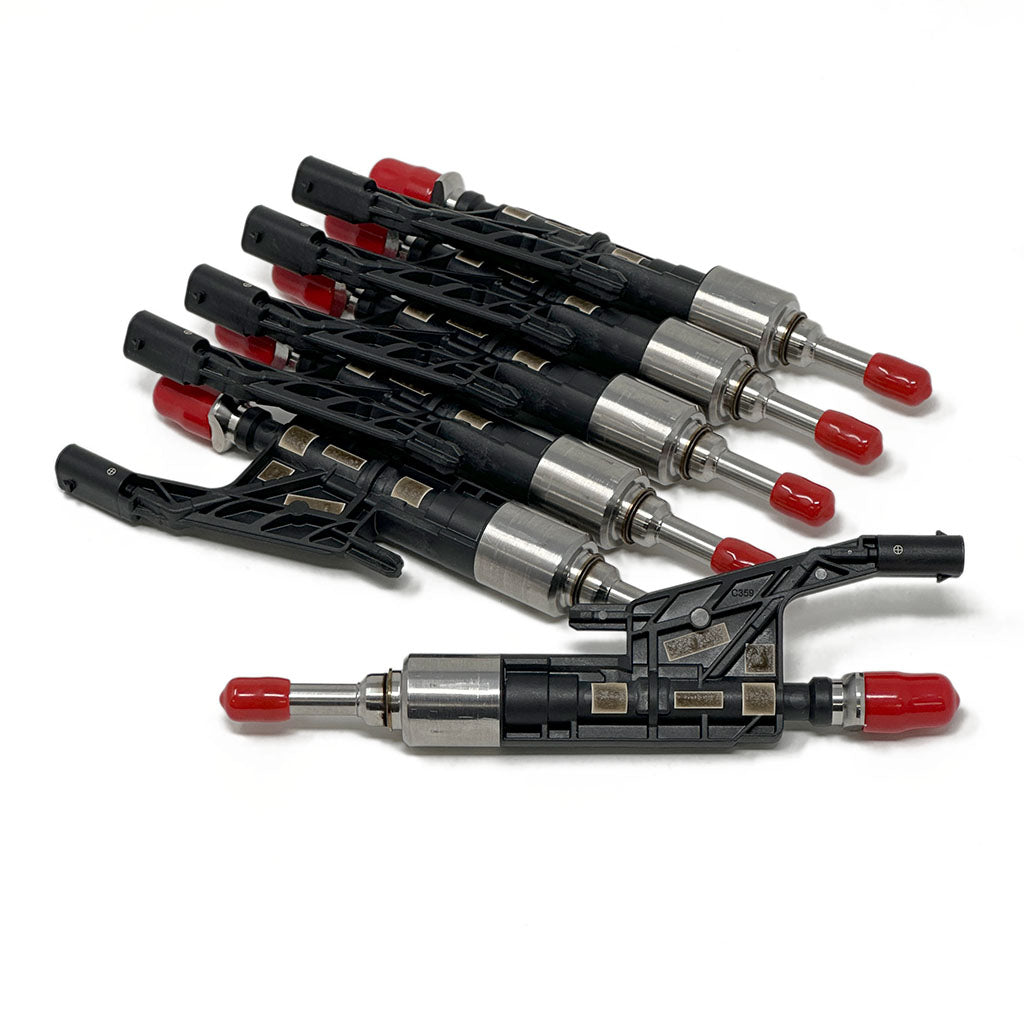

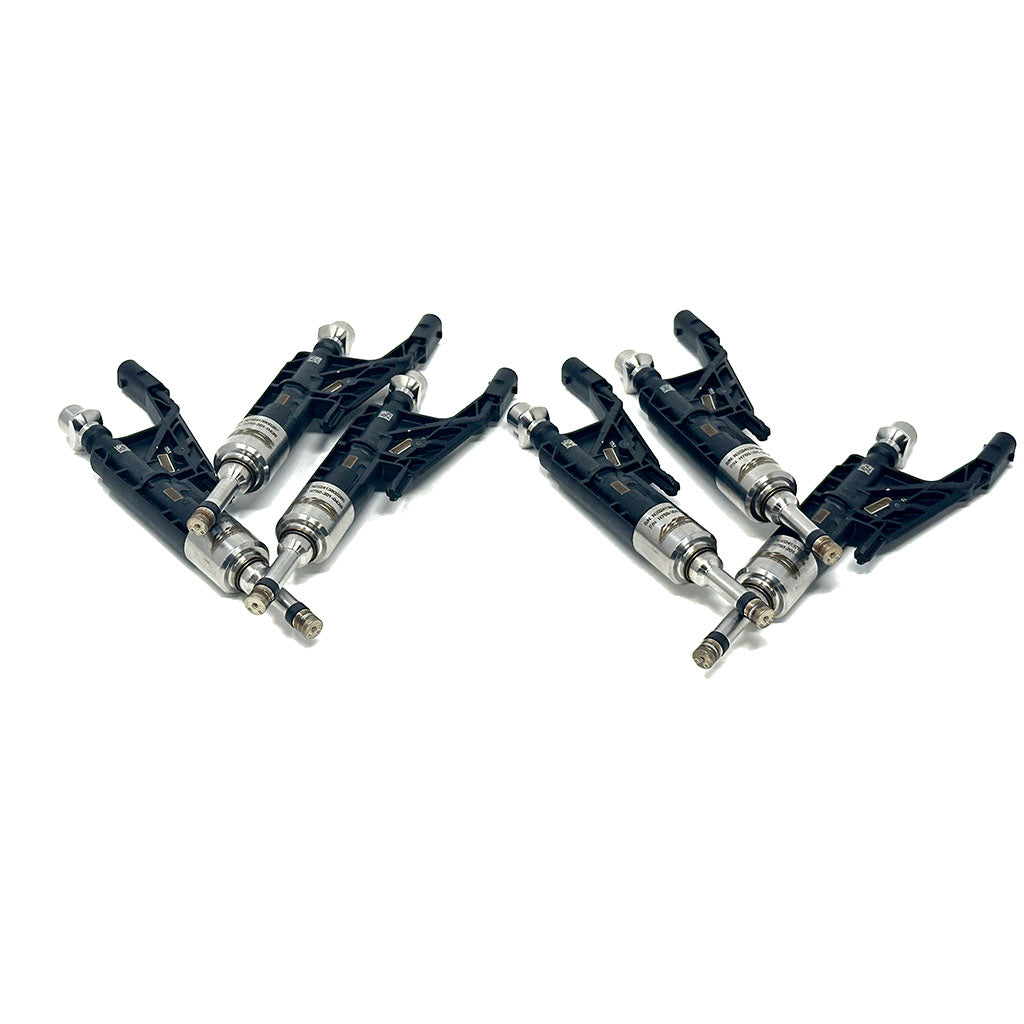

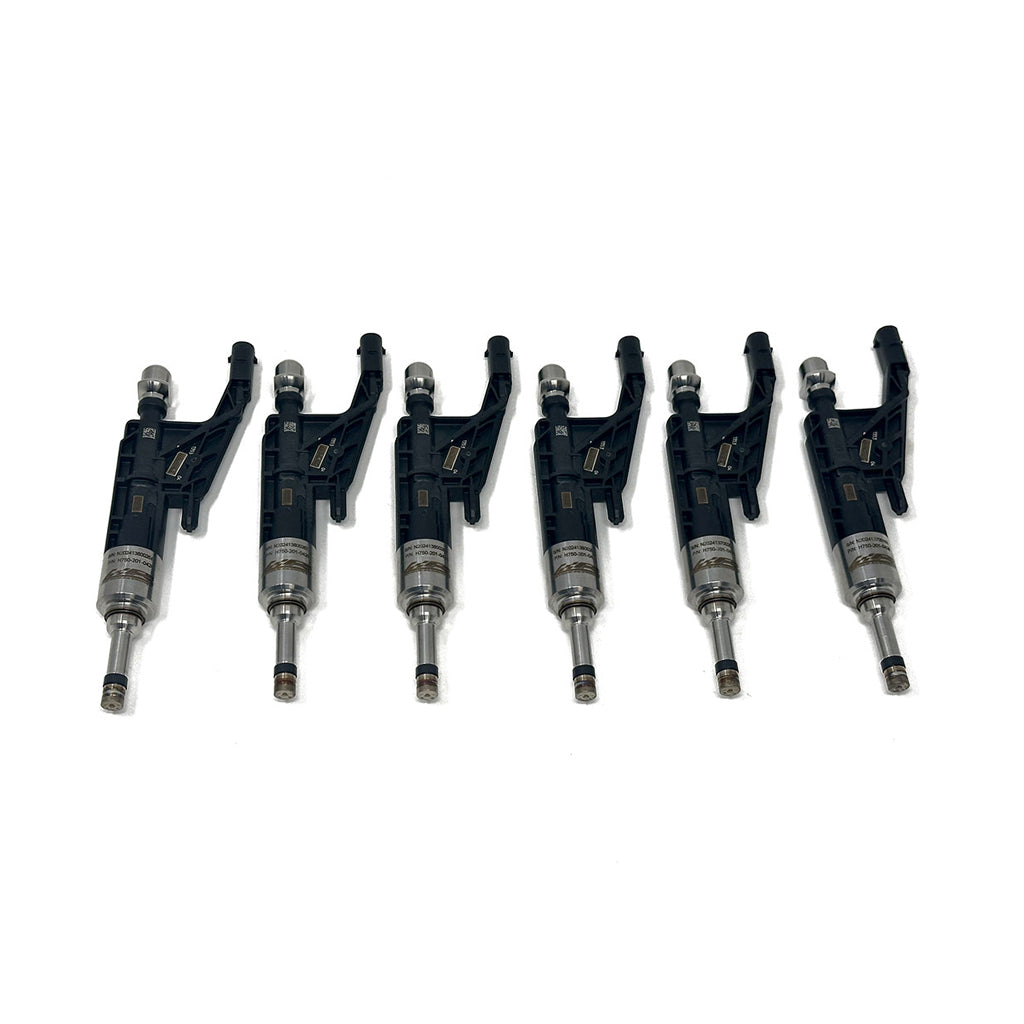

Precision Raceworks B58 Gen 1 Upgraded Direct Injectors – BMW 340i / 440i / 540i / 740i / M240i

OVERVIEW

A two-stage direct injector upgrade for the first-generation B58, built for owners who want more fuel capacity without adding a port injection system. Stage 1 flows 14.1 g/s, about 35 percent more than stock; Stage 2 flows 17.3 g/s, about 66 percent more than stock.

Both stages are a direct fit with no harness adapters or spacers, are ethanol compatible, and use an OEM-equivalent spray pattern so idle quality, drivability and knock behaviour stay close to factory. Every injector is tested statically and dynamically for quality and set batching, and the sets carry a limited lifetime warranty.

Precision Raceworks ships the set with everything needed for the install plus detailed instructions, and makes tuning data available to your tuner. A tune is required to run these injectors.

SPECS

• Stage 1: 14.1 g/s, approx. 35 percent larger than stock
• Stage 2: 17.3 g/s, approx. 66 percent larger than stock
• Direct fit; no harness adapters or spacers required
• Ethanol compatible
• OEM-equivalent spray pattern
• Each injector tested statically and dynamically; set batched
• Tune required: yes (tuning data available for your tuner)
• Limited lifetime warranty
• B58 Gen 1 (250 bar high-pressure system) only

PARTS INCLUDED

• Set of upgraded B58 Gen 1 direct injectors in the flow stage selected at checkout (Stage 1 14.1 g/s or Stage 2 17.3 g/s)
• Installation hardware — everything needed for the install is in the box
• Detailed installation instructions

TECH RESOURCES

Required Extras

• Supporting software tune required — sold separately: Bootmod3 B58 Tune – BMW M140i / M240i / 340i / 440i / 540i / M340i (F/G-Series). Precision Raceworks supplies injector tuning data for your tuner.
• Confirm the flow stage with your tuner before ordering so it matches your build target.

Installation

• Installation instructions are supplied with the kit; Precision Raceworks does not publish a public install guide for this part.
• Professional installation is recommended. Speed Logic can install this part — contact us for a quote.

Notes

• B58 Gen 1 only. The Gen 2 B58 uses a 450 bar high-pressure fuel system and takes the Precision Raceworks S58 / B58 Gen 2 High Flow Direct Injectors (201-0485).
• These replace the factory direct injectors; they are not supplemental port injection injectors.
• Confirm your engine code and generation before ordering.
• Price is for the set only; labor and tuning are not included.

PART NUMBER

• 201-0425 — Stage 1, 14.1 g/s
• 201-0426 — Stage 2, 17.3 g/s
