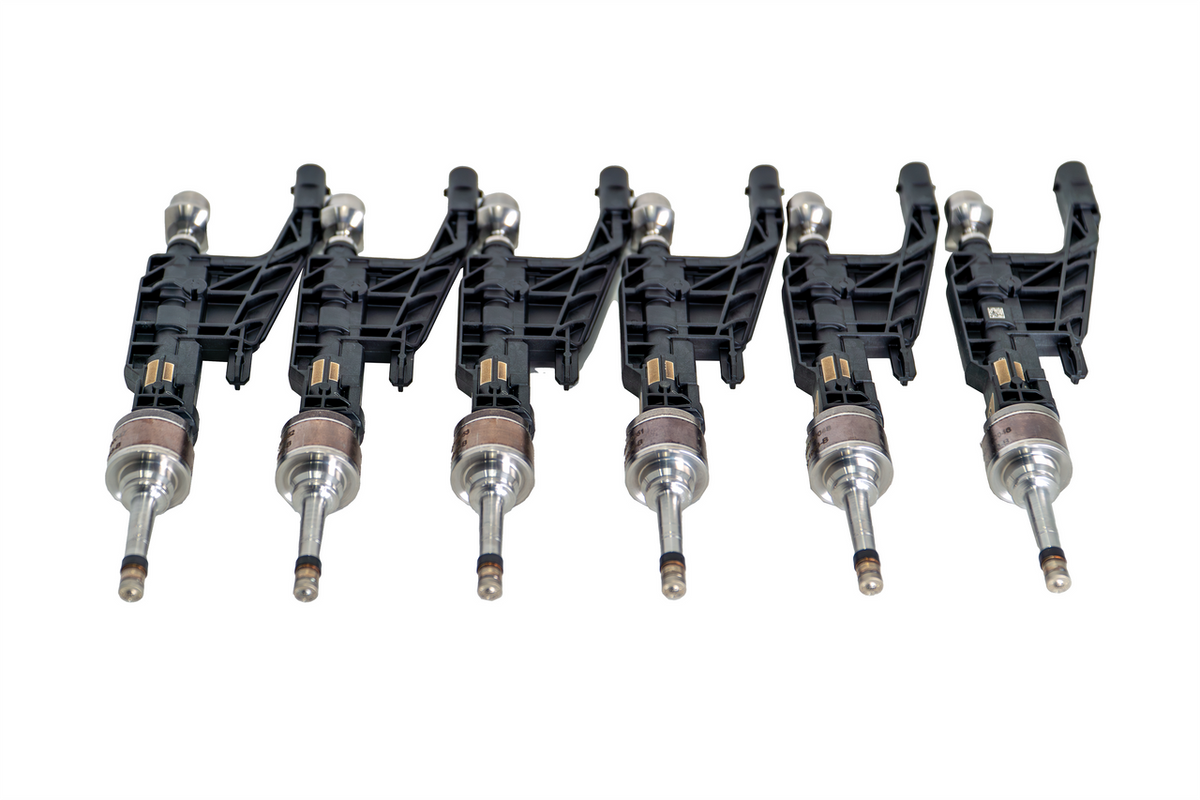

Precision Raceworks S58 / B58 Gen 2 High Flow Direct Injectors – BMW & Toyota GR Supra

OVERVIEW

High flow direct injectors for the S58 and the second-generation B58, rated for 350 bar fuel pressure at the rail with tolerance for normal overpressure. They are about 26 percent larger than the stock S58 injector and 60 percent larger than the stock B58 Gen 2 injector, which is what a Gen 2 car needs once it has run out of injector before it has run out of turbo.

They are a direct fit: no harness adapters and no spacers. Ethanol compatible, with an OEM-equivalent 8-hole spray geometry so combustion stays where the factory calibration expects it. Every injector is tested statically and dynamically, batch matched to plus or minus 2 percent, and checked for Pmax operation and fine leaks.

A tune is required. The set ships with a tuning guide carrying injector data for EcuTek, MHD and Bootmod3.

SPECS

• Approx. 26 percent larger than stock S58; approx. 60 percent larger than stock B58 Gen 2
• Rated for 350 bar fuel pressure at the rail; tolerates normal overpressure
• Direct fit; no harness adapters or spacers required
• Ethanol compatible
• OEM-equivalent 8-hole spray geometry
• Tested statically and dynamically; batch matched to ±2 percent
• Pmax and fine-leak tested
• Tune required: yes (supported suites: EcuTek, MHD, Bootmod3)
• B58 Gen 2 (450 bar high-pressure system) and S58 only

PARTS INCLUDED

• Set of high flow direct injectors (201-0485)
• Tuning guide with injector data for EcuTek, MHD and Bootmod3

TECH RESOURCES

Required Extras

• Supporting software tune required — sold separately. BMW B58 Gen 2: Bootmod3 B58 Tune – BMW (F/G-Series). Toyota GR Supra: Bootmod3 B58 Tune – Toyota GR Supra Mk5 (A90 / A91). S58: Bootmod3 Tune – BMW S58 (G8x / F97 / F98). MHD and EcuTek also support these injectors.
• No adapters, spacers or harnesses are required; the injectors drop into the factory bores.

Installation

• Installation instructions are supplied with the kit; Precision Raceworks does not publish a public install guide for this part.
• Load the supplied injector data for your tuning suite and have the car tuned before driving it under load.
• Professional installation is recommended. Speed Logic can install this part — contact us for a quote.

Notes

• S58 fitment (M2 G87, M3 G80, M4 G8x, X3 M / X4 M F97 / F98) is per Precision Raceworks' injector sizing — the injectors are rated 26% larger than the stock S58 unit. The vendor's published fitment tab lists only the B58 Gen 2 cars; confirm with Speed Logic if your S58 car is a 2025+ model.
• B58 Gen 2 and S58 only. First-generation B58 engines (250 bar system) take the Precision Raceworks B58 Gen 1 Upgraded Direct Injectors (201-0425 / 201-0426).
• These replace the factory direct injectors; they are not supplemental port injection injectors.
• Confirm your engine code and generation before ordering.
• Price is for the set only; labor and tuning are not included.

PART NUMBER

• 201-0485 — S58 / B58 Gen 2 High Flow Direct Injectors

VEHICLE APPLICATIONS
