Precision Raceworks F3X / F8X Billet Top Hat

OVERVIEW

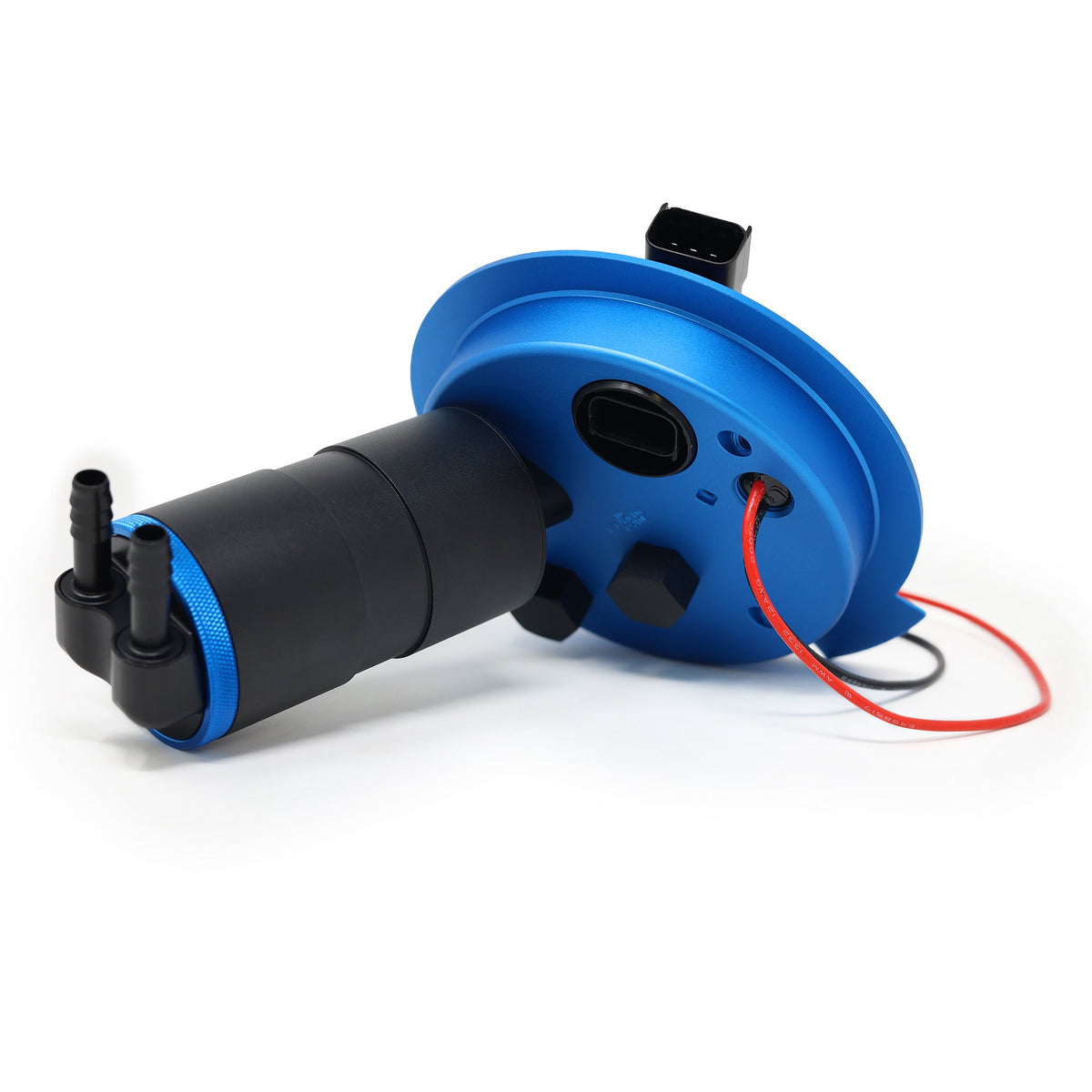

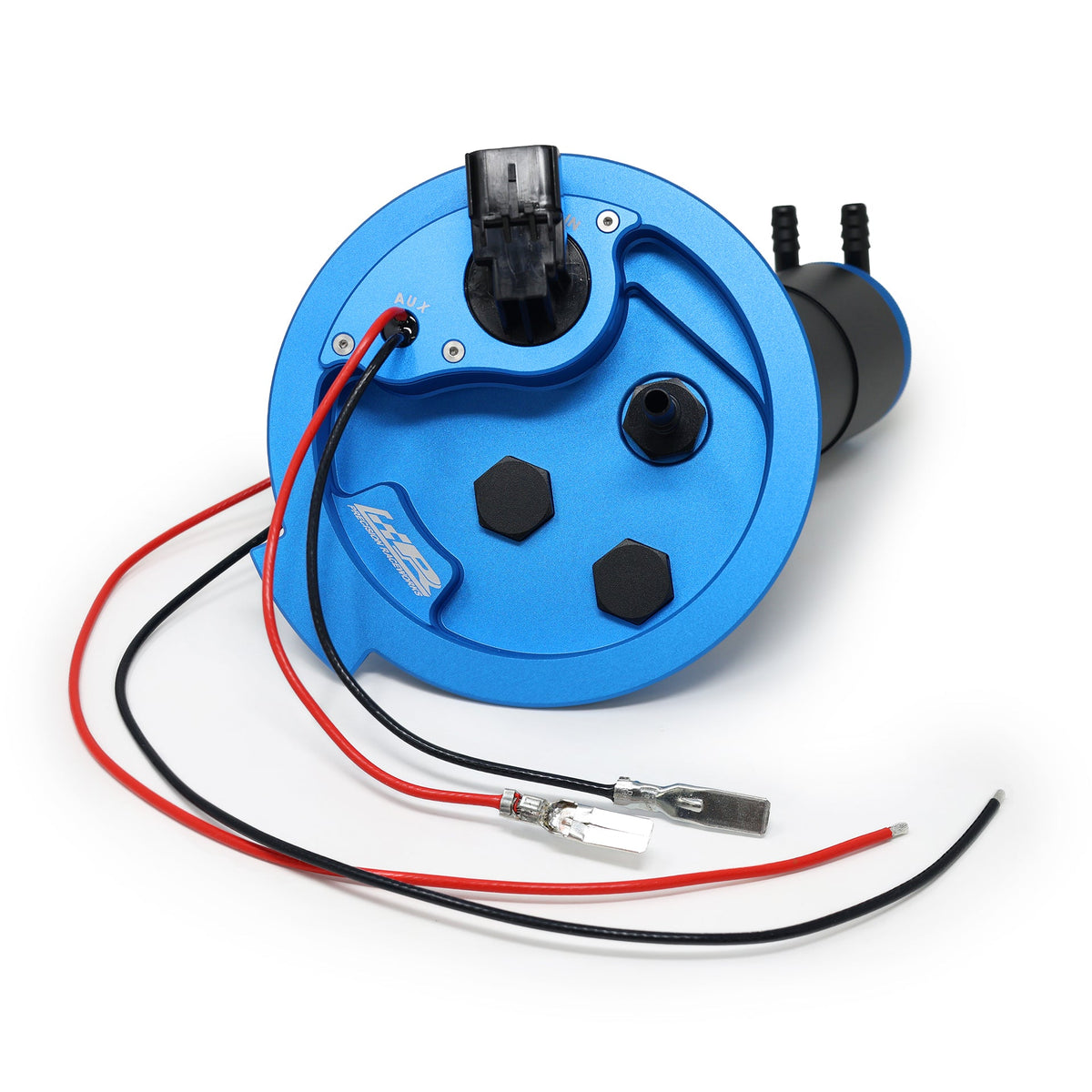

Melted factory top hats are a known failure on hard-driven F-chassis cars once pump current goes up. The Precision Raceworks F3X / F8X billet top hat replaces the factory lid with an anodized billet piece that has high-current primary connectors, a hermetically sealed wire pass-through and up to three high-flow fuel ports.

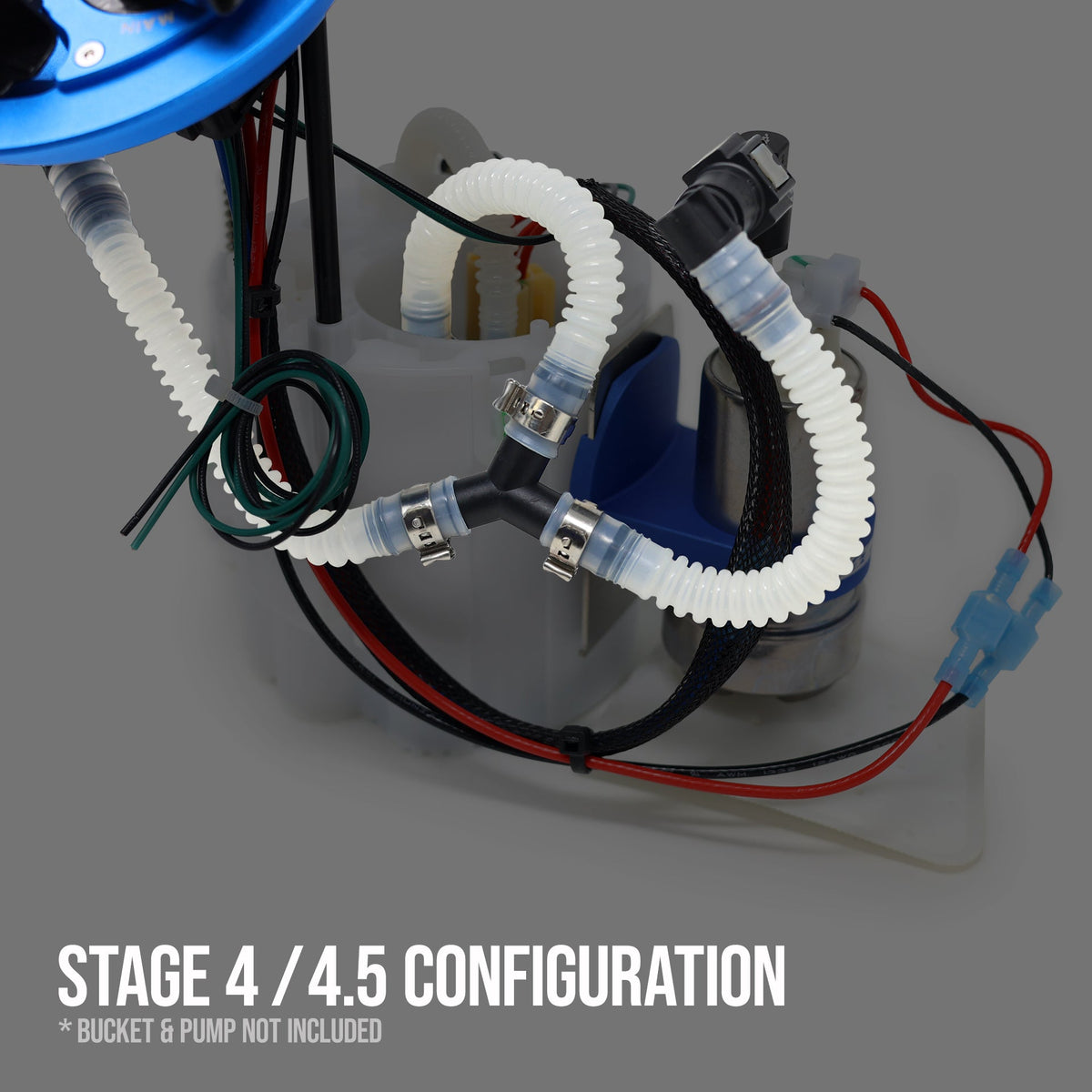

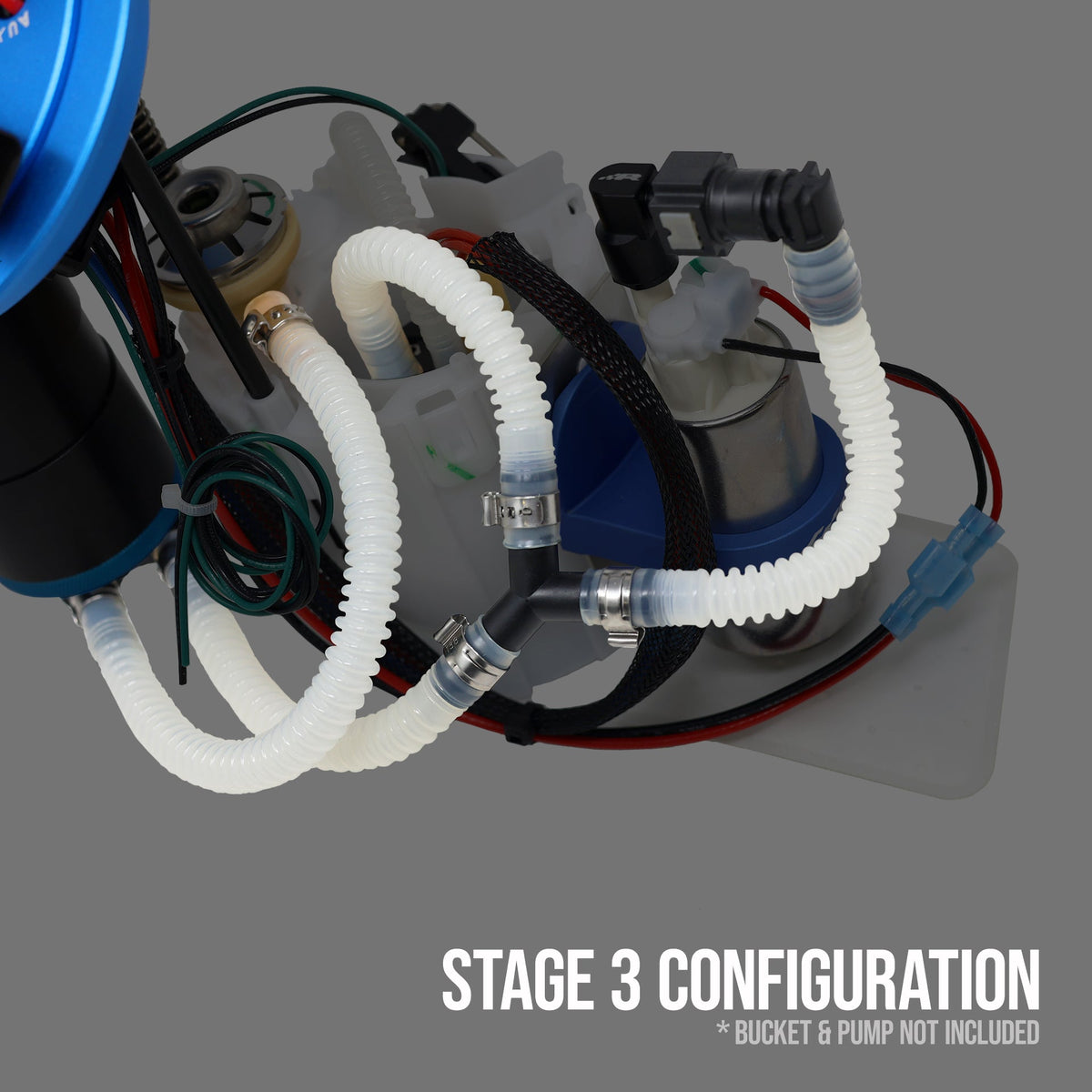

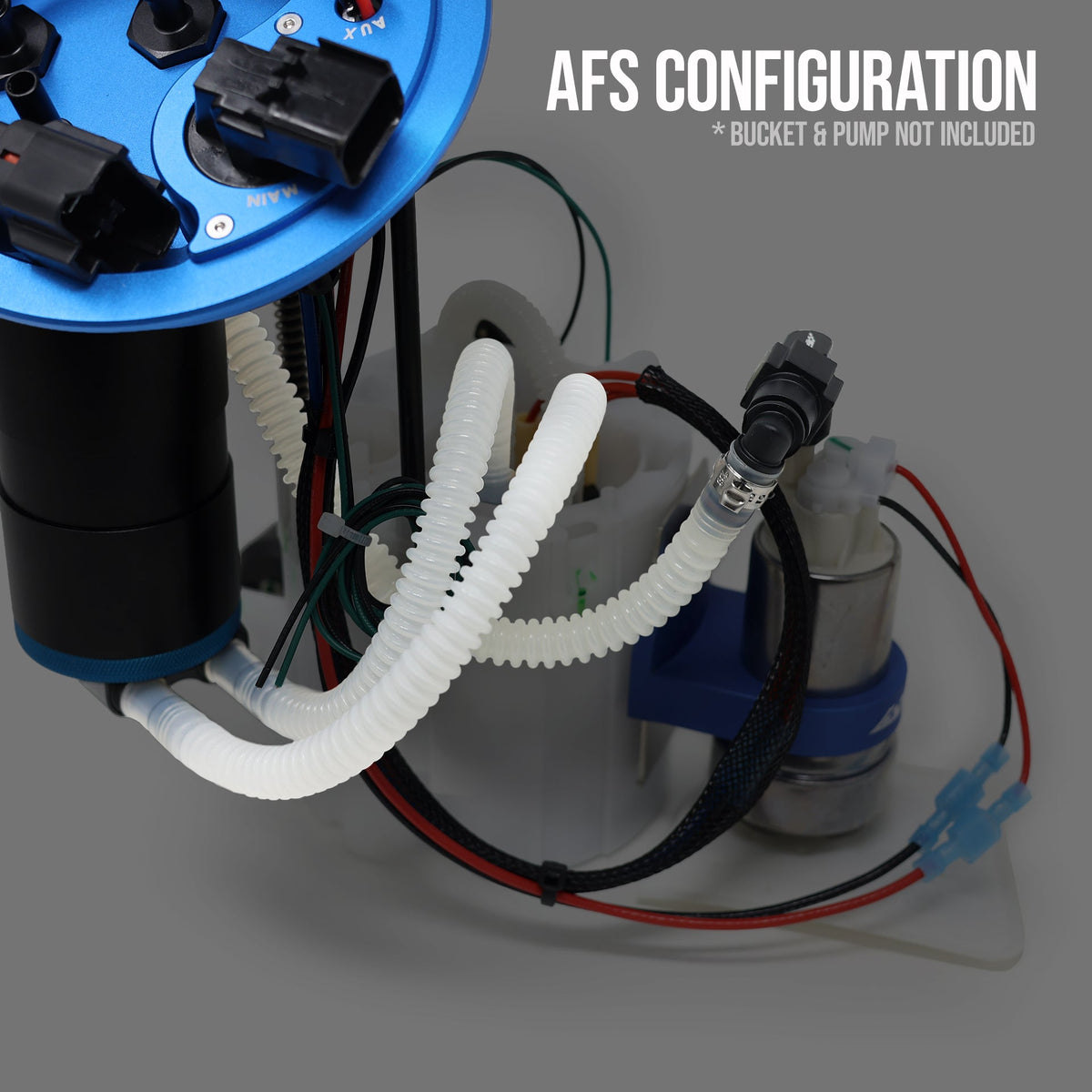

It is the platform for bigger in-tank fuel systems: a single upgraded pump, dual pumps with a single or dual output (dual output gives separate feeds for direct and port injection), Stage 3 and Stage 4 pumps, surge tanks and AFS-style setups. A replaceable filter and a 5 bar regulator keep it compatible with the factory system.

Two versions are offered: one for the Precision Raceworks Stage 4 / 4.5 S55 or B58 pumps (601-0331) and one for all other pumps (601-0371). Pumps are not included.

SPECS

• Anodized billet aluminum top hat with high-current primary connectors
• Hermetically sealed wire pass-through; prevents fuel and vapor leaking along the wires and supports PWM pump control
• Up to 3 high-flow fuel ports
• High-flow filter with replaceable USA-made microglass element (10 micron standard, 6 micron optional)
• 5 bar regulator for factory-system compatibility
• Supports single pump, dual pump (single or dual output), Stage 3 / Stage 4, surge tank and AFS-style configurations
• 601-0331: for Precision Raceworks Stage 4 / 4.5 S55 or B58 pumps; 601-0371: for all other pumps

PARTS INCLUDED

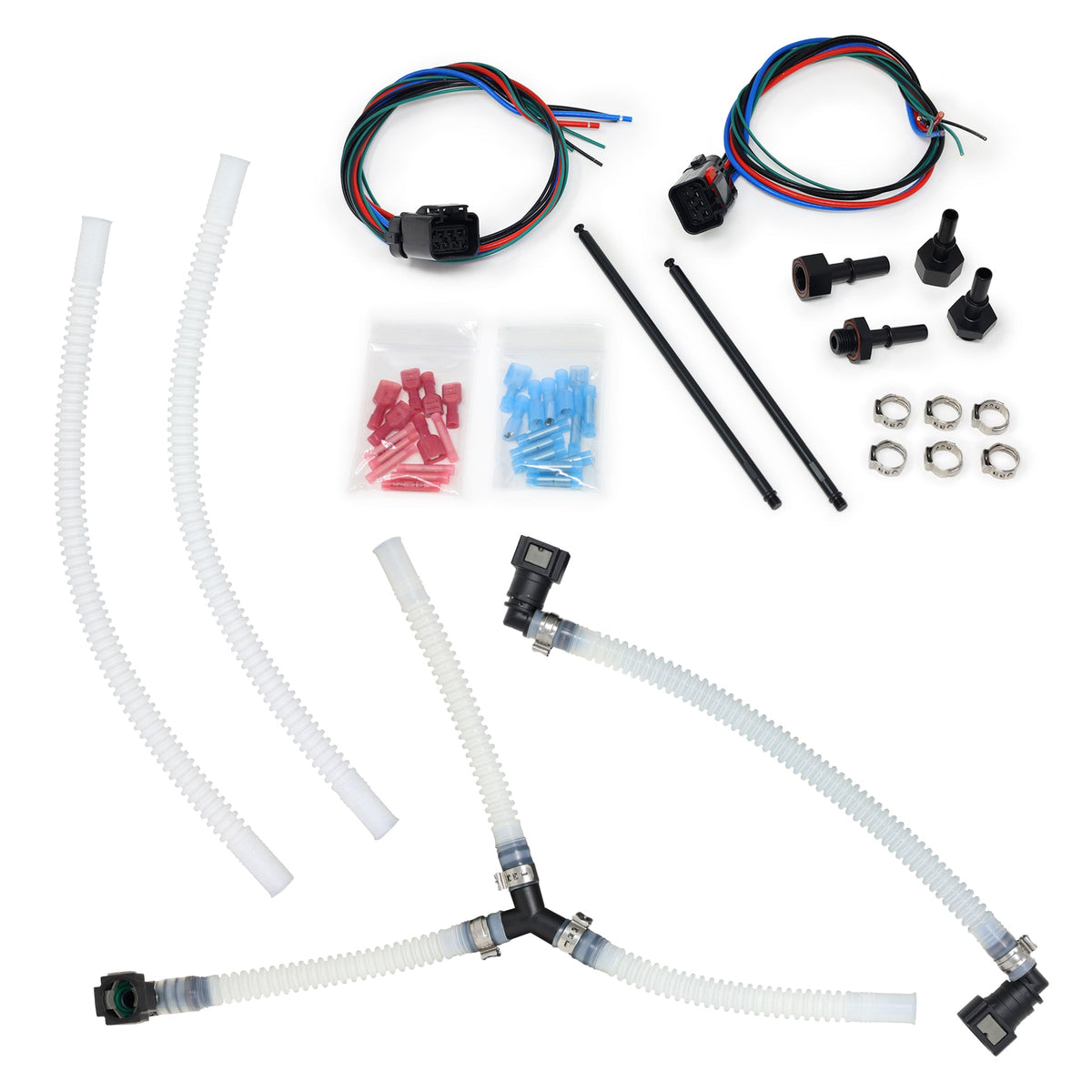

• Billet top hat
• High-flow fittings and plugs for unused ports
• Replaceable filter with 5 bar regulator
• Primary and secondary pump wiring harnesses (8 wires total)
• In-tank hoses and pinch clamps
• No pumps are included

TECH RESOURCES

Required Extras

• In-tank fuel pump(s) — the top hat is supplied without pumps. Pair it with the Precision Raceworks F-Series N20 / N26 / N55 High Performance Fuel Pump, the Precision Raceworks F-Series S55 High Performance Fuel Pump or the Precision Raceworks F-Series F2X / F3X B58 High Performance Fuel Pump.
• Dual-output and AFS-style configurations: additional fuel lines, regulators and filter kits as your setup requires — sold separately (not stocked by Speed Logic).

Installation

• F-Series billet top hat wiring diagram, B58 and S55 brushless pumps (image): F-Series Top Hat Brushless Wiring Diagram
• F-Series billet top hat wiring diagram, N55 (image): F-Series Top Hat Wiring Diagram
• Speed Logic offers professional installation; contact us for a quote.

Notes

• Installation may require cutting the factory harness to fit the supplied connector.
• Choose 601-0331 only if you are running a Precision Raceworks Stage 4 or 4.5 S55 / B58 pump; every other pump uses 601-0371.
• Price is for the item selected only; labor is not included.
• Confirm your engine code and chassis before ordering.

PART NUMBER

• 601-0331 — PR Stage 4 / 4.5 (S55 / B58) pumps
• 601-0371 — All other pumps
