Precision Raceworks F-Series S55 High Performance Fuel Pump

OVERVIEW

The S55 in the F80 M3, F82 / F83 M4 and F87 M2 Competition outgrows its factory low pressure pump quickly once it sees bigger turbos, E85 or port injection. The stock pump flows about 3.5 LPM, and when it falls behind the high pressure pump starves and rail pressure drops under load.

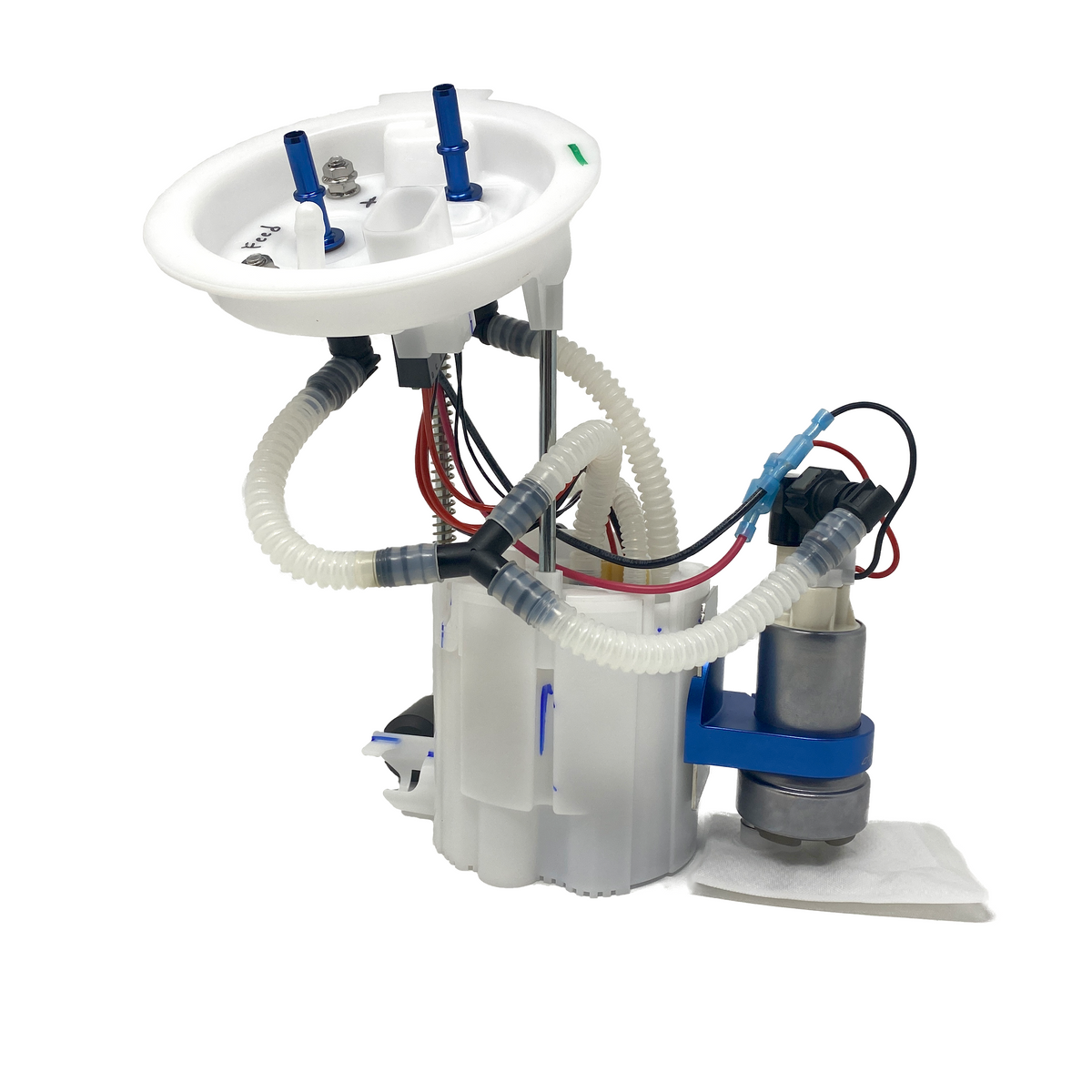

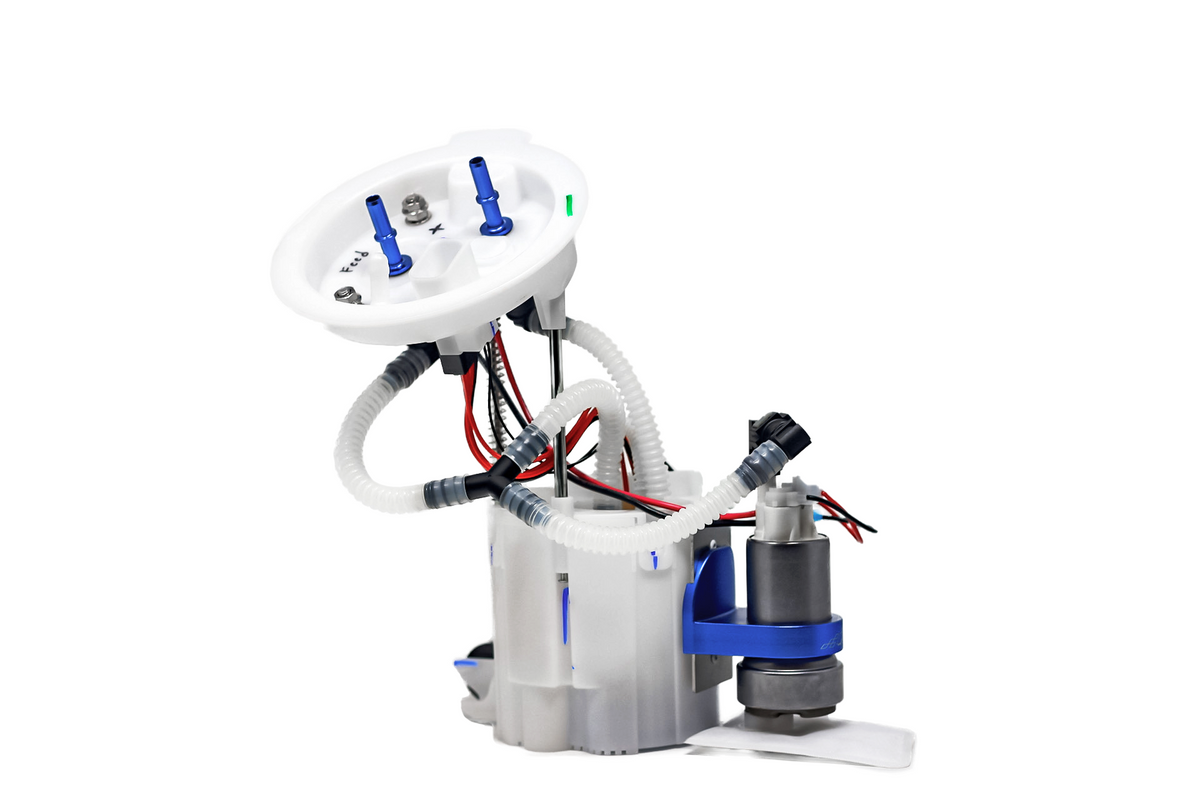

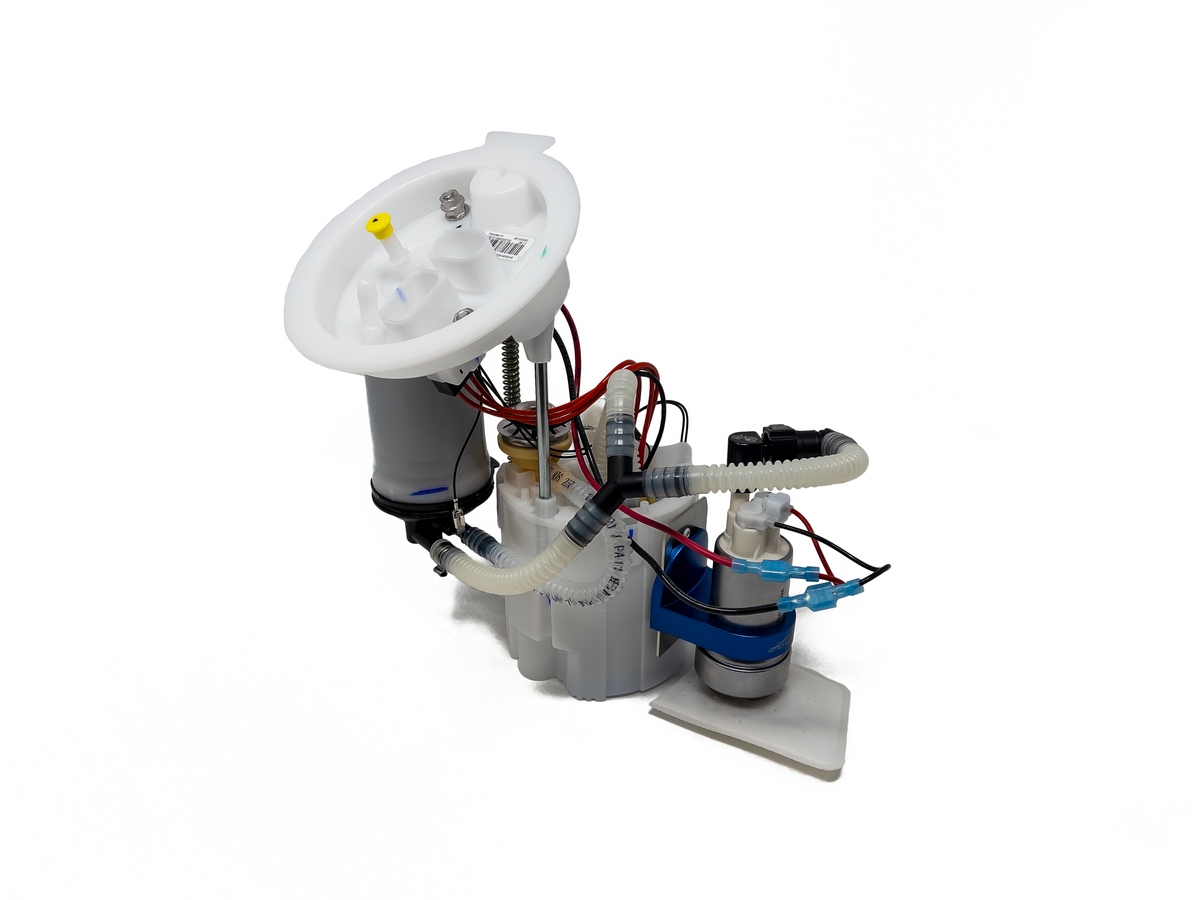

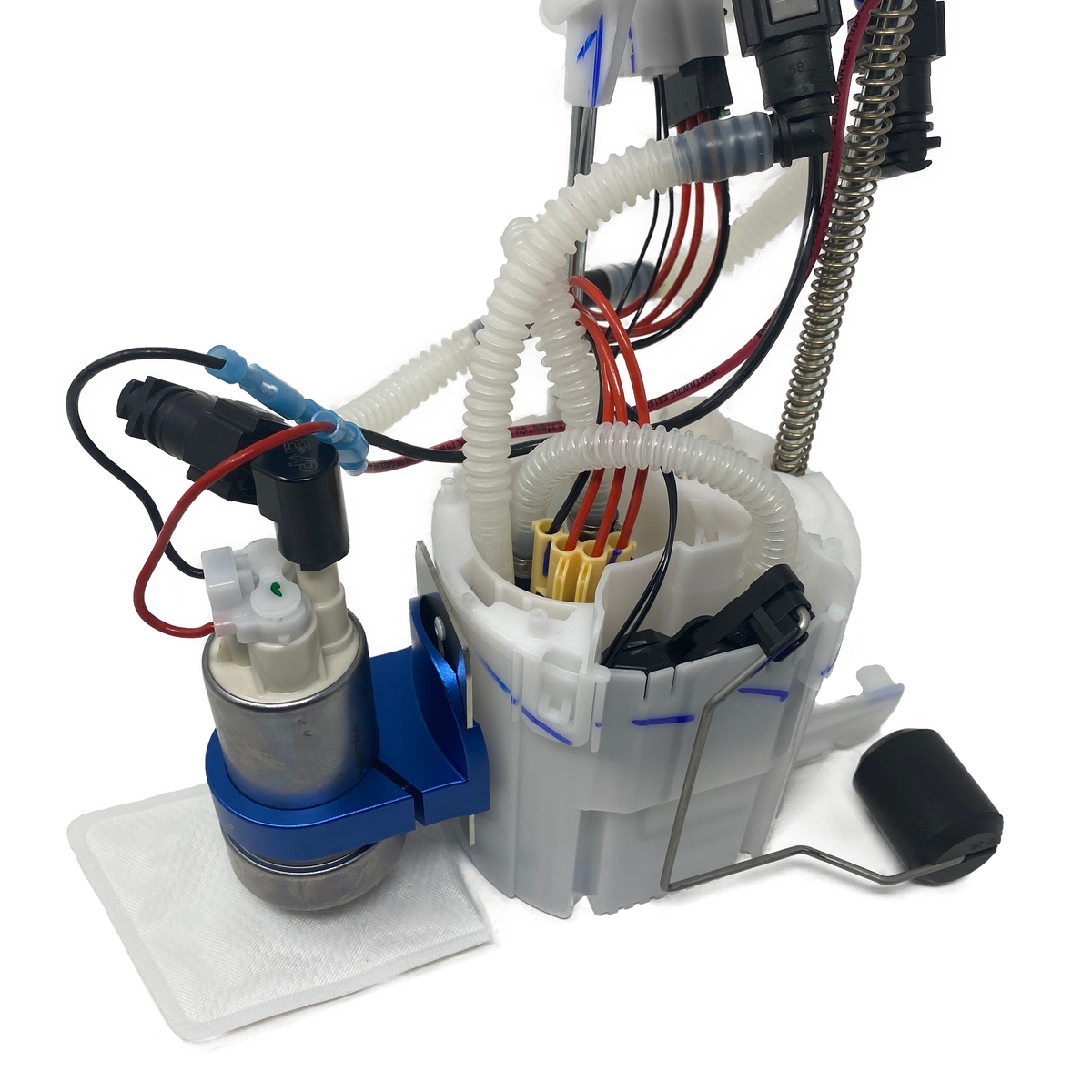

The Precision Raceworks F-Series S55 High Performance Fuel Pump keeps the genuine OEM brushless pump in a genuine OEM bucket and adds a boost-activated Walbro pump on the outside of the bucket. Stage 3 is a plug-and-play drop-in for up to 900 whp. Stage 4 and 4.5 add AN-6 PTFE feed lines, a fuel pressure regulator, return lines and an inline filter, making them a complete low pressure fuel system for 1000+ whp builds. No aftermarket EKP is needed.

SPECS

• Factory S55 pump: 3.5 LPM at 72 psi (5 bar)
• Stage 3: 5 LPM, OEM brushless in the bucket + Walbro 450 (F90000274) outside; rated 900 whp on pump gas / 850 whp on 100% E85; 6.8 lbs
• Stage 4: 5.5 LPM, OEM brushless + Walbro 450 outside, with AN-6 lines and regulator; rated 1000+ whp / 950 whp E85; 10.8 lbs full kit
• Stage 4.5: 6 LPM, OEM brushless + Walbro 525 (F90000285) outside, with AN-6 lines and regulator; rated 1000+ whp on pump gas and E85; 10.8 lbs full kit
• 100% E85 compatible
• No aftermarket EKP required

PARTS INCLUDED

• Stage 3: genuine OEM fuel pump bucket pre-assembled with the OEM brushless pump and mounted Walbro 450, fuel sending unit, plug-and-play boost reference harness and 13 psi boost reference (Hobbs) switch

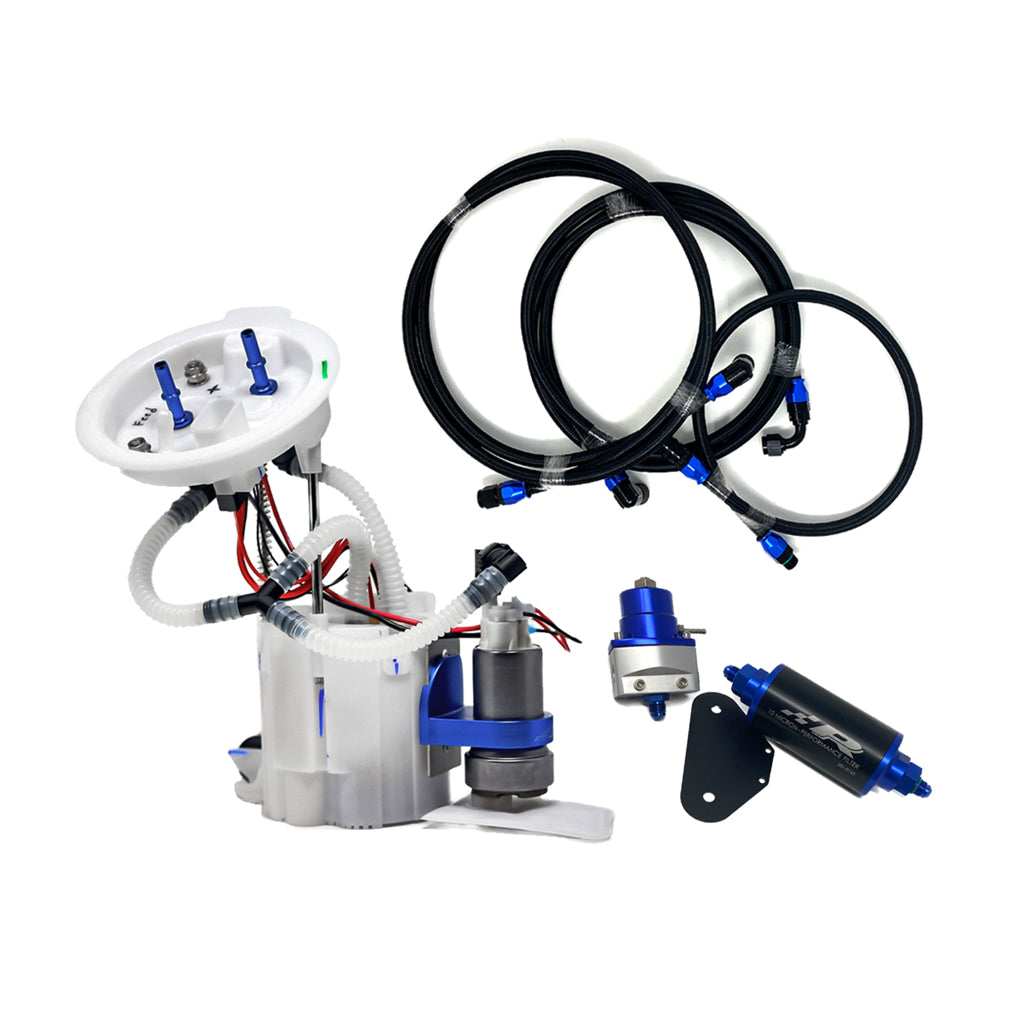

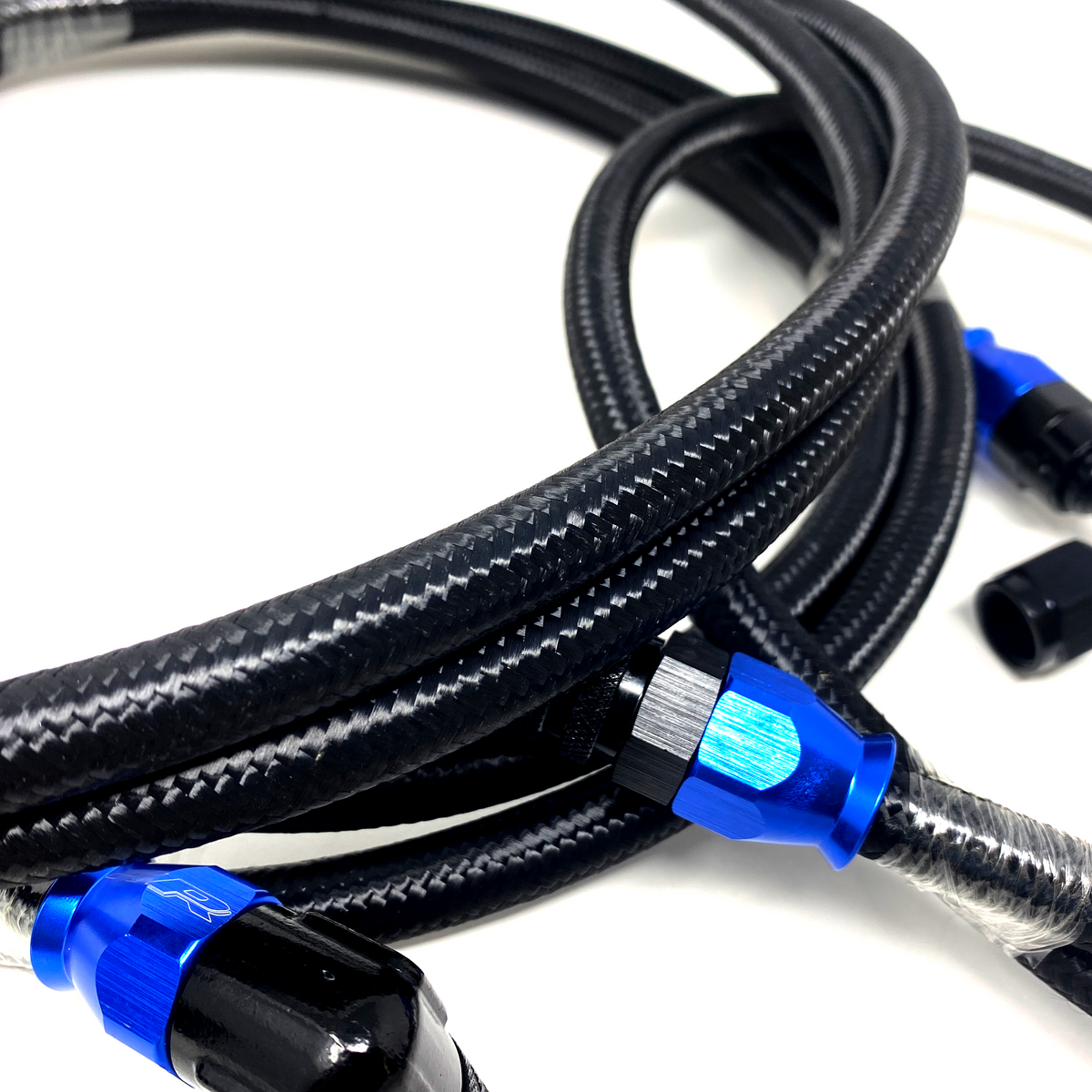

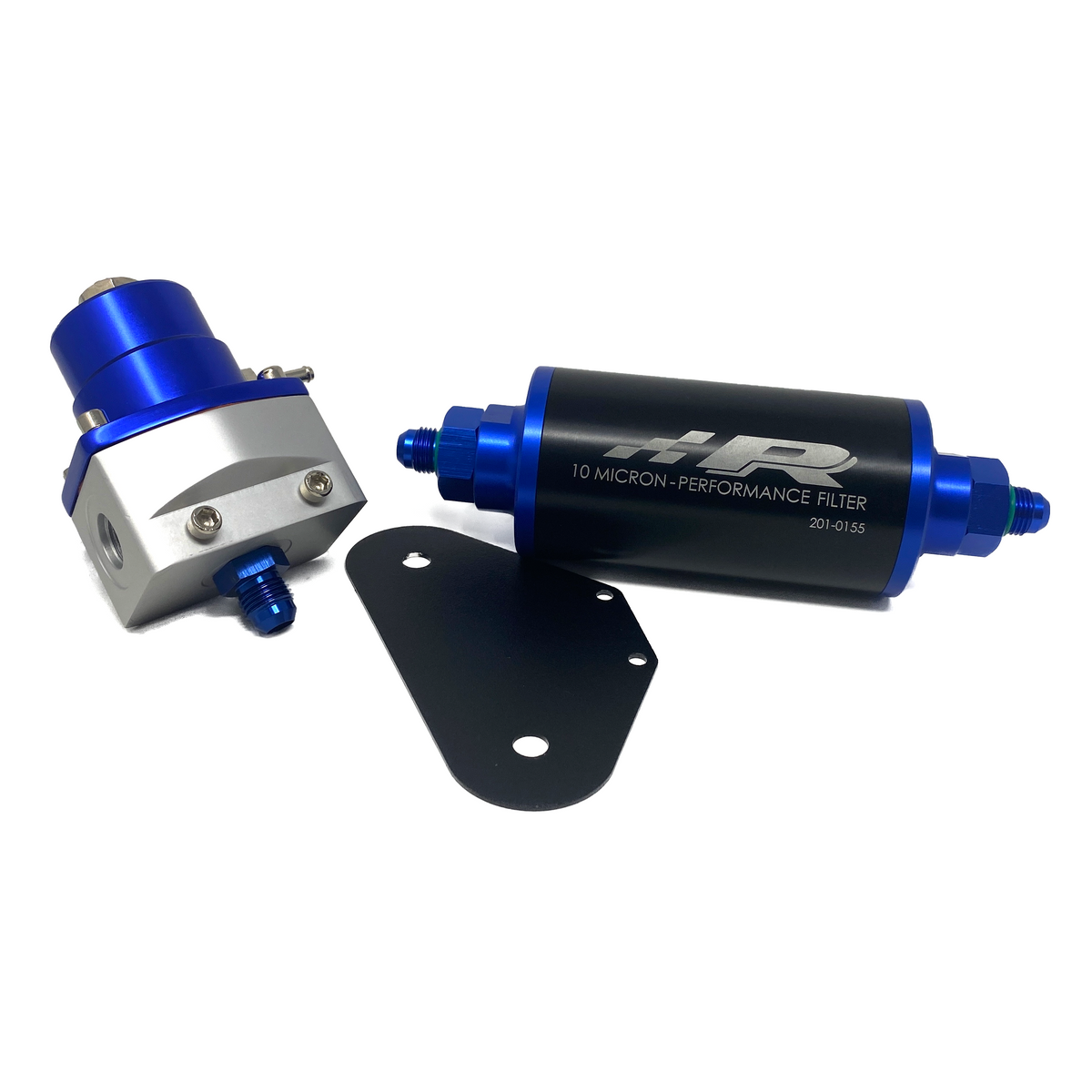

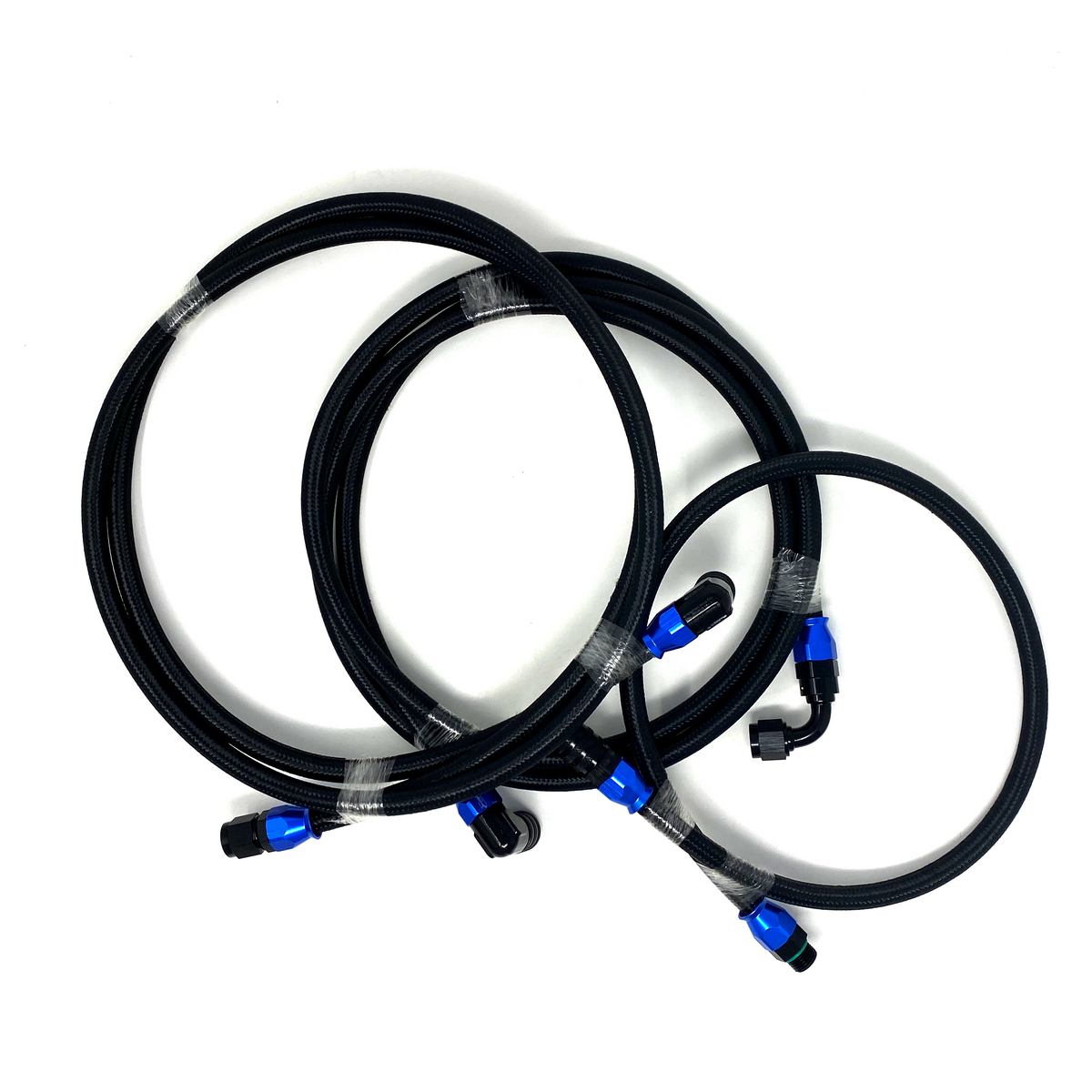

• Stage 4: everything in Stage 3 plus PTFE smooth-bore AN-6 fuel feed lines, fuel pressure regulator, return lines and a new inline fuel filter
• Stage 4.5: as Stage 4, with a Walbro 525 in place of the Walbro 450

TECH RESOURCES

Required Extras

• No additional parts are required; the kit is complete as supplied (no aftermarket EKP controller needed).
• Optional for builds adding port injection or a 1:1 regulator: Precision Raceworks F3X / F8X Billet Top Hat (601-0331 / 601-0371).
• Optional upgraded feed line for Stage 3 builds (Stage 4 / 4.5 already include lines): Precision Raceworks F-Series F3X / F2X -6AN Fuel Line (201-0245), sold separately (not stocked by Speed Logic).
• Optional replacement secondary pump activation harness: Precision Raceworks 201-0049, sold separately (not stocked by Speed Logic).

Installation

• F-Series S55 / B58 Pump and Lines Installation Guide (PDF) — Precision Raceworks install document for the bucket pump and the Stage 4 / 4.5 lines
• Setting Fuel Pressure – Adjustable Regulator (PDF) — for the Stage 4 / 4.5 kits
• Stage 3 is a drop-in with no wires to cut or splice: the bracket slides onto the side of the bucket and the factory pump inserts into the bucket.
• Prefer to have it fitted? Contact us for Speed Logic professional installation.

Notes

• Fits the S55 F80 M3, F82 / F83 M4 and F87 M2 Competition only; N55 F87 M2 owners need the F-Series N20 / N26 / N55 pump.

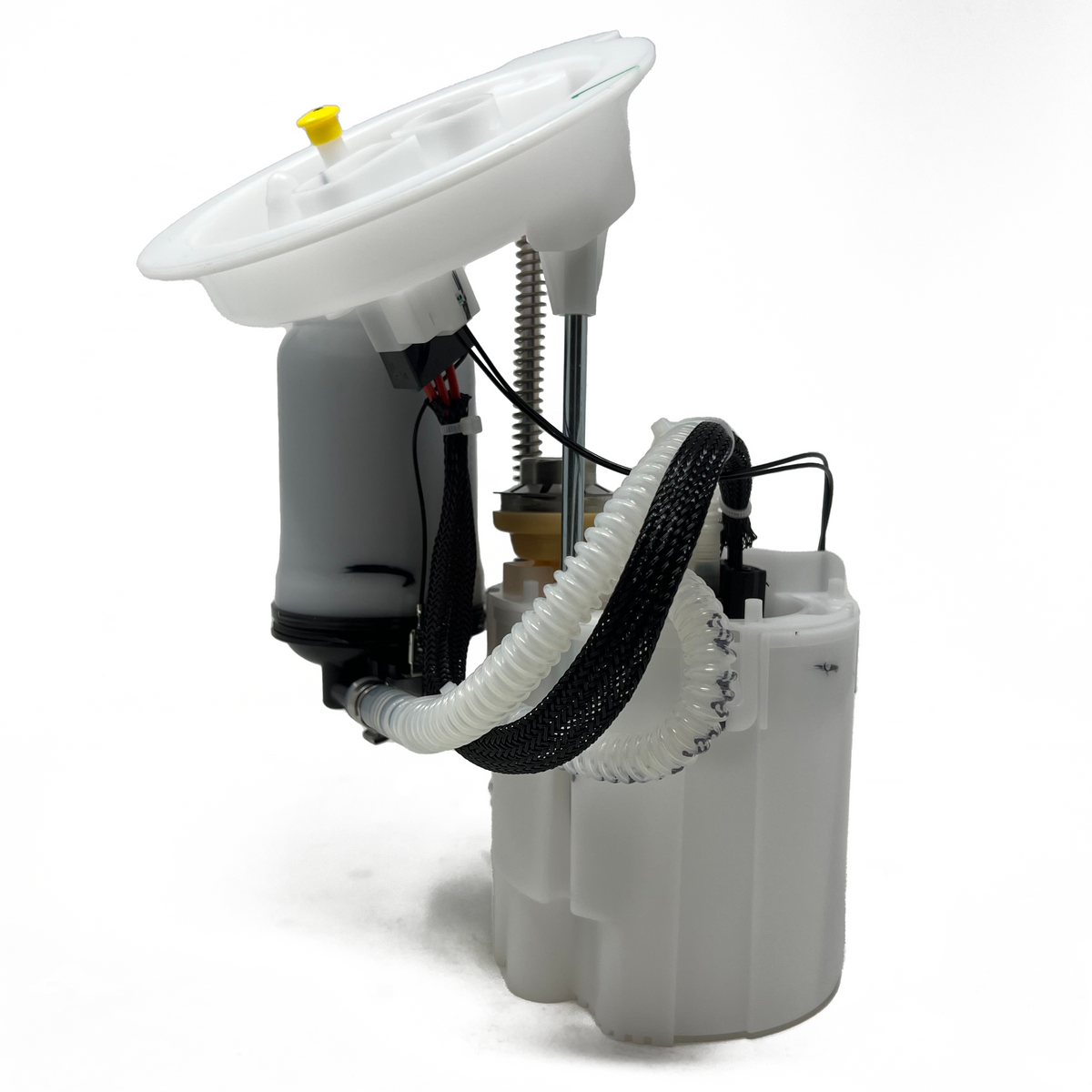

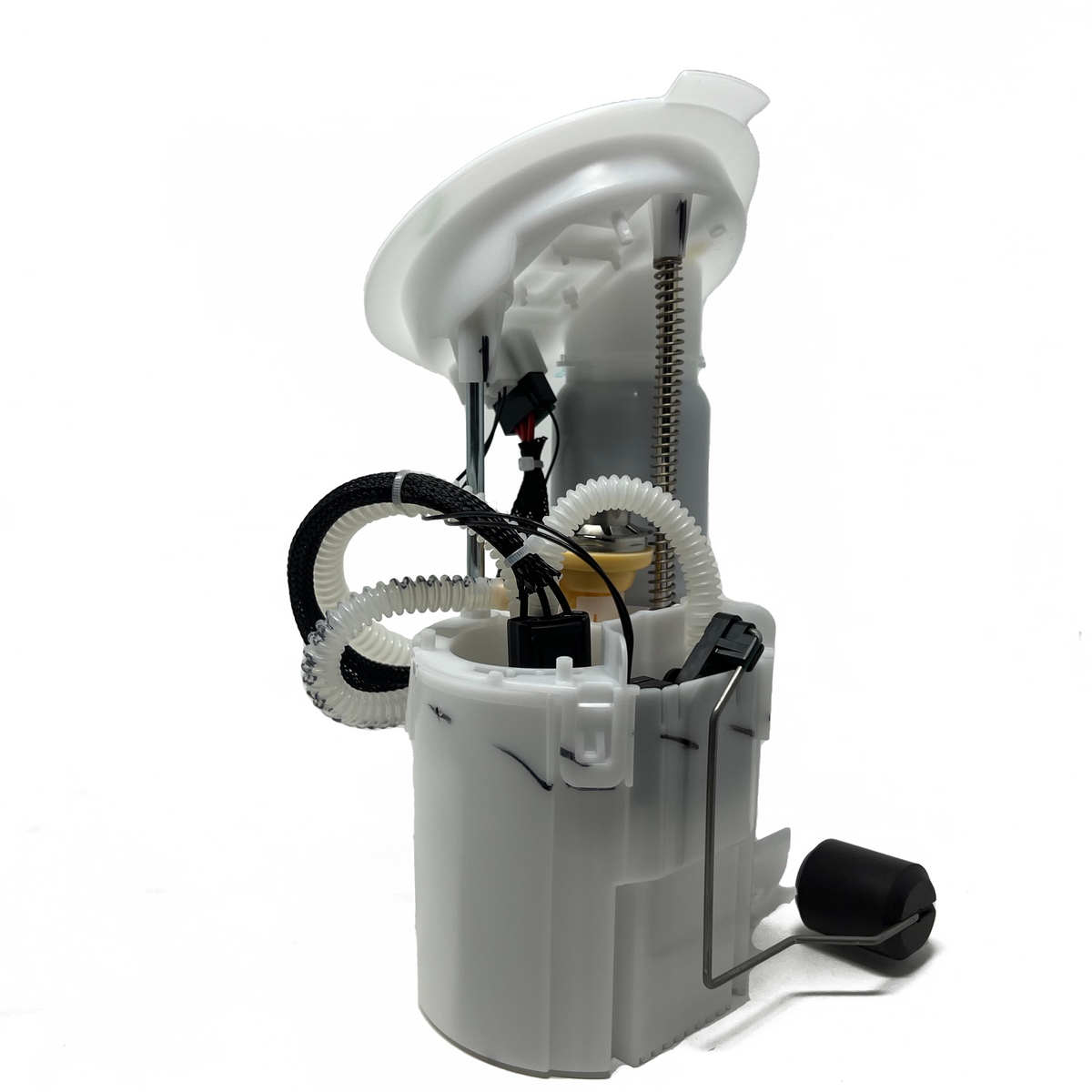

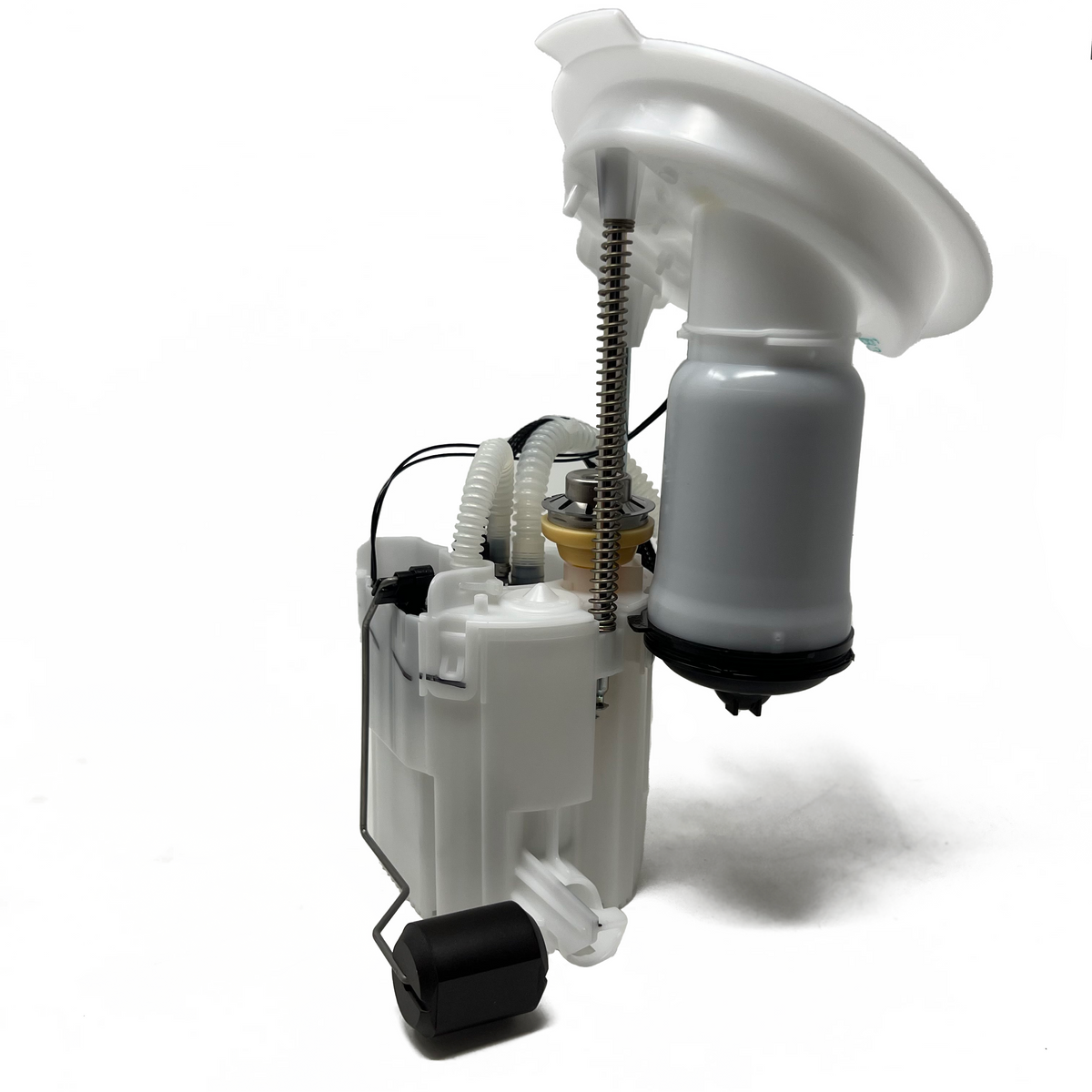

• The Stage 3 Brushless option (601-0232, upgraded in-bucket brushless pump, 4.9 LPM, 900 whp, uses factory connections) is available to order — contact us for pricing.
• Stage 4 and 4.5 use an adjustable regulator; set base fuel pressure per the guide above.
• Price is for the item selected only; labor is not included.
• Confirm your engine code before ordering.

PART NUMBER

• 601-0163 — Stage 3
• 601-0200 — Stage 4
• 601-0201 — Stage 4.5
• 601-0232 — Stage 3 Brushless (contact us for pricing)
