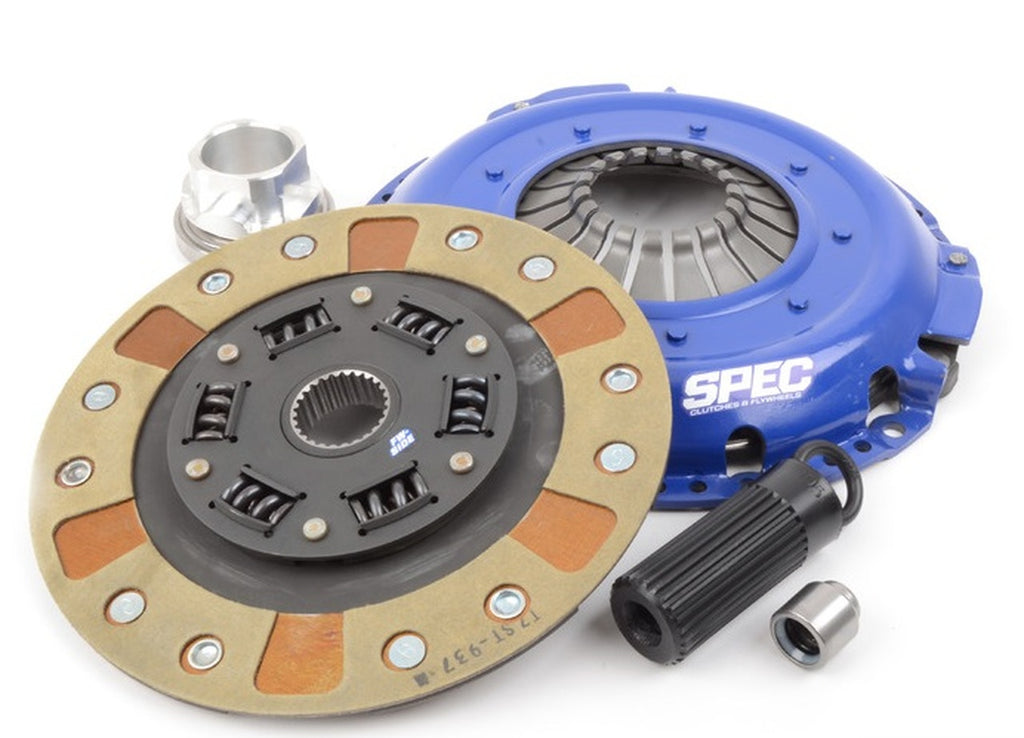

SPEC Single-Disc Clutch Kits – BMW N54 (E8x / E9x / E60)

OVERVIEW

The factory N54 clutch is rated for a stock engine, and a stage-2 tune walks straight past it. Once the clutch starts slipping in the upper gears there is nothing to adjust — the disc is done. SPEC's single-disc kits are the straightforward replacement: a direct-fit clutch with a real torque margin, in a range of stages so the disc material matches how the car is actually driven.

Two families are offered here. The ratcheting (SAC) kit uses the factory self-adjusting pressure plate design and works with either the OE dual-mass flywheel or a SPEC billet flywheel — the simplest swap, and the one to choose if the DMF is still healthy. The non-ratcheting kits use a conventional diaphragm pressure plate and require a SPEC billet single-mass flywheel; they carry higher torque numbers and give a much more consistent pedal, at the cost of some driveline noise.

Check your flywheel bolt pattern. SPEC lists these kits for N54 cars built both before and after the February 2009 flywheel change, and for the 2011–2013 335is. The non-ratcheting kits need the matching SPEC flywheel: SB53S-2 / SB53A-2 for 8-bolt cars built through 1/2009, or SB53S-3 / SB53A-3 for 6-bolt cars built from 2/2009 (contact us if unsure which you need).

SPECS

• SB531 — Stage 1, ratcheting / SAC design, works with the OE dual-mass flywheel or a SPEC billet flywheel
• SB531-2 — Stage 1, non-ratcheting, rated to 430 lb-ft
• SB533-2 — Stage 3, non-ratcheting, rated to 580 lb-ft
• SB533F-2 — Stage 3+, non-ratcheting, rated to 671 lb-ft
• Torque figures are SPEC's published ratings for the complete assembly

PARTS INCLUDED

• Pressure plate, friction disc, release bearing and alignment tool, as supplied by SPEC Clutch. Flywheel is not included.

TECH RESOURCES

Additional Parts Required

• A SPEC billet single-mass flywheel is required for the SB531-2, SB533-2 and SB533F-2 non-ratcheting kits — SPEC SB53S-2 Steel Single Mass Flywheel (Non-SAC) or SPEC SB53A-2 Aluminum Single Mass Flywheel (Non-SAC). For 6-bolt cars built from 2/2009 (and the 335is) use SPEC SB53S-3 Steel or SPEC SB53A-3 Aluminum (Non-SAC). These kits will not work with the OE dual-mass flywheel.
• The SB531 ratcheting kit runs on the OE dual-mass flywheel or a SPEC SAC billet flywheel — SPEC SB53S Steel (SAC) or SPEC SB53A Aluminum (SAC) for 8-bolt cars, or SPEC SB53S-4 Steel (SAC) / SPEC SB53A-4 Aluminum (SAC) for 6-bolt cars from 2/2009.
• Clutch slave and master cylinder — worth replacing while the transmission is out on any car of this age.
• Transmission fluid — the transmission has to come out, so plan on a fluid change.

Installation

• SPEC does not publish installation instructions or a fitting guide for its BMW clutch kits. Installation follows the standard BMW clutch replacement procedure for the chassis — contact Speed Logic if you need guidance on the job or a shop recommendation.
• Break-in matters: SPEC specifies a gentle break-in period on a new disc before the clutch is loaded hard.

Notes

• Check your production date before ordering. The flywheel bolt pattern changed with production date — 8-bolt through 1/2009 and 6-bolt from 2/2009 — so the SPEC flywheel you pair with these kits depends on build date. Confirm with Speed Logic if unsure.
• SPEC lists the 2011–2013 335is for all four part numbers on this listing; the non-ratcheting kits pair with the 6-bolt SB53S-3 / SB53A-3 flywheel.
• Higher-stage discs are progressively more aggressive; expect increased pedal effort, more noise and less forgiving engagement as the stage number goes up.
• Price is for the clutch kit only; flywheel, labor and fluids are not included.

PART NUMBER

• SB531
• SB531-2
• SB533-2
• SB533F-2
