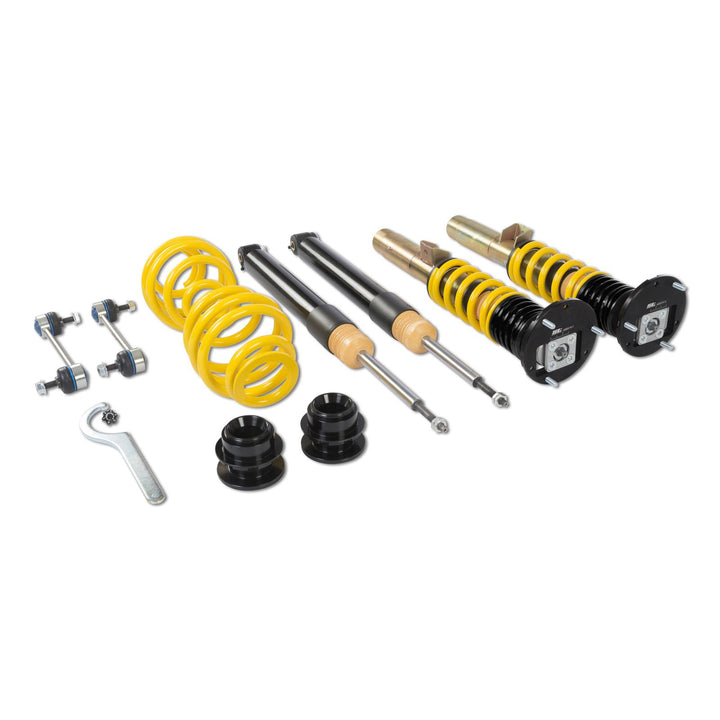

ST Suspensions TA Height Adjustable Coilovers – BMW M3 (E46)

OVERVIEW

The ST XTA coilover kit for the E46 M3 pairs height adjustment with rebound damping adjustment and adjustable top mounts, so the car can be set up for the road one weekend and the track the next.

ST is the value brand of KW Automotive. The XTA sits at the top of the ST coilover range: height adjustable, with 16 distinct clicks of rebound damping adjustment and aluminum unibal top mounts that also allow camber adjustment. The struts are galvanized zinc-coated steel and the spring perch is a composite polyamide item with a stainless steel insert. The kit ships factory-preset and includes a damper setup manual.

SPECS

• Damper family: ST XTA (height and rebound adjustable, adjustable top mounts)
• Front lowering range: 0.8 in to 1.6 in
• Rear lowering range: 0.8 in to 1.6 in
• Damping adjustment: rebound, 16 distinct clicks
• Top mounts: aluminum unibal, camber adjustable
• Strut material and finish: galvanized zinc-coated steel
• Spring perch: composite polyamide with stainless steel insert

PARTS INCLUDED

• Complete coilover kit as supplied by ST Suspensions; see the installation instructions included in the box for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• Four-wheel alignment. A full four-wheel alignment is mandatory after installation and after any subsequent ride-height change.
• Professional installation. Spring compressors and strut service tools are required.
• Check EDC compatibility. This is a passive coilover kit that replaces the OEM dampers. Confirm your car is not fitted with Electronic Damping Control before ordering.

Installation

• Vehicle-specific installation instructions are supplied in the box with the kit.
• A damper setup manual with ST's reference rebound settings is supplied with the kit.
• ST does not publish a public download link for this kit's instruction sheet. Contact Speed Logic if you need a copy before the kit arrives.

Notes

• Covers both the E46 M3 coupe and convertible.

PART NUMBER

• 18220823
