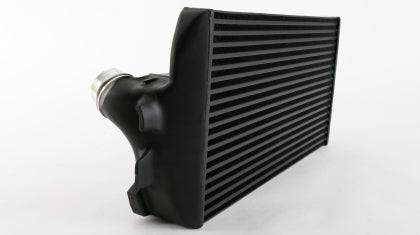

Wagner Tuning Competition Intercooler 200001069 – BMW 535i (F10)

OVERVIEW

This Wagner Tuning Competition intercooler replaces the OEM unit on the F07, F10 and F11 chassis with a substantially larger stepped core. Wagner's engineers increased both core size and efficiency and redesigned the end tanks to remove the OEM bottlenecks, which raises the flow rating and improves charge cooling at the same time.

The Competition core is built for high cooling performance at low weight and is paired with cast aluminum end tanks optimized by CAD. Flow analyses and simulations were used to refine the internal airflow, and the result is less pressure drop than the OEM intercooler along with markedly lower intake temperatures. Every unit carries an anti-corrosion protective coating chosen for its thermal conductivity, and the kit is a straight replacement for the factory intercooler with a 100% perfect fit.

SPECS

• Core dimensions: 570 mm x 302 mm x 100 mm, stepped
• Frontal area: 92% larger than the original intercooler
• Core volume: 97% greater than the original intercooler
• Core weight: 7.4 kg
• End tanks: cast aluminum, CAD-optimized
• Finish: anti-corrosion protective coating with high thermal dissipation
• Pressure drop: lower than the OEM intercooler
• Installation: 1:1 replacement for the OEM intercooler, ready to fit out of the box

PARTS INCLUDED

• 1 x intercooler, black
• 1 x set of mounting material
• 1 x installation instruction

TECH RESOURCES

Additional Parts Required

• None. Wagner Tuning specifies no additional hardware for this intercooler — it replaces the OEM unit using the supplied mounting material and the factory charge piping.
• Wagner supplies stainless steel brackets and hardware in the kit.

Installation

• Wagner Tuning 200001069 installation instructions (PDF)

Notes

• Wagner also lists this intercooler across the wider F01/F06/F07/F10/F11/F12 family. Confirm your exact chassis and engine with Speed Logic before ordering.

PART NUMBER

• 200001069
