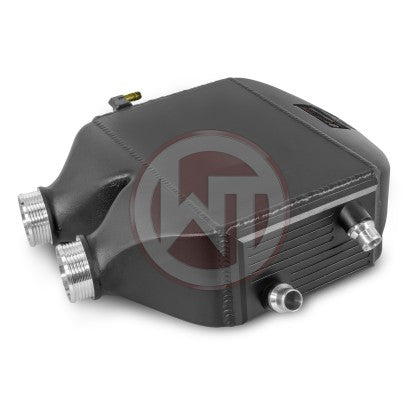

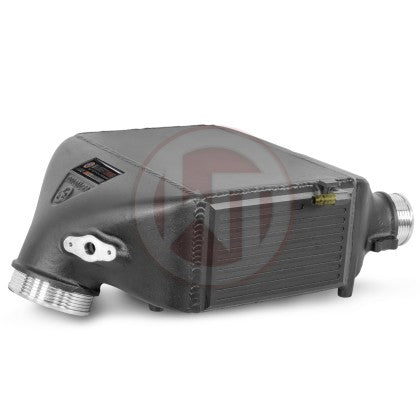

Wagner Tuning Competition Intercooler Kit 200001124 for 2015-2019 BMW M3 M4 F80 F82

THIS ITEM CAN ONLY BE USED IN A COMPETITION RACING VEHICLE THAT IS NOT DRIVEN ON PUBLIC ROADS. UNDER CALIFORNIA STATE LAW IT IS NOT LEGAL FOR USE IN ANY OTHER MOTOR VEHICLE!

OVERVIEW

The 3.0 litre S55B30 turbo engine in the BMW M3 and M4 uses an indirect charge-air cooling circuit, so the charge air is cooled by a water-cooled intercooler. This WagnerTuning high-performance unit replaces that intercooler.

The kit uses a new tube-fin competition core developed specifically for the demands of the M3 and M4, offering 114% more external core volume than the stock intercooler. The calculated ratio between inner and outer cooling surface generates maximum heat transfer while preserving the best possible internal air flow. The cast aluminium end tanks were designed in CAD and optimised through CFD simulation, giving excellent cooling with minimal back pressure — which is why the kit suits racing use as well as fast road driving.

All WagnerTuning radiators carry a heat-conductive anti-corrosion coating to ensure a lasting cooling effect. Installation is plug and play and straightforward, and instructions are included in the box.

SPECS

• Core type: tube-fin competition core
• Wagner core dimensions: 287 mm x 185 mm x 115 mm (11.3 in x 7.3 in x 4.5 in)
• Wagner core volume: 6.10 litres
• Stock core dimensions: 276 mm x 136 mm x 76 mm (10.9 in x 5.3 in x 3.0 in)
• Stock core volume: 2.85 litres
• External core volume: 114% greater than stock
• Weight: 9.5 kg
• End tanks: cast aluminium, CAD-designed and CFD-optimised
• Coating: heat-conductive anti-corrosion coating
• Significantly better cooling performance and less pressure drop than stock
• Mechanical discharge of the turbocharger; more power and torque
• 100% pressure resistance; 100% plug and play
• Warranty: up to 4 years

PARTS INCLUDED

• 1 x WagnerTuning Competition intercooler
• 1 x set of mounting material
• 1 x parts certificate (TGA) with installation instructions

TECH RESOURCES

Required Extras

• None. Wagner Tuning specifies no additional hardware — the kit is a 1:1 plug-and-play replacement for the OEM water-cooled intercooler.
• M2 Competition (F87) only: Wagner's instructions call for a minor adjustment inside the hood, made with a body saw, to clear the intake manifold area.
• The cooling system must be refilled to BMW's specification after installation.
• Wagner quotes an installation time of roughly 12 work units (about 60 minutes).

Installation

• Wagner Tuning 200001124 installation instructions (PDF)

PART NUMBER

• 200001124
• Intercooler core component number: 001001089

VEHICLE APPLICATIONS

Wagner Tuning also catalogues this kit for the M2 Competition (F87); that fitment requires the hood modification noted above. Confirm your chassis with Speed Logic before ordering.
