Bootmod3 FlexFuel Kit High-Flow – BMW G-Series (S58)

OVERVIEW

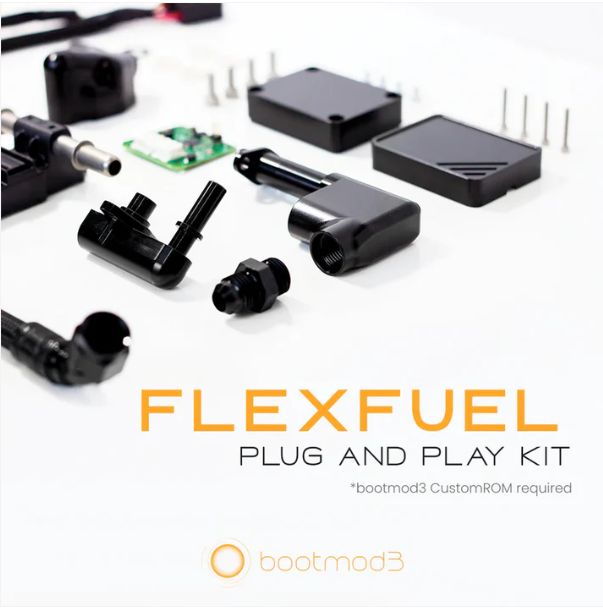

The bootmod3 FlexFuel Kit – High Flow puts the required flex fuel hardware on your BMW or A9X Supra with minimal effort, in your own driveway. The kit is entirely plug and play with the factory vehicle harness — no cutting or splicing of OEM wiring or connectors — and it can be removed again without a trace on the car.

Bootmod3 designed the Flow Optimized Flex Fuel Sensor Adapter (FFSA) in SolidWorks so that fuel flow stays unobstructed with no added pressure drop at full fuel pump flow, which matters when the factory fuel system is being pushed with the power ethanol can provide over gasoline. The sensor housing is shaped to install neatly into the factory BMW fuel hat location, and it carries two 1/8 NPT ports so an auxiliary fuel pressure sensor can be added on vehicles that do not have one from the factory. Depending on fitment, either port can be used.

Install the kit, flash a flex-fuel-enabled bootmod3 OTS MultiMap or custom map, and you no longer have to think about the alcohol/gasoline blend percentage in the tank.

SPECS

• Mounting: factory fuel hat area, below the rear seat
• Installation: minutes at home, rather than hours on a lift fabricating fuel lines and pinning into OEM electrical
• Bootmod3 states a 4+ hour time/cost saving compared with kits that require custom fuel lines, fittings and wiring
• Fully reversible and removable back to stock without a trace
• Flex fuel sensor adapter: custom 3-piece aluminum 6061 with built-in sensor bypass for obstruction-free fuel flow
• Sealing: all connecting points sealed with fuel-safe Viton o-rings
• Auxiliary ports: two 1/8 NPT ports for an optional fuel pressure sensor, supporting bootmod3 CustomROM v2
• Ethanol Content Analyzer: CANBUS enabled, integrates with bootmod3 CustomROM
• ECA enclosure: custom aluminum 6061
• Electrical: Power/CANBus 4-wire plug-and-play harness
• Harness fitment — 100% plug and play to the BMW Fuel Controller connectors (EKP3) on S55 and N55 vehicles
• Harness fitment — 100% plug and play to the BMW Body Domain Controller (BDC/FEM) connector on Gen1 F-series B48/B58 vehicles
• Fuel line: custom kink-free teflon braided line, plug and play with the OEM fuel hat and factory 5/16" or 3/8" fuel feed line — no cutting and no new lines required
• Fitting: -6 AN fitting by Racetronix
• Enables bootmod3 flex fuel OTS MultiMaps and custom tunes from your bootmod3 tuner of choice

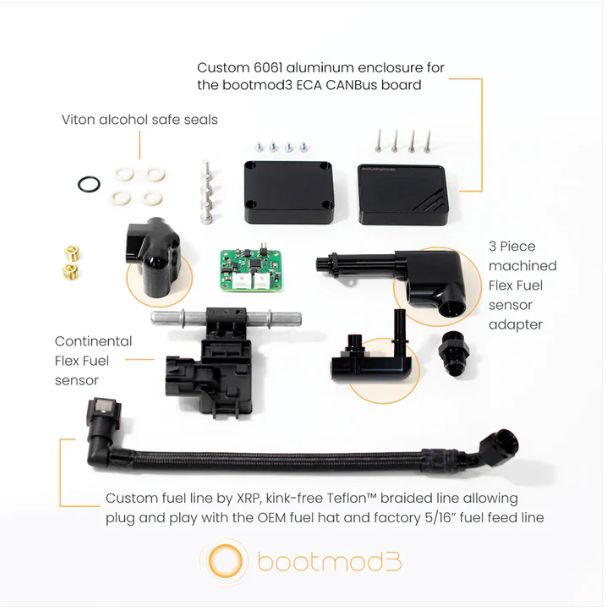

PARTS INCLUDED

• Custom 3-piece aluminum 6061 flex fuel sensor adapter with built-in sensor bypass
• Viton o-rings at all connecting points
• CANBUS-enabled Ethanol Content Analyzer (ECA) board
• Custom aluminum 6061 CANBus enclosure for the ECA board
• Power/CANBus 4-wire plug-and-play harness
• Continental flex fuel sensor with 3-wire harness
• Custom kink-free teflon braided fuel line
• -6 AN fitting by Racetronix

TECH RESOURCES

Additional Parts Required

• Bootmod3 license for the S58 engine — required. The ECA reports ethanol content to bootmod3 CustomROM; without an active bootmod3 license on the vehicle the kit has nothing to talk to.
• A flex-fuel-enabled bootmod3 OTS MultiMap or a custom map from a bootmod3 tuner — required to actually use the ethanol reading. Custom tune fees are charged by the tuner.
• E85 or an ethanol/gasoline blend — the kit measures blend content; it does not add fuel system capacity.
• Optional: an auxiliary fuel pressure sensor, if your vehicle did not come with one from the factory and you want bootmod3 CustomROM v2 fuel pressure support. The adapter provides the 1/8 NPT ports; the sensor is not included.
• Rear seat removal and basic hand tools for access to the factory fuel hat, supplied by the installer.

Installation

• bootmod3 Flex Fuel Kit Installation Instructions — official bootmod3 wiki (F-Series S55/N55, F-Series B48/B58 fuel hat, and G-Series install videos)
• bootmod3 v3.0 User Manual — flex fuel and hardware setup within the app
• Bootmod3 does not publish a printable installation PDF for this kit; the manufacturer wiki page above is the current documentation and hosts the install videos.

Notes

• Bootmod3 does not publish an official part number for this kit, so no part number is listed. The original listing carried no model-by-model fitment data, so the row above reflects the application named in the product title only — please confirm fitment for your exact chassis with Speed Logic before ordering. Bootmod3 supplies this kit family with harness options for S55/N55, Gen1 F-series B48/B58, S58 and A9X Supra vehicles; the correct chassis-specific version must be ordered.
