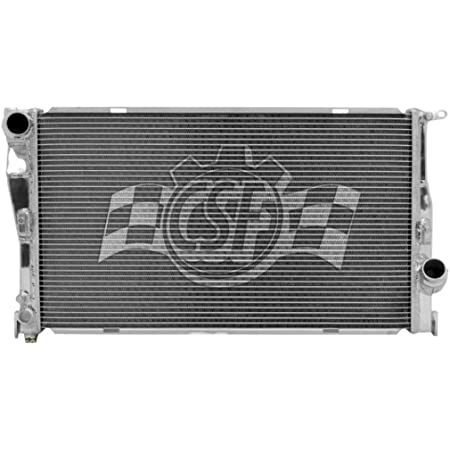

CSF High-Performance Radiator – BMW 135i / 1M / 335i / Z4 sDrive35i (E-Chassis, N54)

OVERVIEW

CSF's all-aluminum high-performance radiator for the N54-powered E8X/E9X/E89 BMW replaces the factory plastic-tank radiator with a 2-row, 42mm dual core built around CSF's exclusive B-Tube technology. The core carries an ultra-efficient multi-louvered fin with a 6.5mm fin height for maximum surface area contact.

Every connection point is engineered for the platform: CNC-machined "quick-connect" inlet and outlet fittings, CNC-machined brackets for fit and durability, and an all-aluminum race-style drain plug in place of the fragile factory item. The radiator is finished in a smooth satin finish.

Fitment is a true "drop-in": the radiator accepts every attaching OEM component, including the quick-connect hoses, the A/C condenser, the mounting brackets and the fan shroud, so no modification is required to install it.

SPECS

• 2-row, 42mm dual core featuring CSF's exclusive B-Tube technology
• Ultra-efficient multi-louvered fin with 6.5mm fin height
• Seam-brazed B-Tube construction
• CNC-machined "quick-connect" inlet and outlet connections
• CNC-machined brackets and fittings
• All-aluminum race-style drain plug
• All-aluminum construction
• Smooth satin finish
• "Drop-in fit" — accepts all attaching OEM components including quick-connect hoses, A/C condenser, mounting brackets and fan shroud
• OEM cross-reference: BMW 17117558480 (#7045, manual) / BMW 17117547059 and superseding 17117788903 (#7046, automatic/DCT)
• 2-year limited warranty

PARTS INCLUDED

• CSF all-aluminum high-performance radiator
• CNC-machined brackets and quick-connect fittings
• All-aluminum race-style drain plug

TECH RESOURCES

Additional Parts Required

• #7046 (automatic/DCT) only — cars currently fitted with BMW's superseding radiator 17117788903: that OEM radiator has no lower right-hand port, but the CSF #7046 does, and capping the port can starve the transmission cooler circuit of coolant. CSF specifies reconnecting it with BMW hose 17127548203, fitting 17117548104 and O-ring 17111711987 (OEM BMW parts; not stocked by Speed Logic).
• Otherwise CSF specifies no additional hardware — the radiator accepts every attaching OEM component and requires no modification to install.
• Coolant for refilling and bleeding the cooling system after installation (installer supplied).

Installation

• CSF does not publish a downloadable installation PDF for this part. Printed installation instructions are supplied in the box.
• Installation requires no modification; the radiator reuses the OEM quick-connect hoses, A/C condenser, mounting brackets and fan shroud.

Notes

• Two versions available — select the correct part for your transmission: CSF #7045 for manual transmission cars, CSF #7046 for automatic and dual-clutch (DCT) cars. The 1M was built with a manual transmission only (#7045).
• This listing covers N54-engine cars. For N55-engine 135i/135is/335i, see the CSF High-Performance Radiator – BMW N55 (E-Chassis).
• CSF lists the 3-Series application as "E9X 335i" and does not separately list xDrive (335xi / 335i xDrive) cars — confirm xDrive fitment and your transmission type with Speed Logic before ordering.

PART NUMBER

• 7045 — manual transmission (MT) applications
• 7046 — automatic and dual-clutch (AT/DCT) applications
