OVERVIEW

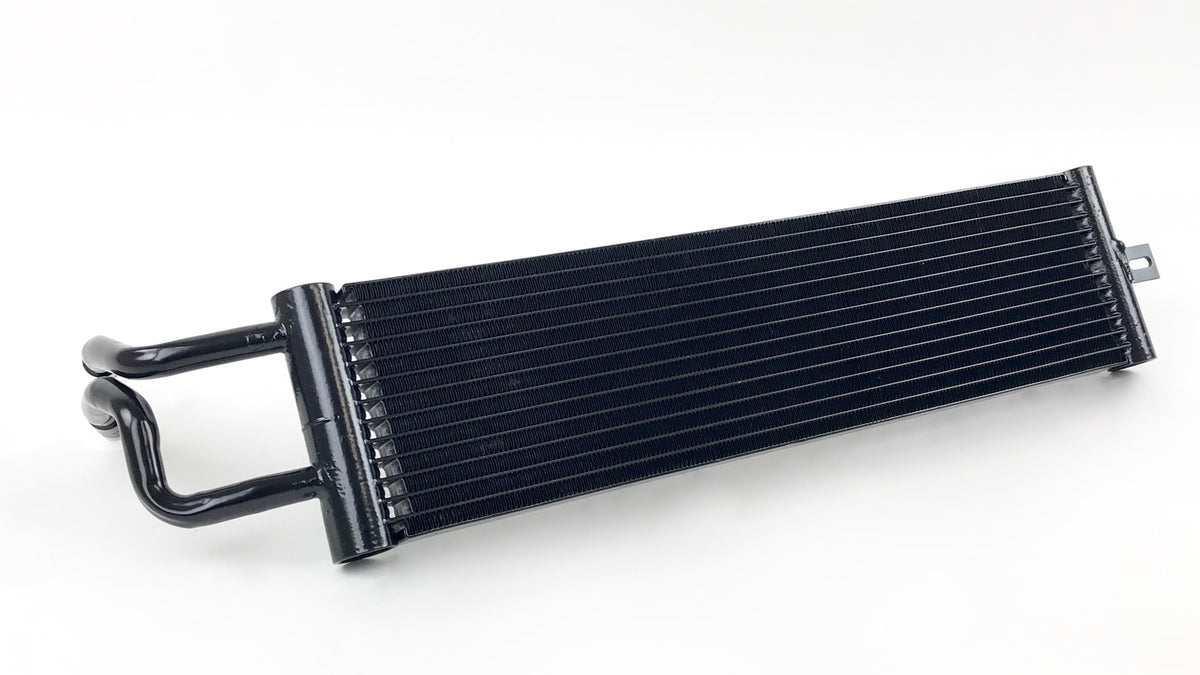

CSF’s Race-Spec Dual-Pass DCT Cooler is the first true plug-and-play upgraded DCT oil cooler built for the BMW N55 engine in the F87 M2. It borrows CSF’s AC condenser technology, using a 1-row super-high-pressure 26mm multi-channel microtube in place of the OEM tube-and-fin design, so oil sees far more surface area on its way through the core.
Where the factory cooler runs a single pass with a return pipe over six cooling tubes, the CSF unit is a dual-pass core with ten cooling tubes and a high-density multi-louvered fin. CSF’s lab testing puts it at roughly 30% more efficient than the OEM cooler. It is a drop-in fit that accepts every attaching OEM component — oil-line connections, mounting brackets and the shroud/ducting all carry over.
SPECS
- Dual-pass high-performance core with 10 cooling tubes, versus the OEM single-pass, return-pipe 6-tube design
- Built with CSF’s AC condenser technology using a 1-row super-high-pressure 26mm multi-channel microtube
- High-density multi-louvered fin design
- Lab tested at approximately 30% more efficient than the OEM cooler
- “Drop-in fit” requiring no modifications — accepts all attaching OEM components including oil-line connections, mounting brackets and shroud/ducting
- Replaces BMW OEM part number 17212409076
- 2-year limited warranty to the original purchaser under normal use and service
PARTS INCLUDED
- Complete kit as supplied by CSF Radiators; see the installation instructions supplied in the box for the full bill of materials.
TECH RESOURCES
Additional Parts Required
- None. CSF Radiators specifies no additional hardware for this part — it is a direct-fit replacement that reuses the OEM oil-line connections, brackets and ducting.
- Installer-supplied: standard hand tools and a drain pan for the transmission fluid displaced during the swap.
Installation
- CSF does not publish a downloadable installation PDF for this part. Printed installation instructions are supplied in the box with the cooler.
- Professional installation is recommended. Contact Speed Logic if you need help confirming fitment or sourcing OEM service parts before you start.
Notes
- For DCT-equipped cars only. Fitment follows CSF’s published application for #8103: 2016–2018 F87 M2 (N55) with the DCT transmission.
- Does not fit the S55-powered M2 Competition or M2 CS. Confirm fitment with Speed Logic before ordering.
PART NUMBER
- 8103
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| BMW | M2 | F87 | N55 3.0L Turbo I6 | 2016–2018 |
